6 net core network Petri Naukkarinen 22 2

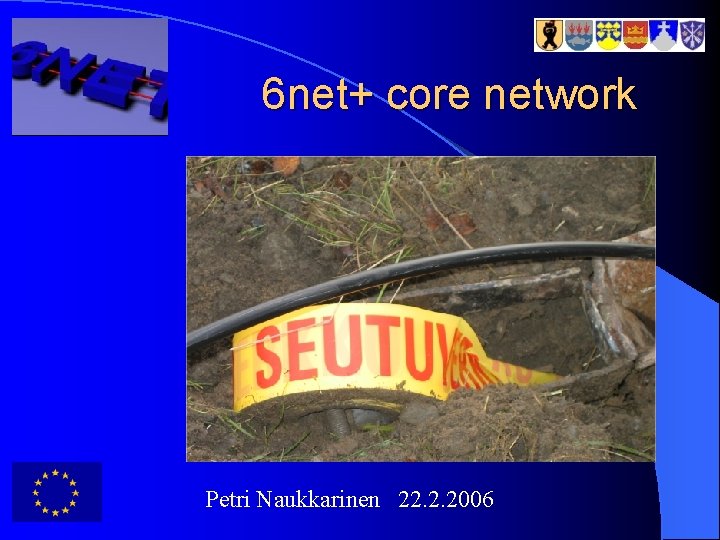

6 net+ core network Petri Naukkarinen 22. 2. 2006

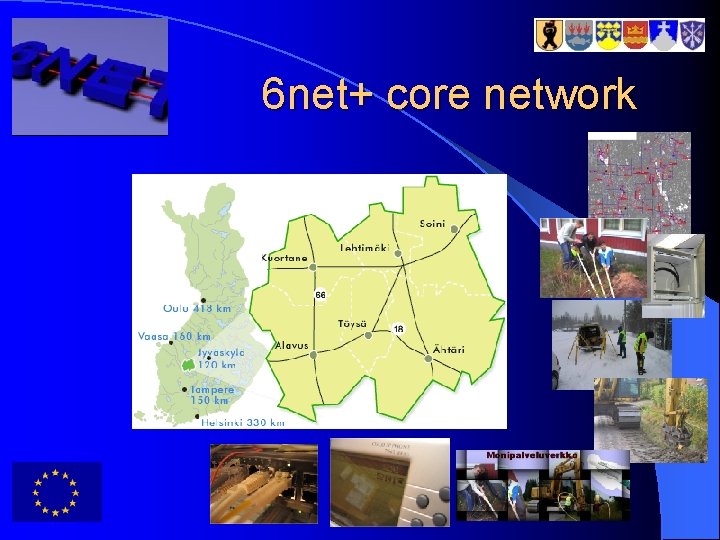

6 net+ core network

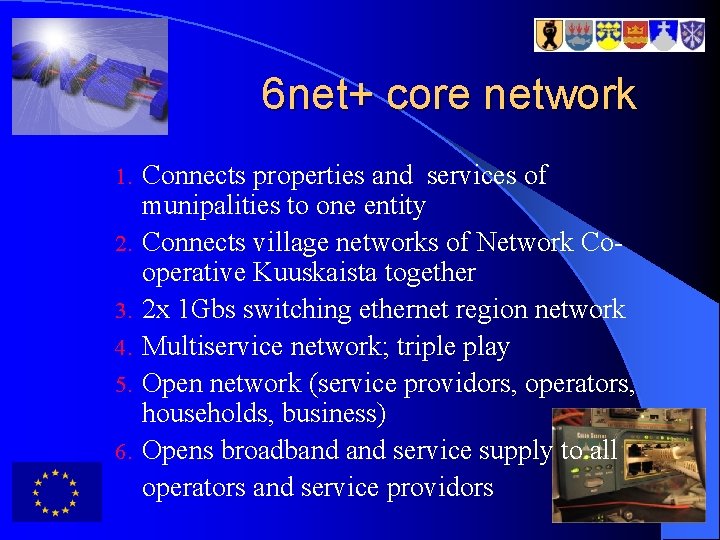

6 net+ core network 1. 2. 3. 4. 5. 6. Connects properties and services of munipalities to one entity Connects village networks of Network Cooperative Kuuskaista together 2 x 1 Gbs switching ethernet region network Multiservice network; triple play Open network (service providors, operators, households, business) Opens broadband service supply to all operators and service providors

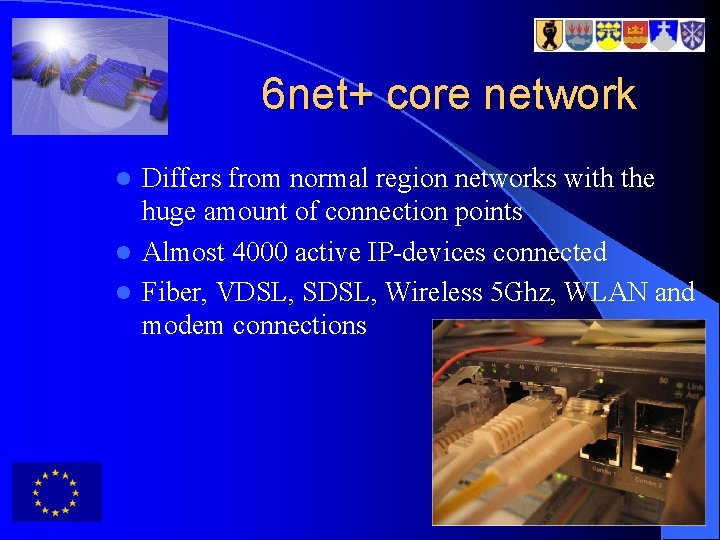

6 net+ core network Differs from normal region networks with the huge amount of connection points l Almost 4000 active IP-devices connected l Fiber, VDSL, SDSL, Wireless 5 Ghz, WLAN and modem connections l

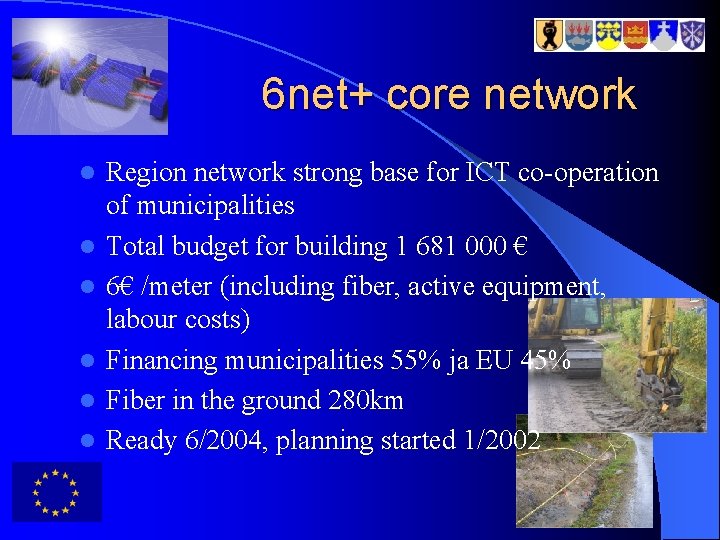

6 net+ core network l l l Region network strong base for ICT co-operation of municipalities Total budget for building 1 681 000 € 6€ /meter (including fiber, active equipment, labour costs) Financing municipalities 55% ja EU 45% Fiber in the ground 280 km Ready 6/2004, planning started 1/2002

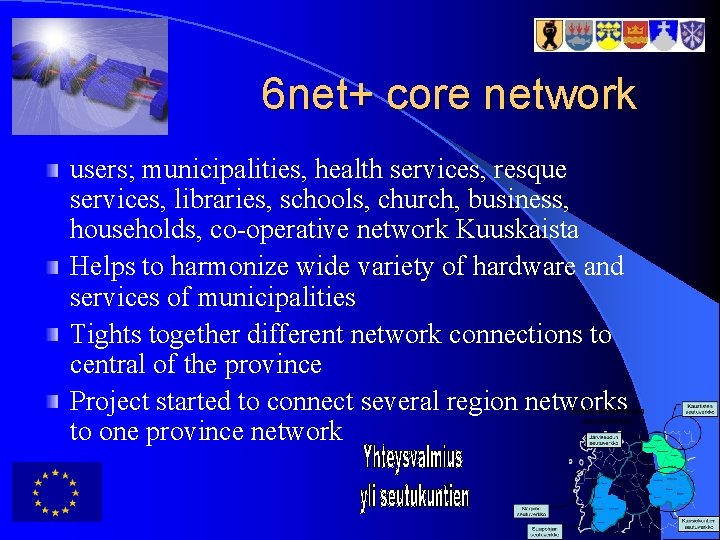

6 net+ core network users; municipalities, health services, resque services, libraries, schools, church, business, households, co-operative network Kuuskaista Helps to harmonize wide variety of hardware and services of municipalities Tights together different network connections to central of the province Project started to connect several region networks to one province network

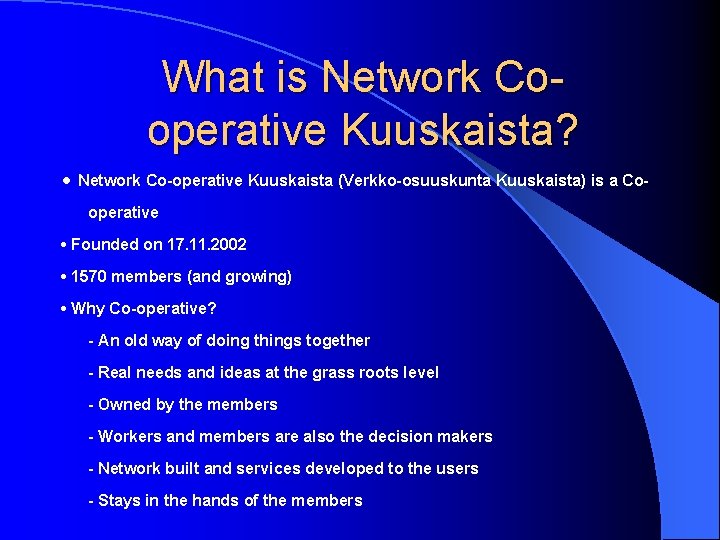

What is Network Cooperative Kuuskaista? • Network Co-operative Kuuskaista (Verkko-osuuskunta Kuuskaista) is a Cooperative • Founded on 17. 11. 2002 • 1570 members (and growing) • Why Co-operative? - An old way of doing things together - Real needs and ideas at the grass roots level - Owned by the members - Workers and members are also the decision makers - Network built and services developed to the users - Stays in the hands of the members

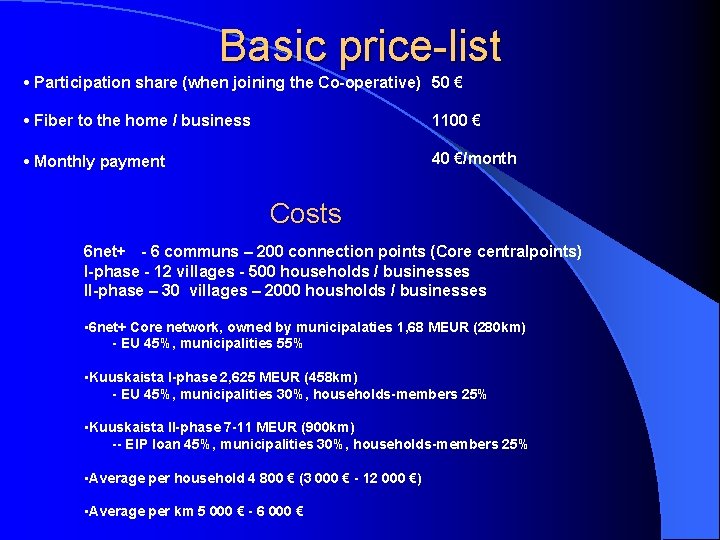

Basic price-list • Participation share (when joining the Co-operative) 50 € • Fiber to the home / business 1100 € • Monthly payment 40 €/month Costs 6 net+ - 6 communs – 200 connection points (Core centralpoints) I-phase - 12 villages - 500 households / businesses II-phase – 30 villages – 2000 housholds / businesses • 6 net+ Core network, owned by municipalaties 1, 68 MEUR (280 km) - EU 45%, municipalities 55% • Kuuskaista I-phase 2, 625 MEUR (458 km) - EU 45%, municipalities 30%, households-members 25% • Kuuskaista II-phase 7 -11 MEUR (900 km) -- EIP loan 45%, municipalities 30%, households-members 25% • Average per household 4 800 € (3 000 € - 12 000 €) • Average per km 5 000 € - 6 000 €

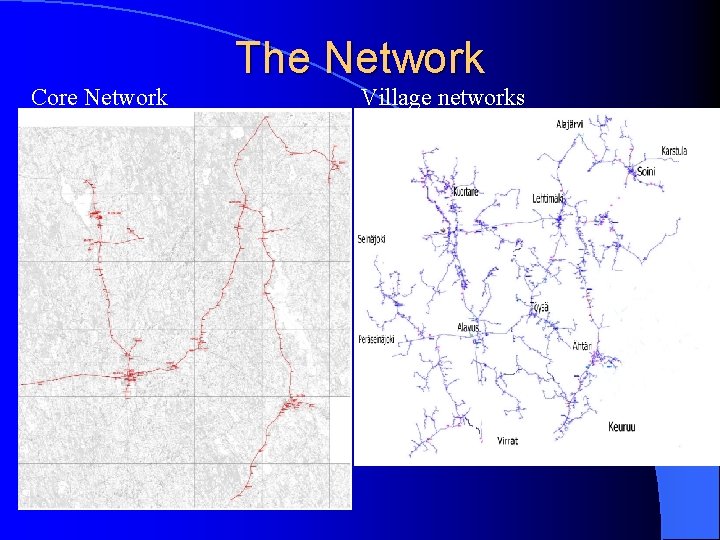

Core Network The Network Village networks

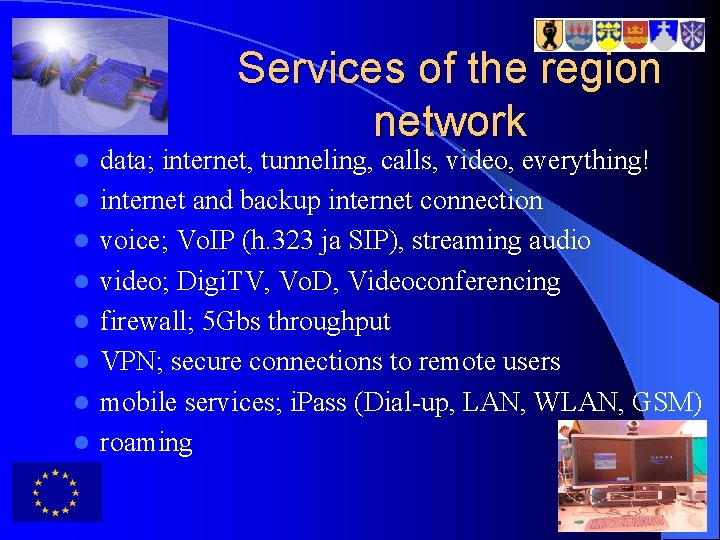

Services of the region network l l l l data; internet, tunneling, calls, video, everything! internet and backup internet connection voice; Vo. IP (h. 323 ja SIP), streaming audio video; Digi. TV, Vo. D, Videoconferencing firewall; 5 Gbs throughput VPN; secure connections to remote users mobile services; i. Pass (Dial-up, LAN, WLAN, GSM) roaming

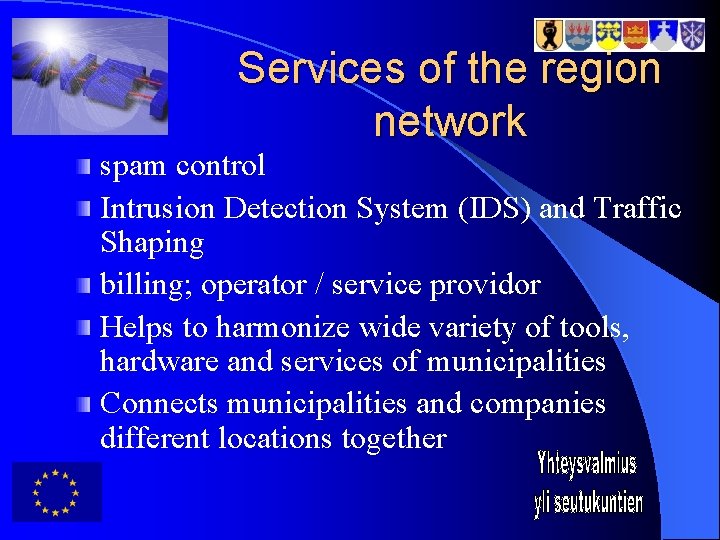

Services of the region network spam control Intrusion Detection System (IDS) and Traffic Shaping billing; operator / service providor Helps to harmonize wide variety of tools, hardware and services of municipalities Connects municipalities and companies different locations together

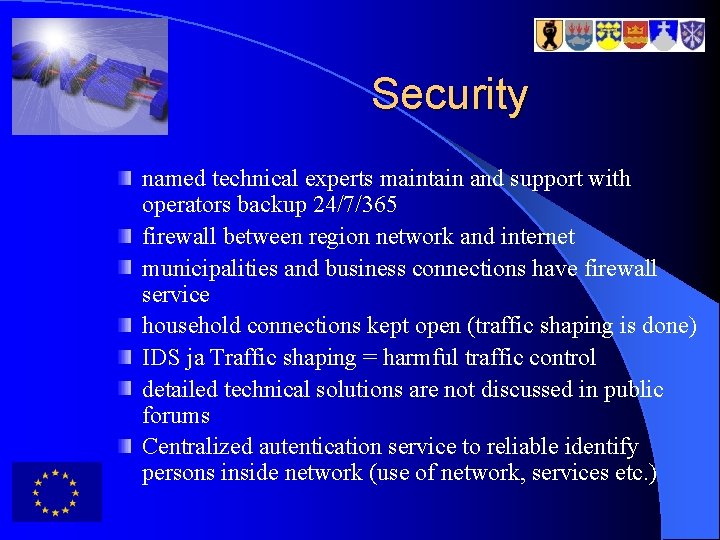

Security named technical experts maintain and support with operators backup 24/7/365 firewall between region network and internet municipalities and business connections have firewall service household connections kept open (traffic shaping is done) IDS ja Traffic shaping = harmful traffic control detailed technical solutions are not discussed in public forums Centralized autentication service to reliable identify persons inside network (use of network, services etc. )

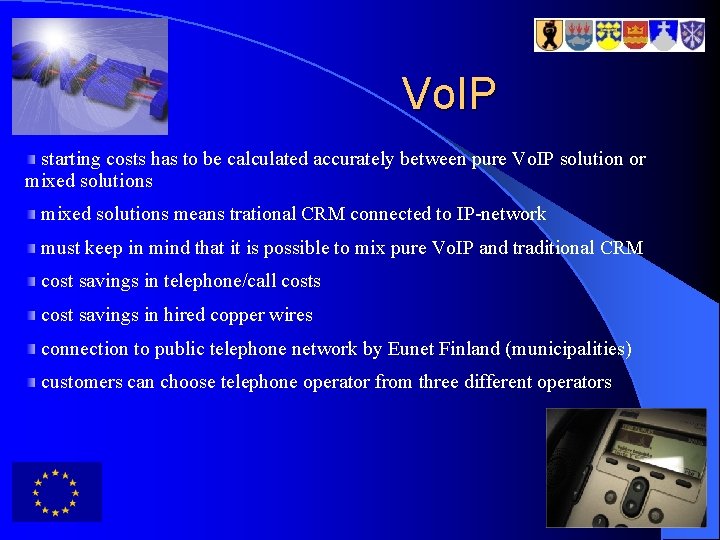

Vo. IP starting costs has to be calculated accurately between pure Vo. IP solution or mixed solutions means trational CRM connected to IP-network must keep in mind that it is possible to mix pure Vo. IP and traditional CRM cost savings in telephone/call costs cost savings in hired copper wires connection to public telephone network by Eunet Finland (municipalities) customers can choose telephone operator from three different operators

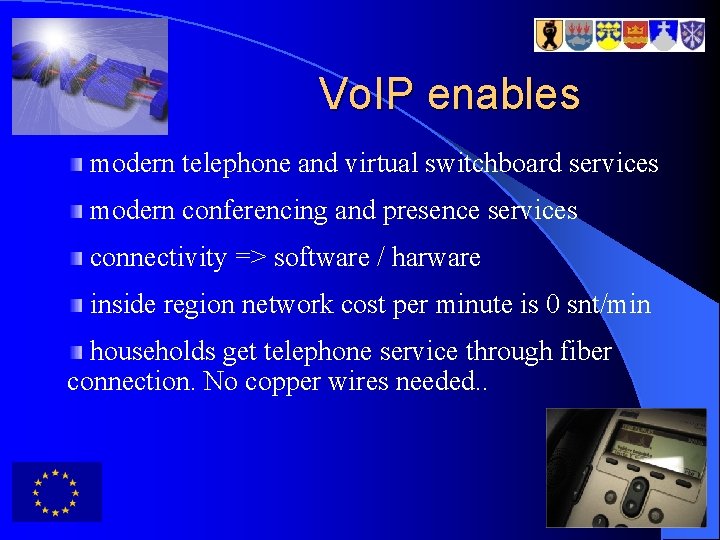

Vo. IP enables modern telephone and virtual switchboard services modern conferencing and presence services connectivity => software / harware inside region network cost per minute is 0 snt/min households get telephone service through fiber connection. No copper wires needed. .

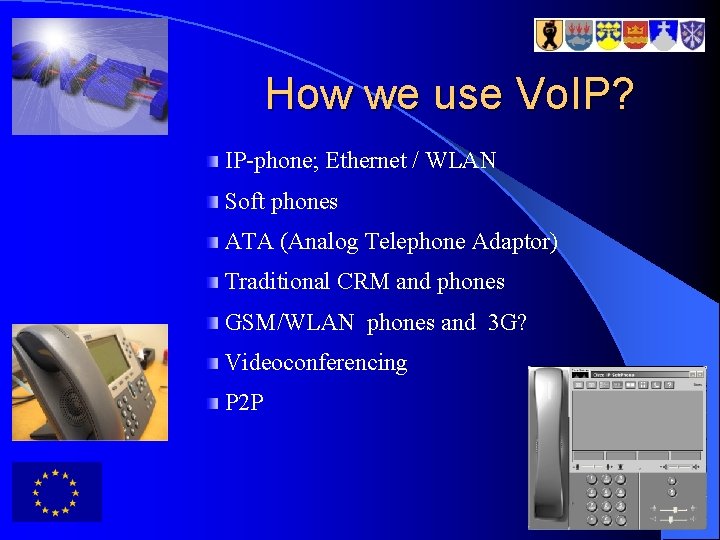

How we use Vo. IP? IP-phone; Ethernet / WLAN Soft phones ATA (Analog Telephone Adaptor) Traditional CRM and phones GSM/WLAN phones and 3 G? Videoconferencing P 2 P

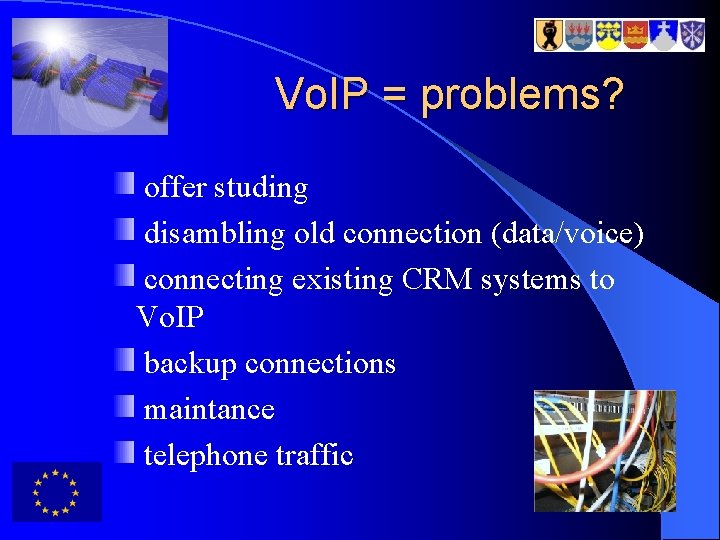

Vo. IP = problems? offer studing disambling old connection (data/voice) connecting existing CRM systems to Vo. IP backup connections maintance telephone traffic

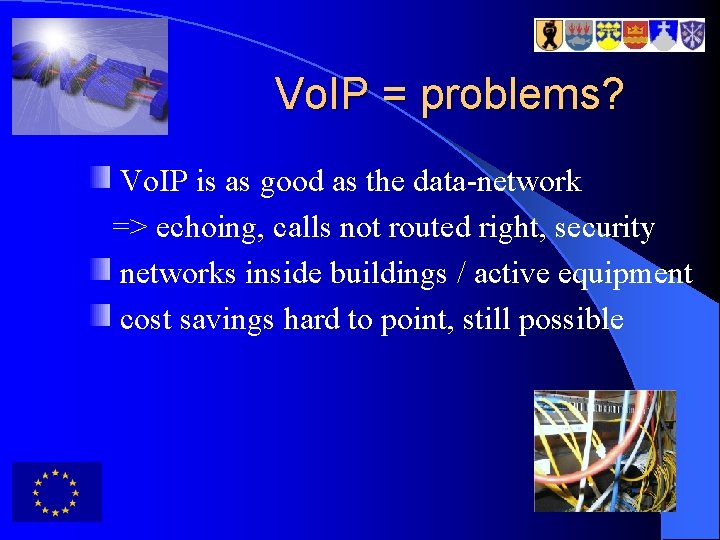

Vo. IP = problems? Vo. IP is as good as the data-network => echoing, calls not routed right, security networks inside buildings / active equipment cost savings hard to point, still possible

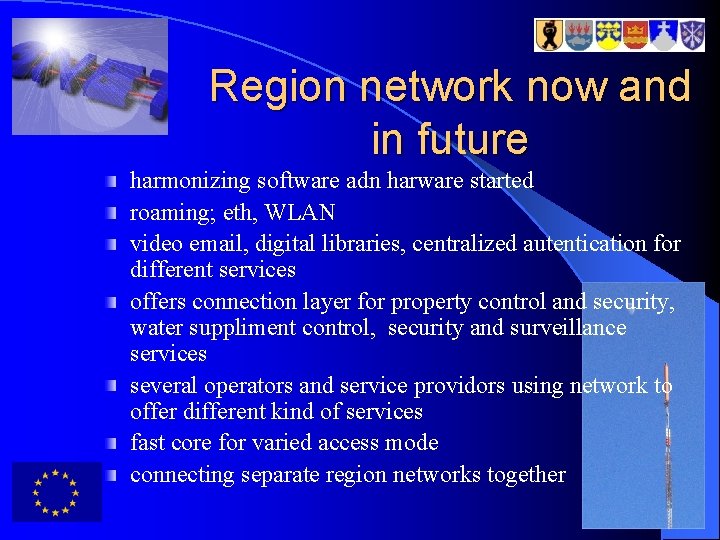

Region network now and in future harmonizing software adn harware started roaming; eth, WLAN video email, digital libraries, centralized autentication for different services offers connection layer for property control and security, water suppliment control, security and surveillance services several operators and service providors using network to offer different kind of services fast core for varied access mode connecting separate region networks together

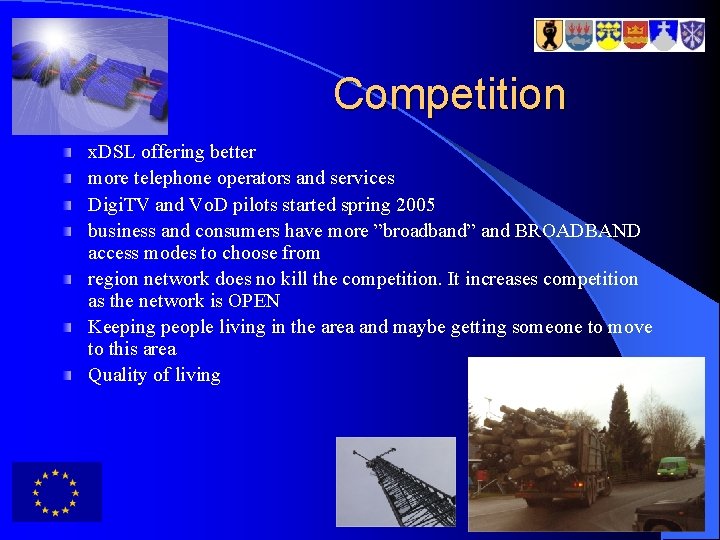

Competition x. DSL offering better more telephone operators and services Digi. TV and Vo. D pilots started spring 2005 business and consumers have more ”broadband” and BROADBAND access modes to choose from region network does no kill the competition. It increases competition as the network is OPEN Keeping people living in the area and maybe getting someone to move to this area Quality of living

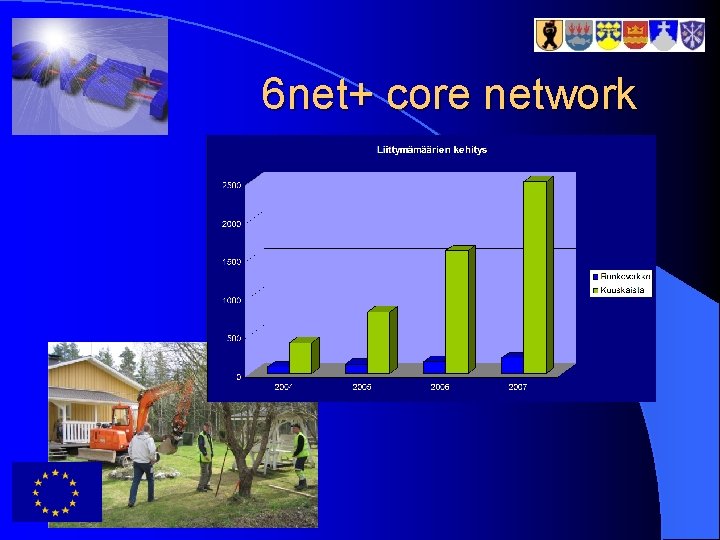

6 net+ core network

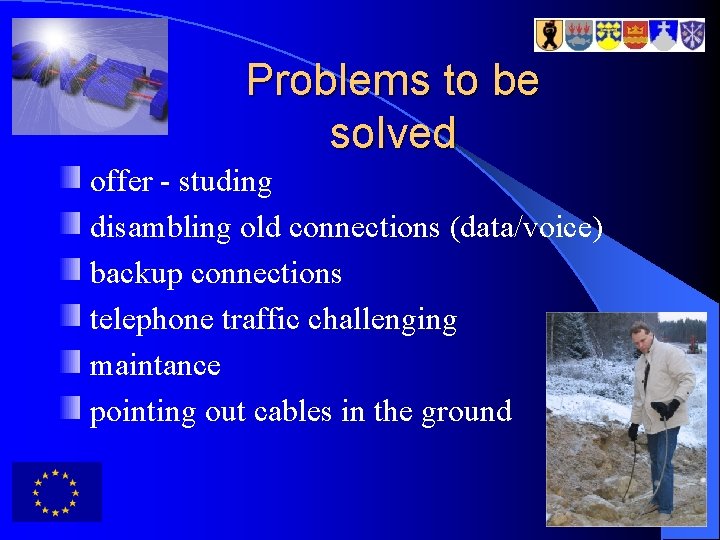

Problems to be solved offer - studing disambling old connections (data/voice) backup connections telephone traffic challenging maintance pointing out cables in the ground

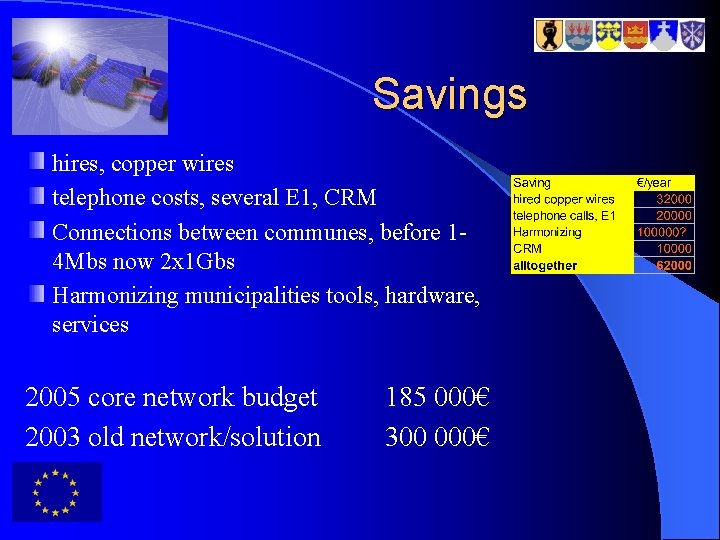

Savings hires, copper wires telephone costs, several E 1, CRM Connections between communes, before 14 Mbs now 2 x 1 Gbs Harmonizing municipalities tools, hardware, services 2005 core network budget 2003 old network/solution 185 000€ 300 000€

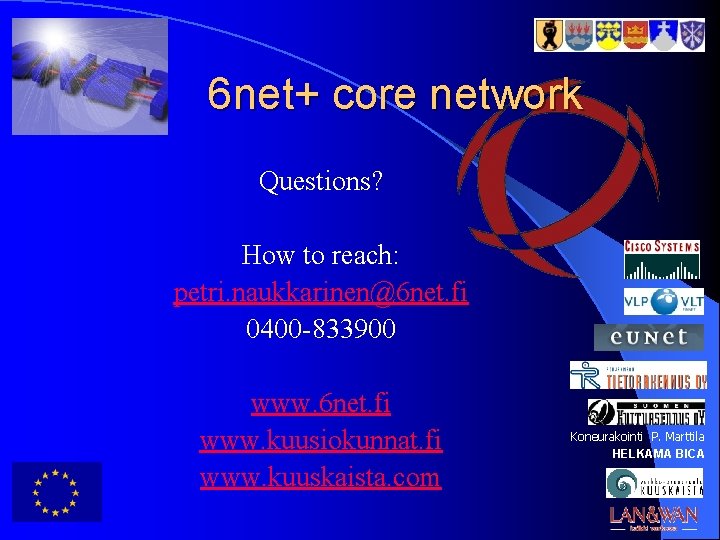

6 net+ core network Questions? How to reach: petri. naukkarinen@6 net. fi 0400 -833900 www. 6 net. fi www. kuusiokunnat. fi www. kuuskaista. com Koneurakointi P. Marttila HELKAMA BICA
