24 5 Weather Patterns A cold front moving

24. 5 Weather Patterns A cold front moving in brings stormy weather. The arrow shows the direction that the front is moving.

24. 5 Weather Patterns Air Masses How do air masses form? An air mass forms when a large body of air becomes fairly stationary over a region of Earth’s surface or as air moves over a large, uniform region like an ocean.

24. 5 Weather Patterns Air Masses An air mass is a large body of air that has fairly uniform physical properties, such as temperature and moisture content, at any given altitude.

24. 5 Weather Patterns Air Masses Air masses can cover large portions of continents. The air is strongly influenced by the properties of the region. • The air above the Gulf of Mexico contains more water vapor than the air above northwestern Canada. • Each type of air mass reflects the characteristics of the region where it formed.

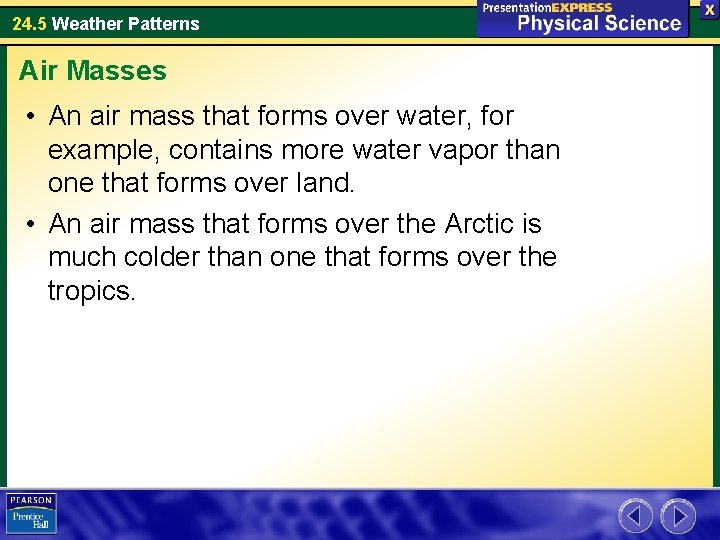

24. 5 Weather Patterns Air Masses • An air mass that forms over water, for example, contains more water vapor than one that forms over land. • An air mass that forms over the Arctic is much colder than one that forms over the tropics.

24. 5 Weather Patterns Air Masses Air masses are classified according to whether they form over water or land, and the latitude where they form. • A maritime air mass forms over water. • A continental air mass forms over land. • A polar air mass forms north of 50° north latitude or south of 50° south latitude. • A tropical air mass is an air mass that originates in the tropics.

24. 5 Weather Patterns Air Masses The air masses that most affect weather in North America include maritime polar air masses, continental polar air masses, maritime tropical air masses, and continental tropical air masses.

24. 5 Weather Patterns Air Masses Air masses that form in different regions affect North American weather.

24. 5 Weather Patterns Fronts What are the four types of fronts? There are four types of fronts: cold fronts, warm fronts, stationary fronts, and occluded fronts.

24. 5 Weather Patterns Fronts Air masses move with the circulation of air throughout the world. • As an air mass moves, it tends to retain the properties of the region where it formed. • When different air masses meet, they ordinarily don’t mix. Instead, a boundary forms between them. • The sharply defined boundary that forms when two unlike air masses meet is called a front.

24. 5 Weather Patterns Fronts For example, when a continental polar air mass moves southeast and collides with a maritime tropical air mass, a front forms between the two. Clouds and precipitation often accompany fronts.

24. 5 Weather Patterns Fronts Cold Fronts A cold front occurs when a cold air mass overtakes a warm air mass. • Cold air is denser than warm air, so the cold air mass remains close to the ground and moves underneath the warm air mass. • The cold air mass forces the warm air mass to rise. • Cold fronts usually move quickly and are relatively steep, so the warm air mass is often lifted rapidly.

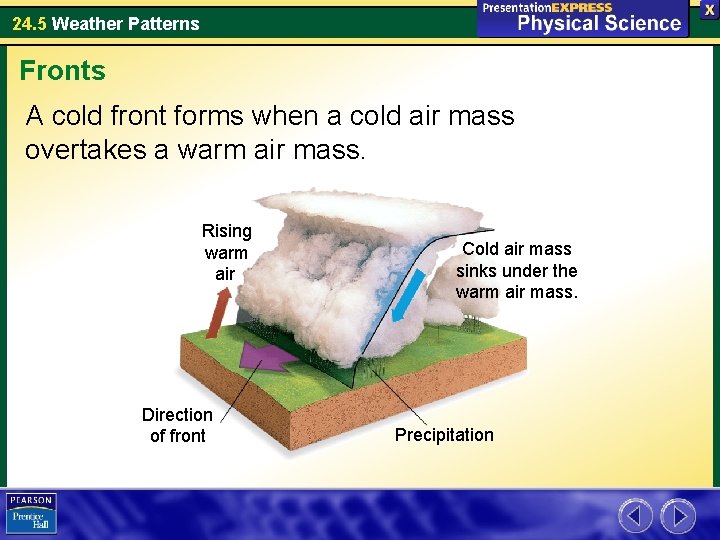

24. 5 Weather Patterns Fronts A cold front forms when a cold air mass overtakes a warm air mass. Rising warm air Direction of front Cold air mass sinks under the warm air mass. Precipitation

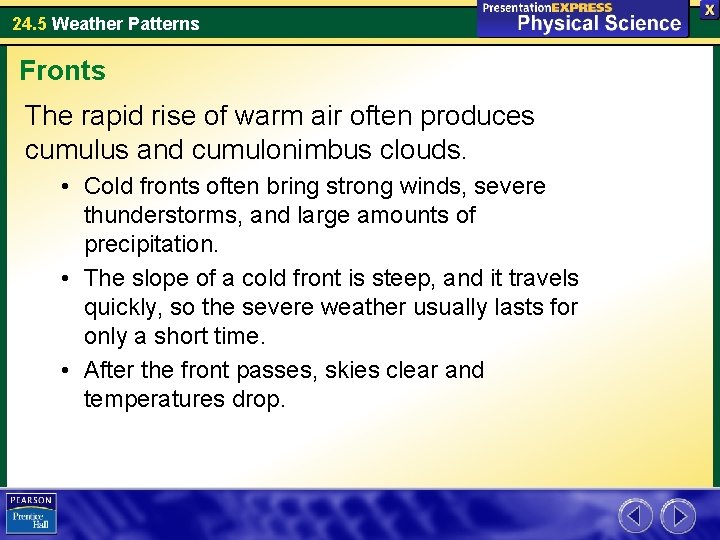

24. 5 Weather Patterns Fronts The rapid rise of warm air often produces cumulus and cumulonimbus clouds. • Cold fronts often bring strong winds, severe thunderstorms, and large amounts of precipitation. • The slope of a cold front is steep, and it travels quickly, so the severe weather usually lasts for only a short time. • After the front passes, skies clear and temperatures drop.

24. 5 Weather Patterns Fronts Warm Fronts A warm front occurs when a warm air mass overtakes a cold air mass. • The cold air is denser, so it remains close to the ground. • The advancing warm air mass rises up over the cold air mass. • A warm front has a gentle slope because the advancing warm air mass gradually moves up and over the cold air mass.

24. 5 Weather Patterns Fronts A warm front occurs when a warm air mass overtakes a cold air mass. Clouds form as rising moist, warm air condenses. Rising warm air Direction of front Cold air mass sinks under the warm air mass. Precipitation

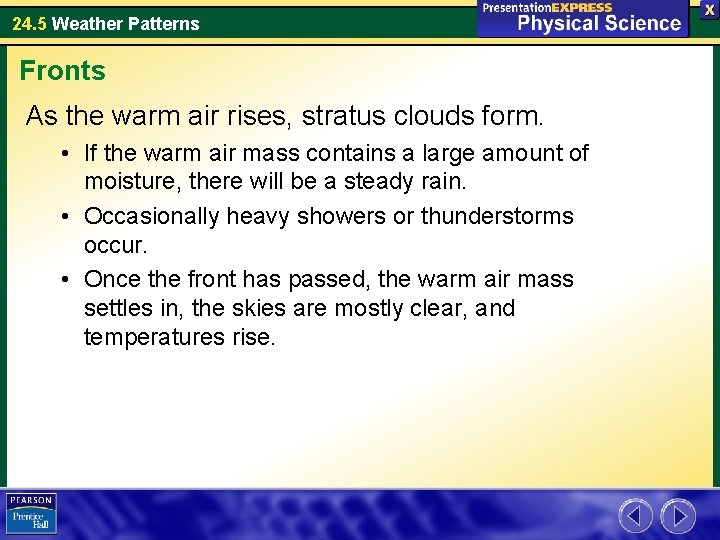

24. 5 Weather Patterns Fronts As the warm air rises, stratus clouds form. • If the warm air mass contains a large amount of moisture, there will be a steady rain. • Occasionally heavy showers or thunderstorms occur. • Once the front has passed, the warm air mass settles in, the skies are mostly clear, and temperatures rise.

24. 5 Weather Patterns Fronts Stationary Fronts Sometimes when two air masses converge, neither air mass overruns the other. • A front forms and either stays where it formed or moves slowly. • When two unlike air masses have formed a boundary but neither is moving, the front is called a stationary front. • Stationary fronts often result in clouds and steady rain or snow for several days.

24. 5 Weather Patterns Fronts Occluded Fronts An occluded front forms when a warm air mass is caught between two cooler air masses. • The colder air masses force the warm air mass to rise, trapping it between the two cold air masses. • Water vapor typically condenses from the warm air. • Occluded fronts usually bring cloudy skies and precipitation.

24. 5 Weather Patterns Low- and High-Pressure Systems What types of weather are associated with cyclones and anticyclones? Cyclones are associated with clouds, precipitation, and stormy weather. The weather associated with an anticyclone includes clear skies, very little precipitation, and generally calm conditions.

24. 5 Weather Patterns Low- and High-Pressure Systems Air masses are part of larger weather systems. Weather systems are organized around either a center of high air pressure or a center of low air pressure, and may include more than one type of air mass.

24. 5 Weather Patterns Low- and High-Pressure Systems Cyclones A weather system with a center of low air pressure is called a cyclone, or sometimes simply a low. • As the warm air at the center of a cyclone rises, pressure decreases. • Because air moves from high-pressure areas to lowpressure areas, air spirals in toward the center of a cyclone.

24. 5 Weather Patterns Low- and High-Pressure Systems • Clouds form and precipitation develops. • Because air is converging in a cyclone, air masses collide and fronts develop. • A cyclone generally moves in the direction of global winds, and the weather of the cyclone moves along with it. • Westerly winds typically cause fronts and storms to move across the United States from west to east.

24. 5 Weather Patterns Low- and High-Pressure Systems Winds and heavy rain are common in lowpressure areas, also called cyclones.

24. 5 Weather Patterns Low- and High-Pressure Systems Anticyclones A weather system with a swirling center of high air pressure is called an anticyclone, or sometimes simply a high. • Winds in an anticyclone circulate clockwise in the Northern Hemisphere. • Because the center of an anticyclone has high pressure, air flows away from that center.

24. 5 Weather Patterns Low- and High-Pressure Systems • As air flows away from the center, air from higher in the troposphere descends and replaces it. • When air descends, it warms, and its relative humidity decreases.

24. 5 Weather Patterns Low- and High-Pressure Systems A. In the Northern Hemisphere, winds in a cyclone blow counterclockwise and converge. B. In an anticyclone, winds blow clockwise and diverge.

24. 5 Weather Patterns Storms How do thunderstorms and tornadoes form? Thunderstorms form when columns of air rise within a cumulonimbus cloud. A tornado forms when a vertical cylinder of rotating air develops in a thunderstorm.

24. 5 Weather Patterns Storms Thunderstorms A thunderstorm is a small weather system that includes thunder and lightning. It is usually accompanied by strong winds and heavy rain or hail.

24. 5 Weather Patterns Storms When a cold front forms, the cold air mass quickly lifts the warm air mass up, and thunderstorms often result. Thunderstorms can also occur on hot summer days when buoyant air rises as part of a convection current within an air mass. If the rising air is cooled to the dew point and the convection is strong enough, a thunderstorm can result.

24. 5 Weather Patterns Storms Thunderstorms are associated with tall cumulonimbus clouds where there are strong updrafts of warm air.

24. 5 Weather Patterns Storms One striking feature of a thunderstorm is lightning, which is a sudden electrical discharge in the atmosphere. • Positive charges tend to develop near the top of a cumulonimbus cloud. • Negative charges tend to develop near the base of the cloud. • When the potential difference between the positive and negative charges becomes great enough, a discharge occurs.

24. 5 Weather Patterns Storms Thunder is the sound produced by rapidly expanding air along the path of a lightning discharge. When lightning occurs, the air around it is heated, expands explosively, and produces sound waves. You hear thunder after you see lightning because light travels much faster than sound.

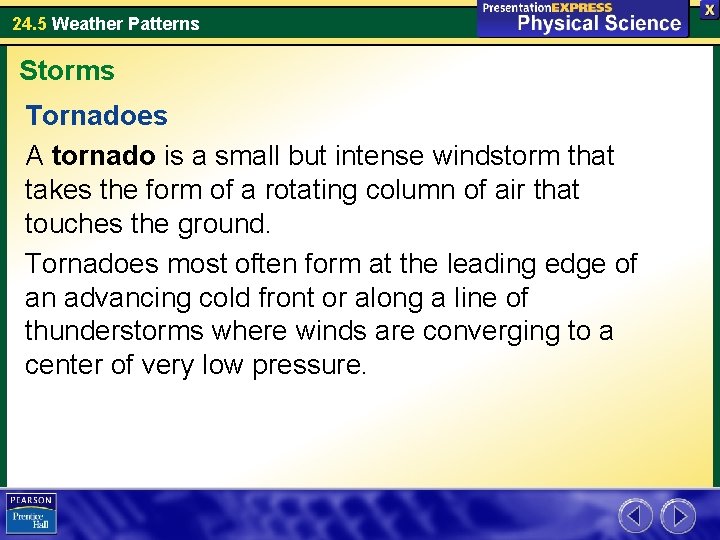

24. 5 Weather Patterns Storms Tornadoes A tornado is a small but intense windstorm that takes the form of a rotating column of air that touches the ground. Tornadoes most often form at the leading edge of an advancing cold front or along a line of thunderstorms where winds are converging to a center of very low pressure.

24. 5 Weather Patterns Storms A tornado appears as a twisting funnel cloud descending from the bottom of a cumulonimbus cloud. A tornado’s winds can sometimes be more than 500 kilometers per hour, although they are more typically about 150 kilometers per hour. A large tornado can cause death and tremendous destruction.

24. 5 Weather Patterns Storms A tornado crosses a farm field.

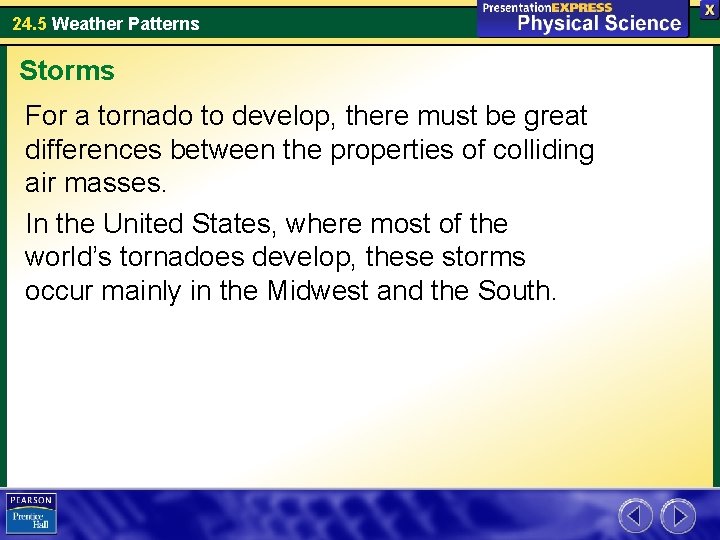

24. 5 Weather Patterns Storms For a tornado to develop, there must be great differences between the properties of colliding air masses. In the United States, where most of the world’s tornadoes develop, these storms occur mainly in the Midwest and the South.

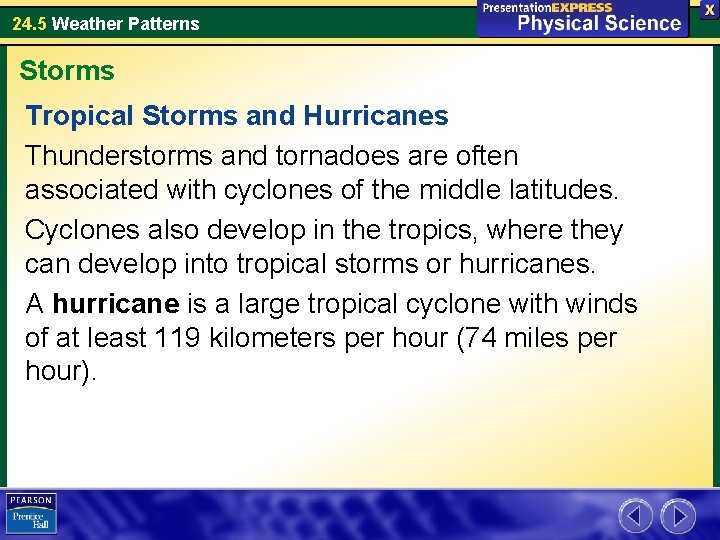

24. 5 Weather Patterns Storms Tropical Storms and Hurricanes Thunderstorms and tornadoes are often associated with cyclones of the middle latitudes. Cyclones also develop in the tropics, where they can develop into tropical storms or hurricanes. A hurricane is a large tropical cyclone with winds of at least 119 kilometers per hour (74 miles per hour).

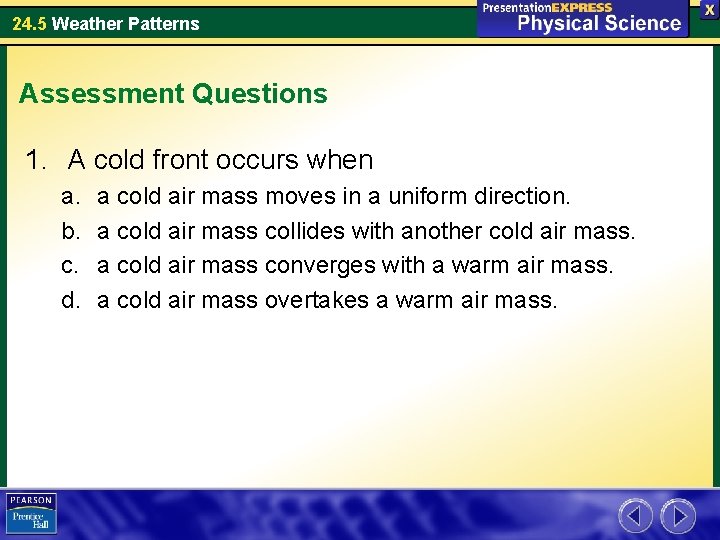

24. 5 Weather Patterns Assessment Questions 1. A cold front occurs when a. b. c. d. a cold air mass moves in a uniform direction. a cold air mass collides with another cold air mass. a cold air mass converges with a warm air mass. a cold air mass overtakes a warm air mass.

24. 5 Weather Patterns Assessment Questions 1. A cold front occurs when a. b. c. d. a cold air mass moves in a uniform direction. a cold air mass collides with another cold air mass. a cold air mass converges with a warm air mass. a cold air mass overtakes a warm air mass. ANS: D

24. 5 Weather Patterns Assessment Questions 2. An occluded front is generally accompanied by a. b. c. d. cloudy skies and precipitation. violent thunderstorms. cool, dry weather. warm, dry winds.

24. 5 Weather Patterns Assessment Questions 2. An occluded front is generally accompanied by a. b. c. d. cloudy skies and precipitation. violent thunderstorms. cool, dry weather. warm, dry winds. ANS: A

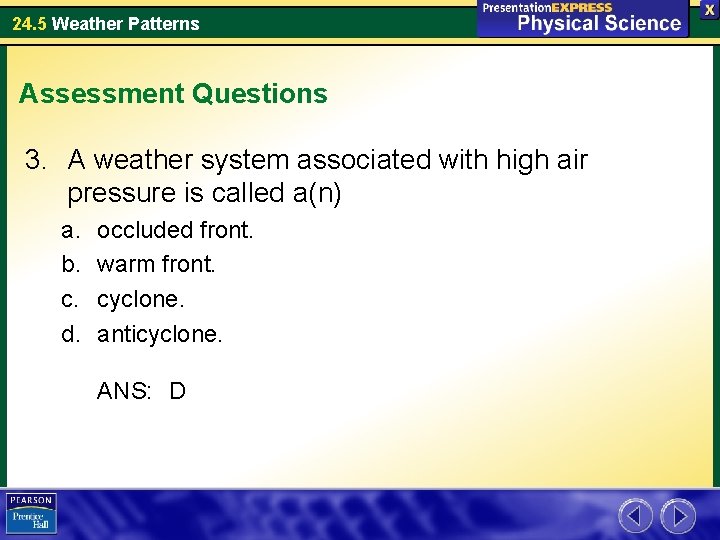

24. 5 Weather Patterns Assessment Questions 3. A weather system associated with high air pressure is called a(n) a. b. c. d. occluded front. warm front. cyclone. anticyclone.

24. 5 Weather Patterns Assessment Questions 3. A weather system associated with high air pressure is called a(n) a. b. c. d. occluded front. warm front. cyclone. anticyclone. ANS: D

24. 5 Weather Patterns Assessment Questions 1. A hurricane forms when a vertical cylinder of rotating air develops in a thunderstorm. True False

24. 5 Weather Patterns Assessment Questions 1. A hurricane forms when a vertical cylinder of rotating air develops in a thunderstorm. True False ANS: F, tornado
