YXLON MGi Xray system Extremely versatile unipolar and
- Slides: 30
YXLON MGi X-ray system Extremely versatile unipolar and bipolar X-ray modules Birte Schulz, Hamburg, July 2018 Product Manager Technology with Passion

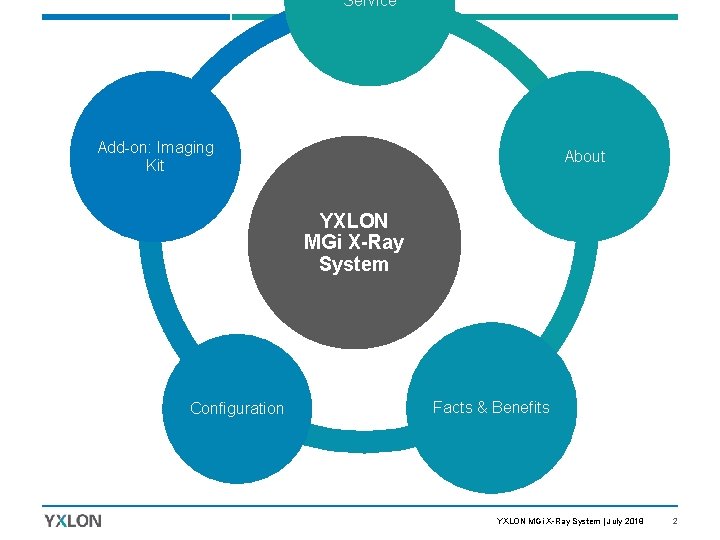

Service Add-on: Imaging Kit About YXLON MGi X-Ray System Configuration Facts & Benefits YXLON MGi X-Ray System | July 2018 2
Service Add-on: Imaging Kit About YXLON MGi X-Ray System Configuration Facts & Benefits YXLON MGi X-Ray System | July 2018 3
About YXLON MGi X-Ray System Extreme versatile stationary unipolar and bipolar X-ray modules n Solutions from high resolution to strong penetration n Available in 160 k. V, 225 k. V, 320 k. V, 450 k. V and power output of 2. 25 k. W or 4. 5 k. W n Tailored to your applications and needs YXLON MGi X-Ray System | July 2018 4
About Fields of Application n DR & CT n Aerospace n Weld inspection n Casting and composites n Electronics n Laboratories n Museums n and many more YXLON MGi X-Ray System | July 2018 5
Service Add-on: Imaging Kit About YXLON MGi X-Ray System Configuration Facts & Benefits YXLON MGi X-Ray System | July 2018 6
Facts & Benefits What’s within the package? Standard scope of delivery 1 Metall-ceramic X-ray tube (160 -450 V) 2 High-voltage generator, consisting of: 5 3 6 4 2 - Generator tank(s) - Power cell(s) - IFC Terminal for inputs/outputs 3 Water/Oil cooler 4 High-voltage cable 1 Cooling cable MGi Control Software Options /Accessories Easy. Connect Warning lamps (24 V) Backward compatibility tools 5 IP 54 Cover Laser centering device etc. 6 MGi Controller Collimators YXLON MGi X-Ray System | July 2018 7
Facts & Benefits YXLON Minifocus X-Ray Tubes n Solutions from high resolution to strong penetration n Available for 160 k. V, 225 k. V, 320 k. V, 450 k. V YXLON MGi X-Ray System | July 2018 8

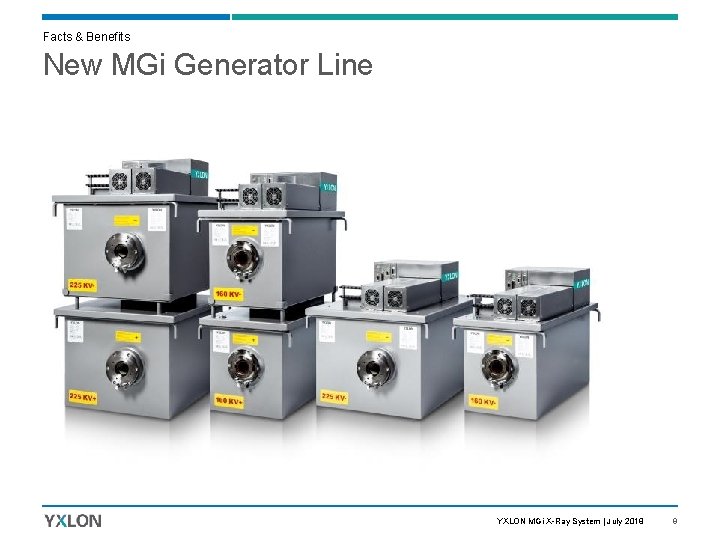

Facts & Benefits New MGi Generator Line YXLON MGi X-Ray System | July 2018 9
Facts & Benefits Modularity of the MGi Generator IFC Terminal: Central intelligence of the generator - External communication Modular Power Cell - Master of all data management - Easy replacement and upgrade - MAINS control - - All signals monitoring Power range: full power available at low levels of k. V - Two power cells for highest stability at all working points Tank - Highly reputable performance - Robust and YXLON MGi X-Ray System | July 2018 10
Facts & Benefits What about the «i» ? n i. NNOVATIVE A sophisticated software and well-designed hardware as a basis to serve customers’ needs to their full satisfaction n i. NTEGRATED A modular, clean and robust design allow for a fast setup and a high uptime n i. NTELLIGENT A well-conceived integration level of tube and generator guarantee to maximize YXLON MGi X-Ray System | July 2018 11
Facts & Benefits MGi Control Software n Allows to control the X-ray parameters n Shows the state of the system (Prewarn, X-ray on, Warm-up, …) n Gives human readable input (in full phrases) for troubleshooting YXLON MGi X-Ray System | July 2018 12
Service Add-on: Imaging Kit About YXLON MGi X-Ray System Configuration Facts & Benefits YXLON MGi X-Ray System | July 2018 13
Configurations Basic Configuration YXLON MGi X-Ray System | July 2018 14
Configurations Option: YXLON Easy. Connect n Today’s X-ray system integrators are constantly confronted with new and challenging safety regulations around the world Providing a turnkey safety solution for integrators of compact high throug h -put systems to complex bunker systems! n The well elaborated Easy. Connect solution allows for a simple and fast «plug-andplay» integration of the MGi X-ray system considering all safety-related aspects n Easy. Connect consist of: n A box with terminal blocks for inputs and outputs covering all the common safety functionalities to be connected to this box n manual guiding you through a simple and quick installation process n mounting to place the box in safe distance from the ground YXLON MGi X-Ray System | July 2018 15

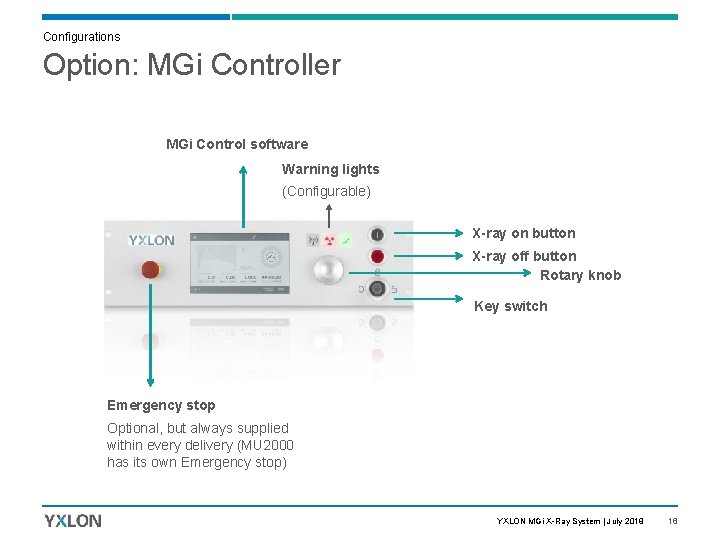

Configurations Option: MGi Controller MGi Control software Warning lights (Configurable) X-ray on button X-ray off button Rotary knob Key switch Emergency stop Optional, but always supplied within every delivery (MU 2000 has its own Emergency stop) YXLON MGi X-Ray System | July 2018 16
Configurations Option: IP 54 Cover The optional cover protects the generator against dust and water acc. protection class IP 54. YXLON MGi X-Ray System | July 2018 17

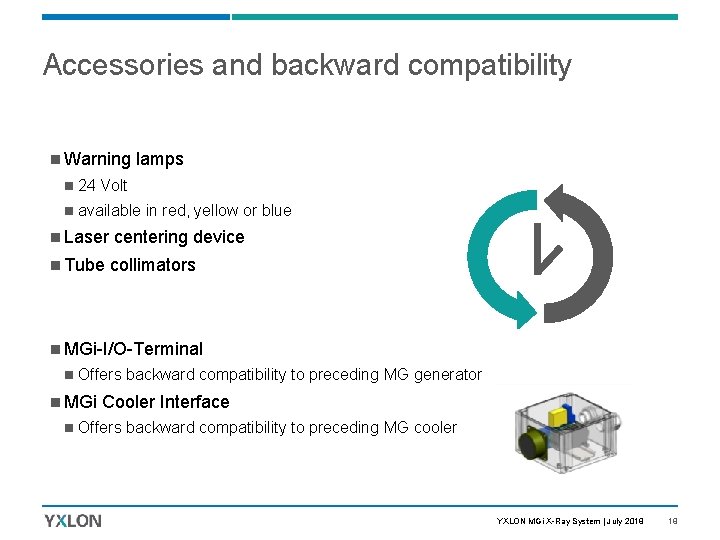

Accessories and backward compatibility n Warning lamps n 24 Volt n available in red, yellow or blue n Laser centering device n Tube collimators n MGi-I/O-Terminal n Offers backward compatibility to preceding MG generator n MGi n Cooler Interface Offers backward compatibility to preceding MG cooler YXLON MGi X-Ray System | July 2018 18
Service Add-on: Imaging Kit About YXLON MGi X-Ray System Configuration Facts & Benefits YXLON MGi X-Ray System | July 2018 19
Imaging Kit The i. CING on the cake: YXLON Imaging Kit n Digital flat-panel detector n YXLON IMAGE x 500 SW n High-speed image PC and monitor n Detector holder and screen incl. all cables, plugs and adapters n Optional: ASTM reference images, offline station, video recording PC and many more YXLON MGi X-Ray System | July 2018 20
Imaging Kit YXLON Image x 500 Software n Easy to use n For manual, semi-automatic, automatic inspection n Live image inspection with Y. HDR n Full screen mode, 1: 1 depiction, magnifier glass n Image processing tools n Various digital filters, Auto averaging n Archiving & reporting function via MS Access or. xml result file n Film replacement tools acc. to ASTM E 2737 for long-term stability n ASTM Reference Image Window (opt. ) YXLON MGi X-Ray System | July 2018 21

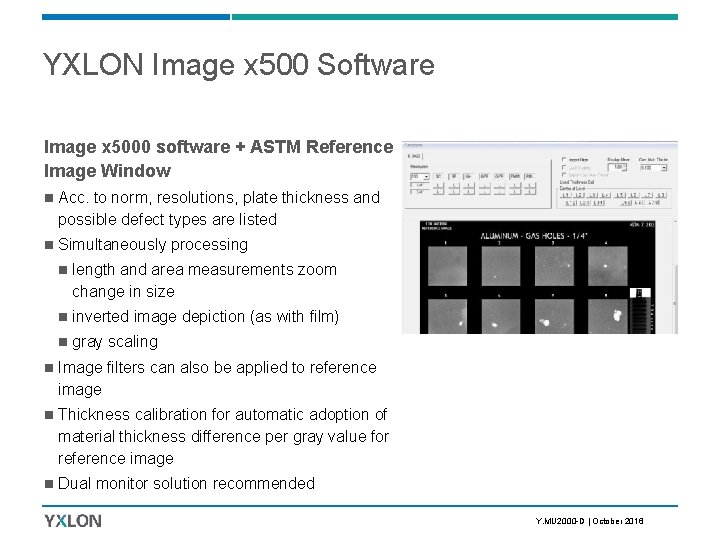

YXLON Image x 500 Software Image x 5000 software + ASTM Reference Image Window n Acc. to norm, resolutions, plate thickness and possible defect types are listed n Simultaneously processing n length and area measurements zoom change in size n inverted image depiction (as with film) n gray scaling n Image filters can also be applied to reference image n Thickness calibration for automatic adoption of material thickness difference per gray value for reference image n Dual monitor solution recommended Y. MU 2000 -D | October 2016

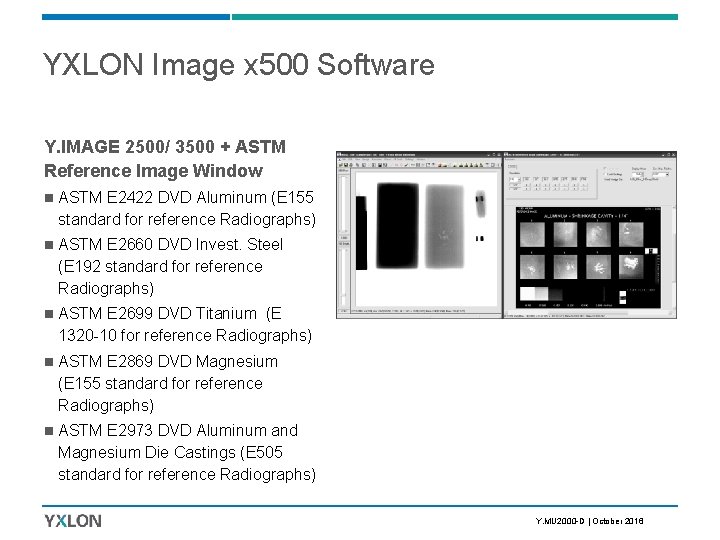

YXLON Image x 500 Software Y. IMAGE 2500/ 3500 + ASTM Reference Image Window n ASTM E 2422 DVD Aluminum (E 155 standard for reference Radiographs) n ASTM E 2660 DVD Invest. Steel (E 192 standard for reference Radiographs) n ASTM E 2699 DVD Titanium (E 1320 -10 for reference Radiographs) n ASTM E 2869 DVD Magnesium (E 155 standard for reference Radiographs) n ASTM E 2973 DVD Aluminum and Magnesium Die Castings (E 505 standard for reference Radiographs) Y. MU 2000 -D | October 2016

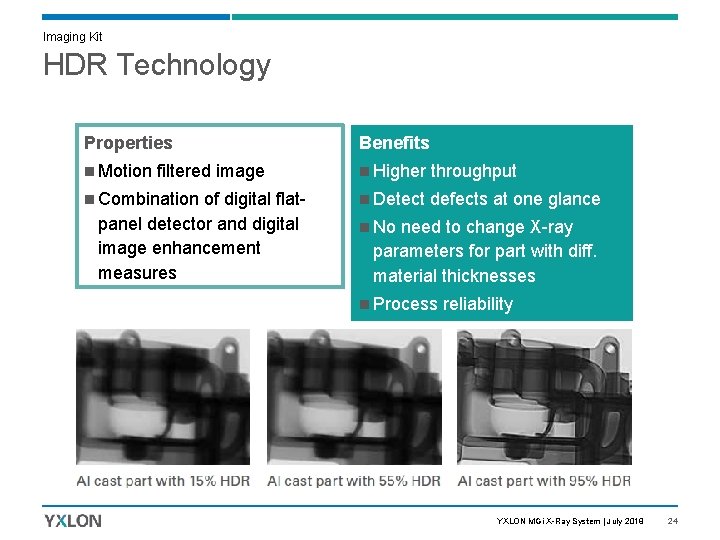

Imaging Kit HDR Technology Properties Benefits n Motion n Higher throughput n Detect defects at one glance filtered image n Combination of digital flatpanel detector and digital image enhancement measures n No need to change X-ray parameters for part with diff. material thicknesses n Process reliability YXLON MGi X-Ray System | July 2018 24
Detectors Benefits Y. 0822 -HDR detectors n Y. 0822 -HDR 14 -bit/16 -bit in YXLON selected or premium pixel quality n Mechanical protection n Software tools for optimizing detector output such as gain/offset correction are mostly automated and well proven n 1024 x 1024 pixel @ 200 µm pitch Active Area 200 mm x 200 mm Electronic completely shielded with tungsten/lead with up to 15 fps n 512 x 512 pixel @ 400 µm pitch with up to 30 fps n Long-life detector for higher throughput n Other detectors available upon request YXLON MGi X-Ray System | July 2018 25
Service Add-on: Imaging Kit About YXLON MGi X-Ray System Configuration Facts & Benefits YXLON MGi X-Ray System | July 2018 26
Service Customer requirements Providing for the entire system life time: q Highest system up time q Assurance of inspection quality q Guarantee of operational safety q Prolong system life time q Lowest & predictable operating costs YXLON MGi X-Ray System | July 2018 27
Service Market, Systems and Installed Base 10000 4320 932 1000 650 660 517 305 155 128 100 55 18 12 10 So lo lo G M E FX tip ul M So le x T Y. /3 20 FF W I 2 5 6 C G S C T C Y. S Y. M TI 1 U M Y. et he C Y. 23 ah r ga ou C Y. M U 20 00 1 Y. Units sold 299 System type YXLON MGi X-Ray System | July 2018 28
Service YXLON Service solutions Inspection Service q Up time Training q Life time q Inspection quality Field Service Repair In-House Repair Hotline Investment & Customer benefit Upgrades q Inspection costs q Operational safety Customer requirements Contracts Life Cycle Management System Service -, Workflow - & Skill Level q Cycle time q Up time q Life time q Inspection quality q Cycle time q Up time q Inspection costs q Life time q Operational safety q Inspection quality q Cycle time q Inspection costs q Operational safety Spare parts Preventive Maintenance Warranty extension SERVICE PRODUCTS Service -, Workflow - & Skill Level BASIC PLUS PREMIUM SERVICE PRODUCTS YXLON MGi X-Ray System | July 2018 29
Thank you for your attention. © 2018 YXLON International Gmb. H
