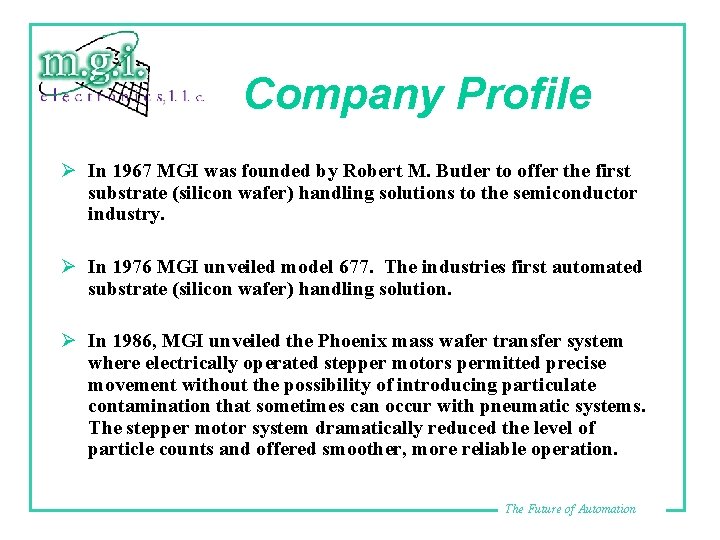

Company Profile Ø In 1967 MGI was founded by Robert M. Butler to offer the first substrate (silicon wafer) handling solutions to the semiconductor industry. Ø In 1976 MGI unveiled model 677. The industries first automated substrate (silicon wafer) handling solution. Ø In 1986, MGI unveiled the Phoenix mass wafer transfer system where electrically operated stepper motors permitted precise movement without the possibility of introducing particulate contamination that sometimes can occur with pneumatic systems. The stepper motor system dramatically reduced the level of particle counts and offered smoother, more reliable operation. The Future of Automation

Company Profile Ø Since then numerous upgrades and new models, all of them fully electric, with a wider range of options and accessories have kept MGI the world leader in wafer transfer systems. All of the current systems are software controlled and interface with computers to download data to automate the fabrication process even further. Ø The Current generation of wafer transfer systems are completely robotic with optical recognition, automatic sensing and console viewing of all data for system operation. The Future of Automation

Specifications • • • WPH on batch transfer is 2, 100 Wafers. WPH on Align, Map &OCR Read is 1, 000 Wafers. WPH on Align, Map & OCR Read & Sort is 270 Wafers Dimensions: 38” L x 23. 5 D” x 35”H. Dimensions 200 mm: 49” L x 22. 250 D x 43” T • UPTIME = 99. 6% • MTBF = 2, 000 Hours • MTTR =. 5 Hours The Future of Automation

Reliability Data Test Particle Check Specs No Particles should be added (zero adders). 16 um Contact Free Read Time (mappting+alignment+OCR) 24 Bare Si wafers < 3 Minutes Batch Wafer Transfer 24 Bare Si wafers < 60 Seconds Mono Wafer Transfer 6 Bare Si wafers < 2 Minutes Pick & Place Wafer slotting of any wafers Minimum 25 wafers Scratch Test: Include Batch Transfer and Mono Transfer No Scratches allowed on any wafers Scribe Read Misread Wafer ID's No cross or double 24 Bare Si wafers. Read accuracy > 95% 24 Bare Si wafers. Wafer ID misread < 1% The Future of Automation

Service Ø ONE YEAR WARRANTY EXCLUDING WAFER CONTACT PARTS Ø EXTENDED WARRANTY AVAILABLE Ø INSTALLATION AND TRAINING Ø 24 HOUR TOLL FREE SERVICE 800 -TEL-SERV The Future of Automation
