Vidmid Update Egon Verharen SURFnet Vidmidvc chair Vidmid

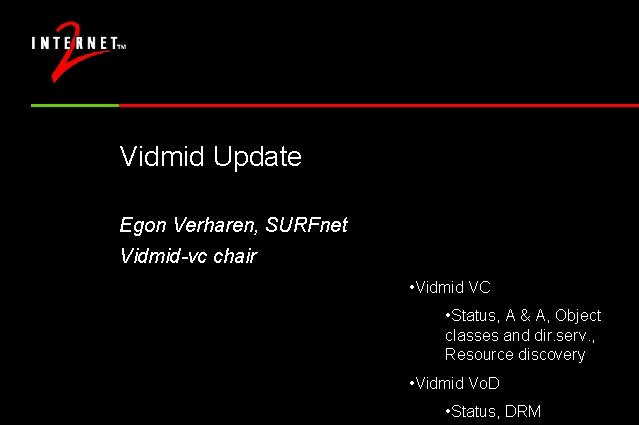

Vidmid Update Egon Verharen, SURFnet Vidmid-vc chair • Vidmid VC • Status, A & A, Object classes and dir. serv. , Resource discovery • Vidmid Vo. D • Status, DRM

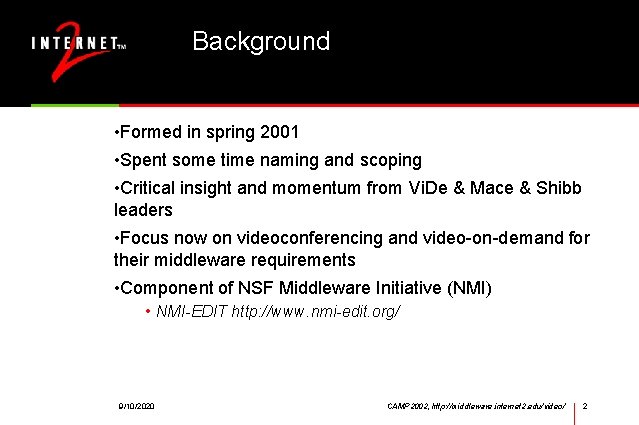

Background • Formed in spring 2001 • Spent some time naming and scoping • Critical insight and momentum from Vi. De & Mace & Shibb leaders • Focus now on videoconferencing and video-on-demand for their middleware requirements • Component of NSF Middleware Initiative (NMI) • NMI-EDIT http: //www. nmi-edit. org/ 9/10/2020 CAMP 2002, http: //middleware. internet 2. edu/video/ 2

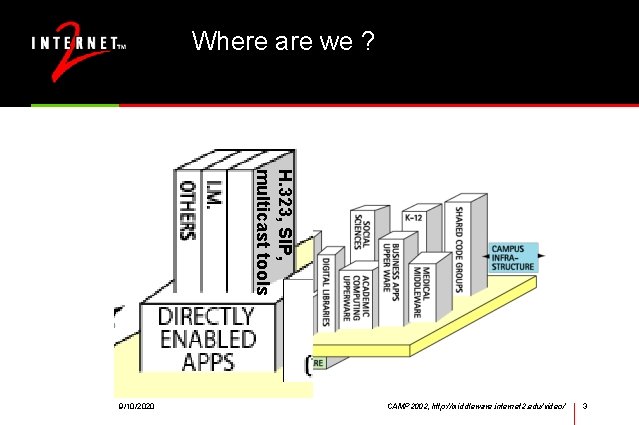

Where are we ? H. 323, SIP, multicast tools 9/10/2020 CAMP 2002, http: //middleware. internet 2. edu/video/ 3

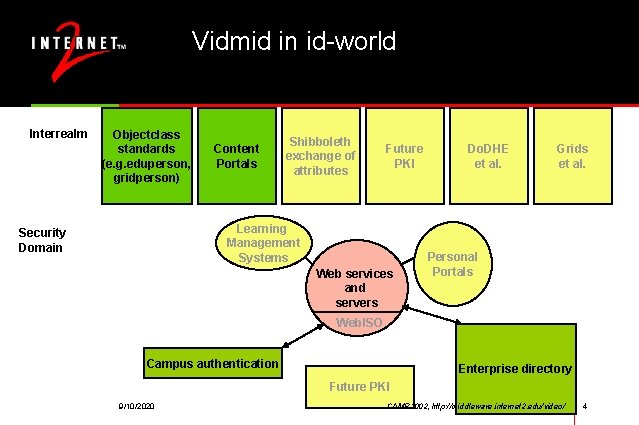

Vidmid in id-world Interrealm Objectclass standards (e. g. eduperson, gridperson) Content Portals Shibboleth exchange of attributes Future PKI Learning Management Systems Security Domain Web services and servers Do. DHE et al. Grids et al. Personal Portals Web. ISO Campus authentication Enterprise directory Future PKI 9/10/2020 CAMP 2002, http: //middleware. internet 2. edu/video/ 4

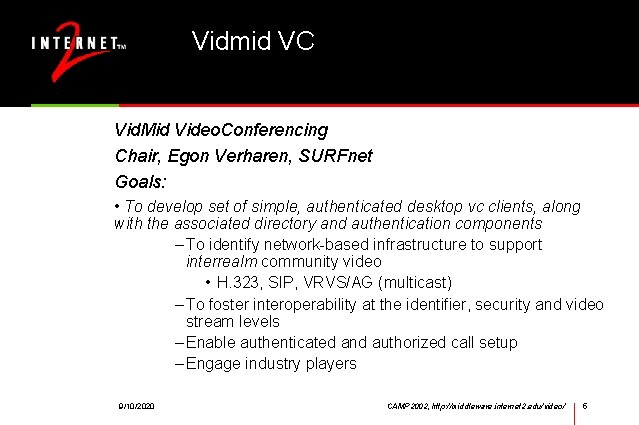

Vidmid VC Vid. Mid Video. Conferencing Chair, Egon Verharen, SURFnet Goals: • To develop set of simple, authenticated desktop vc clients, along with the associated directory and authentication components – To identify network-based infrastructure to support interrealm community video • H. 323, SIP, VRVS/AG (multicast) – To foster interoperability at the identifier, security and video stream levels – Enable authenticated and authorized call setup – Engage industry players 9/10/2020 CAMP 2002, http: //middleware. internet 2. edu/video/ 5

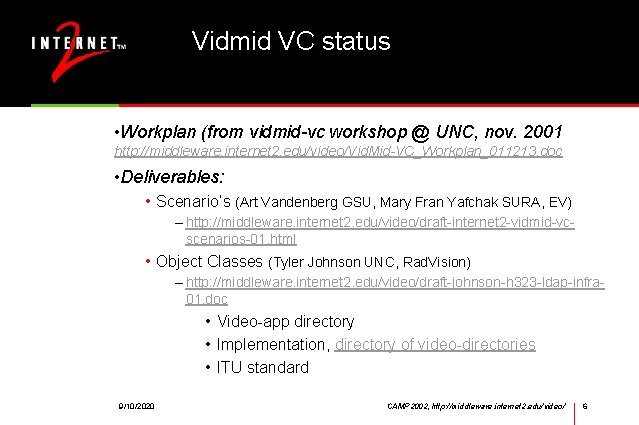

Vidmid VC status • Workplan (from vidmid-vc workshop @ UNC, nov. 2001 http: //middleware. internet 2. edu/video/Vid. Mid-VC_Workplan_011213. doc • Deliverables: • Scenario’s (Art Vandenberg GSU, Mary Fran Yafchak SURA, EV) – http: //middleware. internet 2. edu/video/draft-internet 2 -vidmid-vcscenarios-01. html • Object Classes (Tyler Johnson UNC, Rad. Vision) – http: //middleware. internet 2. edu/video/draft-johnson-h 323 -ldap-infra 01. doc • Video-app directory • Implementation, directory of video-directories • ITU standard 9/10/2020 CAMP 2002, http: //middleware. internet 2. edu/video/ 6

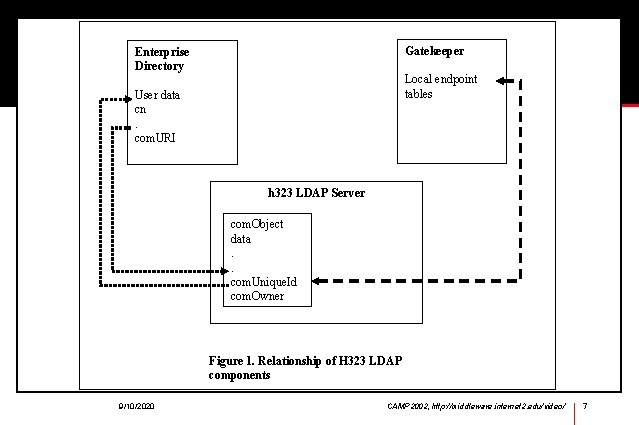

Gatekeeper Enterprise Directory Local endpoint tables User data cn. com. URI h 323 LDAP Server com. Object data. . com. Unique. Id com. Owner Figure 1. Relationship of H 323 LDAP components 9/10/2020 CAMP 2002, http: //middleware. internet 2. edu/video/ 7

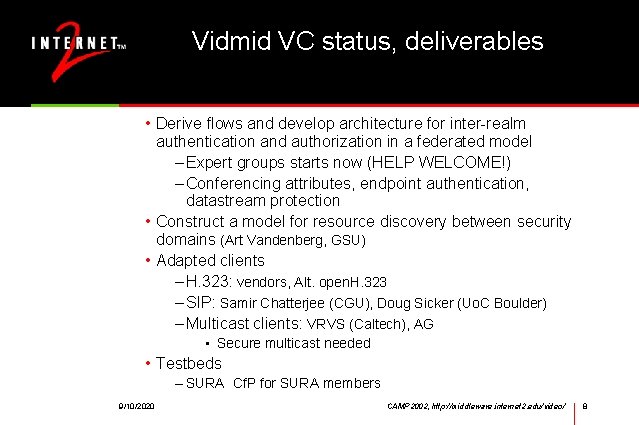

Vidmid VC status, deliverables • Derive flows and develop architecture for inter-realm authentication and authorization in a federated model – Expert groups starts now (HELP WELCOME!) – Conferencing attributes, endpoint authentication, datastream protection • Construct a model for resource discovery between security domains (Art Vandenberg, GSU) • Adapted clients – H. 323: vendors, Alt. open. H. 323 – SIP: Samir Chatterjee (CGU), Doug Sicker (Uo. C Boulder) – Multicast clients: VRVS (Caltech), AG • Secure multicast needed • Testbeds – SURA Cf. P for SURA members 9/10/2020 CAMP 2002, http: //middleware. internet 2. edu/video/ 8

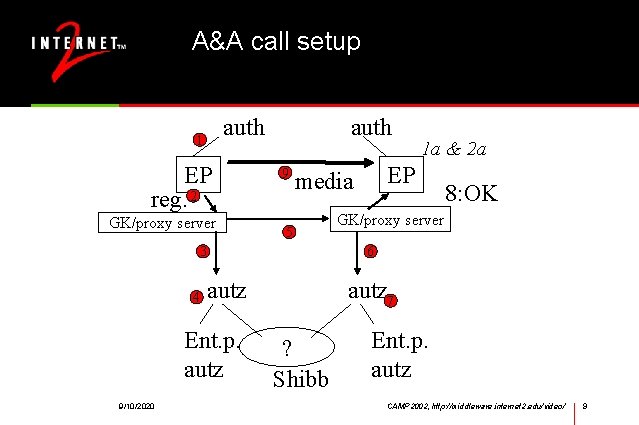

A&A call setup auth 1 EP reg. 2 GK/proxy server auth 9 3 4 8: OK GK/proxy server 6 autz Ent. p. autz 9/10/2020 EP media 5 1 a & 2 a autz 7 ? Shibb Ent. p. autz CAMP 2002, http: //middleware. internet 2. edu/video/ 9

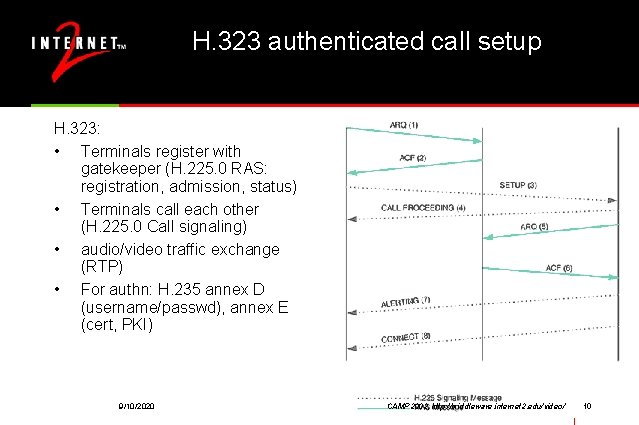

H. 323 authenticated call setup H. 323: • Terminals register with gatekeeper (H. 225. 0 RAS: registration, admission, status) • Terminals call each other (H. 225. 0 Call signaling) • audio/video traffic exchange (RTP) • For authn: H. 235 annex D (username/passwd), annex E (cert, PKI) 9/10/2020 CAMP 2002, http: //middleware. internet 2. edu/video/ 10

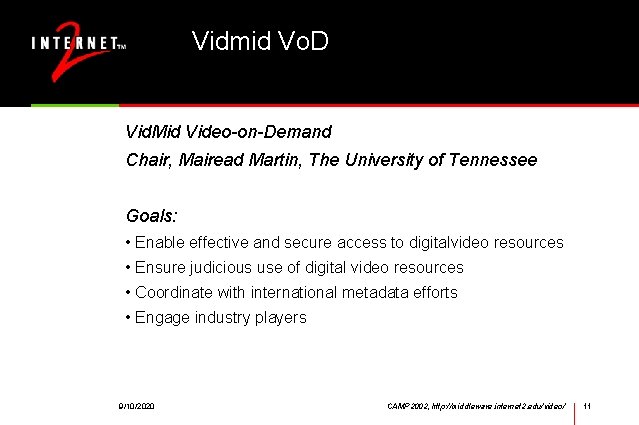

Vidmid Vo. D Vid. Mid Video-on-Demand Chair, Mairead Martin, The University of Tennessee Goals: • Enable effective and secure access to digitalvideo resources • Ensure judicious use of digital video resources • Coordinate with international metadata efforts • Engage industry players 9/10/2020 CAMP 2002, http: //middleware. internet 2. edu/video/ 11

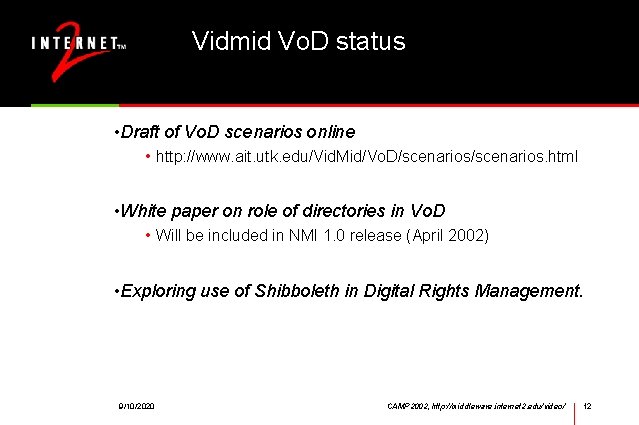

Vidmid Vo. D status • Draft of Vo. D scenarios online • http: //www. ait. utk. edu/Vid. Mid/Vo. D/scenarios. html • White paper on role of directories in Vo. D • Will be included in NMI 1. 0 release (April 2002) • Exploring use of Shibboleth in Digital Rights Management. 9/10/2020 CAMP 2002, http: //middleware. internet 2. edu/video/ 12

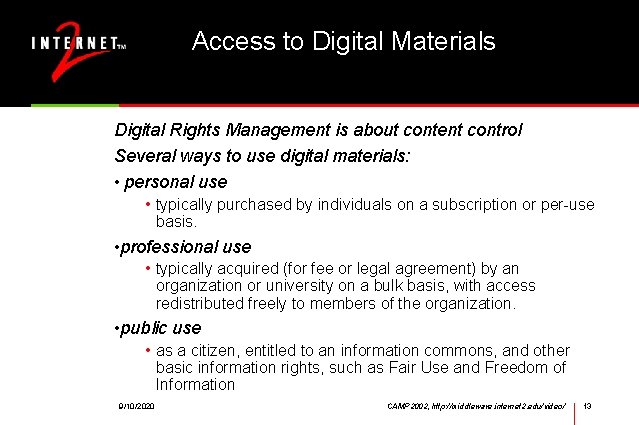

Access to Digital Materials Digital Rights Management is about content control Several ways to use digital materials: • personal use • typically purchased by individuals on a subscription or per-use basis. • professional use • typically acquired (for fee or legal agreement) by an organization or university on a bulk basis, with access redistributed freely to members of the organization. • public use • as a citizen, entitled to an information commons, and other basic information rights, such as Fair Use and Freedom of Information 9/10/2020 CAMP 2002, http: //middleware. internet 2. edu/video/ 13

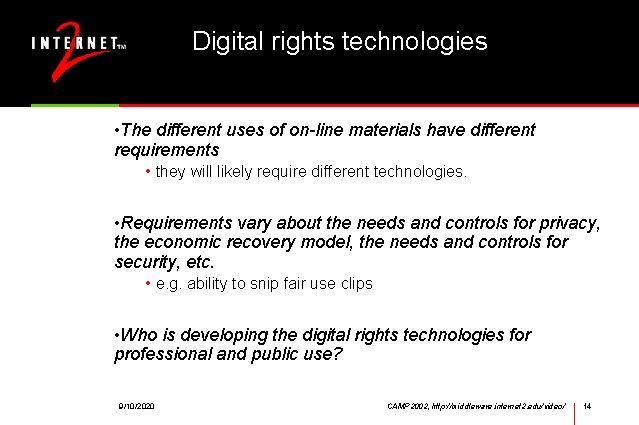

Digital rights technologies • The different uses of on-line materials have different requirements • they will likely require different technologies. • Requirements vary about the needs and controls for privacy, the economic recovery model, the needs and controls for security, etc. • e. g. ability to snip fair use clips • Who is developing the digital rights technologies for professional and public use? 9/10/2020 CAMP 2002, http: //middleware. internet 2. edu/video/ 14

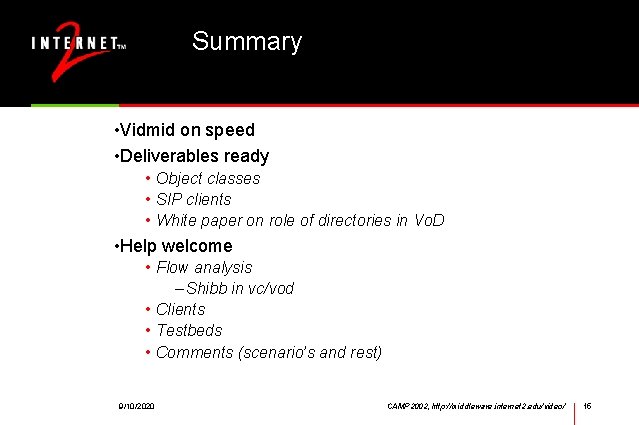

Summary • Vidmid on speed • Deliverables ready • Object classes • SIP clients • White paper on role of directories in Vo. D • Help welcome • Flow analysis – Shibb in vc/vod • Clients • Testbeds • Comments (scenario’s and rest) 9/10/2020 CAMP 2002, http: //middleware. internet 2. edu/video/ 15
