TPX detectors position EDMS doc. 1471810 v. 1 ATC-TA-EP-0002 v. 1 30. 01. 2015

TPX detectors position EDMS doc. 1471810 v. 1 ATC-TA-EP-0002 v. 1 30. 01. 2015

TPX detectors position inside Atlas T 10 T 1 T 9 T 8 T

TPX detectors position inside Atlas T 10 T 1 T 9 T 8 T 11 T 2 T 12 T 5 T 6 T 7 T 4 T 3 IP T 14 T 13

Coordinate system definition Z X Y IP Z axis: follow beam axis , positive

Coordinate system definition Z X Y IP Z axis: follow beam axis , positive towards A side X axis: horizontal, perpendicular to Z, towards center of LHC ( US 15 side) Y axis: perpendicular to ZX plane, towards top, not vertical ( angle 0. 708 degree to vertical) Coordinates in pictures are given for the central point of each TPX box in mm, accuracy of positioning +/-10 mm + positioning of corresponding detector or structure

Position: between Barrel and Extended Calorimeters side A T 1 T 3 X 670

Position: between Barrel and Extended Calorimeters side A T 1 T 3 X 670 Y 880 Z 3540 R 1110 X 150 Y-1130 Z 3540 R 1130 T 2 X -1100 Y 180 Z 3540 R 1110

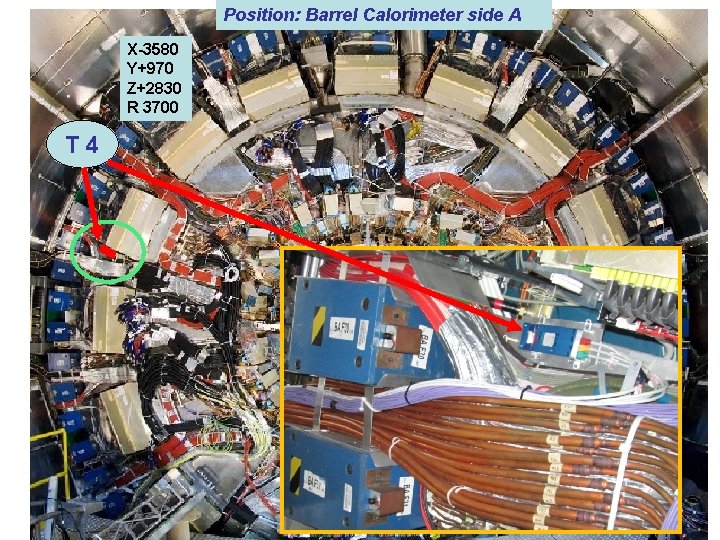

Position: Barrel Calorimeter side A X-3580 Y+970 Z+2830 R 3700 T 4

Position: Barrel Calorimeter side A X-3580 Y+970 Z+2830 R 3700 T 4

Position: HO side of SW sector 15 side A T 5 X+1320 Y-494 Z+7830

Position: HO side of SW sector 15 side A T 5 X+1320 Y-494 Z+7830 R 1410 T 6 X+2370 Y-1030 Z+7830 R 2570 T 7 X+3300 Y-1590 Z+7830 R 3670

Small Wheel side A View from HO side US 15 side USA 15 side

Small Wheel side A View from HO side US 15 side USA 15 side Time. Pix detectors Fixed to the rib of SW frame with clamps Sector 9 Sector 15 Cables Sector 13 Patch Panel

Position on EIL 4 frame sector 9 side A T 8 X-6140 Y 0

Position on EIL 4 frame sector 9 side A T 8 X-6140 Y 0 Z+7220 R 6140

Position: on top of JFC shielding T 9 L= 2. 4 m + 0.

Position: on top of JFC shielding T 9 L= 2. 4 m + 0. 6 m + 3 m + 0. 2 m + 0. 6 m + 1 m +1. 1 = 8. 9 m X 0 Y 1560 Z+15390 R 1560

Position: LUCID side A T 10 X +230 Y +440 Z+18850 R 490

Position: LUCID side A T 10 X +230 Y +440 Z+18850 R 490

Position: IP face of Extended Calorimeters side C T 11 T 13 X 660

Position: IP face of Extended Calorimeters side C T 11 T 13 X 660 Y 900 Z -3540 R 1110 X 90 Y-1100 Z-3540 R 1110 T 12 X -930 Y 670 Z -3540 R 1140

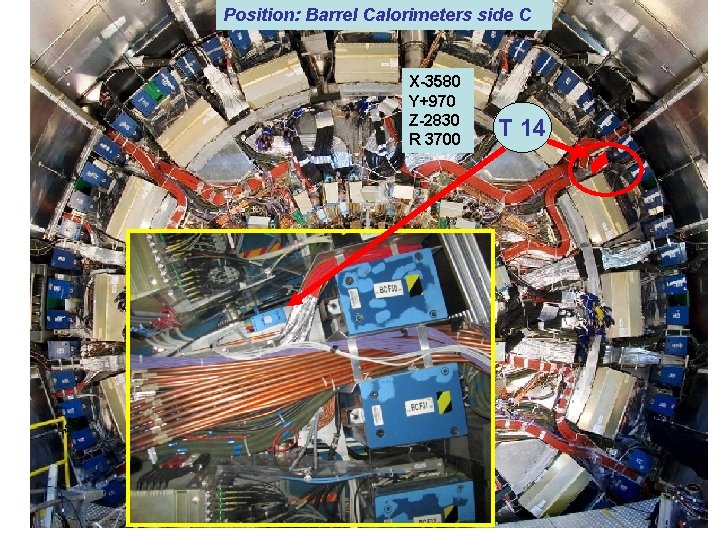

Position: Barrel Calorimeters side C 30 A X-3580 Y+970 Z-2830 R 3700 T 14

Position: Barrel Calorimeters side C 30 A X-3580 Y+970 Z-2830 R 3700 T 14

Position: wall USA side A, HS level 4 T 15 X-16690 Y +50 Z+5020

Position: wall USA side A, HS level 4 T 15 X-16690 Y +50 Z+5020 R 16690

Position: wall USA 15 level 1 4. 625 m T 16 2. 21 m

Position: wall USA 15 level 1 4. 625 m T 16 2. 21 m T 15

T 15 (16) 1. 76 m

T 15 (16) 1. 76 m

Positions of TPX detectors T 1 (EBC_A) X 0. 67 m Y 0. 88

Positions of TPX detectors T 1 (EBC_A) X 0. 67 m Y 0. 88 m Z 3. 54 m R 1. 11 m T 2 (EBC_A) X -1. 1 m Y 0. 18 m Z 3. 54 m R 1. 11 m T 3 (EBC_A) X 0. 15 m Y -1. 13 m Z 3. 54 m R 1. 13 m T 4 (barrel_A) X -3. 58 m Y 0. 97 m Z 2. 83 m R 3. 7 m T 5 (SW) X 1. 32 m Y -0. 49 m Z 7. 83 m R 1. 41 m T 6 (SW) X 2. 37 m Y -1. 03 m Z 7. 83 m R 2. 57 m T 7 (SW) X 3. 30 m Y -1. 59 m Z 7. 83 m R 3. 67 m T 8 (EIL 04) X -6. 14 m Y 0 m Z 7. 22 m R 6. 14 m T 9 (JFC) X 0. 00 m Y 1. 56 m Z 15. 39 m R 1. 56 m T 10 (LUCID) X 0. 23 m Y 0. 44 m Z 18. 85 m R 0. 49 m T 11 (EBC_C) X 0. 66 m Y 0. 90 m Z -3. 54 m R 1. 11 m T 12 (EBC_C) X -0. 93 m Y 0. 67 m Z -3. 54 m R 1. 14 m T 13 (EBC_C) X 0. 09 m Y -1. 11 m Z -3. 54 m R 1. 11 m T 14 (barrel_C) X -3. 58 m Y 0. 97 m Z -2. 83 m R 3. 7 m T 15(HS L 4 USA) X -16. 69 m Y 0. 05 m Z 5. 02 m R 16. 69 m T 16(USA 15 wall) X -18. 90 m Y 0. 05 m Z 5. 02 m R 18. 90 m

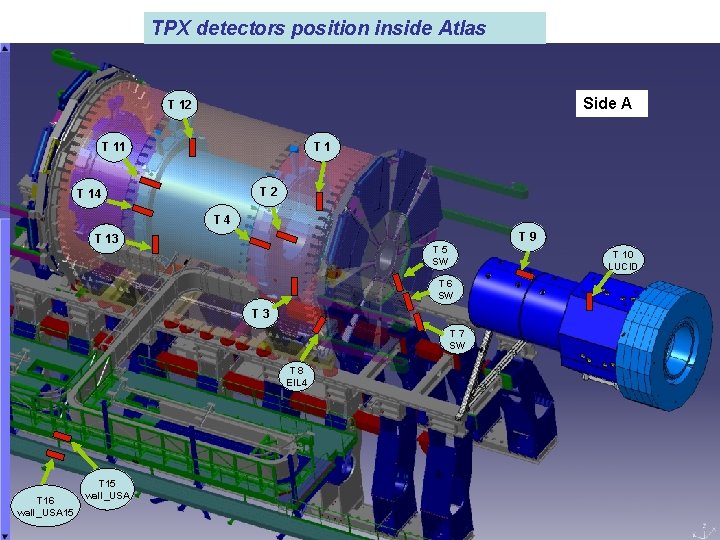

TPX detectors position inside Atlas Side A T 12 T 11 T 2 T

TPX detectors position inside Atlas Side A T 12 T 11 T 2 T 14 T 13 T 9 T 5 SW T 10 LUCID T 6 SW T 3 T 7 SW T 8 EIL 4 T 16 wall_USA 15 T 15 wall_USA
