TOSCA Topology and Orchestration Specification for Cloud Applications

TOSCA Topology and Orchestration Specification for Cloud Applications (TOSCA) Standard An Open Standard for Business Application Agility and Portability in the Cloud

What is TOSCA? • TOSCA is an important new open cloud standard, that is enabling a unique eco-system, supported by a large and growing number of international industry leaders… TOSCA defines the interoperable description of applications; including their components, relationships, dependencies, requirements, and capabilities…. …thereby enabling portability and automated management across cloud providers regardless of underlying platform or infrastructure thus expanding customer choice, improving reliability, and reducing cost and time-to-value.

TOSCA addresses critical cloud challenges 1 Speed and accuracy moving apps to Cloud 2 Agility adapting to change (Business and IT) 3 Consumer Choice of Cloud vendor and technology

The collective knowledge of application and infrastructure experts are captured as reusable TOSCA models Containment TOSCA Application Model Web Server Tier Database Server Tier Web Server DB Server Web App Database PHP Script Module Connectivity Containment and Connectivity concepts support Composition & Reuse These concepts lead to an application-centric, holistic, unified model • Reusable models extend investments by making it easy to compose more valuable and complex apps from existing apps • Models can be validated by automation to ensure app-aware, policy-aligned configuration, deployment and operational semantics

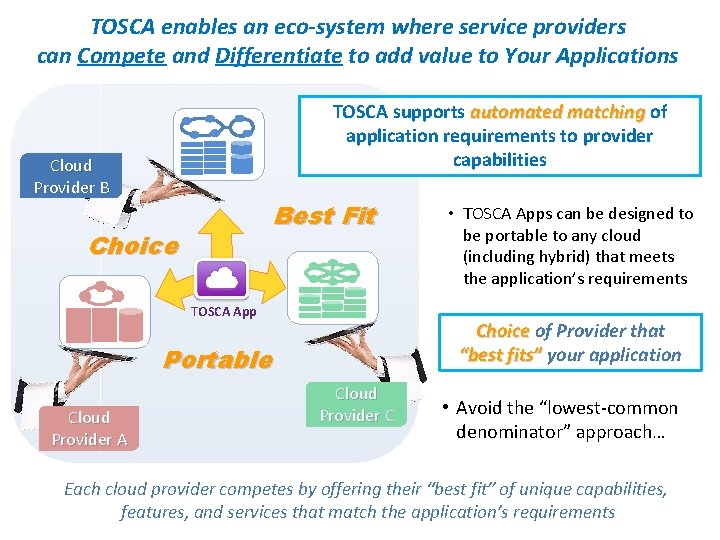

TOSCA enables an eco-system where service providers can Compete and Differentiate to add value to Your Applications TOSCA supports automated matching of application requirements to provider capabilities Cloud Provider B Best Fit Choice TOSCA App Choice of Provider that “best fits” your application Portable Cloud Provider A • TOSCA Apps can be designed to be portable to any cloud (including hybrid) that meets the application’s requirements Cloud Provider C • Avoid the “lowest-common denominator” approach… Each cloud provider competes by offering their “best fit” of unique capabilities, features, and services that match the application’s requirements

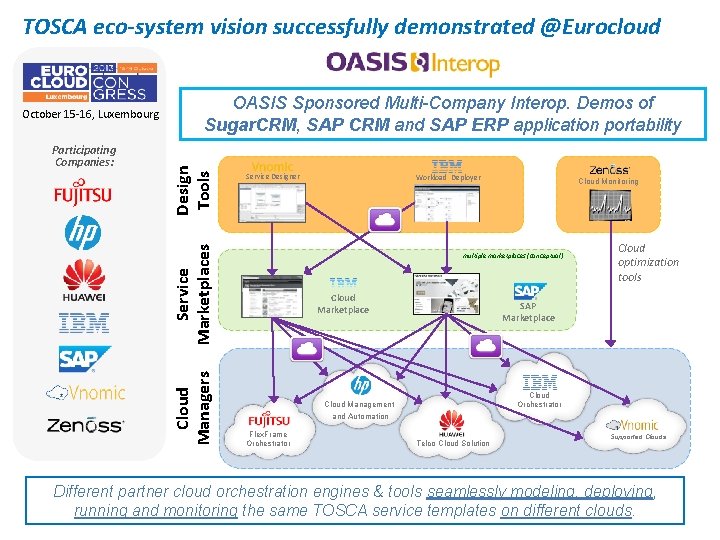

TOSCA eco-system vision successfully demonstrated @Eurocloud Service Designer Cloud Managers Service Marketplaces Participating Companies: OASIS Sponsored Multi-Company Interop. Demos of Sugar. CRM, SAP CRM and SAP ERP application portability Design Tools October 15 -16, Luxembourg Workload Deployer Cloud Monitoring multiple marketplaces (conceptual) Cloud Marketplace SAP Marketplace Cloud Orchestrator Cloud Management and Automation Flex. Frame Orchestrator Cloud optimization tools Telco Cloud Solution Supported Clouds Different partner cloud orchestration engines & tools seamlessly modeling, deploying, running and monitoring the same TOSCA service templates on different clouds.

TOSCA enables holistic application lifecycle automation while ensuring integrity, security and compliance Architects External Influences Business Conditions Cloud Application Lifecycle with TOSCA Model services, policies & requirements TOSCA Strategic Requests Develop, unit test scripts, plans & artifacts for planned releases, patches, fixes TOSCA Template Development Teams Template Cloud Provider A Cloud Provider B Operational Requests Hot Packs Operations Cloud Provider C TOSCA Deploy, manage & monitor application lifecycle TOSCA Template Infrastructure Changes QA Teams Build & Test releases, updates & configurations TOSCA Templates Agnostic to Cloud Infrastructure Changes TOSCA templates communicate and drive application-centric Dev. Ops and continuous delivery

TOSCA reduces complexity by expressing application requirements independently from cloud provider capabilities TOSCA Portable Cloud Application TOSCA Service Template Software + Infrastructure Patterns App DB Compute 1 Compute 2 Network Scaling Policy Storage Application Requirements TOSCA Orchestration Automatic Matching Infrastructure Capabilities X 86 VM HDD 10 Gb Network Power. VM X 86 VM Cloud Provider A Power. VM RDMA Network HDD Cloud Provider B & Optimization Power. VM SSD KVM KVM Ring Network KVM KVM Cloud Provider C Enables TOSCA applications to be portable to different infrastructures

TOSCA enables flexible movement between different clouds TOSCA Web. App Database Template e ov M Initial Deployment Application / Service TOSCA Cloud Service Templates enable … • Cloud providers to match application requirements while still offering unique solutions • Automated application movement between Clouds without typical migration pains Cloud Provider A Cloud Provider C 9 Freedom to respond to changes in business needs and regulatory demands

TOSCA eco-system is rapidly growing with support from many industry leaders and open source partners TOSCA Version 1. 0 Specification approved as an OASIS Standard (Nov 2013) Members Companies Government and Corporate Awareness: – OASIS: 600+ member organizations. 5000+ participants spanning 65+ countries – TOSCA TC: 150+ members, 35+ companies & orgs. – International Standards & Research: ETSI NFV liaison, EU FP 7, etc. – Industry Analysts: Forrester names TOSCA as a top four cloud open standard (Mar 2014) Multi-company Interoperability Demonstrated: – Euro. Cloud 2013 (Oct 2013): IBM, SAP, Fujitsu, Huawei, HP, Vnomic, Zenoss and others – Open Data Center Alliance: TOSCA Application Portability in the Enterprise Cloud Po. C (Jan 2014) Open Source: – Open. Stack, Eclipse, getcloudify. org, Apache, celar Open Source Projects

Find out how TOSCA can empower your Cloud business TOSCA enables application portability and automated management across cloud providers regardless of underlying platform or infrastructure thus expanding customer choice, improving reliability, and reducing cost and time-to-value. • In implementing your Cloud strategy TOSCA enables unique solutions to your key challenges – Speed and accuracy moving apps to Cloud – Agility adapting to change - Business and IT – Choice of Cloud vendor and technology • Talk to your vendors and platform providers about their TOSCA support 11

The TOSCA Ecosystem in action! The following slides … § Showcase companies’ and organizations’ TOSCA-enabled Orchestrators, Design Tools, Marketplaces and Technologies

App-Centric Cloud Lifecycle Prototype: Sugar CRM CSAR Use Case

Juju is an Open Source TOSCA Orchestrator that can deploy workloads across public, private clouds, and directly onto bare metal. ● Supports TOSCA 1. 1 - Simple YAML Profile ● Supports AWS, Open. Stack, Azure, HP Helion Cloud, Joyent, and Bare Metal ● Rich Ecosystem of tools and Users ● Library of over 100 production workloads via a Charm Store

CA Technologies and OASIS TOSCA As a leader in unified infrastructure and cloud management, as well as one of the original proposers of OASIS TOSCA, CA Technologies and the CA Nimsoft Monitor team recognize the importance of this open standard. TOSCA has the potential to serve as the central enabler of an expanding ecosystem that will empower more effective modeling of cloud applications and their management requirements throughout their lifecycle in complex, dynamic, cloud environments.

Application LIfecycle ENabler 4 Cloud Open-Source Cloud Governance Solution based on TOSCA Topology edition Applications Cloud Service ARchives Multiple platforms and clouds Alien 4 Cloud Orchestrator Compliant Package Environment Resources and Capabilities Execution platforms cloudify 3 heat others Paa. S and Orchestrators … Containers … Private Cloud Multiple platform versions Enterprise Dev. Ops ∂ Collaboration & Self-Service … cloudify 2 ∂ Single application package Cloud Governance … Public Cloud Application Lifecycle Management Continuous Delivery

Flex. Frame® Orchestrator adopting TOSCA Key Technologies q q q Orchestration Flex. Frame Management n Automation & Orchestration n Application & Infrastructure Virtualization n High Availability n Disaster Tolerance n Multi Tenancy n Lifecycle Management n Dev. Ops Support n TOSCA Service Templates Application Repository TOSCA Service Template Application & Hardware Virtualization Computing Network Key Business Values n Reduced Costs n Increased Agility n Improved Service Levels n Reduced Complexity n Cloud Interoperability & Portability Storage Flex. Frame® Orchestrator solutions enable dynamic infrastructures for private and hosted clouds focusing on SAP Applications Adopting Open. Stack and OASIS-TOSCA is driving Flex. Frame® Orchestrator innovation towards cloud interoperability and application portability Potentially extending Flex. Frame® Orchestrator to support a broad set of TOSCA-compliant business applications

Giga. Spaces Cloudify - Cloud Application Orchestrator to Support TOSCA Orchestrates TOSCA Service Templates using workflows to automate deployments and other Dev. Ops automation processes

Develop a TOSCA Design model for a Pet Clinic App and deploy the application Publish into Catalogs as Service Offerings Create Subscriptions Topological graph results in a system generated execution plan for fulfillment Declarative Service Designs (Aligned to TOSCA principles) HP Cloud Service Automation - HP’s comprehensive Hybrid Cloud Management Solution 19

Deploy the Sugar. CRM Based on Tosca CSAR Package For Tosca Demo Login portal Upload the CSAR package Step 1: Login Step 2: Upload Wait for implement configuring installing Ready Topology of the Application based on the CSAR Package and the Deploying Flow Step 3: Deploying Status of each nodes descript in the CSAR Package Step 4: Deployment Successful 20

Demo TOSCA Service Templates import and deployment using IBM Cloud Orchestrator • Integrated tooling for TOSCA template creation and editing Import of the Sugar. CRM or SAP TOSCA applications into our integrated application builder tool. • Import and export of TOSCA v 1. 0 compliant service templates • Deploy-time composition of service templates based on policies • Integrated monitoring and scaling of deployed services Sugar. CRM or SAP CRM services offered in a service catalog Deployed instances of Sugar. CRM or SAP services with public IP addresses 21

SAP supports TOSCA standardization • As a cloud leader, SAP has supported the development of the TOSCA standard from the very beginning. SAP was one of the companies that originally proposed TOSCA at OASIS in 2011. • In 2013, SAP took part in the TOSCA interoperability demo at Eurocloud Congress, showing an SAP landscape – SAP CRM on Sybase ASE – automatically deployed by TOSCA solutions from several SAP partners, all developed independently. • We anticipate that TOSCA will deliver significant cost savings and faster time-to-value for the many SAP customers moving to the cloud.

• Domain-specific language for specifying the provisioning and deployment of multi-cloud applications • Models@run-time engine for enacting the provisioning, deployment, and adaptation of these applications • Open source (available on Git. Hub, see cloudml. org) • Partial support for TOSCA Partially funded by: Technology for a better society

Declarative Delivery and Governance support for TOSCA Vnomic Service Designer Create TOSCA Service Templates using modeled Components and Artifacts Publish to Marketplaces Import and Compose new Services Marketplaces Vnomic Suite: Declarative Desired State Service Delivery and Governance for the most complex applications and infrastructures Compose Services from existing deployments and component libraries Orchestrate TOSCA Service Templates across diverse clouds and infrastructures Private, hybrid and public clouds Deploy from Marketplaces Vnomic Desired State Controller Model existing deployments

Service Model Monitoring via TOSCA • • • SAP service deployed with TOSCA orchestration Realized deployment is instrumented for monitoring using TOSCA template along with deployment information Results in deployment and operational support of services based on IT policies Copyright Zenoss, Inc. 25
