Things to Note Suppression Size Depth Constancy Laterality

Things to Note • Suppression – Size – Depth – Constancy – Laterality – At what viewing distance • Retinal Correspondence – Normal/Anomalous – Depth – Constancy – At what viewing distance

“Sally” • BVA: 20/20 @ D/N O. D. , O. S. , O. U. • Bagolini: @40 cm • CT: 25 AET with O. S. fixation 80% 30 AET’ with O. S. fixation 50% • Bagolini w/30 BO: • CT w/+3. 00 add: 20 AET’

BAGOLINI STRIATED LENS EXPECTED RESULTS O. S. LENSES MONOC. PERCEPT BINOC. PERCEPT O. D.

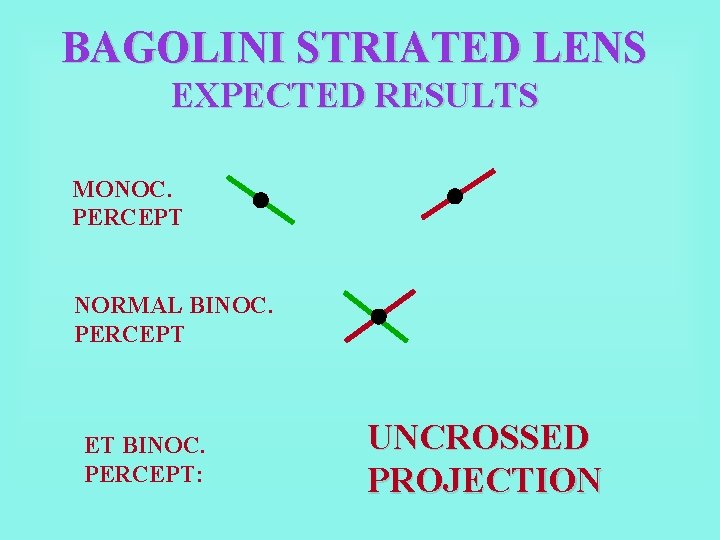

BAGOLINI STRIATED LENS EXPECTED RESULTS MONOC. PERCEPT NORMAL BINOC. PERCEPT ET BINOC. PERCEPT: UNCROSSED PROJECTION

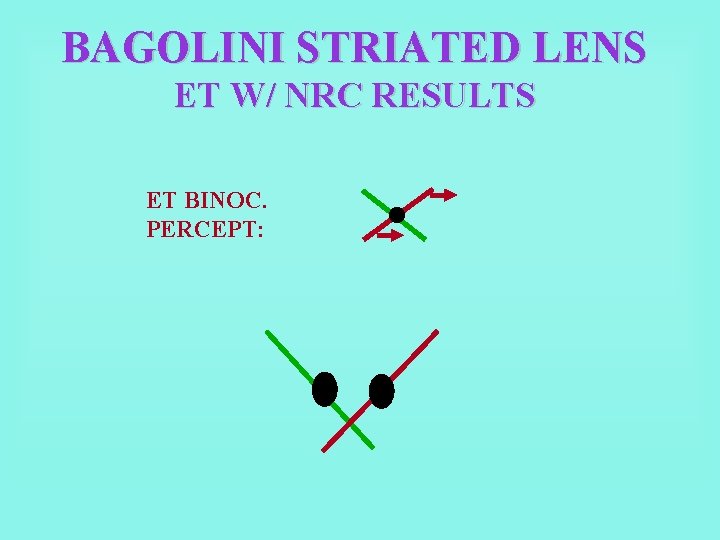

BAGOLINI STRIATED LENS ET W/ NRC RESULTS ET BINOC. PERCEPT:

BAGOLINI STRIATED LENS ET W/ ARC RESULTS h. ARC: 30 ET u. ARC: 30 ET NO PRISM 15 BO

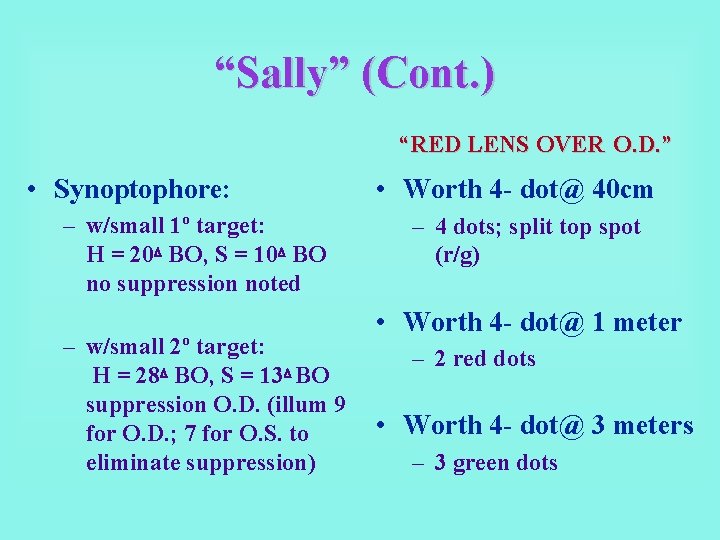

“Sally” (Cont. ) “RED LENS OVER O. D. ” • Synoptophore: – w/small 1º target: H = 20 BO, S = 10 BO no suppression noted – w/small 2º target: H = 28 BO, S = 13 BO suppression O. D. (illum 9 for O. D. ; 7 for O. S. to eliminate suppression) • Worth 4 - dot@ 40 cm – 4 dots; split top spot (r/g) • Worth 4 - dot@ 1 meter – 2 red dots • Worth 4 - dot@ 3 meters – 3 green dots

WORTH 4 -DOT ARC RESULTS

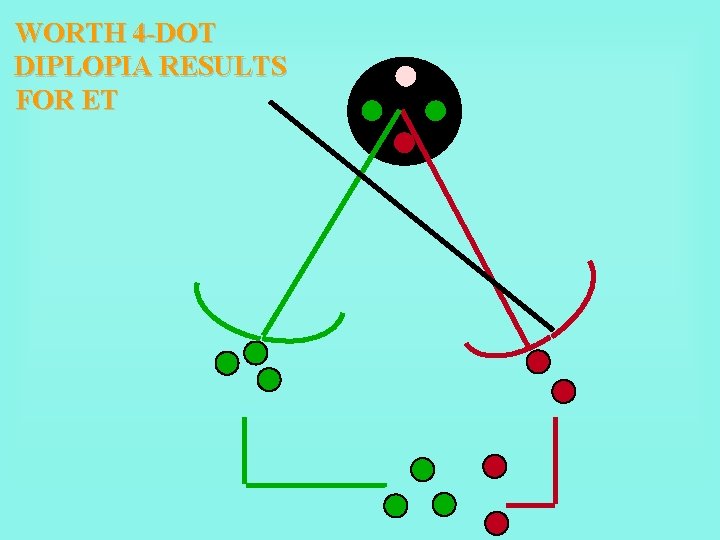

WORTH 4 -DOT DIPLOPIA RESULTS FOR ET

“Sally” (Cont. ) “RED LINE REPRESENTS O. D. ” • Hering Bielschowsky After-Image Test: – w/ eyes closed: – @ 40 cm: @ 1 meter:

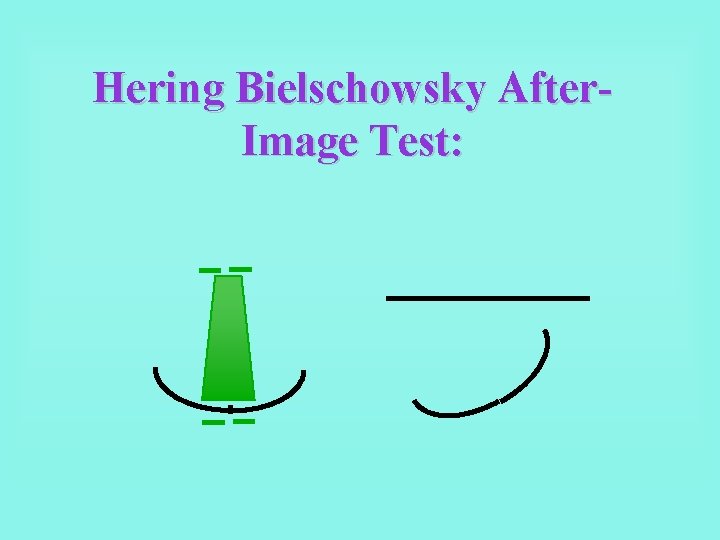

Hering Bielschowsky After. Image Test:

Hering Bielschowsky After. Image Test:

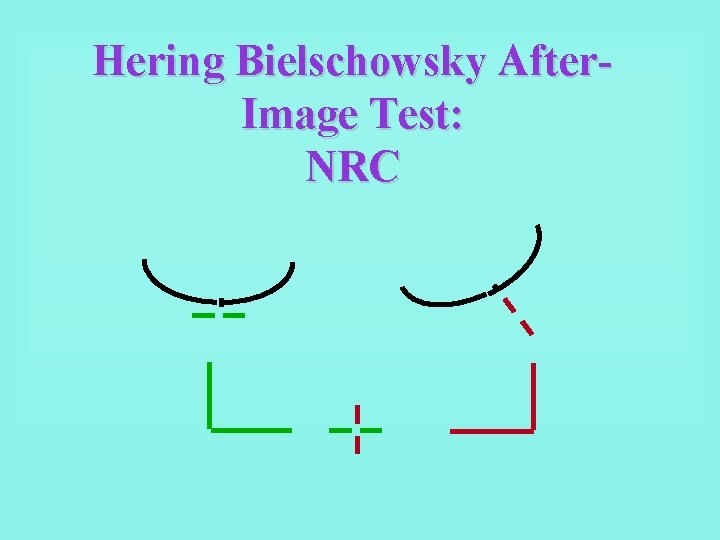

Hering Bielschowsky After. Image Test: NRC

Hering Bielschowsky After. Image Test: ARC p. m Te ARPP POINT R n i t e a

Summary For “Sally” • Suppression – Size: parafoveal – Depth: shallow @ near deep @ distance – Constancy: intermittent – Laterality: mostly O. D. (more alternating @ near) – At what viewing distance: dist. < near • Retinal Correspondence –Normal: nope! –Anomalous: u. ARC mostly –Depth: very deep –At what viewing distance: ARC at all distances

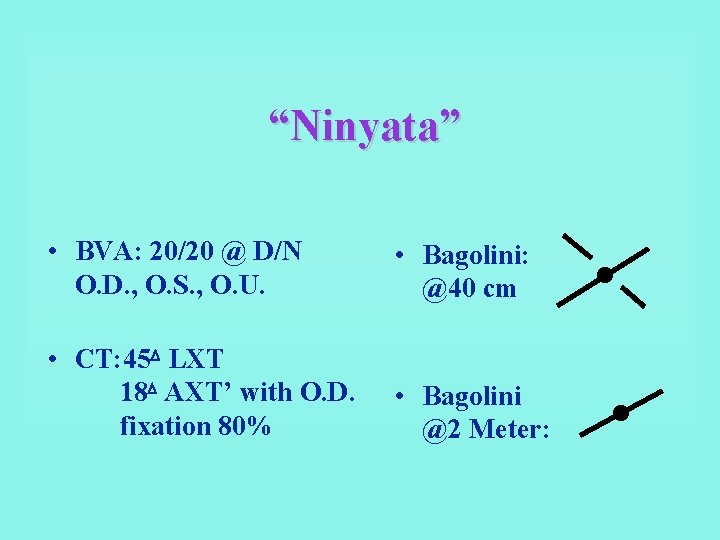

“Ninyata” • BVA: 20/20 @ D/N O. D. , O. S. , O. U. • Bagolini: @40 cm • CT: 45 LXT 18 AXT’ with O. D. fixation 80% • Bagolini @2 Meter:

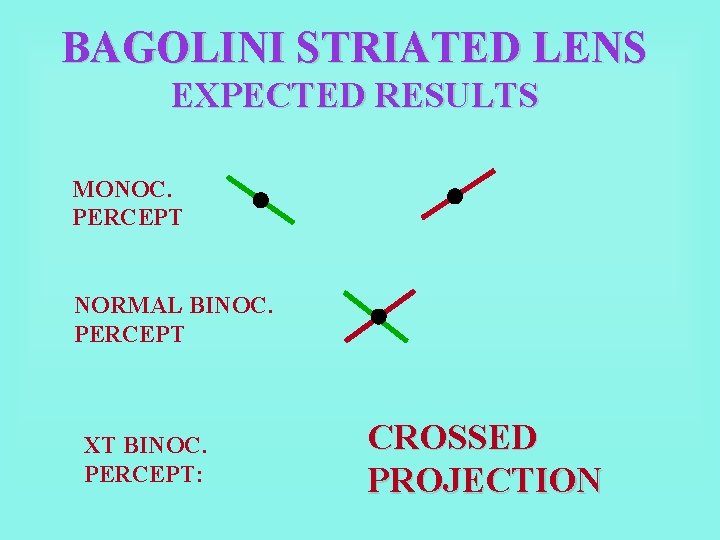

BAGOLINI STRIATED LENS EXPECTED RESULTS MONOC. PERCEPT NORMAL BINOC. PERCEPT XT BINOC. PERCEPT: CROSSED PROJECTION

BAGOLINI STRIATED LENS XT W/ NRC RESULTS XT BINOC. PERCEPT:

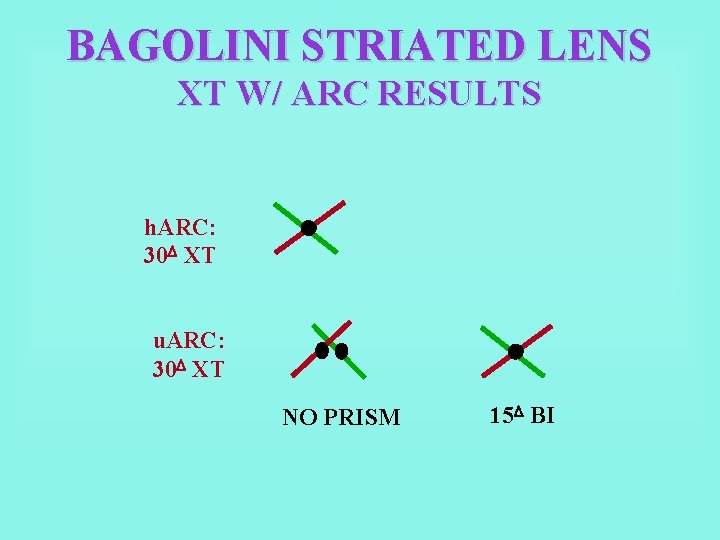

BAGOLINI STRIATED LENS XT W/ ARC RESULTS h. ARC: 30 XT u. ARC: 30 XT NO PRISM 15 BI

“Ninyata” (Cont. ) “RED LENS OVER O. D. ” • Synoptophore: – w/med 1º target: H = 40 BI, S = 0 signif. suppression O. S. noted – w/large 2º target: H = 18 BI, S = 3 BI suppression O. S. (flicker O. S. to eliminate suppression) • Worth 4 - dot@ 40 cm – 5 dots (2 red lights to right) • Worth 4 - dot@ 1 meter – 2 red dots • Worth 4 - dot@ 3 meters – 2 red dots

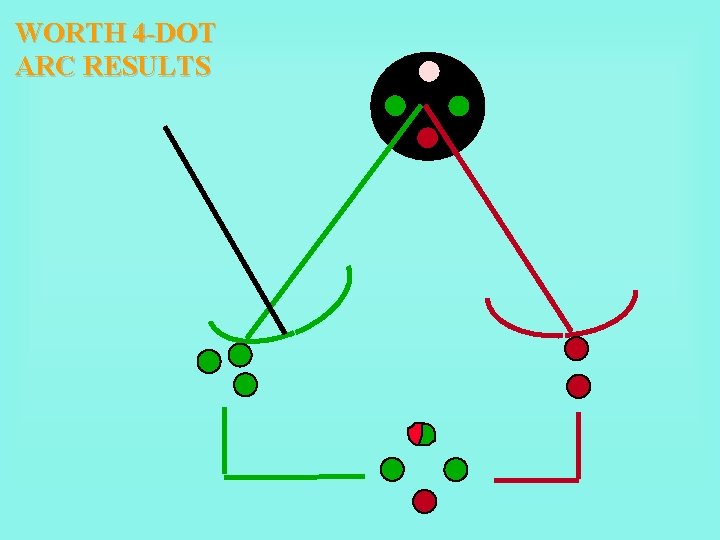

WORTH 4 -DOT ARC RESULTS

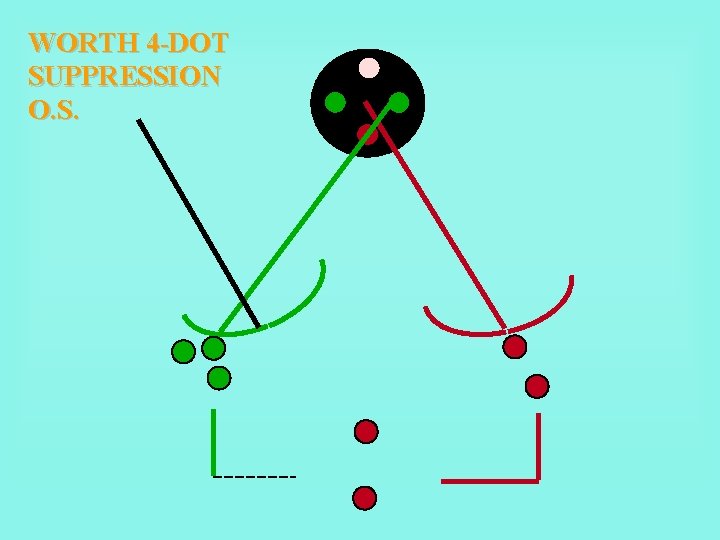

WORTH 4 -DOT SUPPRESSION O. S.

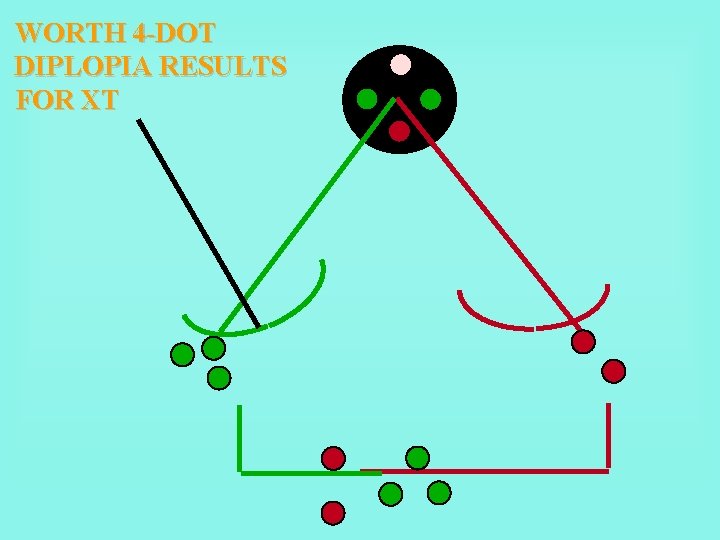

WORTH 4 -DOT DIPLOPIA RESULTS FOR XT

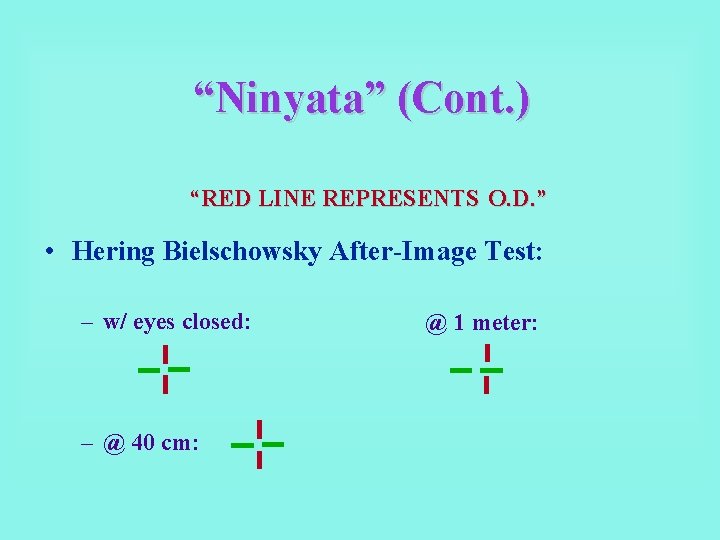

“Ninyata” (Cont. ) “RED LINE REPRESENTS O. D. ” • Hering Bielschowsky After-Image Test: – w/ eyes closed: – @ 40 cm: @ 1 meter:

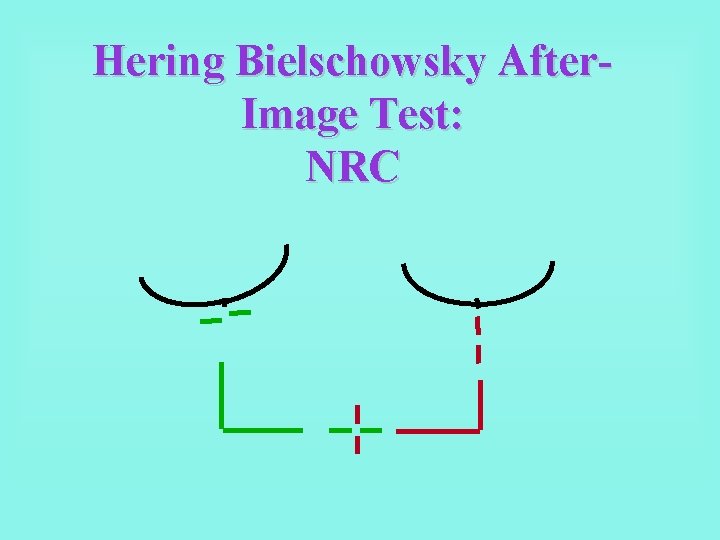

Hering Bielschowsky After. Image Test: NRC

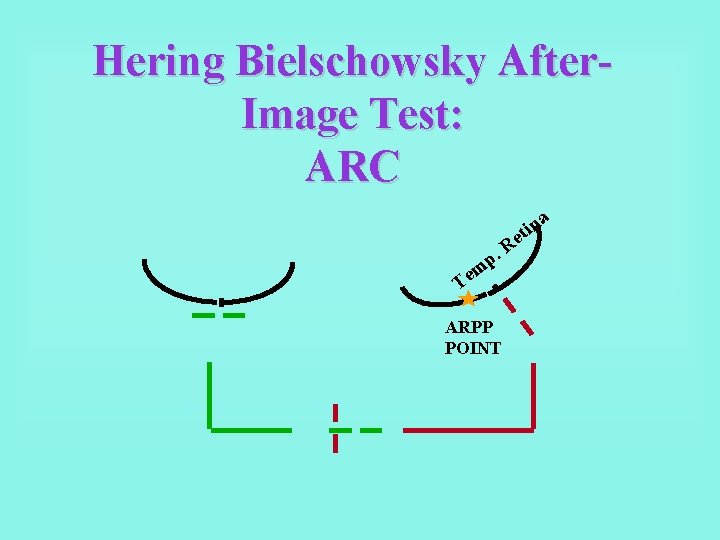

Hering Bielschowsky After. Image Test: ARC a l a s Na ARPP POINT R n eti

Summary For “Ninyata” • Suppression – Size: paramacular – Depth: deep @ near very deep @ distance – Constancy: constant (some intermittentcy @ near) – Laterality: O. S. • Retinal Correspondence –Normal: nope! –Anomalous: h. ARC mostly –Depth: deep @ dist; shallow h. ARC or suppression @ near
