The world`s only open STANDARD for home and building control! www. konnex. org KNX Association Brussels

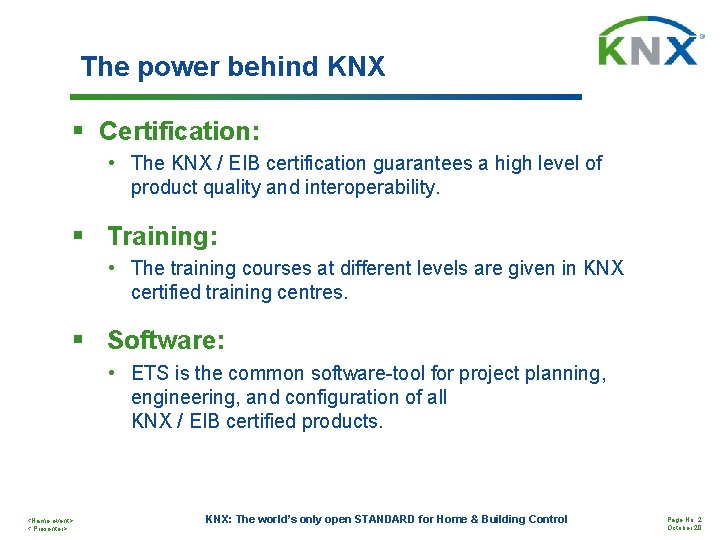

The power behind KNX § Certification: • The KNX / EIB certification guarantees a high level of product quality and interoperability. § Training: • The training courses at different levels are given in KNX certified training centres. § Software: • ETS is the common software-tool for project planning, engineering, and configuration of all KNX / EIB certified products. <Name event> < Presenter> KNX: The world’s only open STANDARD for Home & Building Control Page No. 2 October 20

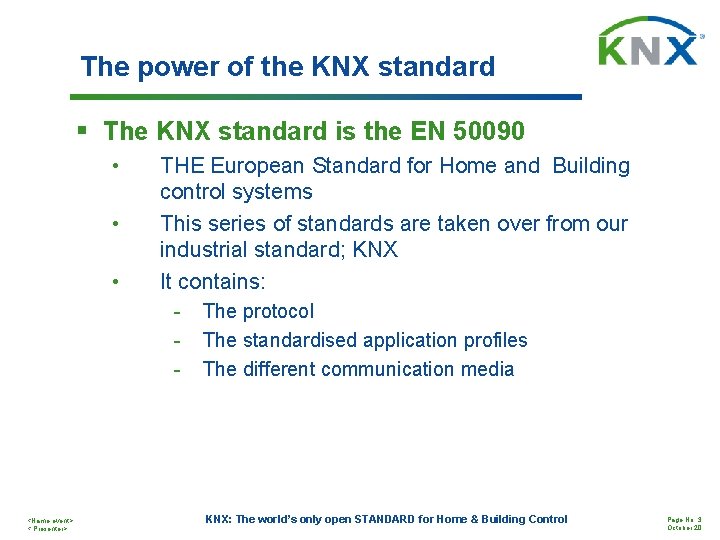

The power of the KNX standard § The KNX standard is the EN 50090 • • • THE European Standard for Home and Building control systems This series of standards are taken over from our industrial standard; KNX It contains: - <Name event> < Presenter> The protocol The standardised application profiles The different communication media KNX: The world’s only open STANDARD for Home & Building Control Page No. 3 October 20

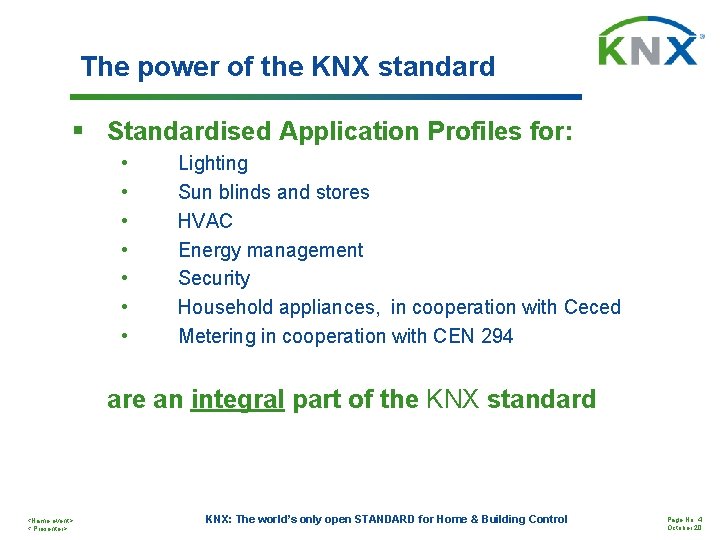

The power of the KNX standard § Standardised Application Profiles for: • • Lighting Sun blinds and stores HVAC Energy management Security Household appliances, in cooperation with Ceced Metering in cooperation with CEN 294 are an integral part of the KNX standard <Name event> < Presenter> KNX: The world’s only open STANDARD for Home & Building Control Page No. 4 October 20

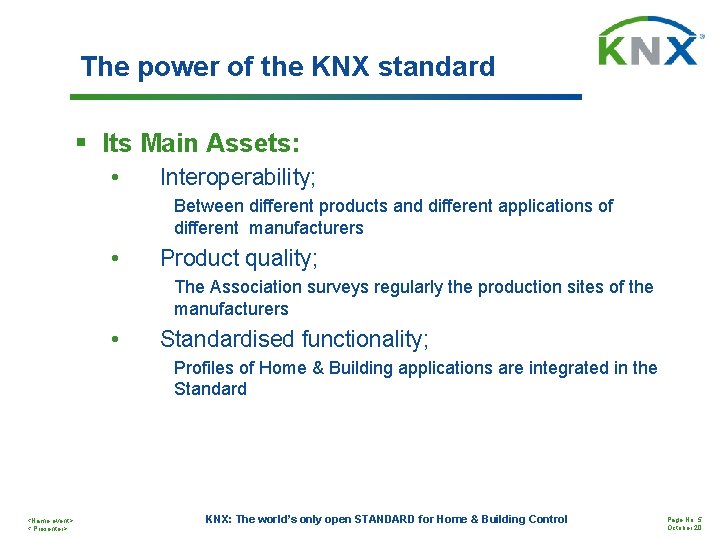

The power of the KNX standard § Its Main Assets: • Interoperability; Between different products and different applications of different manufacturers • Product quality; The Association surveys regularly the production sites of the manufacturers • Standardised functionality; Profiles of Home & Building applications are integrated in the Standard <Name event> < Presenter> KNX: The world’s only open STANDARD for Home & Building Control Page No. 5 October 20

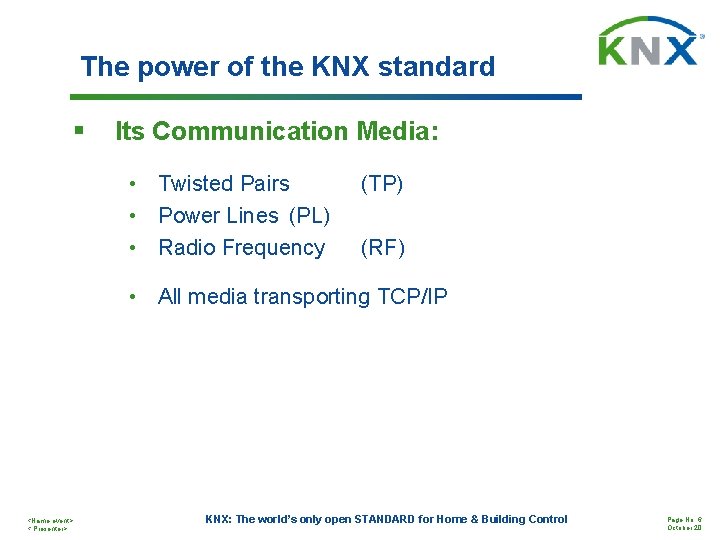

The power of the KNX standard § Its Communication Media: • Twisted Pairs • Power Lines (PL) • Radio Frequency (TP) (RF) • All media transporting TCP/IP <Name event> < Presenter> KNX: The world’s only open STANDARD for Home & Building Control Page No. 6 October 20

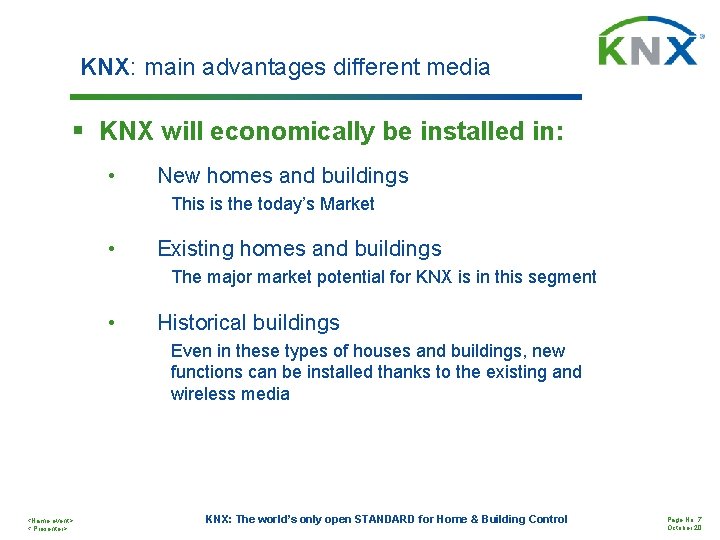

KNX: main advantages different media § KNX will economically be installed in: • New homes and buildings This is the today’s Market • Existing homes and buildings The major market potential for KNX is in this segment • Historical buildings Even in these types of houses and buildings, new functions can be installed thanks to the existing and wireless media <Name event> < Presenter> KNX: The world’s only open STANDARD for Home & Building Control Page No. 7 October 20

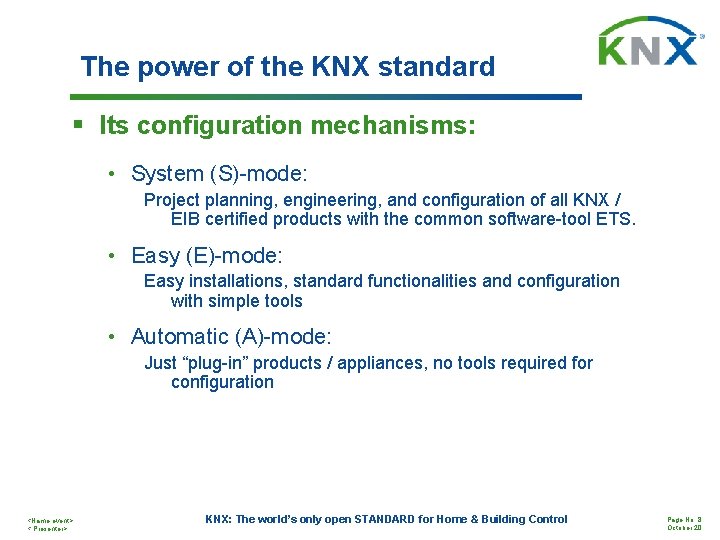

The power of the KNX standard § Its configuration mechanisms: • System (S)-mode: Project planning, engineering, and configuration of all KNX / EIB certified products with the common software-tool ETS. • Easy (E)-mode: Easy installations, standard functionalities and configuration with simple tools • Automatic (A)-mode: Just “plug-in” products / appliances, no tools required for configuration <Name event> < Presenter> KNX: The world’s only open STANDARD for Home & Building Control Page No. 8 October 20

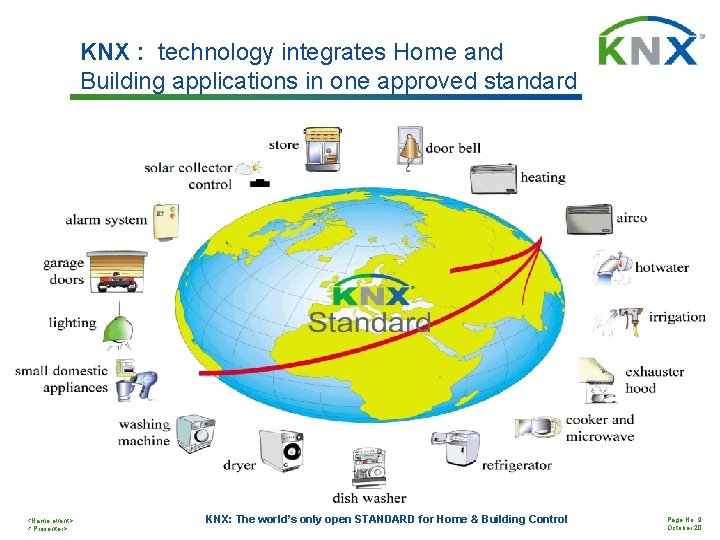

KNX : technology integrates Home and Building applications in one approved standard <Name event> < Presenter> KNX: The world’s only open STANDARD for Home & Building Control Page No. 9 October 20

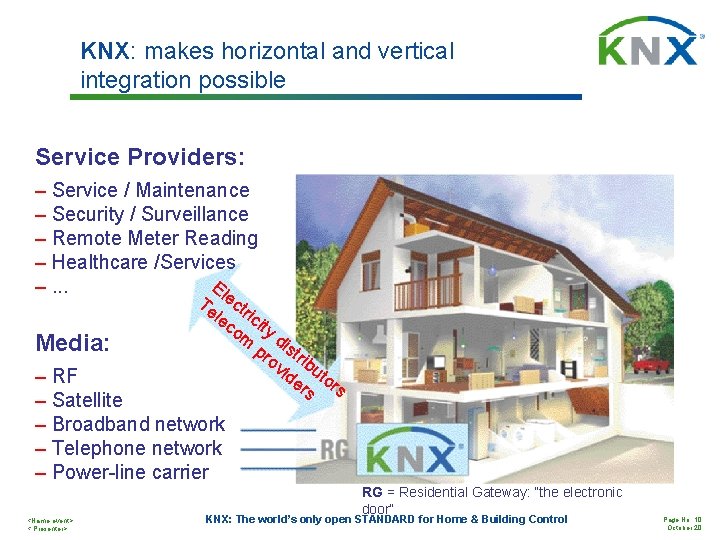

KNX: makes horizontal and vertical integration possible Service Providers: – Service / Maintenance – Security / Surveillance – Remote Meter Reading – Healthcare /Services El –. . . e Media: Te ct le rici co ty m di pr str ov ib id uto er rs s – RF – Satellite – Broadband network – Telephone network – Power-line carrier <Name event> < Presenter> RG = Residential Gateway: “the electronic door“ KNX: The world’s only open STANDARD for Home & Building Control Page No. 10 October 20

KNX – Facts & Figures Over 100 mebers from such fields of application as: - <Name event> < Presenter> Lighting control Shutter control Heating, Ventilation, Airconditioning Alarm/intrusion systems Household appliances Audio KNX: The world’s only open STANDARD for Home & Building Control Page No. 11 October 20

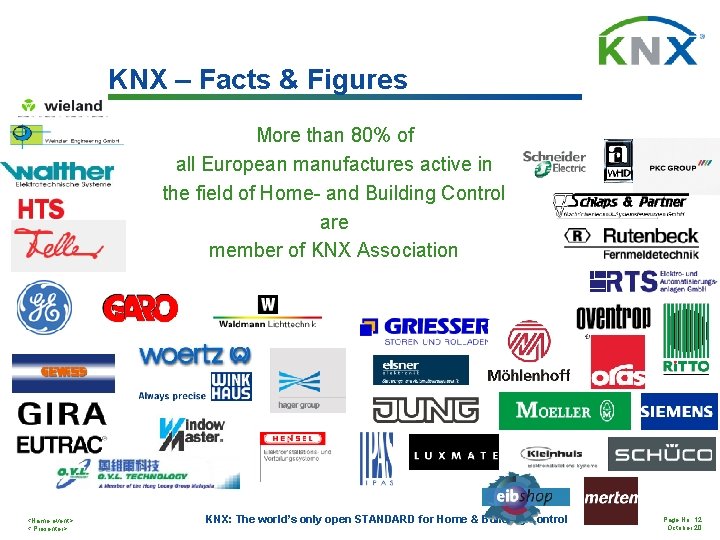

KNX – Facts & Figures More than 80% of all European manufactures active in the field of Home- and Building Control are member of KNX Association <Name event> < Presenter> KNX: The world’s only open STANDARD for Home & Building Control Page No. 12 October 20

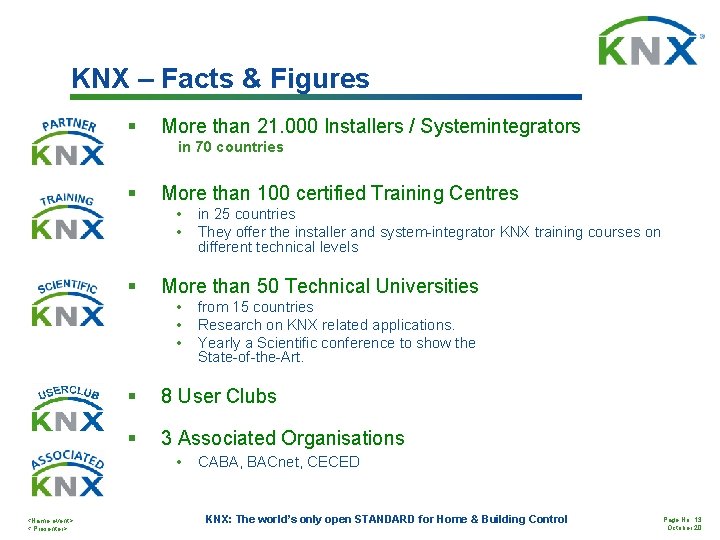

KNX – Facts & Figures § More than 21. 000 Installers / Systemintegrators in 70 countries § More than 100 certified Training Centres • • § More than 50 Technical Universities • • • from 15 countries Research on KNX related applications. Yearly a Scientific conference to show the State-of-the-Art. § 8 User Clubs § 3 Associated Organisations • <Name event> < Presenter> in 25 countries They offer the installer and system-integrator KNX training courses on different technical levels CABA, BACnet, CECED KNX: The world’s only open STANDARD for Home & Building Control Page No. 13 October 20

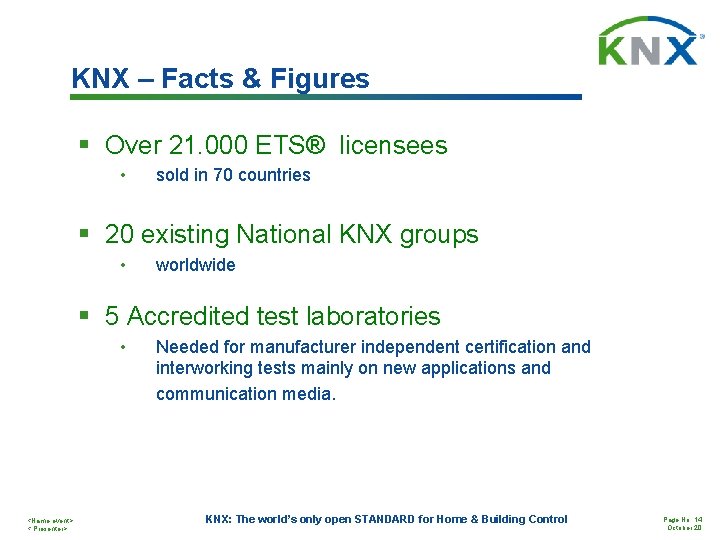

KNX – Facts & Figures § Over 21. 000 ETS® licensees • sold in 70 countries § 20 existing National KNX groups • worldwide § 5 Accredited test laboratories • <Name event> < Presenter> Needed for manufacturer independent certification and interworking tests mainly on new applications and communication media. KNX: The world’s only open STANDARD for Home & Building Control Page No. 14 October 20

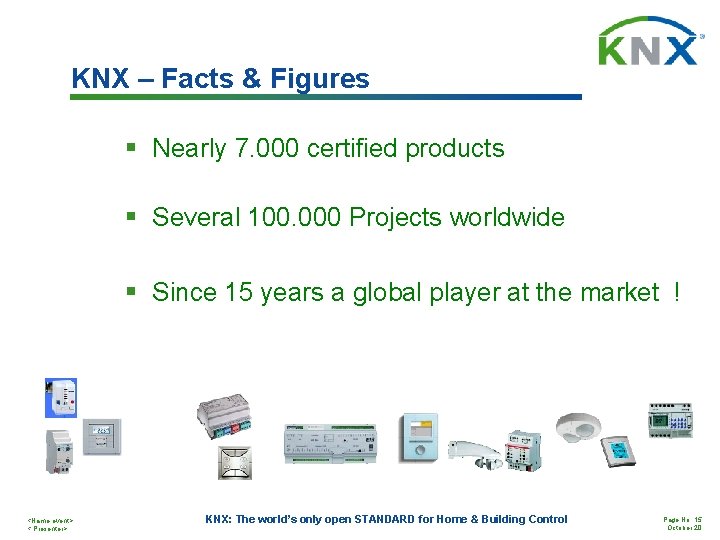

KNX – Facts & Figures § Nearly 7. 000 certified products § Several 100. 000 Projects worldwide § Since 15 years a global player at the market ! <Name event> < Presenter> KNX: The world’s only open STANDARD for Home & Building Control Page No. 15 October 20

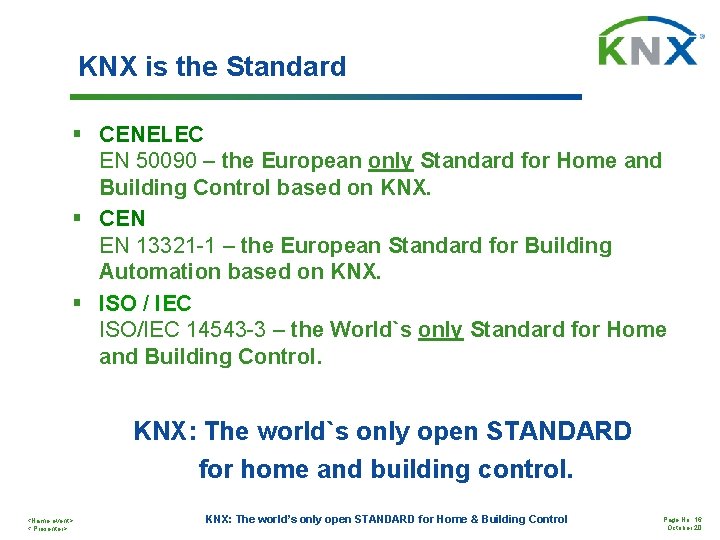

KNX is the Standard § CENELEC EN 50090 – the European only Standard for Home and Building Control based on KNX. § CEN EN 13321 -1 – the European Standard for Building Automation based on KNX. § ISO / IEC ISO/IEC 14543 -3 – the World`s only Standard for Home and Building Control. KNX: The world`s only open STANDARD for home and building control. <Name event> < Presenter> KNX: The world’s only open STANDARD for Home & Building Control Page No. 16 October 20

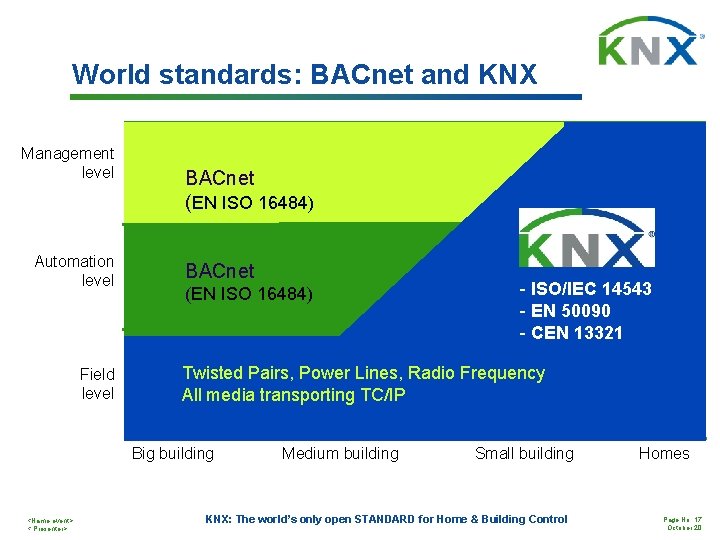

World standards: BACnet and KNX Management level Automation level Field level BACnet (EN ISO 16484) Twisted Pairs, Power Lines, Radio Frequency All media transporting TC/IP Big building <Name event> < Presenter> - ISO/IEC 14543 - EN 50090 - CEN 13321 Medium building Small building KNX: The world’s only open STANDARD for Home & Building Control Homes Page No. 17 October 20
