Taking the pain out of looping and storing

Taking the pain out of looping and storing Patrick Royston Nordic and Baltic Stata Users’ meeting, Stockholm, 11 November 2011

Overview • I often find myself running a command repeatedly in a loop • I want to save some results and store them in new variable(s) • A new command, looprun, is described that automates the process in a convenient way • It can handle a single loop, or two nested loops • I shall illustrate looprun using profile likelihood functions and surfaces 1

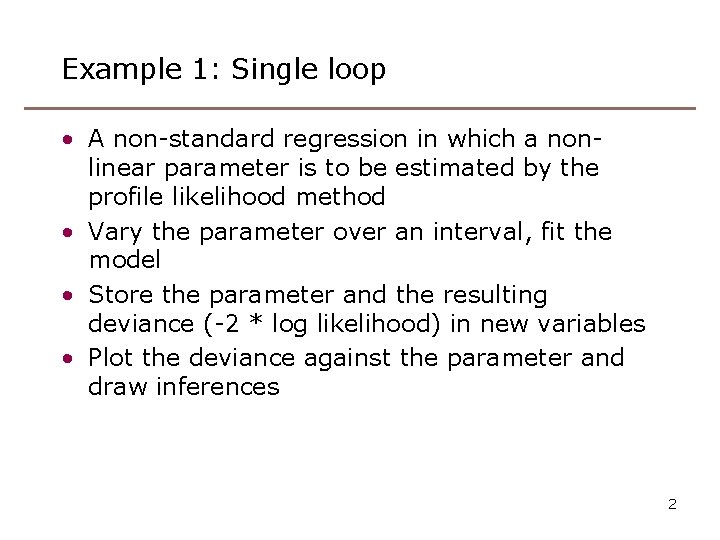

Example 1: Single loop • A non-standard regression in which a nonlinear parameter is to be estimated by the profile likelihood method • Vary the parameter over an interval, fit the model • Store the parameter and the resulting deviance (-2 * log likelihood) in new variables • Plot the deviance against the parameter and draw inferences 2

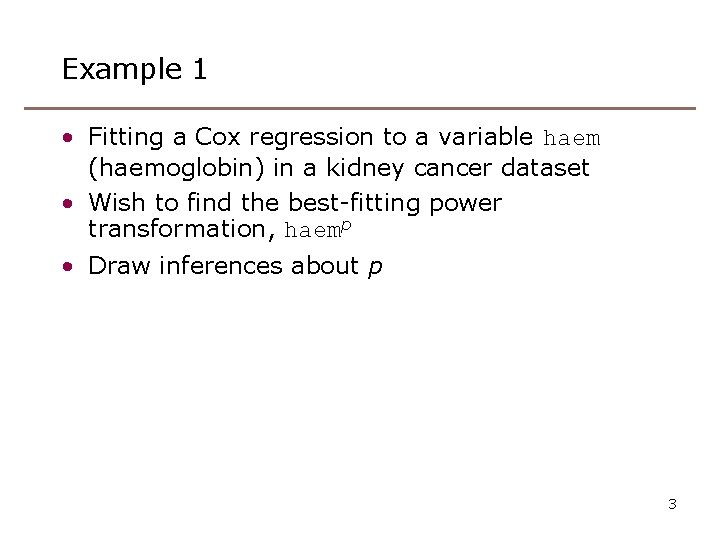

Example 1 • Fitting a Cox regression to a variable haem (haemoglobin) in a kidney cancer dataset • Wish to find the best-fitting power transformation, haemp • Draw inferences about p 3

Conventional code to solve the problem. . . . capture drop deviance capture drop p capture drop order gen deviance =. gen p =. gen int order = _n local i 0 quietly foreach p of numlist -3 (0. 1) 0. 7 { fracgen haem `p', replace stcox haem_1 sort order local ++i replace deviance = -2 * e(ll) in `i‘ replace p = `p' in `i' } line deviance p, sort 4

Solution using looprun "p=-3(0. 1)0. 7", generate(deviance) store(-2*e(ll)) : /// fracgen haem @, replace # /// stcox haem_1. line deviance p, sort 5

Resulting plot 6

Example 2: double loop • A non-standard regression in which two nonlinear parameters are to be estimated by inspecting the profile likelihood surface • Vary both parameters over a grid, fit the model and store the resulting deviance (-2 * log likelihood) • Plot the deviance against one parameter by the values of the other parameter • Contour plot of the deviance surface • Requires Stata 12 twoway contour 7

Example 2 • Model is a Gaussian growth curve • predictor = b 1+b 2*normal(s*(haem ‒ 12. 2) + m/10) 8

Solution using looprun "m=7 (2) 35" "s=0. 2 (0. 05) 2. 5", /// generate(deviance, replace) store(-2*e(ll)) : /// capture drop z # /// gen z = normal(@2 * (haem - 12. 2) + @1/10) # /// stcox z 9

Graphs of results Plot deviance against s, by m. sum deviance. gen deviance 2 = deviance - r(min). line deviance 2 s, sort by(m) 10

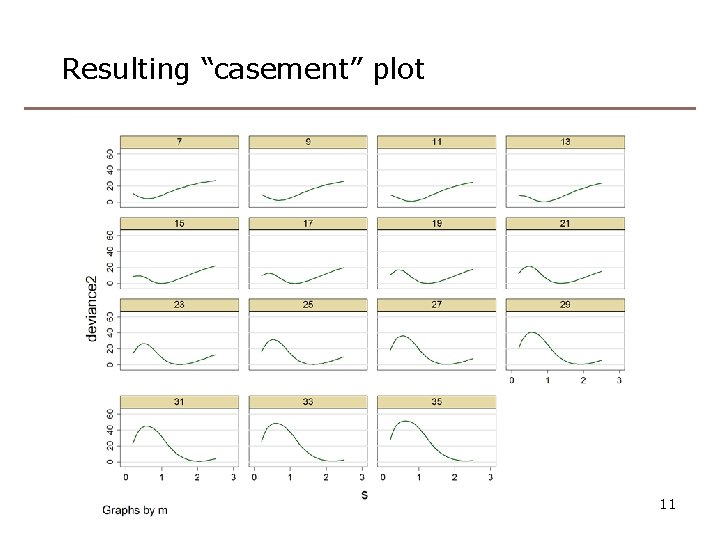

Resulting “casement” plot 11

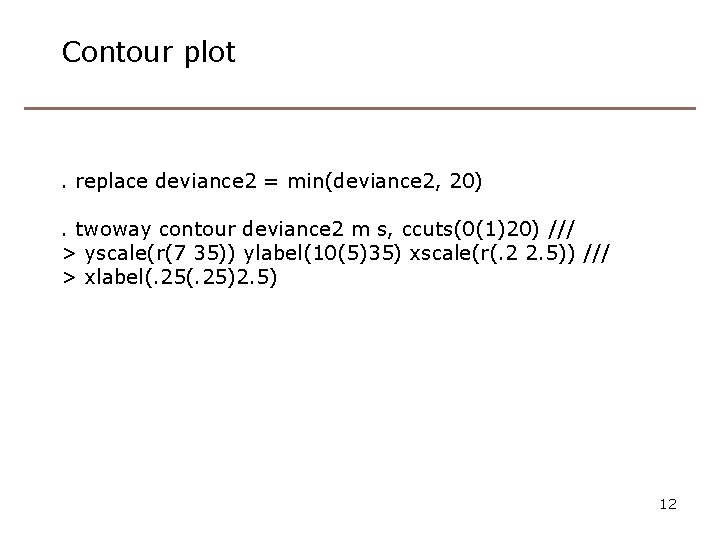

Contour plot . replace deviance 2 = min(deviance 2, 20). twoway contour deviance 2 m s, ccuts(0(1)20) /// > yscale(r(7 35)) ylabel(10(5)35) xscale(r(. 2 2. 5)) /// > xlabel(. 25)2. 5) 12

Contour plot 13

What can we learn from the contour plot? • Parameter estimates of m and s are highly correlated • Re-parameterisation might help • The MLE is located along a narrow, long channel • Hence the model may not be well identified in this dataset • The likelihood surface has some peculiarities for low s, high m 14

Syntax of looprun "[name 1=]numlist 1" ["[name 2=]numlist 2"] , required [ options ] : command 1 [ # command 2. . . ] required description ------------------------------------------store(results_list) results to be stored generate(newvarlist [, replace]) names of new variable(s) to store results in options description ------------------------------------------nodots suppresses progress dots nosort do not sort data before storing results separator(string) character separating commands (default #) placeholder(string) placeholder character(s) (default @) ------------------------------------------15

Main limitation: Handling macros • Cannot assign a local or global macro within a looprun subcommand retrieve it for storage • Easiest way around this is to use scalars, which are global • Need care to avoid clash of scalar names with similarly named variables 16

Conclusion • looprun should take most of the effort out of many simple programming tasks in Stata • looprun can be installed via my UCL webpage: net from http: //www. homepages. ucl. ac. uk/~ucakjpr/stata/ 17

Thank you. 18
