Sw E 455 Program Slicing Our Goals Debug
Sw. E 455 Program Slicing

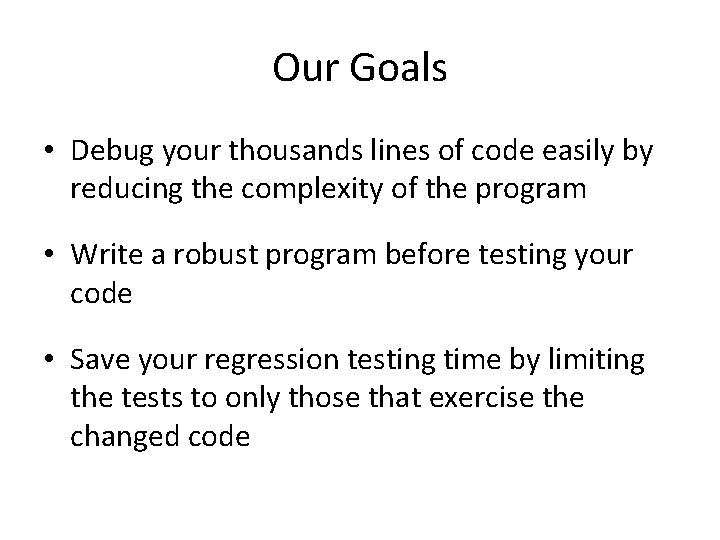

Our Goals • Debug your thousands lines of code easily by reducing the complexity of the program • Write a robust program before testing your code • Save your regression testing time by limiting the tests to only those that exercise the changed code

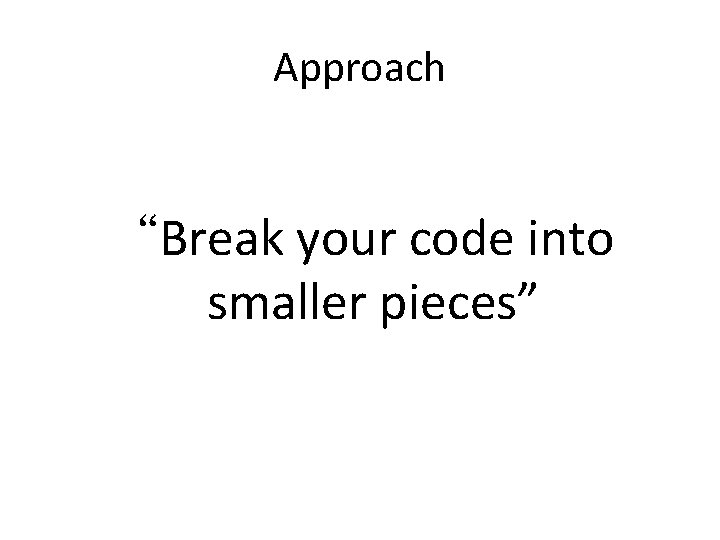

Approach “Break your code into smaller pieces”

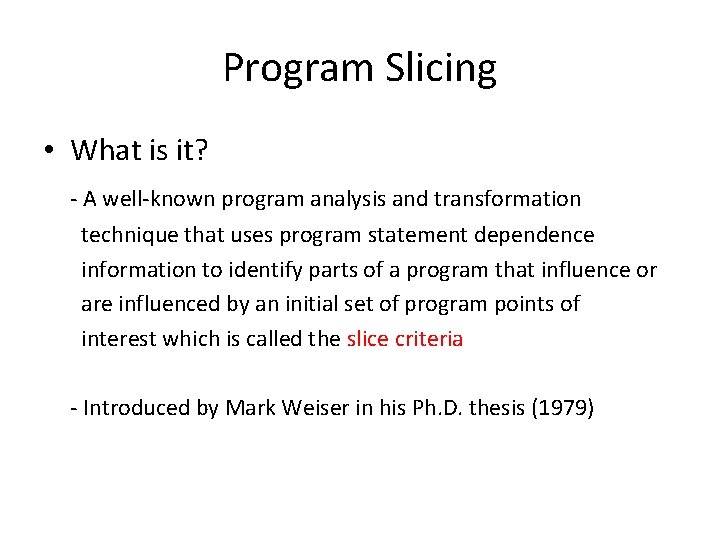

Program Slicing • What is it? - A well-known program analysis and transformation technique that uses program statement dependence information to identify parts of a program that influence or are influenced by an initial set of program points of interest which is called the slice criteria - Introduced by Mark Weiser in his Ph. D. thesis (1979)

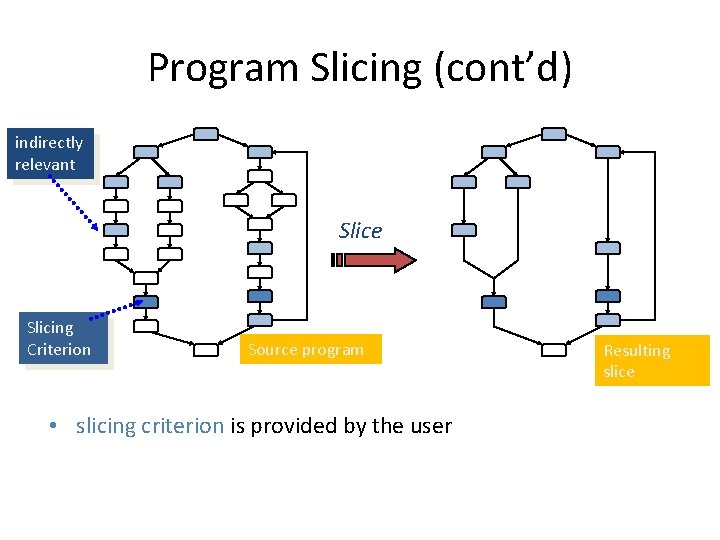

Program Slicing (cont’d) indirectly relevant Slice Slicing Criterion Source program • slicing criterion is provided by the user Resulting slice
Variants of Program Slicing • Many different variants of program slicing exist 1. Static Slicing 4. 5. 6. Dynamic Slicing Conditional Slicing Chopping 2. Backward Slicing 3. Forward Slicing • Also Many Different tools, however – – Most program slicing tools are written for C but there also some for C++ and Java Most of these have problems with dynamic binding, inheritance, polymorphism and performance

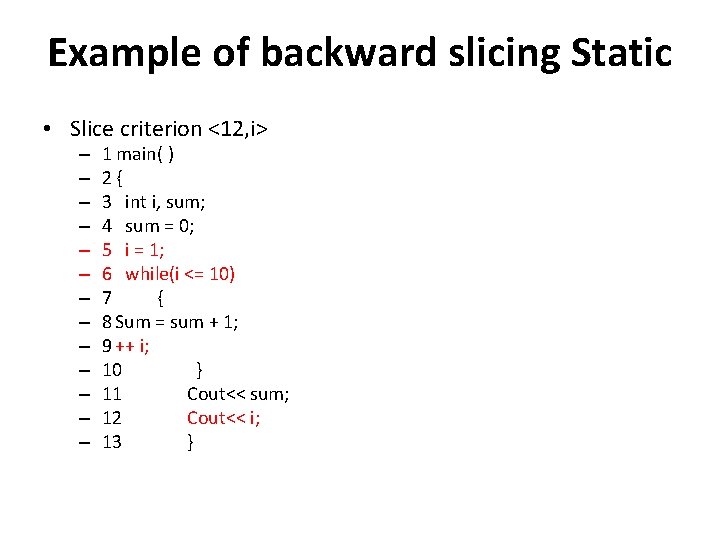

Example of backward slicing Static • Slice criterion <12, i> – – – – 1 main( ) 2{ 3 int i, sum; 4 sum = 0; 5 i = 1; 6 while(i <= 10) 7 { 8 Sum = sum + 1; 9 ++ i; 10 } 11 Cout<< sum; 12 Cout<< i; 13 }
Backward Slice Example public class Simple. Example { static int add(int a, int b){ return(a+b); } public static void main(final String[] arg){ int i = 1; int sum = 0; while (i < 11) { sum = add(sum, i); i = add(i, 1); } System. out. println("sum = " + sum); System. out. println("i = " + i); } Slicing } Criterion

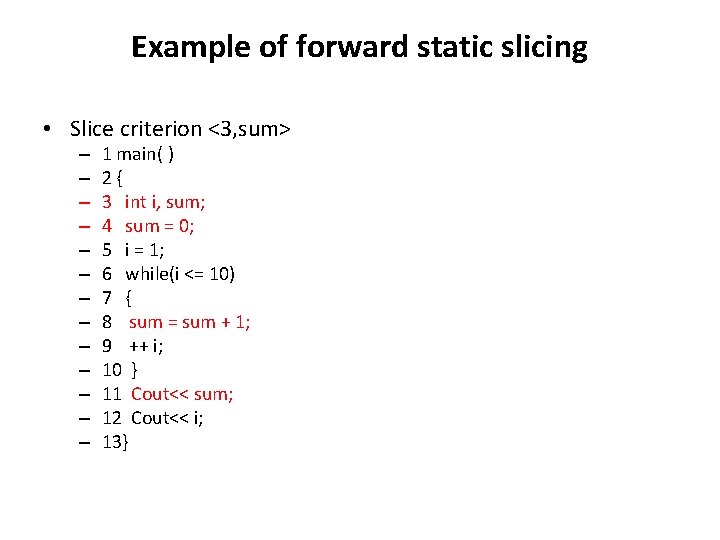

Example of forward static slicing • Slice criterion <3, sum> – – – – 1 main( ) 2{ 3 int i, sum; 4 sum = 0; 5 i = 1; 6 while(i <= 10) 7 { 8 sum = sum + 1; 9 ++ i; 10 } 11 Cout<< sum; 12 Cout<< i; 13}

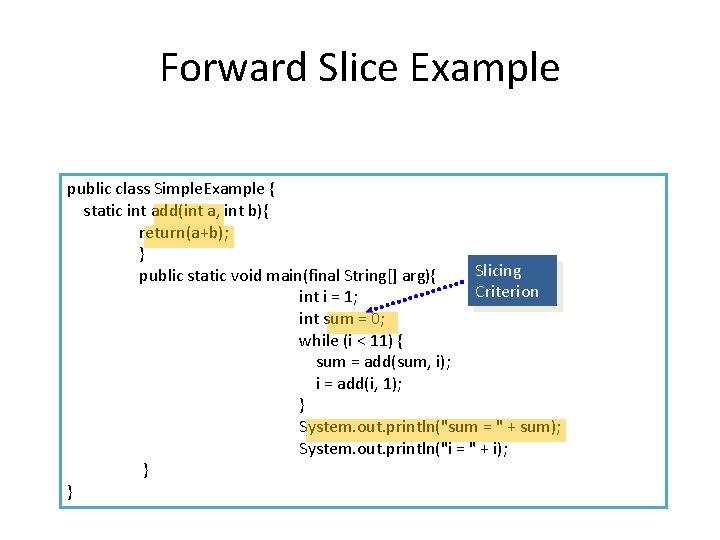

Forward Slice Example public class Simple. Example { static int add(int a, int b){ return(a+b); } Slicing public static void main(final String[] arg){ Criterion int i = 1; int sum = 0; while (i < 11) { sum = add(sum, i); i = add(i, 1); } System. out. println("sum = " + sum); System. out. println("i = " + i); } }

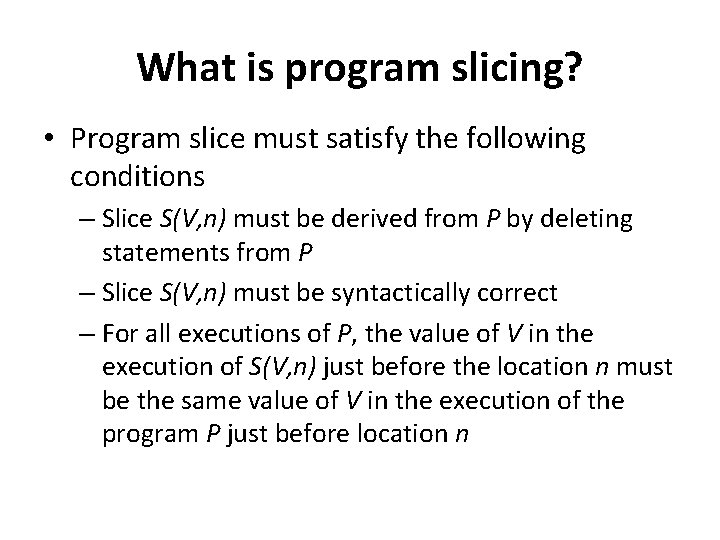

What is program slicing? • Program slice must satisfy the following conditions – Slice S(V, n) must be derived from P by deleting statements from P – Slice S(V, n) must be syntactically correct – For all executions of P, the value of V in the execution of S(V, n) just before the location n must be the same value of V in the execution of the program P just before location n

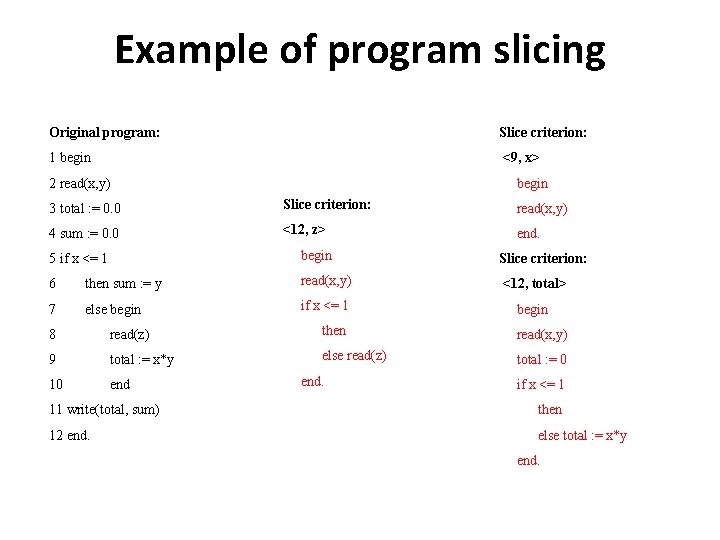

Example of program slicing Original program: Slice criterion: 1 begin <9, x> begin 2 read(x, y) 3 total : = 0. 0 Slice criterion: read(x, y) 4 sum : = 0. 0 <12, z> end. 5 if x <= 1 begin Slice criterion: 6 then sum : = y read(x, y) <12, total> 7 else begin if x <= 1 begin 8 read(z) then read(x, y) 9 total : = x*y else read(z) total : = 0 10 end. if x <= 1 11 write(total, sum) then 12 end. else total : = x*y end.

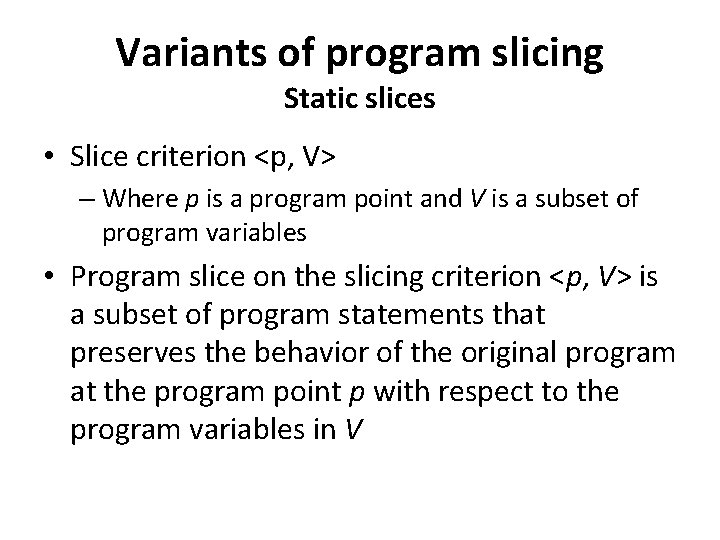

Variants of program slicing Static slices • Slice criterion <p, V> – Where p is a program point and V is a subset of program variables • Program slice on the slicing criterion <p, V> is a subset of program statements that preserves the behavior of the original program at the program point p with respect to the program variables in V

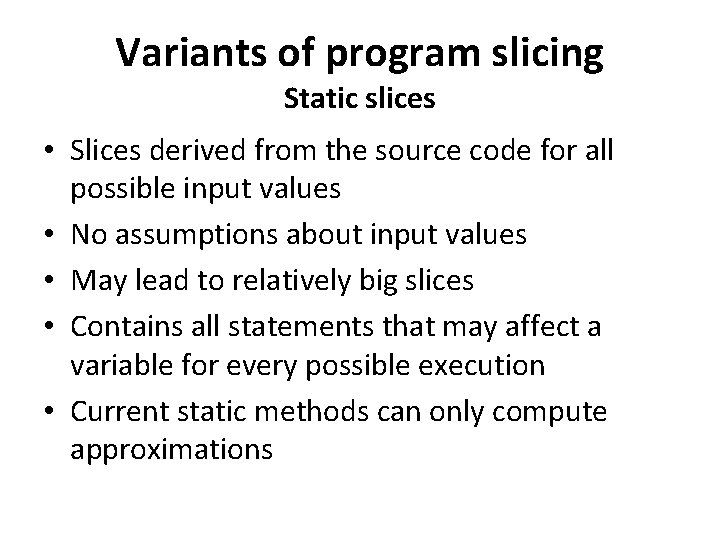

Variants of program slicing Static slices • Slices derived from the source code for all possible input values • No assumptions about input values • May lead to relatively big slices • Contains all statements that may affect a variable for every possible execution • Current static methods can only compute approximations

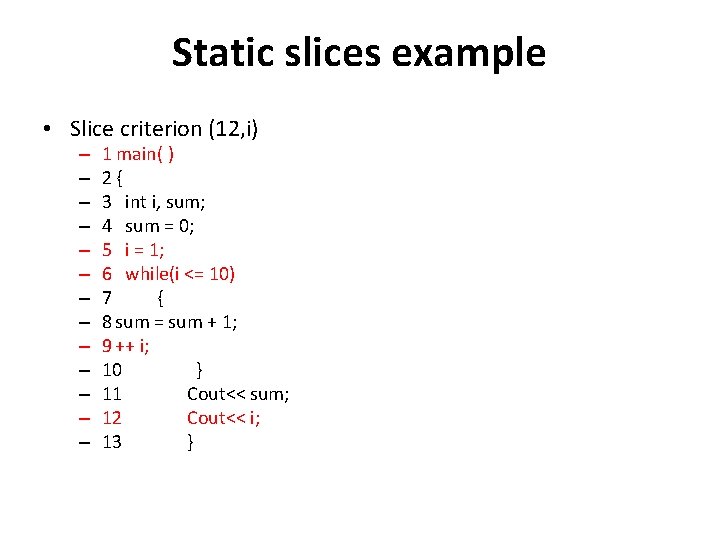

Static slices example • Slice criterion (12, i) – – – – 1 main( ) 2{ 3 int i, sum; 4 sum = 0; 5 i = 1; 6 while(i <= 10) 7 { 8 sum = sum + 1; 9 ++ i; 10 } 11 Cout<< sum; 12 Cout<< i; 13 }

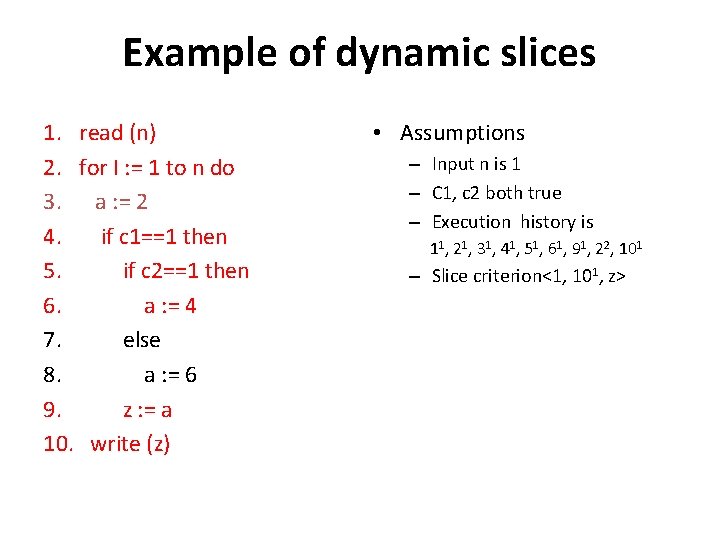

Example of dynamic slices 1. read (n) 2. for I : = 1 to n do 3. a : = 2 4. if c 1==1 then 5. if c 2==1 then 6. a : = 4 7. else 8. a : = 6 9. z : = a 10. write (z) • Assumptions – Input n is 1 – C 1, c 2 both true – Execution history is 11, 21, 31, 41, 51, 61, 91, 22, 101 – Slice criterion<1, 101, z>

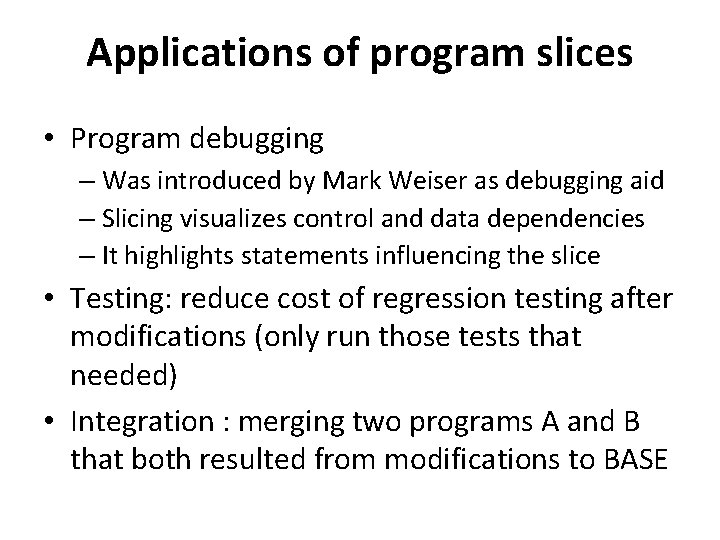

Applications of program slices • Program debugging – Was introduced by Mark Weiser as debugging aid – Slicing visualizes control and data dependencies – It highlights statements influencing the slice • Testing: reduce cost of regression testing after modifications (only run those tests that needed) • Integration : merging two programs A and B that both resulted from modifications to BASE

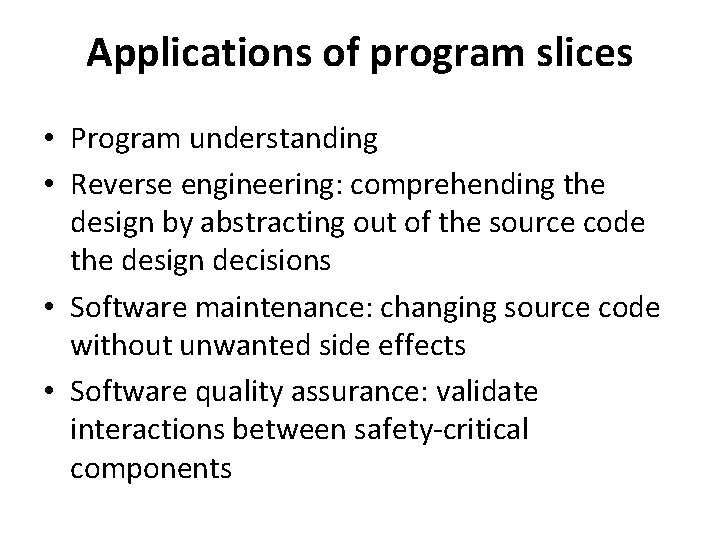

Applications of program slices • Program understanding • Reverse engineering: comprehending the design by abstracting out of the source code the design decisions • Software maintenance: changing source code without unwanted side effects • Software quality assurance: validate interactions between safety-critical components
