Structured Light Lecture 1 Matt Waibel COMP 290
Structured Light Lecture 1 Matt Waibel COMP 290 -075 4 -17 -2000
Overview • • • Background General Setup Light Point Projection 2 D and 3 D Light Stripe Projection Static Light Pattern Projection – Binary Encoded Light Stripes – Segmenting Stripes • 3 D Photography on Your Desk
Background • Intersecting the projection ray with an additional ray or plane will lead to a unique reconstruction of the object point • Structured Light: projection of light patterns into a scene (active method)
General Setup • one camera • one light source – types • slide projector • laser – projection • spot • stripe • pattern
Light Spot Projection 2 D image plane
Light Spot Projection 2 D • Coordinates found by triangulation – b can be found by projection geometry – d = b*sin(a)/sin(a + b) – X 0 = d*cos(b) – Z 0 = h = d*sin(b)
Light Spot Projection 3 D Z
Light Spot Projection 3 D – X 0 = (tan(a)*b*x)/(f + x*tan(a)) – Y 0 = (tan(a)*b*y)/(f+x*tan(a)) – Z 0 = (tan(a)*b*f)/(f+x*tan(a))
Light Stripe Projection P

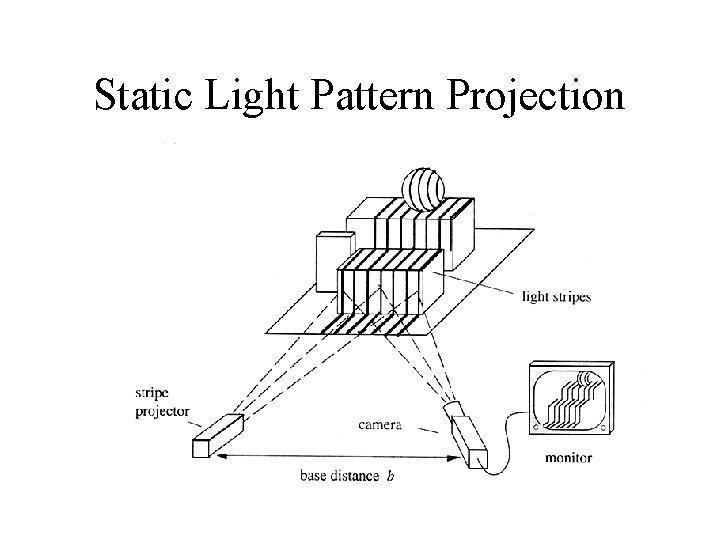

Static Light Pattern Projection
Static Light Pattern Projection • Project a pattern of stripes into the scene to reduce the total number of images required to reconstruct the scene • Problem: how to uniquely identify light stripes in the camera image when several are simultaneously projected into the scene
Binary Encoded Light Stripes • Set of light planes are projected into the scene • Individual light planes are indexed by an encoding scheme for the light patterns – Obtained images form a bit-plane stack – Bit-plane stack is used to uniquely address the light plane corresponding to every image point
Binary Encoded Light Stripes
Binary Encoded Light Stripes

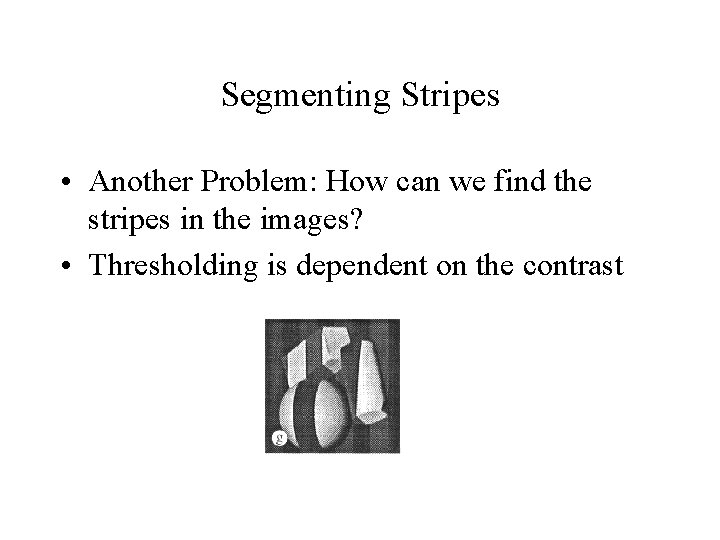

Segmenting Stripes • Another Problem: How can we find the stripes in the images? • Thresholding is dependent on the contrast
Segmenting Stripes • Better Method: – Use the inverse image (opposite stripes) and determine where the intensities intersect with the original image
3 D Photography on Your Desk • Method that uses very common tools to do 3 D photography • Requirements: PC, camera, stick, lamp, and a checker board • Uses “weak structured light” approach

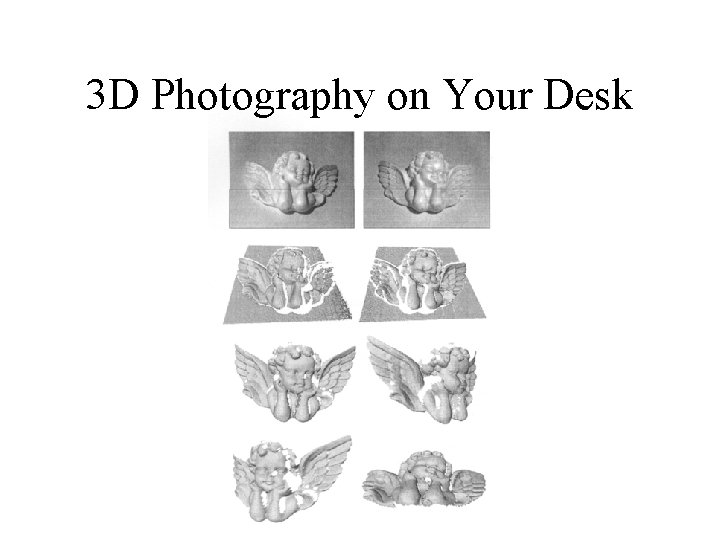

3 D Photography on Your Desk
