Special Functions Direct Variation A linear function in

  • Slides: 23
Download presentation
Special Functions • Direct Variation: A linear function in the form y=kx, where k

Special Functions • Direct Variation: A linear function in the form y=kx, where k 0 • Constant: A linear function in the form y=mx+b, where m = 0, therefore y = b • Identity: A linear function in the form y=mx+b, where m = 1 and b = 0, therefore y = x • Absolute Value: A function in the form y = |mx + b| + c (m 0) • Greatest Integer: A function in the form y = [x]

Direct Variation Function: A linear function in the form y = kx, where k

Direct Variation Function: A linear function in the form y = kx, where k 0 y 6 4 y=2 x 2 – 6 – 4 – 2 2 – 4 – 6 4 6 x

Constant Function: A linear function in the form y = mx + b, where

Constant Function: A linear function in the form y = mx + b, where m = 0, therefore y = b y=3

Identity Function: A linear function in the form y = mx + b, where

Identity Function: A linear function in the form y = mx + b, where m = 1 and b = 0, therefore y = x y=x

Absolute Value Function: A function in the form y = |mx + b| +

Absolute Value Function: A function in the form y = |mx + b| + c (m 0) Ex #1: Graph y = |x| by completing a table of values: x -2 -1 0 1 2 y y =|-2| = 2 y =|-1| = 1 y =|0| = 0 y =|1| = 1 y =|2| = 2 The vertex, or minimum point, is (0, 0).

Practice Problems 1. Identify each of the following as constant, identity, or direct variation

Practice Problems 1. Identify each of the following as constant, identity, or direct variation function a. f(x) = -½x b. g(x) = x c. h(x) = 7 d. f(x) = 9 x

Integers 4 The integers (from the Latin integer, literally "untouched", hence "whole“ 4 Are

Integers 4 The integers (from the Latin integer, literally "untouched", hence "whole“ 4 Are natural numbers including 0 (0, 1, 2, 3, . . . ) and their negatives (0, − 1, − 2, − 3, . . . ) 4 For example, 65, 7, and − 756 are integers; 1. 6 and 1½ are not integers. 4 In other terms, integers are the numbers one can count with items such as apples or fingers, and their negatives, as well as 0. 4 Symbol is “Z” which stands for Zahlen (German for numbers)

Greatest Integer Function: A function in the form y = [x] y less than

Greatest Integer Function: A function in the form y = [x] y less than or equal to x. For Note: [x] means the greatest integer example, the largest integer less 6 than or equal to 3. 5 is 3. The largest integer less than or equal to -4. 5 is -4. 4 2 – 6 – 4 – 2 y=[x] 2 4 6 x – 2 – 4 – 6 The open circles mean that the particular point is not included

Greatest Integer Function 4 [x] means the largest integer less than or equal to

Greatest Integer Function 4 [x] means the largest integer less than or equal to x Example: [1. 97] = 1 There are many integers less than 1. 97; {1, 0, -1, -2, -3, -4, …} Of all of them, ‘ 1’ is the greatest. Example: [-1. 97] = -2 There are many integers less than -1. 97; {-2, -3, -4, -5, -6, …} Of all of them, ‘-2’ is the greatest. Examples: [8. 2] = 8 [5. 0] = 5 [3. 9] = 3 [7. 6] = 7

It may be helpful to visualize this function a little more clearly by using

It may be helpful to visualize this function a little more clearly by using a number line. -6. 31 -7 -6 6. 31 -5 -4 -3 -2 Example: [6. 31] = 6 -1 0 1 2 3 4 5 6 7 8 Example: [-6. 31] = -7 When you use this function, the answer is the integer on the immediate left on the number line. There is one exception. When the function acts on a number that is itself an integer. The answer is itself. Example: [5] = 5 Example: [-5] = -5 Example:

Let’s graph f(x) = [x] To see what the graph looks like, it is

Let’s graph f(x) = [x] To see what the graph looks like, it is necessary to determine some ordered pairs which can be determined with a table of values. x 0 1 f(x) = [x] f(0) = [0] = 0 f(1) = [1] = 1 2 3 -1 -2 f(2) = [2] = 2 f(3) = [3] = 3 f(-1) = [-1] = -1 f(-2) = [-2] = -2 If we only choose integer values for x then we will not really see the function manifest itself. To do this we need to choose noninteger values.

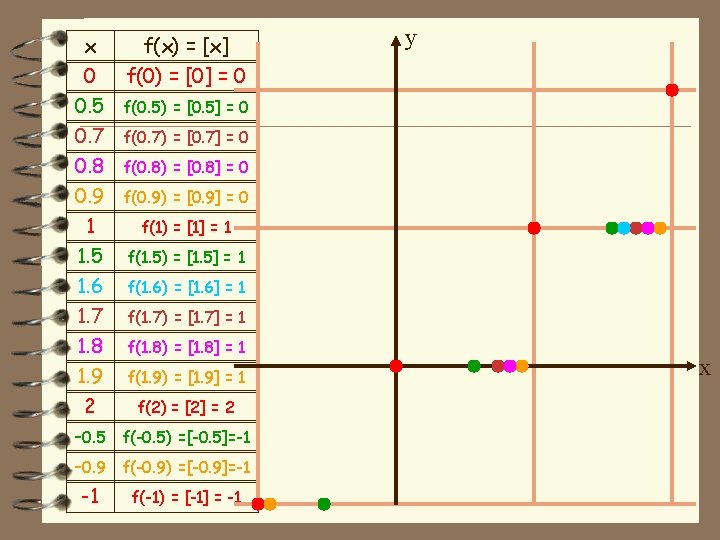

When all these points are connected the graph looks something like a series of

When all these points are connected the graph looks something like a series of steps. For this reason it is sometimes called the ‘STEP FUNCTION’. Notice that the left of each step begins with a closed (inclusive) point but the right of each step ends with an open (excluding point) We don’t include the last (most right) xvalue on each step

Rather than place a long series of points on the graph, a line segment

Rather than place a long series of points on the graph, a line segment can be drawn for each step as shown to the right.

f(x) = [x] This is a rather tedious way to construct a graph and

f(x) = [x] This is a rather tedious way to construct a graph and for this reason there is a more efficient way to construct it. Basically the greatest integer function can be presented with 4 parameters, as shown below. f(x) = a[bx - h] + k By observing the impact of these parameters, we can use them to predict the shape of the graph.

f(x) = [x] f(x) = a[bx - h] + k f(x) = 2[x] a=1

f(x) = [x] f(x) = a[bx - h] + k f(x) = 2[x] a=1 In these 3 examples, a = 2 parameter ‘a’ is changed. As “a” increases, the distance between the steps increases. a=3 f(x) = 3[x] Vertical distance between Steps = |a|

f(x) = -[x] a = -1 f(x) = -2[x] a = -2 When ‘a’

f(x) = -[x] a = -1 f(x) = -2[x] a = -2 When ‘a’ is negative, notice that the slope of the steps is changed. Downstairs instead of upstairs. Vertical distance between Steps = |a|

Graph y= [x] + 2 by completing a table of values x -3 -2.

Graph y= [x] + 2 by completing a table of values x -3 -2. 75 -2. 25 -2 -1. 75 -1. 25 -1 0 1 y y= [-3]+2=-1 y= [-2. 75]+2=-1 y= [-2. 25]+2=-1 y= [-2]+2 =0 y= [-1. 75]+2=0 y= [-1. 25]+2=0 y= [-1]+2=1 y= [0]+2=2 y= [1]+2=3 y 6 4 2 – 6 – 4 – 2 – 4 – 6 2 4 6 x

f(x) = [x] b=1 f(x) = [2 x] b=2 As ‘b’ is increased from

f(x) = [x] b=1 f(x) = [2 x] b=2 As ‘b’ is increased from 1 to 2, each step gets shorter. Then as it is decreased to 0. 5, the steps get longer.

Five Steps to Construct Greatest Integer Graph f(x) = a[bx - h] + k

Five Steps to Construct Greatest Integer Graph f(x) = a[bx - h] + k 1. Starting point: f(0) 2. Orientation of each step: b > 0 b < 0 4. Vertical distance between Steps = |a| 5. Slope through closed points of each step = ab

f(x) = 3[-x – 3] + 5 a = 3; b = -1; h

f(x) = 3[-x – 3] + 5 a = 3; b = -1; h = 3; k = 5 1. Starting point: (0, -4) f(0) = 3[-(0)-3]+5 =3(-3)+5 = -4 2. Orientation of each step: b < 0 4. Vertical distance between Steps = |a| =|3| = 3 5. Slope through closed points of each step = ab

Practice problems 1. Identify each of the following as constant, identity, direct variation, absolute

Practice problems 1. Identify each of the following as constant, identity, direct variation, absolute value, or greatest integer function a. b. c. d. 2. h(x) = [x – 6] f(x) = -½x g(x) = |2 x| h(x) = 7 e. f. g. h. f(x) = 3|-x + 1| g(x) = x h(x) = [2 + 5 x] f(x) = 9 x Graph the equation y = |x – 6| Hint: When completing the table of values, you will need some bigger values for x, like x = 6, x = 7, x = 8

Answers 4 a) greatest integer function 4 b) direct variation 4 c) absolute value

Answers 4 a) greatest integer function 4 b) direct variation 4 c) absolute value 4 d) constant 4 e) absolute value 4 f) identity 4 g) greatest integer function 4 h) direct variation
