September 2006 Bayesian methods for parameter estimation and data assimilation with crop models David Makowski and Daniel Wallach INRA, France 1

Objectives of this course • Introduce basic concepts of Bayesian statistics. • Describe several algorithms for estimating crop model parameters. • Provide the readers with simple programs to implement these algorithms (programs for the free statistical software R). • Show these algorithms can be adapted for data assimilation. • Present case studies. 2

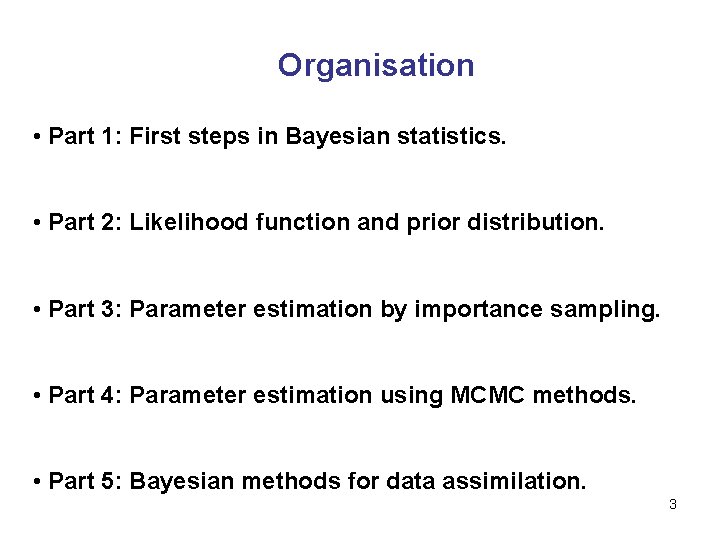

Organisation • Part 1: First steps in Bayesian statistics. • Part 2: Likelihood function and prior distribution. • Part 3: Parameter estimation by importance sampling. • Part 4: Parameter estimation using MCMC methods. • Part 5: Bayesian methods for data assimilation. 3

Some references Bayes, T. 1763. An essay towards solving a problem in the doctrine of chances. Philos. Trans. Roy. Soc. London, 53, 370 -418. Reprinted, with an introduction by George Barnard, in 1958 in Biometrika, 45, 293 -35. Carlin, B. P. and Louis, T. A. 2000. Bayes and empirical Bayes methods for data analysis. Chapman & Hall, London. Chib, S. , Greenberg, E. 1995. Understanding the Metropolis-Hastings algorithm. American Statistician 49, 327 -335. Gelman A. , Carlin J. B. , Stern H. S. , Rubin D. 2004. Bayesian data analysis. Chapman & Hall, London. Gilks, W. R. , Richardson, S. , Spiegelhalter, D. J. 1995. Markov Chain Monte Carlo in practice. Chapman & Hall, London. Robert, C. P. , Casella, G. 2004. Monte Carlo Statistical Methods. Springer, New York. Smith, A. F. M. , Gelfand, A. E. 1992. Bayesian statistics without tears: A sampling-resampling perspective. American Statistician 46, 84 -88. Van Oijen, M. , Rougier, J, Smith, R. 2005. Bayesian calibration of process-based forest models: bridging the gap between models and data. Tree Physiology 25, 915 -927. Wallach D. , Makowski D. , Jones J. Working with dynamic crop models. Evaluation, Analysis, Parameterization and applications. Elsevier, Amsterdam. 4

Part 1: First steps in Bayesian statistics 5

Part 1: First steps in Bayesian statistics General characteristics The Bayesian approach allows one to combine information from different sources to estimate unknown parameters. Basic principles: - Both data and external information (prior) are used. - Computations are based on the Bayes theorem. - Parameters are defined as random variables. 6

Part 1: First steps in Bayesian statistics Notions in probability • Statistics is based on probability theory. • Basic notions in probability are needed to apply Bayesian methods: i. Joint probability. ii. Conditional probability. iii. Marginal probability. iv. Bayes theorem. 7

Part 1: First steps in Bayesian statistics Joint probability • Consider two random variables A and B representing two possible events. • Joint probability = probability of event A and event B. • Notation: P(AB) or P(A, B). 8

Part 1: First steps in Bayesian statistics Example 1 A = rain on January 1 in Toulouse (possible values: « yes » , « no » ). B = rain on January 2 in Toulouse (possible values: « yes » , « no » ). P( A=yes, B=yes): Probability that it rains on January 1 AND January 2. 9

Part 1: First steps in Bayesian statistics Conditional probability • Consider two random variables A and B representing two possible events. • Conditional probability = probability of event B given event A. • Notation: P(B | A). 10

Part 1: First steps in Bayesian statistics Example 1 (continued) A = rain on January 1 in Toulouse (possible values: « yes » , « no » ). B = rain on January 2 in Toulouse (possible values: « yes » , « no » ). P( B=yes | A=yes): Probability that it rains on January 2 GIVEN that it rained on January 1. 11

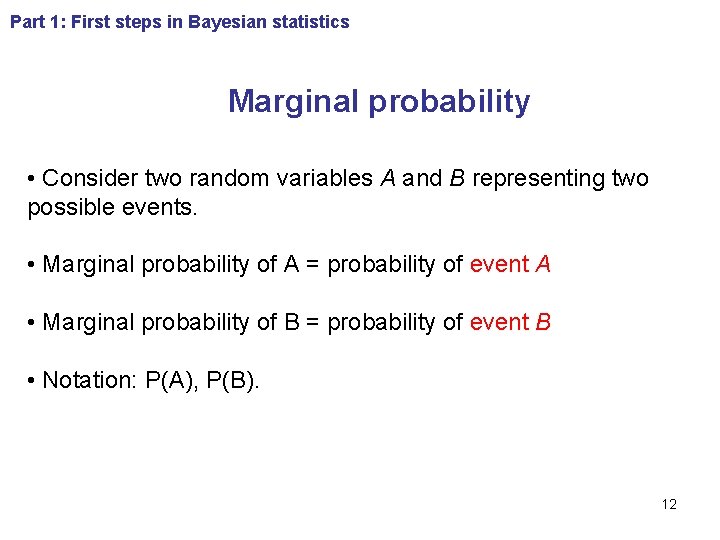

Part 1: First steps in Bayesian statistics Marginal probability • Consider two random variables A and B representing two possible events. • Marginal probability of A = probability of event A • Marginal probability of B = probability of event B • Notation: P(A), P(B). 12

Part 1: First steps in Bayesian statistics Example 1 (continued) A = rain on January 1 in Toulouse (possible values: « yes » , « no » ). B = rain on January 2 in Toulouse (possible values: « yes » , « no » ). P( A=yes) = Probability that it rains on January 1. P(A=no) = Probability that it does not rain on January 1 13

Part 1: First steps in Bayesian statistics Relationships between probabilities Expression for joint probability P(A, B) = P(B, A) = P(B|A)P(A) = P(A|B)P(B) Expression for marginal probability P(B) = Σi. P(B|A=ai)P(A=ai) P(A) = Σi. P(A|B=bi)P(B=bi) 14

Part 1: First steps in Bayesian statistics Bayes theorem Bayes’ theorem allows one to relate P(B | A) to P(B) and P(A|B). P(B | A) = P(A | B) P(B) / P(A) This theorem can be used to calculate the probability of event B given event A. In practice, A is an observation and B is an unknown quantity of interest. 15

Part 1: First steps in Bayesian statistics Example 2 A woman is pregnant with twins, two boys. Probability that the twins are identical ? A = sexes of the twins (possible values: « boy, girl » , « girl, boy » , « boy, boy » , « girl, girl » ). B = twin type (possible values: « identical » , « not identical » ). The value of A is known but not the value of B. P(B=identical | A=two boys) ? 16

Part 1: First steps in Bayesian statistics Example 2 (continued) Bayes’ theorem: P(B=identical | A=two boys)= P(A=two boys | B=identical) P(B=identical)/P(A=two boys) Numerical application: Prior knowledge about B P(B=identical)=1/3 P(A=two boys) = 1/3 P(A=two boys | B=identical) = 1/2 P(B=identical | A=two boys) = 1/2 *1/3 / 1/3 = 1/2 17

Part 1: First steps in Bayesian statistics Bayes’ theorem for model parameters θ: vector of parameters. y: vector of observations P(θ): prior distribution of the parameter values. P(y| θ): likelihood function. P(θ| y): posterior distribution of the parameter values. often difficult to compute 18

Part 1: First steps in Bayesian statistics How to proceed for estimating the parameters of models ? We proceed in three steps: Step 1: Definition of the prior distribution. Step 2: Definition of the likelihood function. Step 3: Computation of the posterior distribution using Bayes’ theorem. 19

Next Part Forthcoming: - the notions of « likelihood » and of « prior distribution » . - applications to solve agronomic problems. 20
