Rigid Origami Simulation Tomohiro Tachi The University of Tokyo http: //www. tsg. ne. jp/TT/

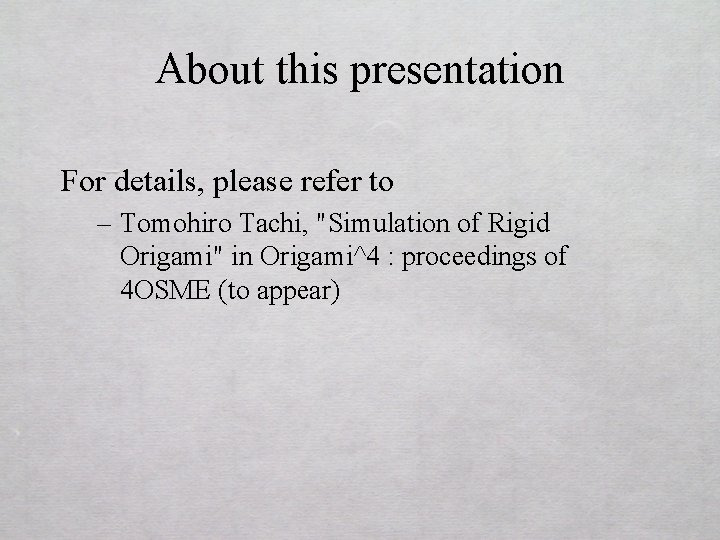

About this presentation For details, please refer to – Tomohiro Tachi, "Simulation of Rigid Origami" in Origami^4 : proceedings of 4 OSME (to appear)

1 Introduction

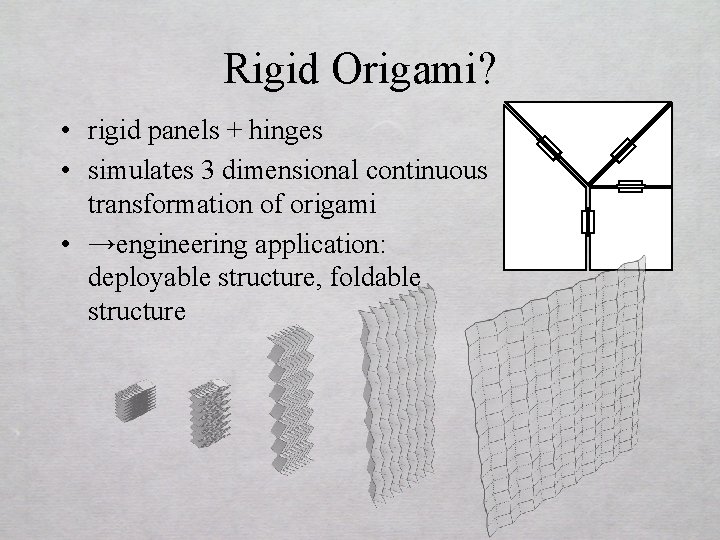

Rigid Origami? • rigid panels + hinges • simulates 3 dimensional continuous transformation of origami • →engineering application: deployable structure, foldable structure

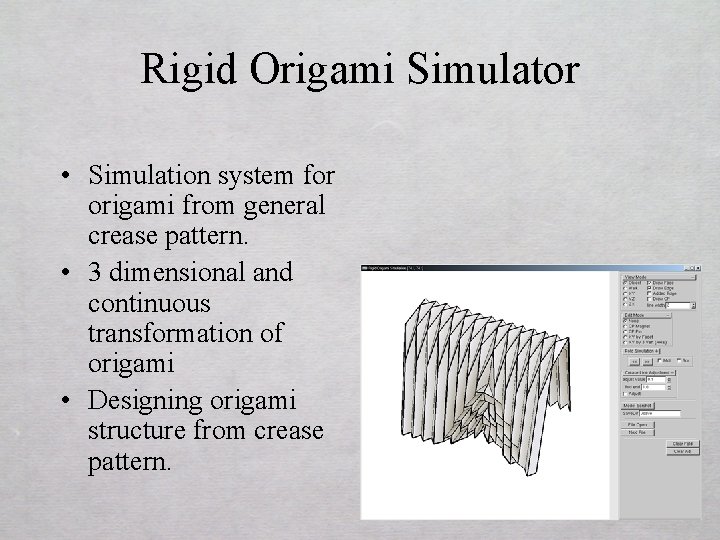

Rigid Origami Simulator • Simulation system for origami from general crease pattern. • 3 dimensional and continuous transformation of origami • Designing origami structure from crease pattern.

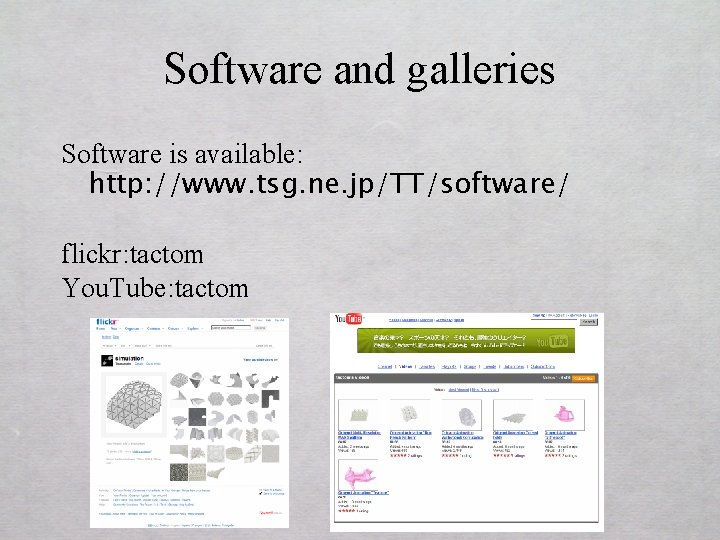

Software and galleries Software is available: http: //www. tsg. ne. jp/TT/software/ flickr: tactom You. Tube: tactom

2 Kinematics • Single-vertex model • Constraints • Kinematics

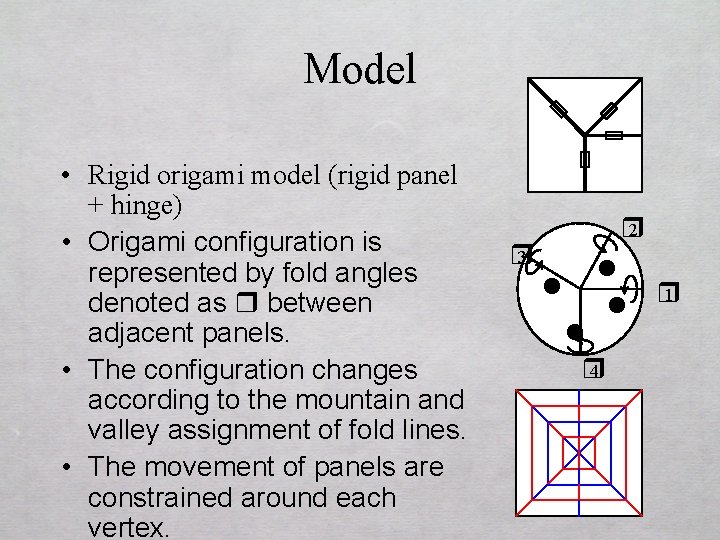

Model • Rigid origami model (rigid panel + hinge) • Origami configuration is represented by fold angles denoted as r between adjacent panels. • The configuration changes according to the mountain and valley assignment of fold lines. • The movement of panels are constrained around each vertex. 2 r 3 r l 3 l 2 l 1 l 4 4 r 1 r

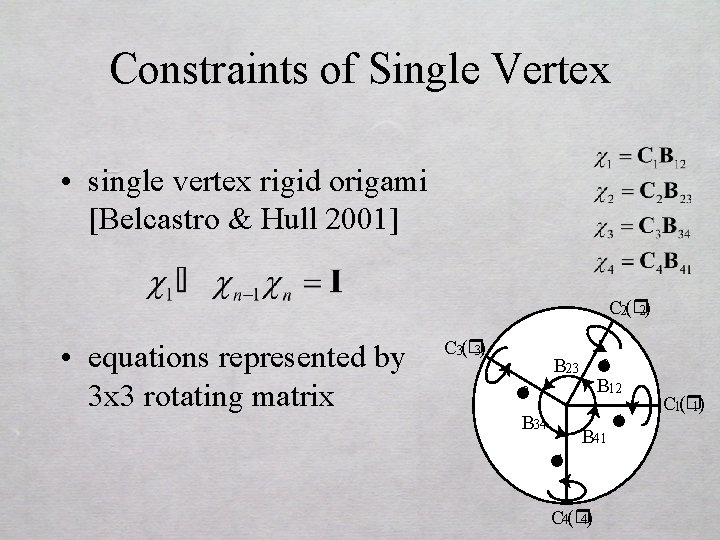

Constraints of Single Vertex • single vertex rigid origami [Belcastro & Hull 2001] C 2(r 2) • equations represented by 3 x 3 rotating matrix C 3(r 3) l 3 B 34 B 23 l 2 B 12 B 41 l 4 C 4(r 4) l 1 C 1(r 1)

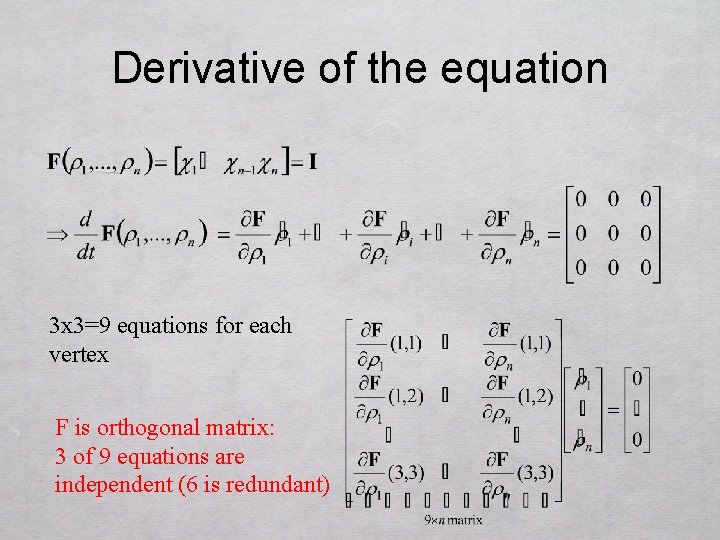

Derivative of the equation 3 x 3=9 equations for each vertex F is orthogonal matrix: 3 of 9 equations are independent (6 is redundant)

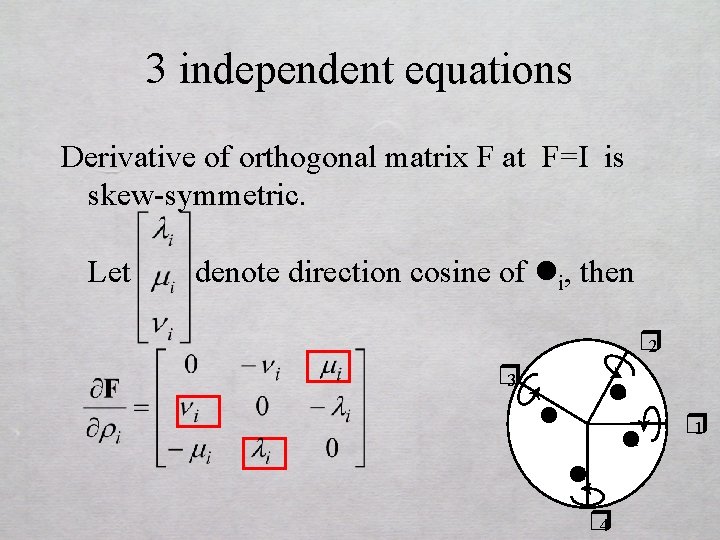

3 independent equations Derivative of orthogonal matrix F at F=I is skew-symmetric. Let denote direction cosine of li, then r 2 r 3 l 2 l 3 l 1 l 4 r 1

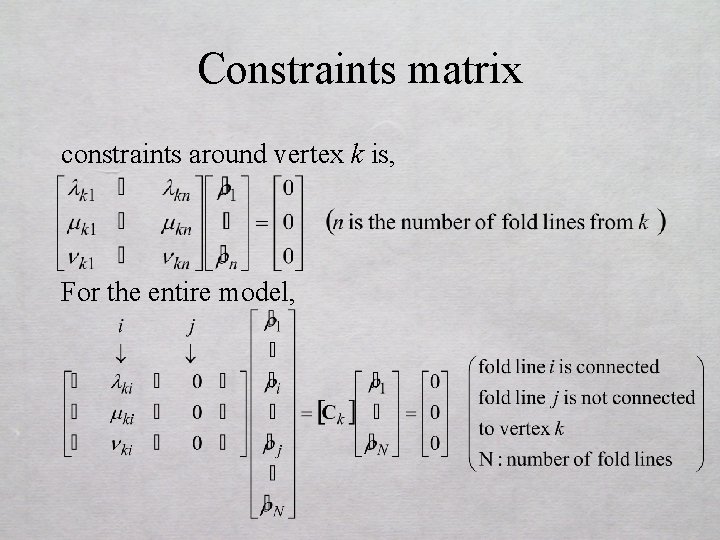

Constraints matrix constraints around vertex k is, For the entire model,

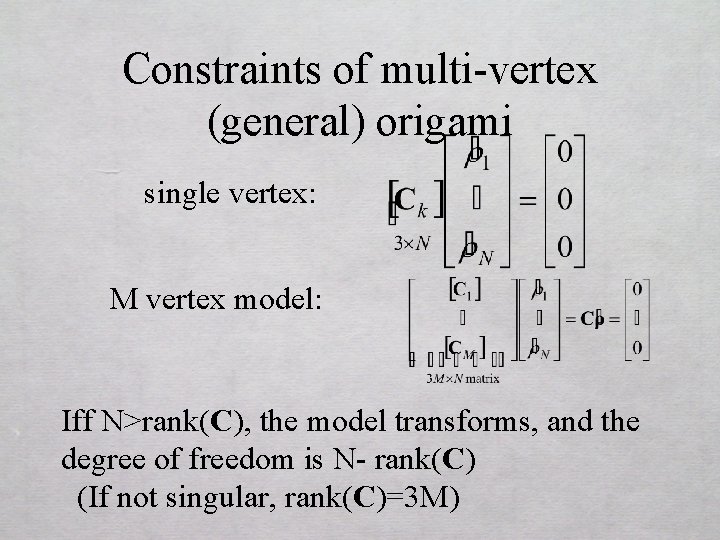

Constraints of multi-vertex (general) origami single vertex: M vertex model: Iff N>rank(C), the model transforms, and the degree of freedom is N- rank(C) (If not singular, rank(C)=3 M)

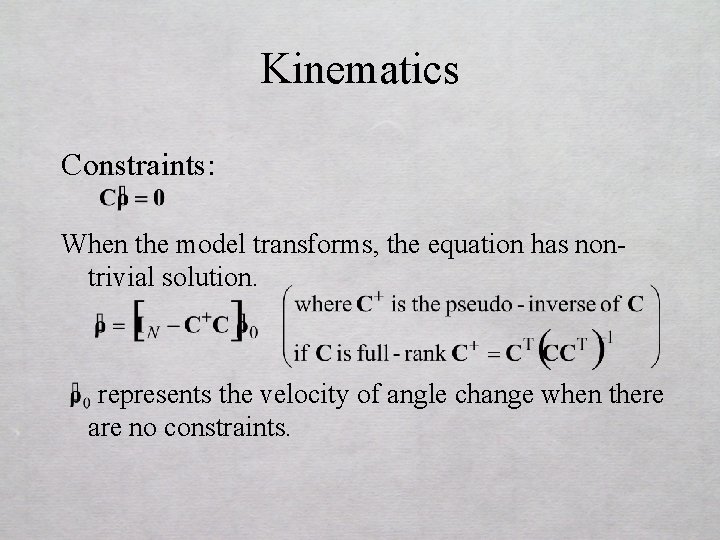

Kinematics Constraints: When the model transforms, the equation has nontrivial solution. 　　represents the velocity of angle change when there are no constraints.

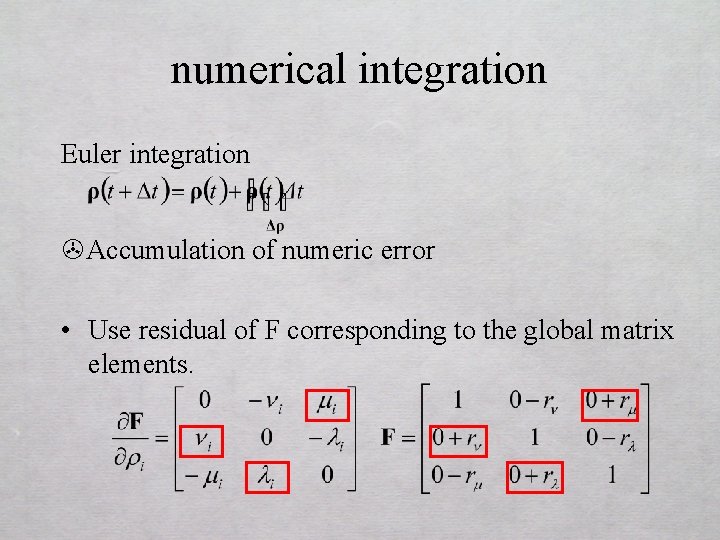

numerical integration Euler integration >Accumulation of numeric error • Use residual of F corresponding to the global matrix elements.

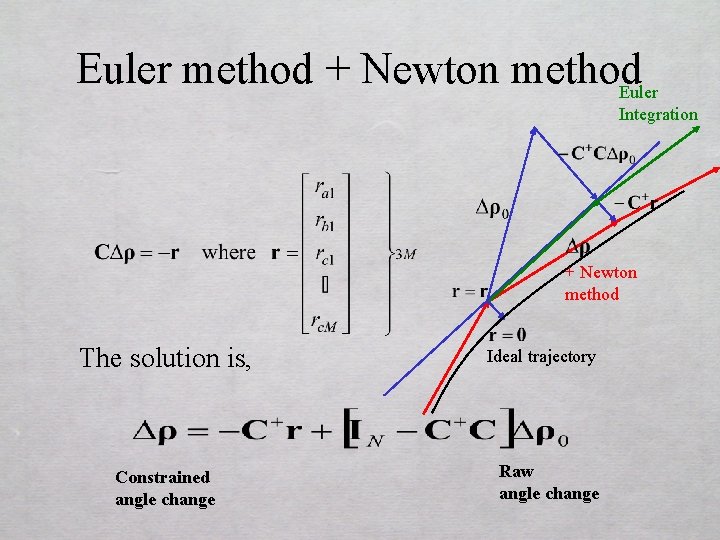

Euler method + Newton method Euler Integration + Newton method The solution is, Constrained angle change Ideal trajectory Raw angle change

3 System

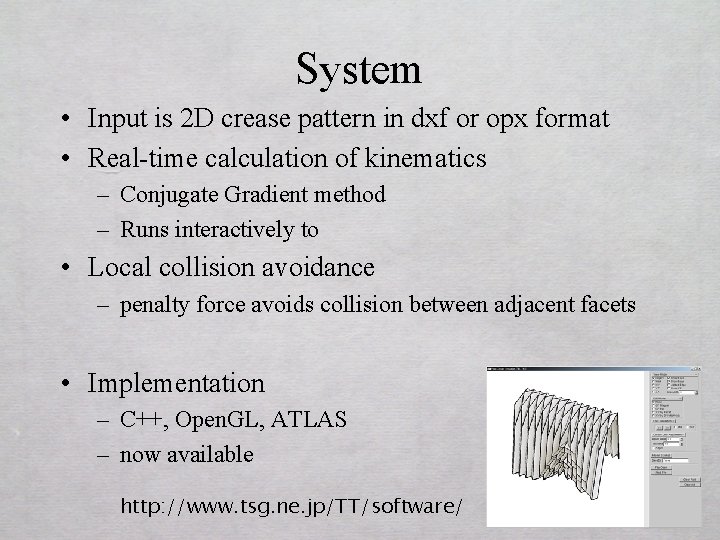

System • Input is 2 D crease pattern in dxf or opx format • Real-time calculation of kinematics – Conjugate Gradient method – Runs interactively to • Local collision avoidance – penalty force avoids collision between adjacent facets • Implementation – C++, Open. GL, ATLAS – now available http: //www. tsg. ne. jp/TT/software/
