Register DataFlow Framework A brief introduction Krzysztof Parzyszek
Register Data-Flow Framework A brief introduction Krzysztof Parzyszek, Qualcomm Innovation Center, Inc.
What is RDF? ● RDF is a framework that hides the complexity of data-flow analysis between registers after register allocation. ● The goal is to enable implementation of arbitrarily detailed dataflow optimizations: the precision of information is key. ● Central concept is a data-flow graph (DFG) that abstracts the data flow in a form closely resembling SSA. ● Implemented in RDFGraph. cpp/. h. ● Includes utilities to recalculate liveness: block live-ins and “kill” flags. ● Implemented in RDFLiveness. cpp.
Structure of DFG ● The graph represents an entire function: Nodes: basic blocks, statements, as well as register uses and defs. ● Edges: membership, data-flow. ● ● Nodes: ● Container nodes (aka “code nodes”) reflect the function structure: • function contains basic blocks, • basic block contains instructions (phi nodes and statements), • instruction contains register defs and uses. ● Reference nodes represent the defs and uses of registers. ● Edges: ● Structural, e. g. “first member”, “next member”. • There are helper functions to assist in member traversal. ● Data-flow, e. g. “reaching def”, “first reached use”. ● See RDFGraph. h and RDFGraph. cpp for details.
Structure of DFG: example Highlighted: def-to-use and sibling links for R 0 Before Hexagon RDF optimizations # Machine code for function foo: [. . . ] Function Live Ins: %R 0, %R 1, %R 2 DFG dump: [ f 1: Function: foo BB#0: derived from LLVM BB %entry Live Ins: %R 0 %R 1 %R 2 b 2: --- BB#0 --- preds(0): succs(2): BB#1, BB#2 p 25: phi [+d 26<R 0>(, d 14, u 34): ] p 27: phi [+d 28<R 1>(, , u 20): ] p 29: phi [+d 30<R 2>(, , u 12): ] s 3: C 2_cmpgti [d 4<P 0>(, , u 8): , u 5<R 0>(+d 26): ] s 6: J 2_jumpf BB#2 [/+d 7<PC>!(, d 22, ): , u 8<P 0>(d 4): ] %P 0<def> = C 2_cmpgti %R 0, 0 J 2_jumpf %P 0, <BB#2>, %PC<imp-def> Successors according to CFG: BB#1 BB#2 BB#1: derived from LLVM BB %if. then Live Ins: %R 0 %R 1 %R 2 Predecessors according to CFG: BB#0 S 4_storeiri_io %R 2, 0, 0; mem: ST 4[%p] %R 0<def> = A 2_addi %R 0, 1 Successors according to CFG: BB#2: derived from LLVM BB %if. end Live Ins: %R 0 %R 1 Predecessors according to CFG: BB#1 BB#0 %R 0<def> = A 2_add %R 0, %R 1 PS_jmpret %R 31, %PC<imp-def>, %R 0<imp. . > # End machine code for function foo. b 10: --- BB#1 --- preds(1): BB#0 succs(1): BB#2 s 11: S 4_storeiri_io [u 12<R 2>(+d 30): ] s 13: A 2_addi [d 14<R 0>(+d 26, , u 33): , u 15<R 0>(+d 26): u 5] b 16: --- BB#2 --- preds(2): BB#1, BB#0 succs(0): p 31: phi [+d 32<R 0>(, d 18, u 19): , u 33<R 0>(d 14, b 10): , u 34<R 0>(+d 26, b 2): u 15] s 17: A 2_add [d 18<R 0>(+d 32, , u 24): , u 19<R 0>(+d 32): , u 20<R 1>(+d 28): ] s 21: PS_jmpret [d 22<PC>!(/+d 7, , ): , u 23<R 31>!(): , u 24<R 0>!(d 18): ] ]

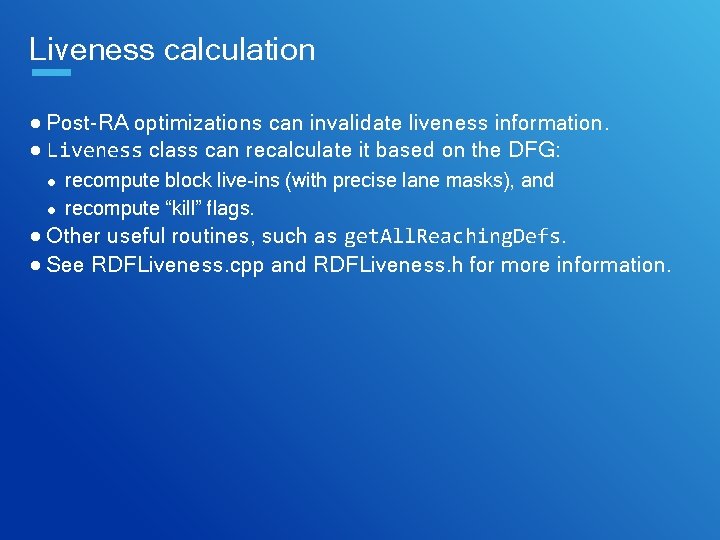

Liveness calculation ● Post-RA optimizations can invalidate liveness information. ● Liveness class can recalculate it based on the DFG: recompute block live-ins (with precise lane masks), and ● recompute “kill” flags. ● ● Other useful routines, such as get. All. Reaching. Defs. ● See RDFLiveness. cpp and RDFLiveness. h for more information.
Current uses ● Two generic optimizations: copy propagation and dead code elimination. Both have target-specific specializations (via callbacks). CP allows non-”COPY” instructions which can still transfer a register value. ● DCE can delete dead references, e. g. auto-update in postincrement instructions. ● See RDFCopy. cpp and RDFDead. Code. cpp. ● ● Addressing mode optimization: composing a single load/store with a complex addressing mode out of elementary instructions scattered over multiple blocks. ● Implemented in Hexagon. Opt. Addr. Mode. cpp.
Trivial copy propagation An illustration of RDF use in a simple copy propagation: for (Node. Addr<Block. Node*> BA : DFG. get. Func(). Addr->members(DFG)) { for (Node. Addr<Stmt. Node*> SA : BA. Addr->members_if(DFG, Is. Stmt)) { for (Node. Addr<Use. Node*> UA : SA. Addr->members_if(DFG, Is. Use)) { auto D = DFG. addr<Def. Node*>(UA. Addr->get. Reaching. Def()); Node. Addr<Instr. Node*> I = D. Addr->get. Owner(DFG); if (Is. Phi(I)) continue; Machine. Instr *MI = Node. Addr<Stmt. Node*>(I)->get. Code(); if (!MI->is. Copy()) continue; Node. Addr<Use. Node*> U = // first use in I if (U->get. Reaching. Def() == /*reaching def of reg at SA*/) UA. Addr->get. Operand()->set. Reg(U. Addr->get. Operand()->get. Reg()); } } }
Future work ● Ensuring that it works correctly on all targets. From the functional perspective the code supports all required features, but the multi-target testing has been very limited so far. ● Developing more optimizations using it. So far most of the effort was on making the framework flexible and robust.
