OBJETIVO DESARROLLAR UN ROBOT CON LAS CARACTERIZTICAS DE UN ALEBRIJE CONTROLADO POR LA TARJETA ARDUINO COMPUESTO POR CUATRO DIFERENTES CARACTERIZTICAS NECESARIAS 1. - MOVIMIENTO. - DEBE SER CAPAZ DE TENER ALGUNA ESPECIE DE MOVIMIENTO 2. -LUZ. - DEBE EMITIR ALGUNA LUZ QUE LO ADORNE 3. -SONIDO. - EL ROBOT DEBE EMITIR ALGUN SONIDO CARACTERIZTICO 4. -INTERACTUAR. -EL MAS IMPORTANTE DE LOS PUNTOS, EN BASE A SENSORES DEBE INTERACTUAR DE FORMA AUTONOMA
MOTOR DE CORRIENTE DIRECTA // CONTROL DEL MOTOR DE DC// int motordcpin 1 = 6; int motordcpin 2 = 7; void setup () { pin. Mode(motordcpin 1, OUTPUT); pin. Mode(motordcpin 2, OUTPUT); } void loop () { digital. Write(motordcpin 1, LOW); digital. Write(motordcpin 2, HIGH); }

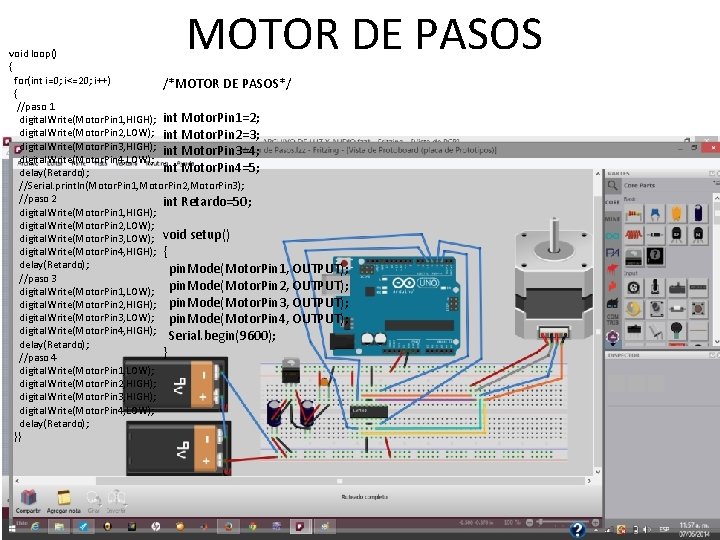

MOTOR DE PASOS void loop() { for(int i=0; i<=20; i++) /*MOTOR DE PASOS*/ { //paso 1 digital. Write(Motor. Pin 1, HIGH); int Motor. Pin 1=2; digital. Write(Motor. Pin 2, LOW); int Motor. Pin 2=3; digital. Write(Motor. Pin 3, HIGH); int Motor. Pin 3=4; digital. Write(Motor. Pin 4, LOW); int Motor. Pin 4=5; delay(Retardo); //Serial. println(Motor. Pin 1, Motor. Pin 2, Motor. Pin 3); //paso 2 int Retardo=50; digital. Write(Motor. Pin 1, HIGH); digital. Write(Motor. Pin 2, LOW); digital. Write(Motor. Pin 3, LOW); void setup() digital. Write(Motor. Pin 4, HIGH); { delay(Retardo); pin. Mode(Motor. Pin 1, OUTPUT); //paso 3 digital. Write(Motor. Pin 1, LOW); pin. Mode(Motor. Pin 2, OUTPUT); digital. Write(Motor. Pin 2, HIGH); pin. Mode(Motor. Pin 3, OUTPUT); digital. Write(Motor. Pin 3, LOW); pin. Mode(Motor. Pin 4, OUTPUT); digital. Write(Motor. Pin 4, HIGH); Serial. begin(9600); delay(Retardo); } //paso 4 digital. Write(Motor. Pin 1, LOW); digital. Write(Motor. Pin 2, HIGH); digital. Write(Motor. Pin 3, HIGH); digital. Write(Motor. Pin 4, LOW); delay(Retardo); }}
// CONTROL DE LAS LUCES Y EL AUDIO// int luzaudio 1 = 8 int luzaudio 2 = 9 void setup () { pin. Mode(luzaudio 1, OUTPUT); pin. Mode(luzaudio 2, OUTPUT); } void loop () { digital. Write(luzaudio 1, LOW); digital. Write(luzaudio 2, HIGH); } LUZ Y AUDIO
SENSOR PARA INTERACTUAR
MOTOR DE DC CON ENGRANES INCLUIDOS DISPOSITIVO DE LUZ Y SONIDO EN UNO CARACTERIZTICAS DEL ALEBRIJE FUSION DE ELEMENTOS
REALIZACION
UACMBRIJE El pequeño alebrije cariñoso que deja acariciarse aunque no le gusta que le toque su pluma amarilla, la presume y en cuanto siente que se la pueden arruinar huye en busca de refugio tomando como su distracción sus luces y sonido , y caminando lo mas rápido posible.
Conclusiones Los dispositivos creados en relación con algún microcontrolador y con algún microprocesador como lo es Arduino, facilita el sistema de dictado pues es muy amigable casi con cualquier lenguaje, relacionando el hardware con el software de una forma fácil y sencilla, hasta podría decirse divertida. La creación de un robot controlado por Arduino es una forma de emprender y saber manejar cualquier proyecto futuro en el habito laboral de un ingeniero, así es otra forma de enfrentar los desarrollos creativos necesarios en un futuro
