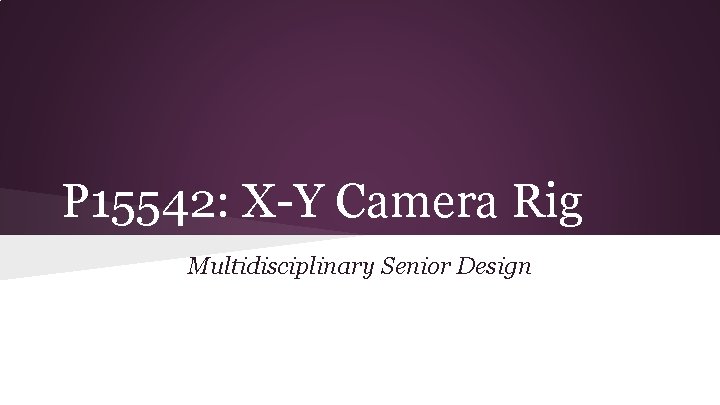

P 15542 XY Camera Rig Multidisciplinary Senior Design

P 15542: X-Y Camera Rig Multidisciplinary Senior Design

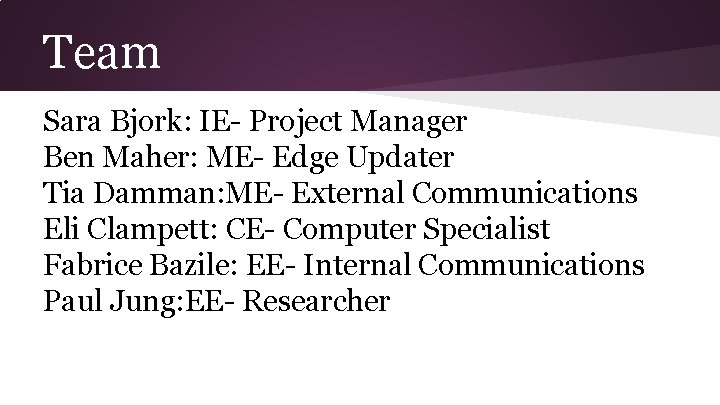

Team Sara Bjork: IE- Project Manager Ben Maher: ME- Edge Updater Tia Damman: ME- External Communications Eli Clampett: CE- Computer Specialist Fabrice Bazile: EE- Internal Communications Paul Jung: EE- Researcher

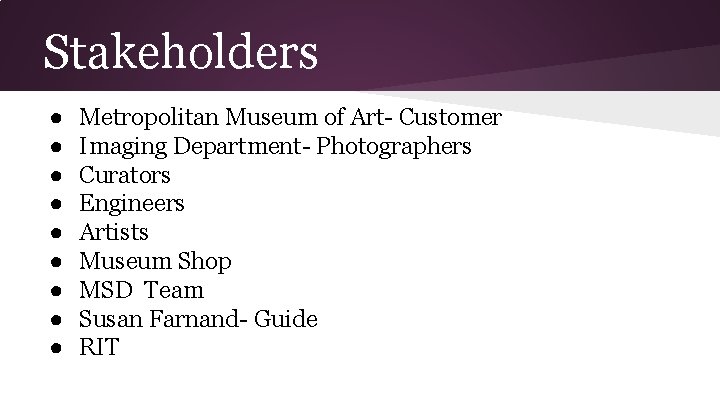

Stakeholders ● ● ● ● ● Metropolitan Museum of Art- Customer Imaging Department- Photographers Curators Engineers Artists Museum Shop MSD Team Susan Farnand- Guide RIT

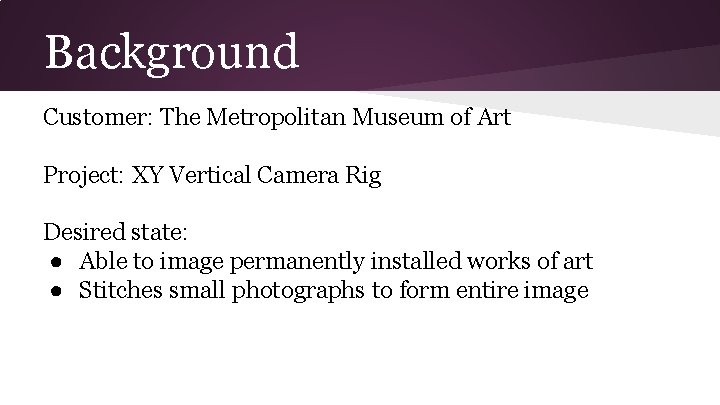

Background Customer: The Metropolitan Museum of Art Project: XY Vertical Camera Rig Desired state: ● Able to image permanently installed works of art ● Stitches small photographs to form entire image

Example of Artwork

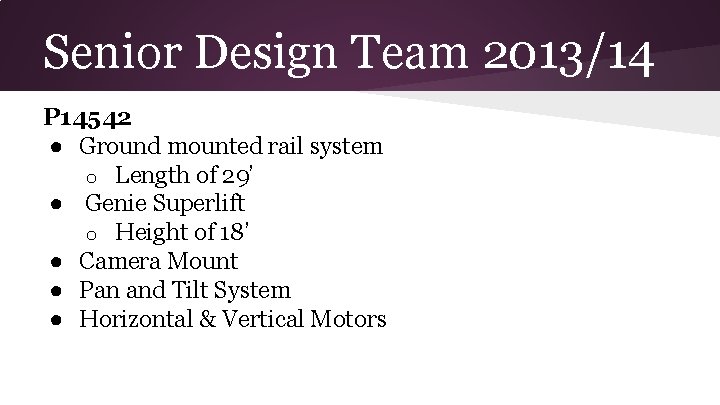

Senior Design Team 2013/14 P 14542 ● Ground mounted rail system o Length of 29’ ● Genie Superlift o Height of 18’ ● Camera Mount ● Pan and Tilt System ● Horizontal & Vertical Motors

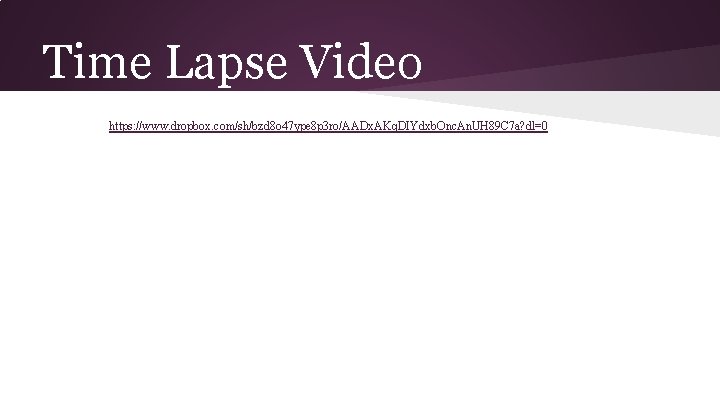

Time Lapse Video https: //www. dropbox. com/sh/bzd 8 o 47 ype 8 p 3 ro/AADx. AKq. DIYdxb. Onc. An. UH 89 C 7 a? dl=0

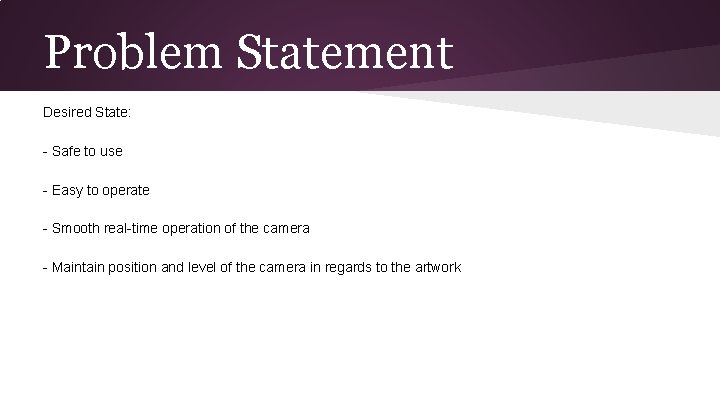

Problem Statement Desired State: - Safe to use - Easy to operate - Smooth real-time operation of the camera - Maintain position and level of the camera in regards to the artwork

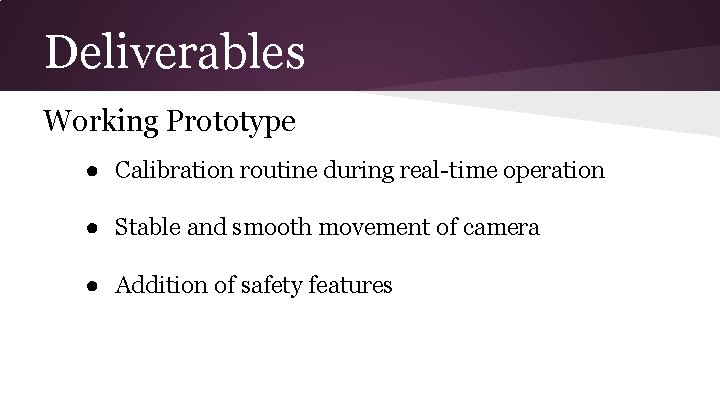

Deliverables Working Prototype ● Calibration routine during real-time operation ● Stable and smooth movement of camera ● Addition of safety features

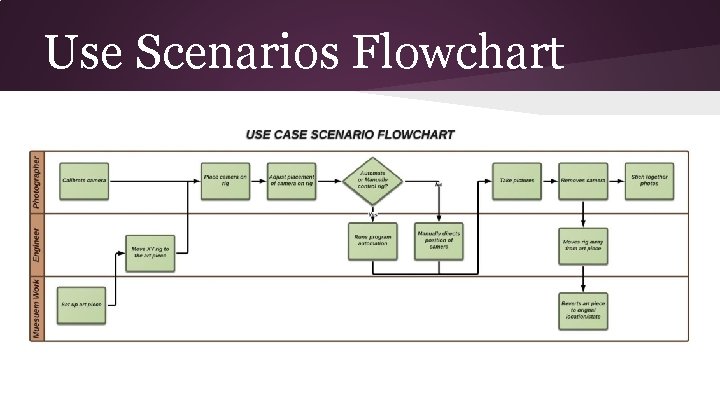

Use Scenarios Flowchart

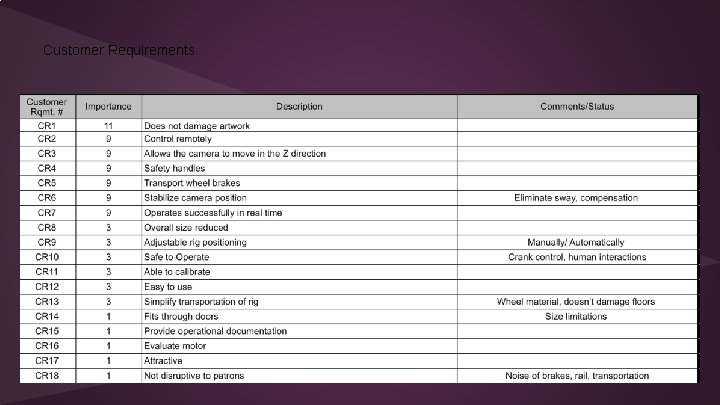

Customer Requirements

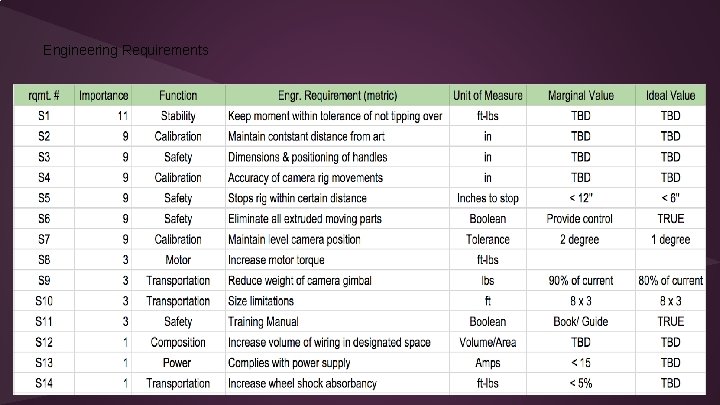

Engineering Requirements

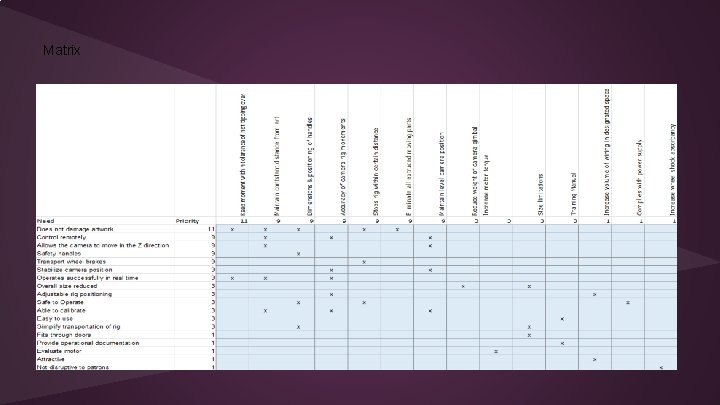

Matrix

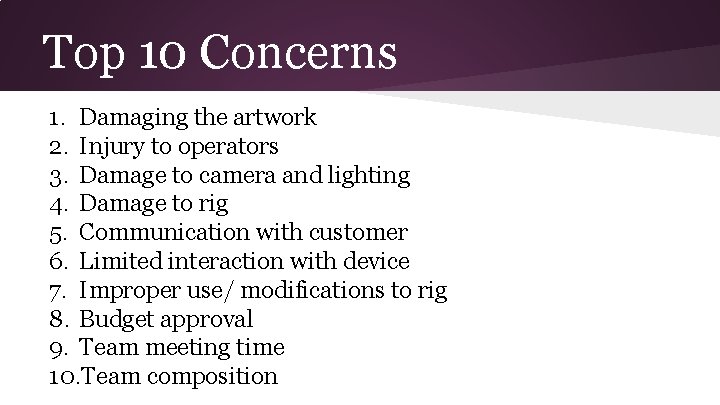

Top 10 Concerns 1. Damaging the artwork 2. Injury to operators 3. Damage to camera and lighting 4. Damage to rig 5. Communication with customer 6. Limited interaction with device 7. Improper use/ modifications to rig 8. Budget approval 9. Team meeting time 10. Team composition

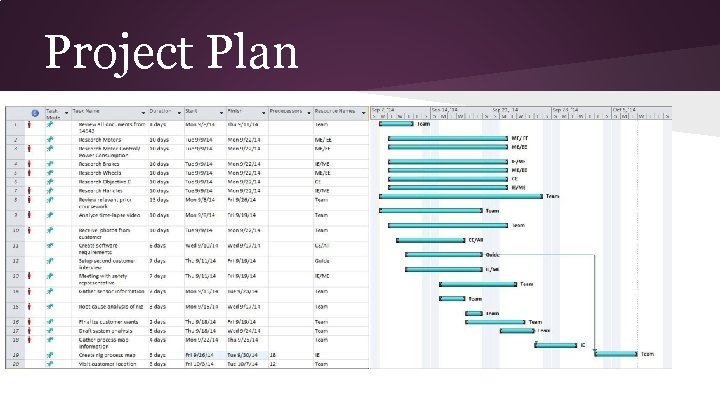

Project Plan

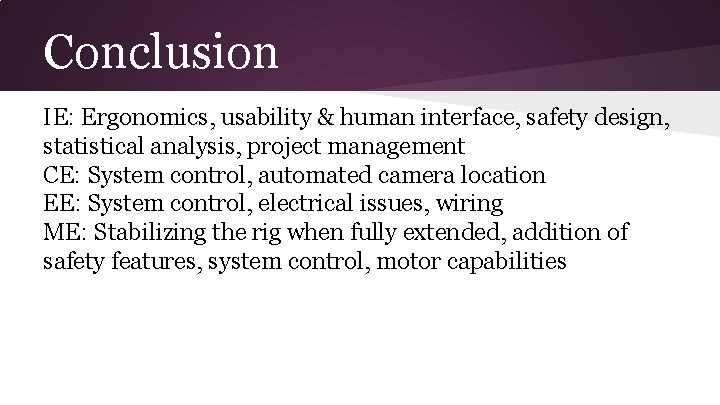

Conclusion IE: Ergonomics, usability & human interface, safety design, statistical analysis, project management CE: System control, automated camera location EE: System control, electrical issues, wiring ME: Stabilizing the rig when fully extended, addition of safety features, system control, motor capabilities

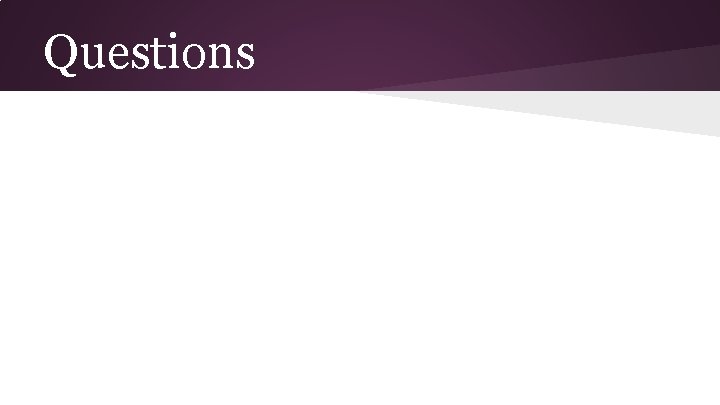

Questions
