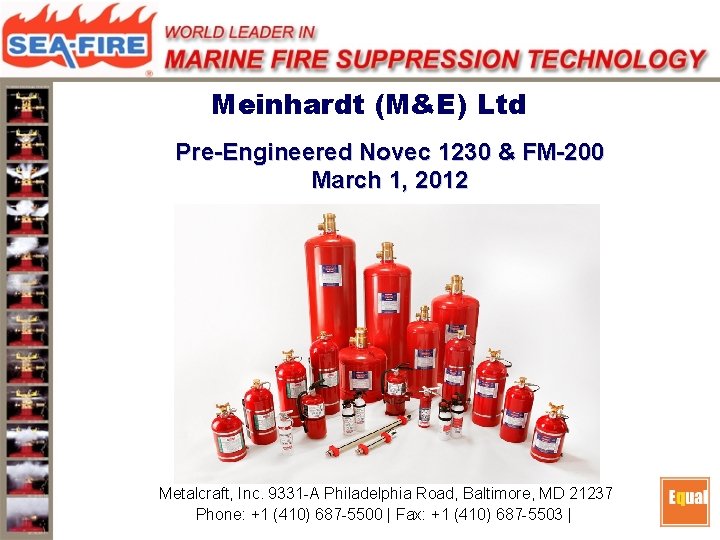

Meinhardt (M&E) Ltd Pre-Engineered Novec 1230 & FM-200 March 1, 2012 Metalcraft, Inc. 9331 -A Philadelphia Road, Baltimore, MD 21237 Phone: +1 (410) 687 -5500 | Fax: +1 (410) 687 -5503 |
Who is Metalcraft ? v A Metalcraft, Inc a major supplier of fire safety products since 1965 v Manufacturers of fire suppression systems since 1978 v Major supplier of fire protection systems to OEM’s (boatbuilders) throughout the world v Distribution Sales and Service network throughout the world v Sea-Fire Land based systems

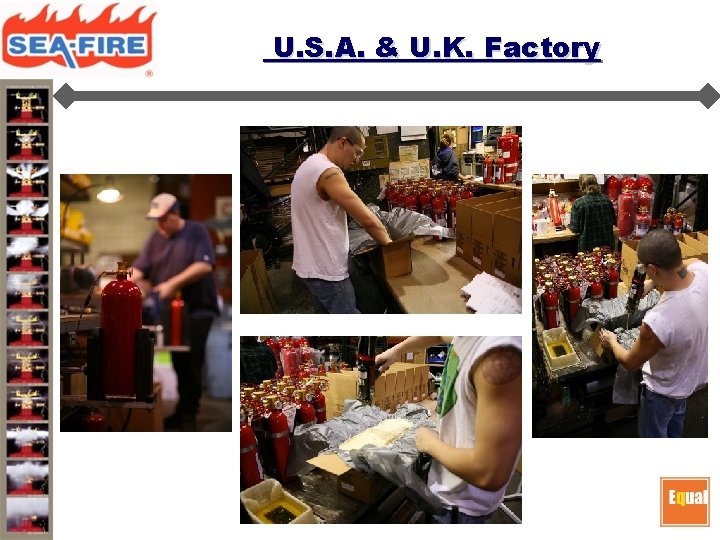

U. S. A. & U. K. Factory

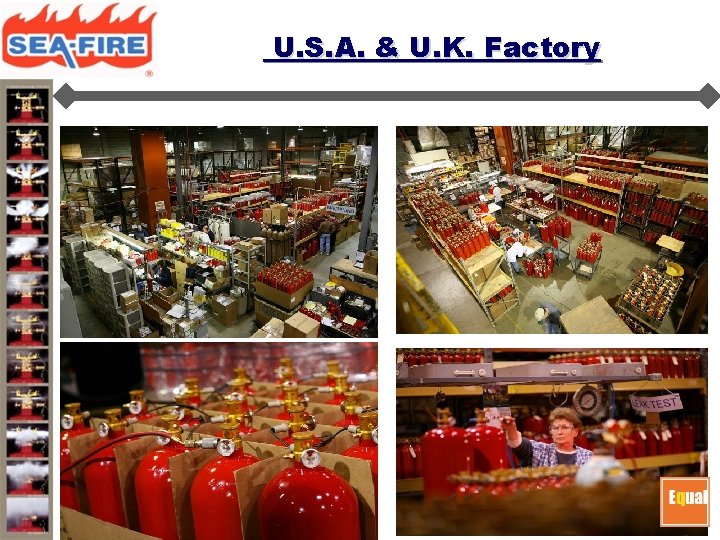

U. S. A. & U. K. Factory

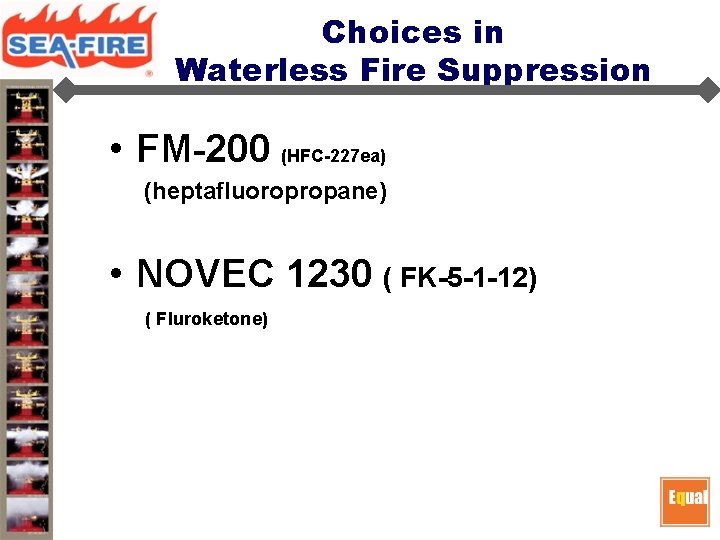

Choices in Waterless Fire Suppression • FM-200 (HFC-227 ea) (heptafluoropropane) • NOVEC 1230 ( FK-5 -1 -12) ( Fluroketone)

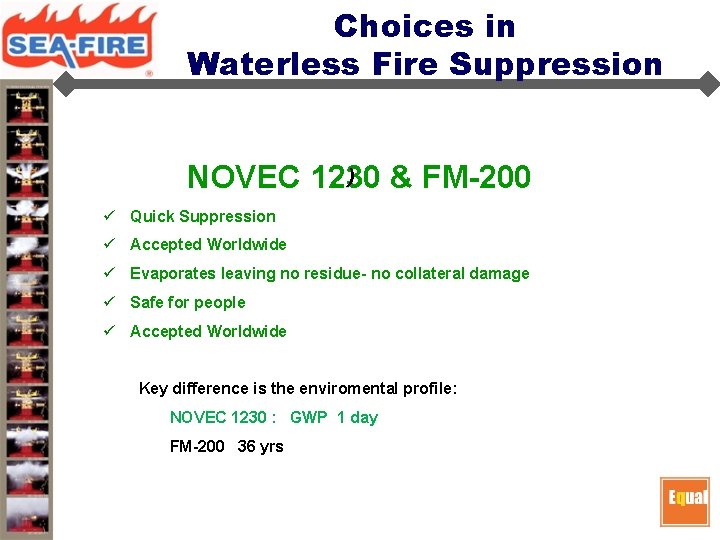

Choices in Waterless Fire Suppression ) NOVEC 1230 & FM-200 ü Quick Suppression ü Accepted Worldwide ü Evaporates leaving no residue- no collateral damage ü Safe for people ü Accepted Worldwide Key difference is the enviromental profile: NOVEC 1230 : GWP 1 day FM-200 36 yrs
FM-200® Effect on Fire Oxygen Heat Fuel

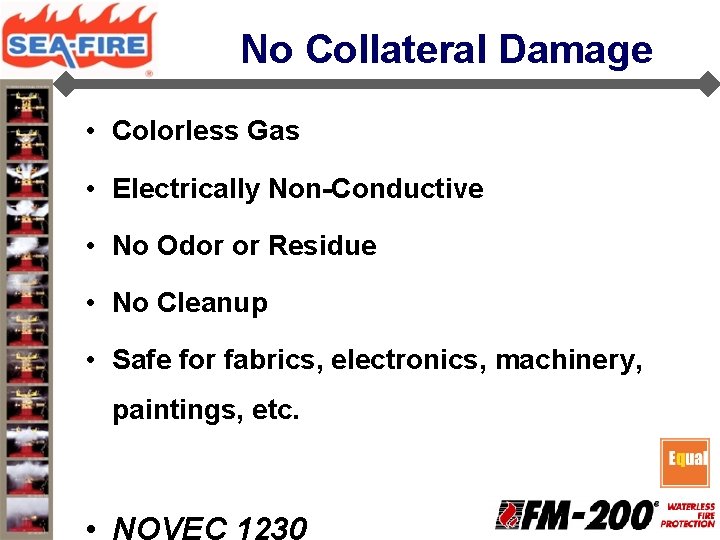

No Collateral Damage • Colorless Gas • Electrically Non-Conductive • No Odor or Residue • No Cleanup • Safe for fabrics, electronics, machinery, paintings, etc.

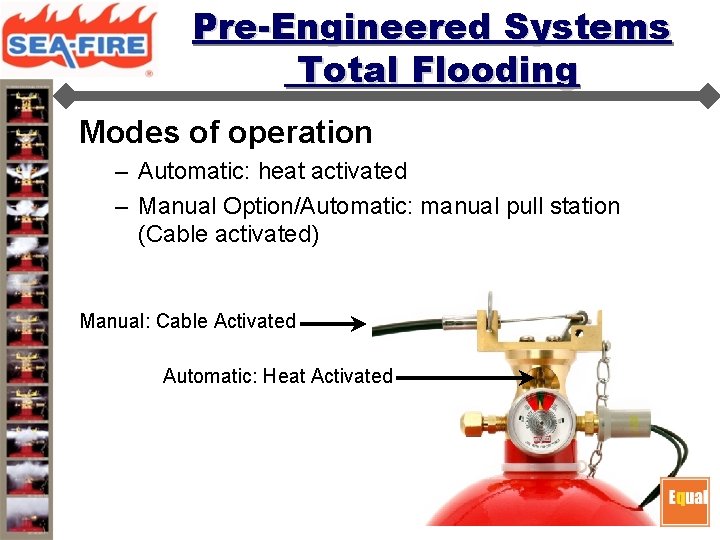

Pre-Engineered Systems Total Flooding Modes of operation – Automatic: heat activated – Manual Option/Automatic: manual pull station (Cable activated) Manual: Cable Activated Automatic: Heat Activated

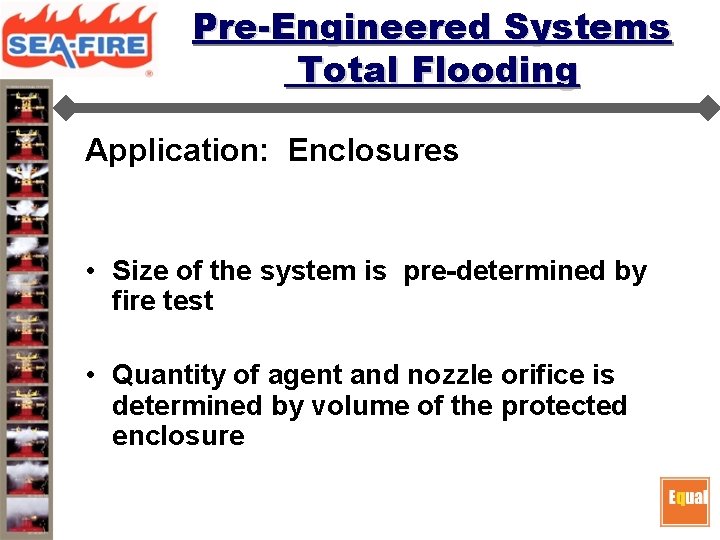

Pre-Engineered Systems Total Flooding Application: Enclosures • Size of the system is pre-determined by fire test • Quantity of agent and nozzle orifice is determined by volume of the protected enclosure

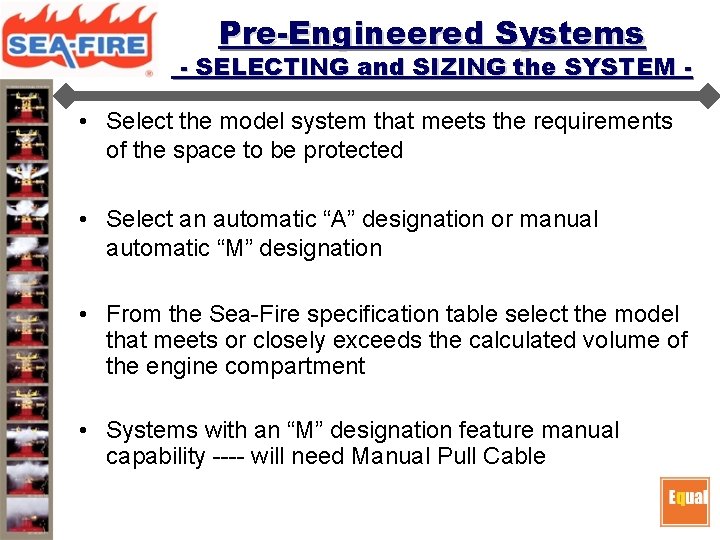

Pre-Engineered Systems - SELECTING and SIZING the SYSTEM - • Select the model system that meets the requirements of the space to be protected • Select an automatic “A” designation or manual automatic “M” designation • From the Sea-Fire specification table select the model that meets or closely exceeds the calculated volume of the engine compartment • Systems with an “M” designation feature manual capability ---- will need Manual Pull Cable

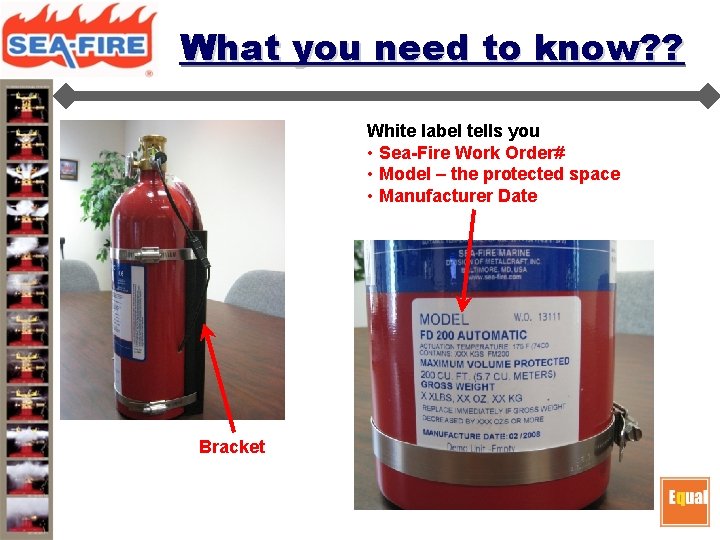

What you need to know? ? White label tells you • Sea-Fire Work Order# • Model – the protected space • Manufacturer Date Bracket

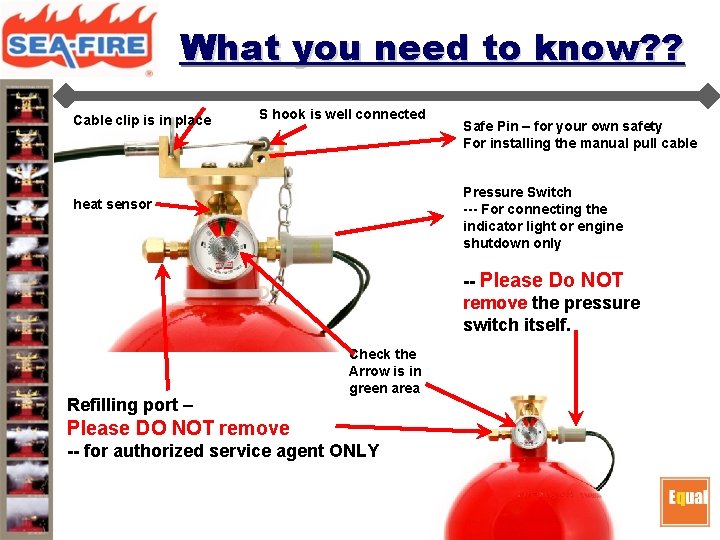

What you need to know? ? Cable clip is in place S hook is well connected Safe Pin – for your own safety For installing the manual pull cable Pressure Switch --- For connecting the indicator light or engine shutdown only heat sensor -- Please Do NOT remove the pressure switch itself. Refilling port – Check the Arrow is in green area Please DO NOT remove -- for authorized service agent ONLY

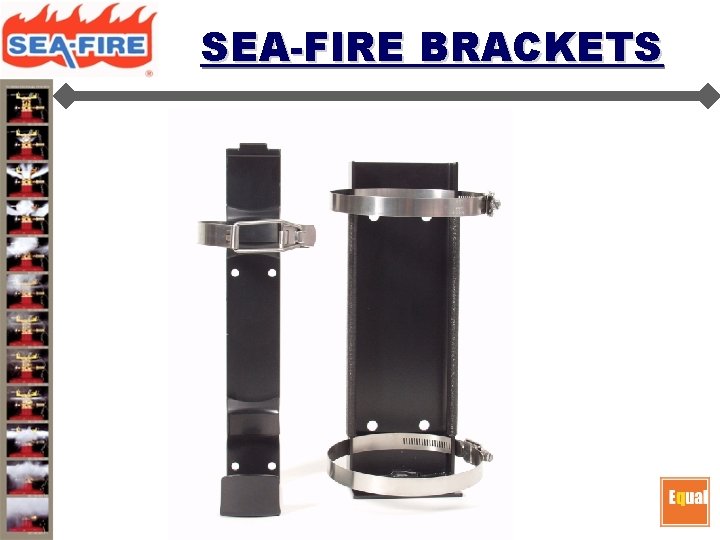

SEA-FIRE BRACKETS
WHY Sea-Fire ? How to purchase: Reseller Name : Equal Technology Hong Kong Limited TEL. FAX. Email. : (852) 2497 0006 : (852) 2435 6376 : sales@e. Qual. Tech. com
