M 2 OFFSHORE WIRELINE UNIT “State-Of -The-Art” Offshore Wireline units offer unequaled technology in down-hole versatility, data acquisition safety and performance

PDI Self Contained, Full-Service Modular M 2 Offshore Wireline Unit • This heavy duty M 2 series skidmounted wireline hoist unit is specifically outfitted for working in offshore environments. The proven and versatile direct driven hoist is powered by a dependable dieselengine driven hydraulic powerpack. This power-pack is a fully self contained transportable unit offering multi-tasking service capability in either open, cased hole or slick-line services. The unit is constructed to meet API 2 H standards. An auxiliary hoist drum is available for completion services. The skid unit has complete fluid containment systems.

FEATURES and BENEFITS • • Logging unit constructed to meet USCG 111. 75 criteria and AWS D 1. 1 -98 Air-conditioners use non CFC-12 refrigerant Available as non-zoned or Zone I or II Protected by a crash frame to minimize damage while in transit. Steel welded cage and frame is built from API 2 H Grade structural steel and is hot galvanized to prevent corrosion All aluminum cabin materials 3 -part epoxy coated and painted with marine zinc to resist corrosion. Self contained, stand alone power-pack provided all necessary hydraulic, pneumatic and electrical power Wall mounted instrument racks accommodate any acquisition system Interchangeable open-hole and split drum is available, as well as auxiliary drum for slick-line operations

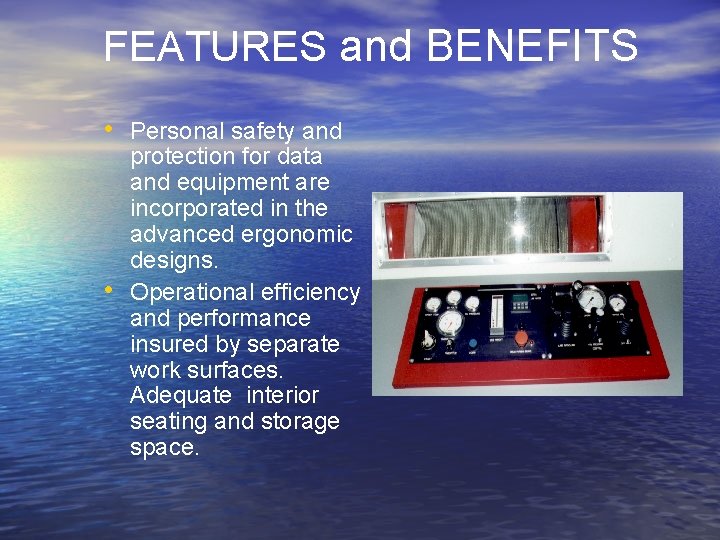

FEATURES and BENEFITS • Personal safety and • protection for data and equipment are incorporated in the advanced ergonomic designs. Operational efficiency and performance insured by separate work surfaces. Adequate interior seating and storage space.

FEATURES and BENEFITS • • Single or 4 -point lifting cage Built in fork lift stabs Built in tie down tubes Designed lift balance points for all components Shock isolated cabin and shock mounted engine pack Quick change drum w/protective covers Fold away protected hydraulic steering arm Two AC units w/crash frames for protection

FEATURES and BENEFITS • Phoenix proven direct drive hoist has protective safety covers w/service door. (Sprockets, chains and other high service parts are eliminated. ) • Slip ring enclosed in • protective cover w/service door All hydraulic interfaces are stainless steel quick disconnect. Electrical connections use MS/O-ring connectors for watertight reliability

FEATURES and BENEFITS • Large reflection free safety • • • glass operator window Window has pneumatic lift protective in-transit cover Low profile drum improves spooling visibility Hydraulic spooling system Electronic Tensiometer fully integrated to all acquisition systems. Explosion proof rig-lights Safe-arm flashing gun light

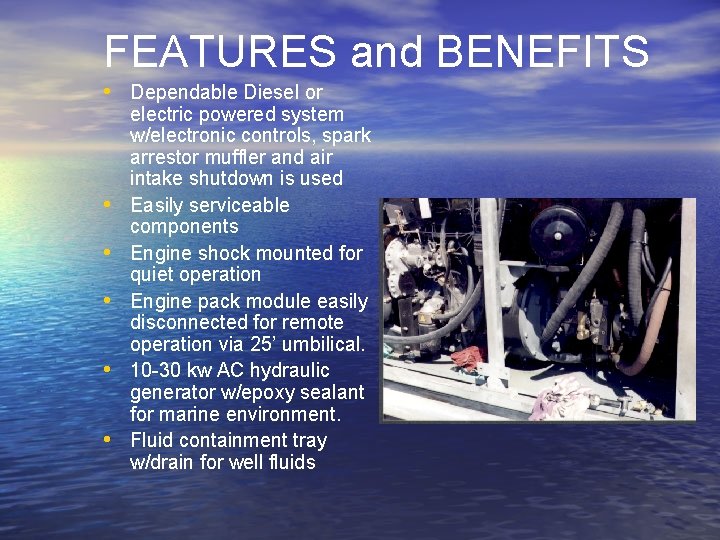

FEATURES and BENEFITS • Dependable Diesel or • • • electric powered system w/electronic controls, spark arrestor muffler and air intake shutdown is used Easily serviceable components Engine shock mounted for quiet operation Engine pack module easily disconnected for remote operation via 25’ umbilical. 10 -30 kw AC hydraulic generator w/epoxy sealant for marine environment. Fluid containment tray w/drain for well fluids

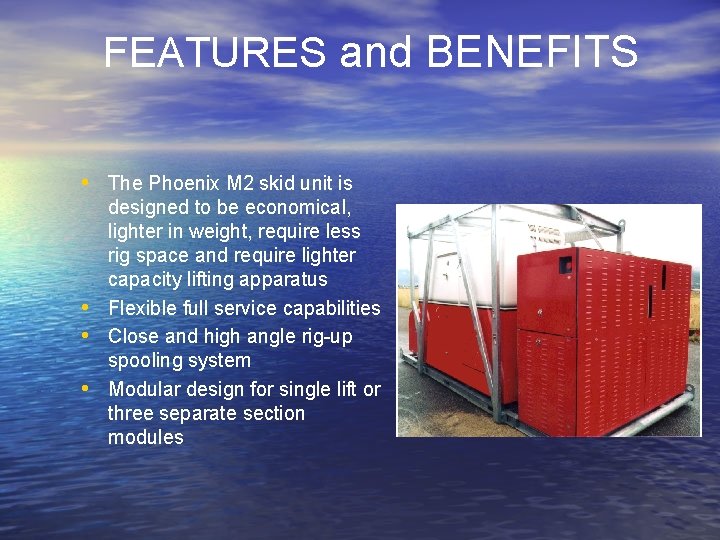

FEATURES and BENEFITS • The Phoenix M 2 skid unit is • • • designed to be economical, lighter in weight, require less rig space and require lighter capacity lifting apparatus Flexible full service capabilities Close and high angle rig-up spooling system Modular design for single lift or three separate section modules

• • • M 2 -C Skid Unit Assembly – Height 9’ 1” – Width 7’ 7” – Length 14’ 7” – Pivot radius 8’ 5” – Weight 11, 000 lbs Power pack – Height 7’ 6” – Width 7’ 2”’ – Depth 3’ 6”” – Weight 3500 lbs Drum pack (Multi-conductor hoist pkg. ) – Height 44” – Width 63” – Depth 41” – Weight 3, 300 lb. Line Speed – Maximum 1850 fpm – Minimum 1 fpm Line Pull – Full drum 13, 400 LB – Empty drum 22, 200 LB – Line Capacity 25, 000 ft (5/16 -. 312) SPECIFICATIONS & DIMENSIONS Top View Front View Entry Side

CONFIGURATION • Optional zoned units configured for fishing, • • slickline or e-line logging operations Patented hydraulics Arctic package available Double drum & cable’s up to 17/32” wireline Optional Spare reel transportation box Rigsafe Interfaces for all well logging systems Fully documented with verified pad eye certs Single and four point lifting pads & fork slots
