Laplace Approximations Choi Sungjoon DEPARTMENT OF ELECTRICAL ENGINEERING

Laplace Approximations Choi Sungjoon DEPARTMENT OF ELECTRICAL ENGINEERING SEOUL NATIONAL

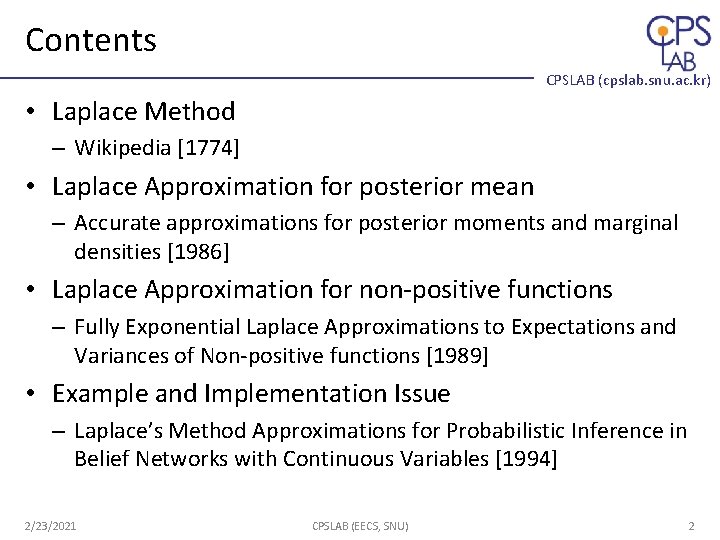

Contents CPSLAB (cpslab. snu. ac. kr) • Laplace Method – Wikipedia [1774] • Laplace Approximation for posterior mean – Accurate approximations for posterior moments and marginal densities [1986] • Laplace Approximation for non-positive functions – Fully Exponential Laplace Approximations to Expectations and Variances of Non-positive functions [1989] • Example and Implementation Issue – Laplace’s Method Approximations for Probabilistic Inference in Belief Networks with Continuous Variables [1994] 2/23/2021 CPSLAB (EECS, SNU) 2

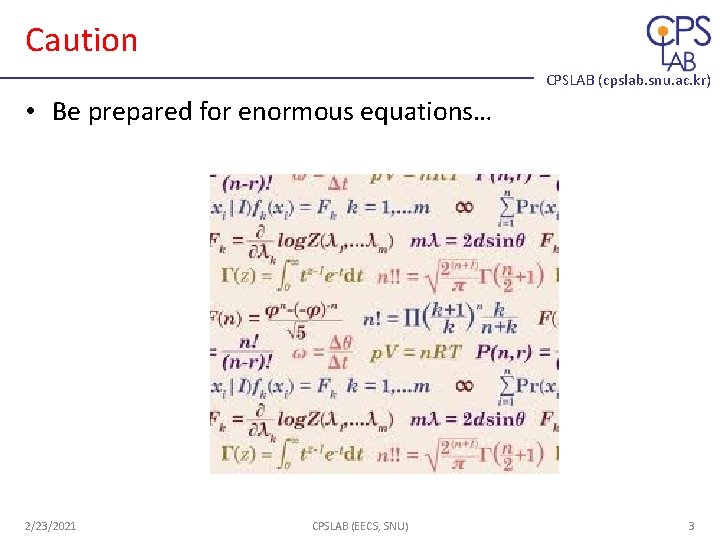

Caution CPSLAB (cpslab. snu. ac. kr) • Be prepared for enormous equations… 2/23/2021 CPSLAB (EECS, SNU) 3

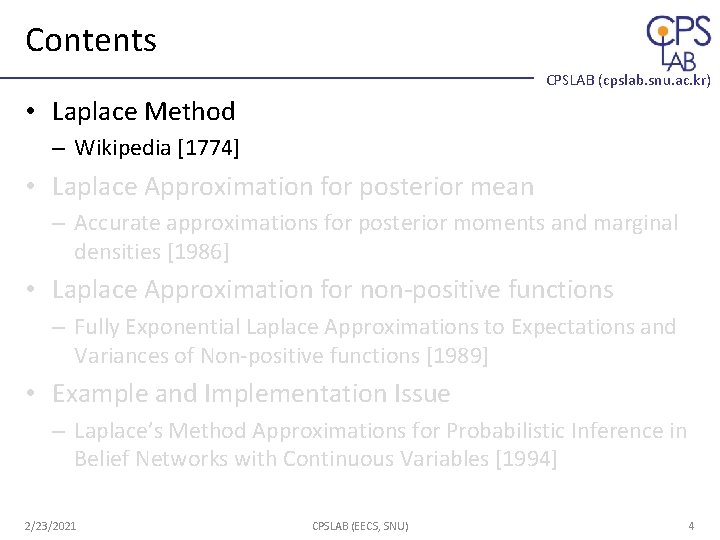

Contents CPSLAB (cpslab. snu. ac. kr) • Laplace Method – Wikipedia [1774] • Laplace Approximation for posterior mean – Accurate approximations for posterior moments and marginal densities [1986] • Laplace Approximation for non-positive functions – Fully Exponential Laplace Approximations to Expectations and Variances of Non-positive functions [1989] • Example and Implementation Issue – Laplace’s Method Approximations for Probabilistic Inference in Belief Networks with Continuous Variables [1994] 2/23/2021 CPSLAB (EECS, SNU) 4

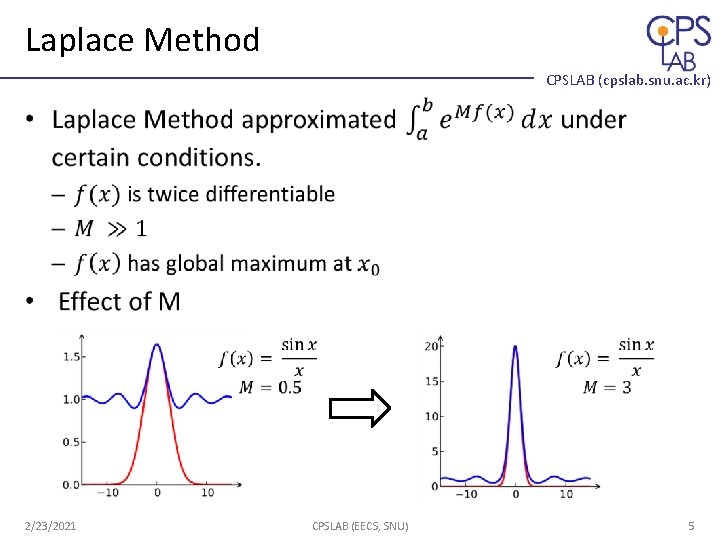

Laplace Method CPSLAB (cpslab. snu. ac. kr) • 2/23/2021 CPSLAB (EECS, SNU) 5

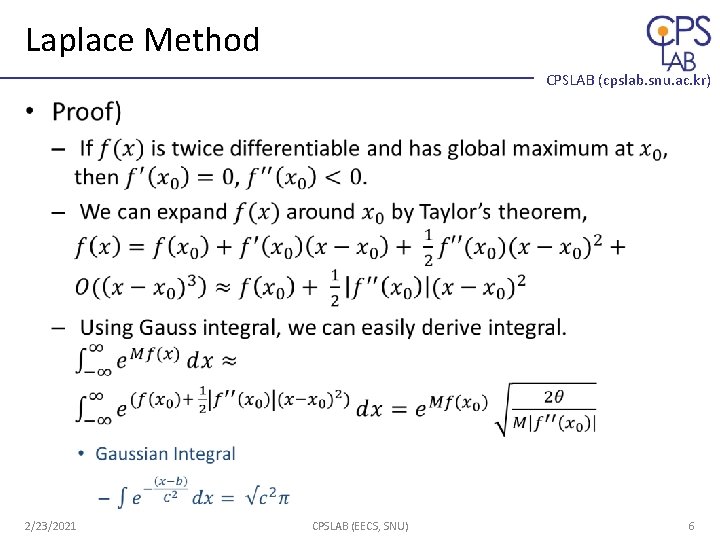

Laplace Method CPSLAB (cpslab. snu. ac. kr) • 2/23/2021 CPSLAB (EECS, SNU) 6

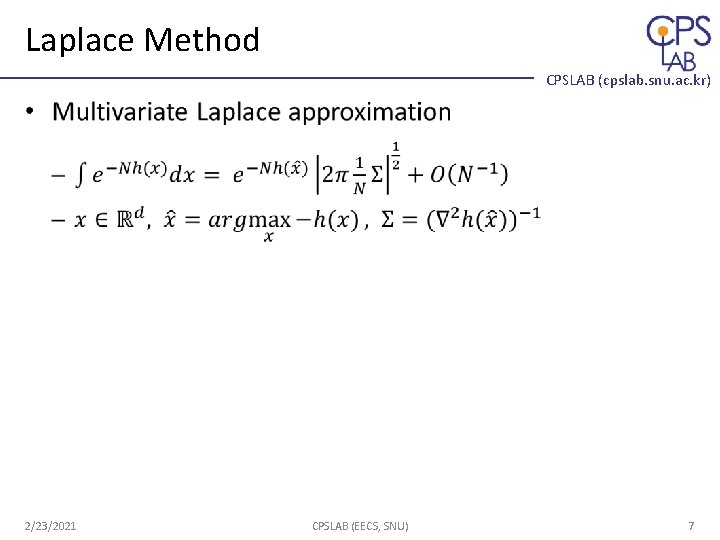

Laplace Method CPSLAB (cpslab. snu. ac. kr) • 2/23/2021 CPSLAB (EECS, SNU) 7

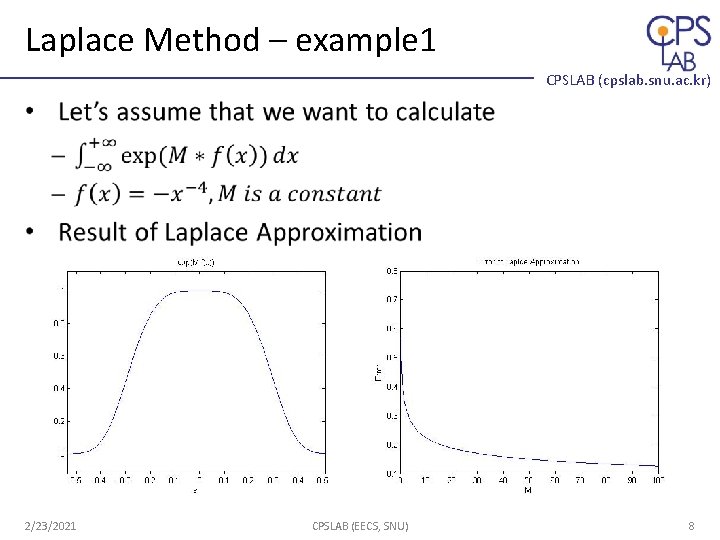

Laplace Method – example 1 CPSLAB (cpslab. snu. ac. kr) • 2/23/2021 CPSLAB (EECS, SNU) 8

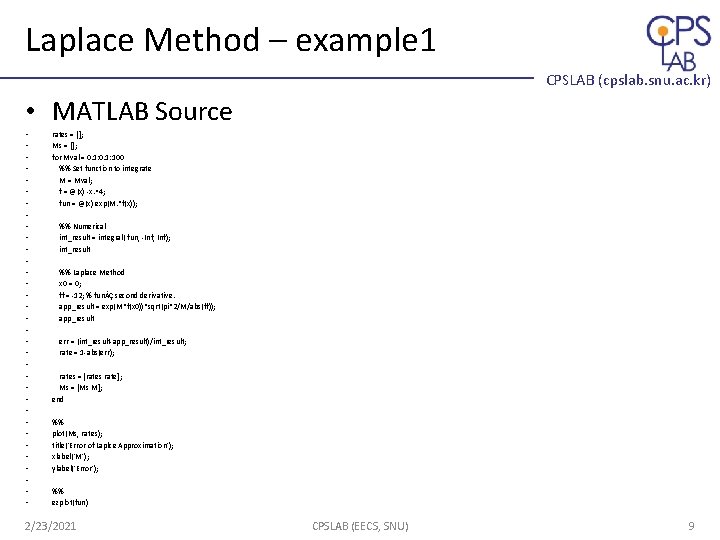

Laplace Method – example 1 CPSLAB (cpslab. snu. ac. kr) • MATLAB Source • • • • • • • • • rates = []; Ms = []; for Mval = 0. 1: 100 %% Set function to integrate M = Mval; f = @(x) -x. ^4; fun = @(x) exp(M. *f(x)); %% Numerical int_result = integral( fun, -Inf, Inf); int_result %% Laplace Method x 0 = 0; ff = -12; % funÀÇ second derivative. app_result = exp(M*f(x 0))*sqrt(pi*2/M/abs(ff)); app_result err = (int_result-app_result)/int_result; rate = 1 -abs(err); rates = [rates rate]; Ms = [Ms M]; end %% plot(Ms, rates); title('Error of Laplce Approximation'); xlabel('M'); ylabel('Error'); %% ezplot(fun) 2/23/2021 CPSLAB (EECS, SNU) 9

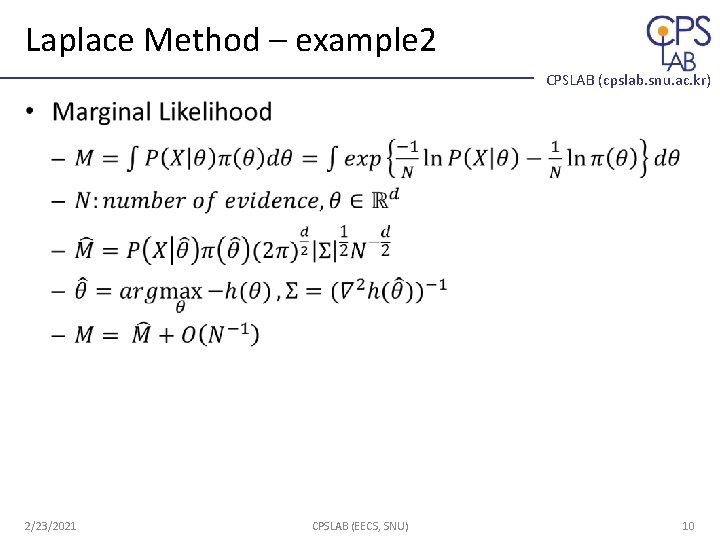

Laplace Method – example 2 CPSLAB (cpslab. snu. ac. kr) • 2/23/2021 CPSLAB (EECS, SNU) 10

Any Questions about Laplace Method? CPSLAB (cpslab. snu. ac. kr) 2/23/2021 CPSLAB (EECS, SNU) 11

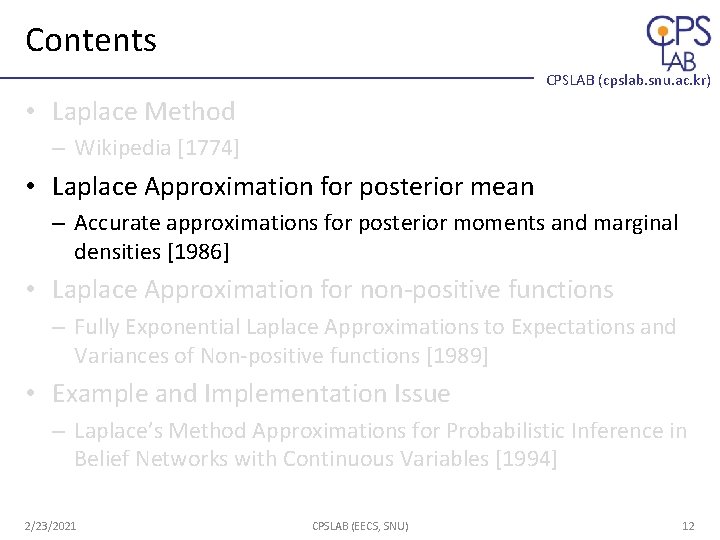

Contents CPSLAB (cpslab. snu. ac. kr) • Laplace Method – Wikipedia [1774] • Laplace Approximation for posterior mean – Accurate approximations for posterior moments and marginal densities [1986] • Laplace Approximation for non-positive functions – Fully Exponential Laplace Approximations to Expectations and Variances of Non-positive functions [1989] • Example and Implementation Issue – Laplace’s Method Approximations for Probabilistic Inference in Belief Networks with Continuous Variables [1994] 2/23/2021 CPSLAB (EECS, SNU) 12

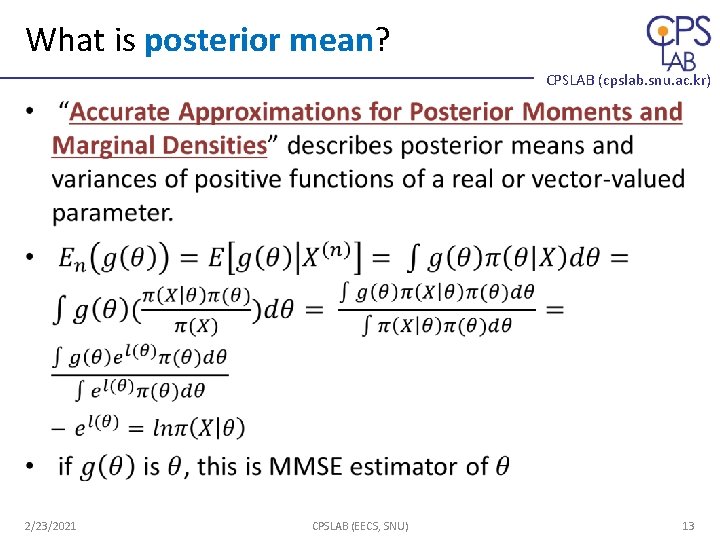

What is posterior mean? CPSLAB (cpslab. snu. ac. kr) • 2/23/2021 CPSLAB (EECS, SNU) 13

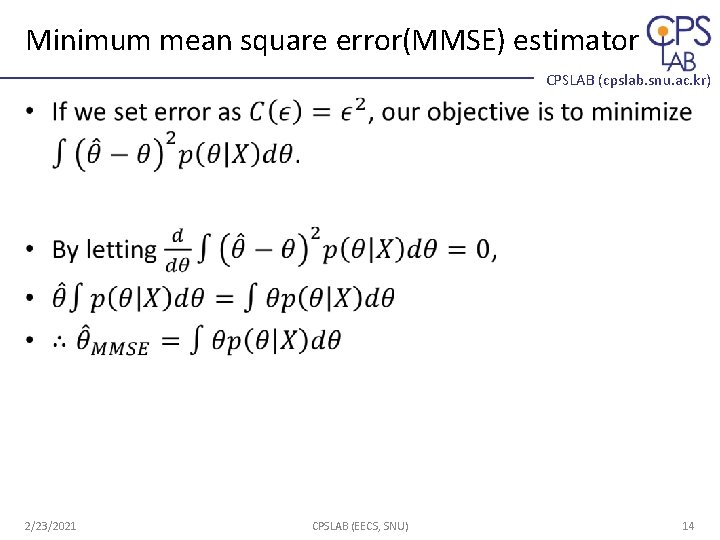

Minimum mean square error(MMSE) estimator CPSLAB (cpslab. snu. ac. kr) 2/23/2021 CPSLAB (EECS, SNU) 14

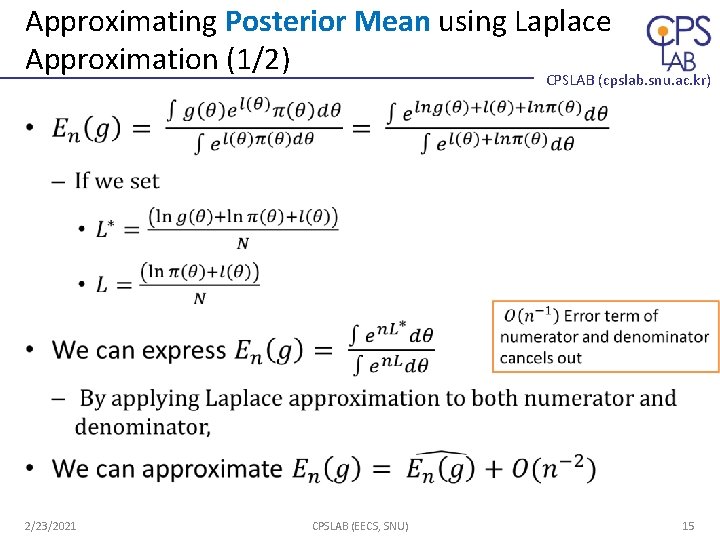

Approximating Posterior Mean using Laplace Approximation (1/2) CPSLAB (cpslab. snu. ac. kr) • 2/23/2021 CPSLAB (EECS, SNU) 15

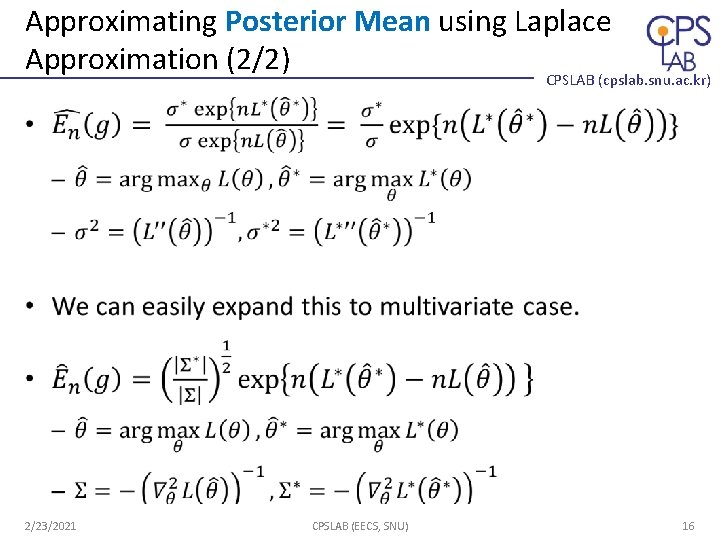

Approximating Posterior Mean using Laplace Approximation (2/2) CPSLAB (cpslab. snu. ac. kr) • 2/23/2021 CPSLAB (EECS, SNU) 16

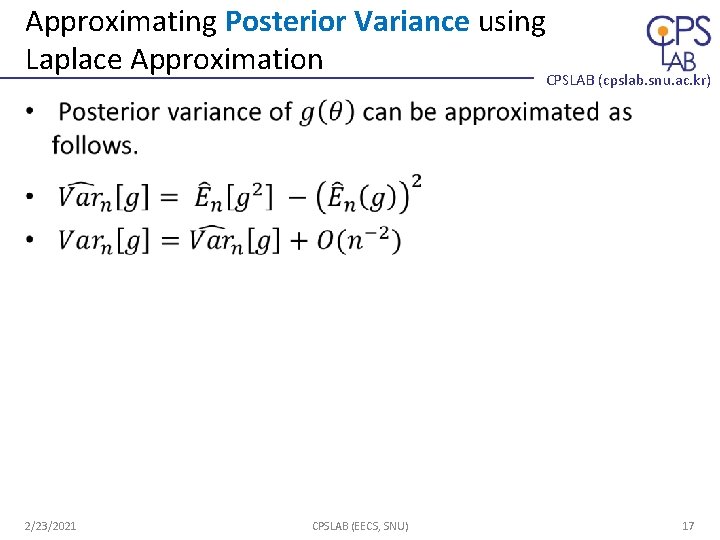

Approximating Posterior Variance using Laplace Approximation CPSLAB (cpslab. snu. ac. kr) • 2/23/2021 CPSLAB (EECS, SNU) 17

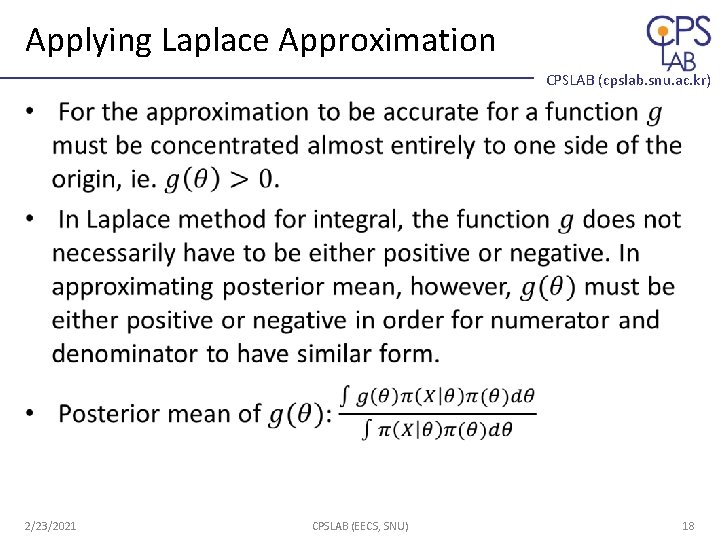

Applying Laplace Approximation CPSLAB (cpslab. snu. ac. kr) • 2/23/2021 CPSLAB (EECS, SNU) 18

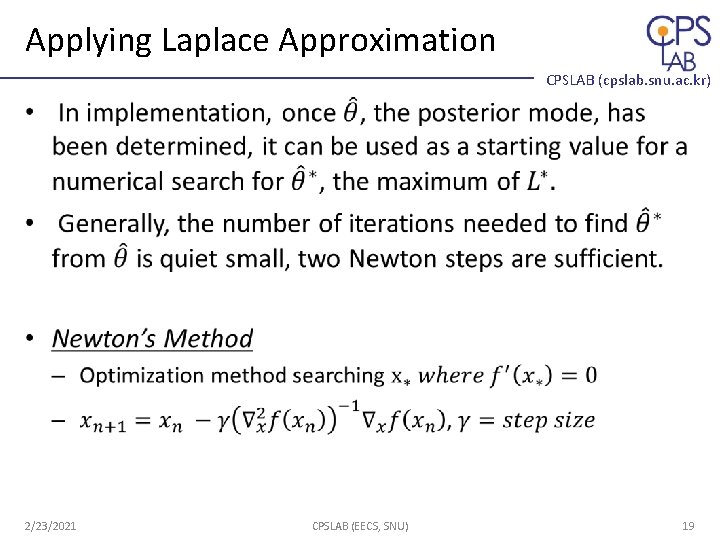

Applying Laplace Approximation CPSLAB (cpslab. snu. ac. kr) • 2/23/2021 CPSLAB (EECS, SNU) 19

Any Questions about Laplace Approximation? CPSLAB (cpslab. snu. ac. kr) 2/23/2021 CPSLAB (EECS, SNU) 20

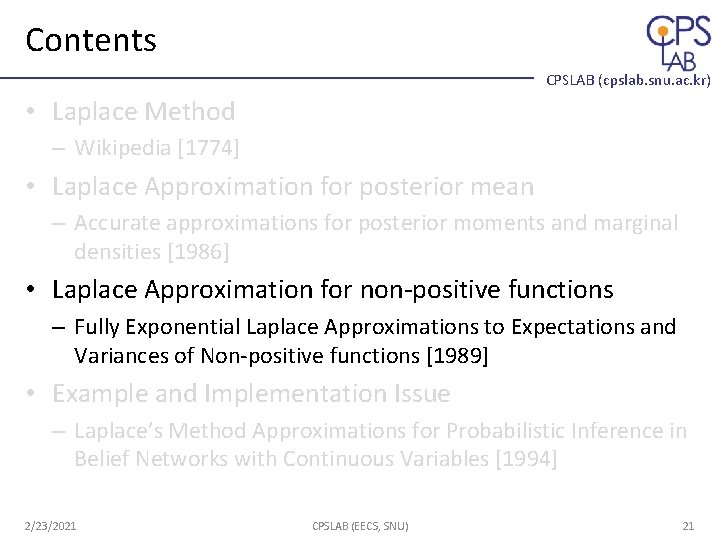

Contents CPSLAB (cpslab. snu. ac. kr) • Laplace Method – Wikipedia [1774] • Laplace Approximation for posterior mean – Accurate approximations for posterior moments and marginal densities [1986] • Laplace Approximation for non-positive functions – Fully Exponential Laplace Approximations to Expectations and Variances of Non-positive functions [1989] • Example and Implementation Issue – Laplace’s Method Approximations for Probabilistic Inference in Belief Networks with Continuous Variables [1994] 2/23/2021 CPSLAB (EECS, SNU) 21

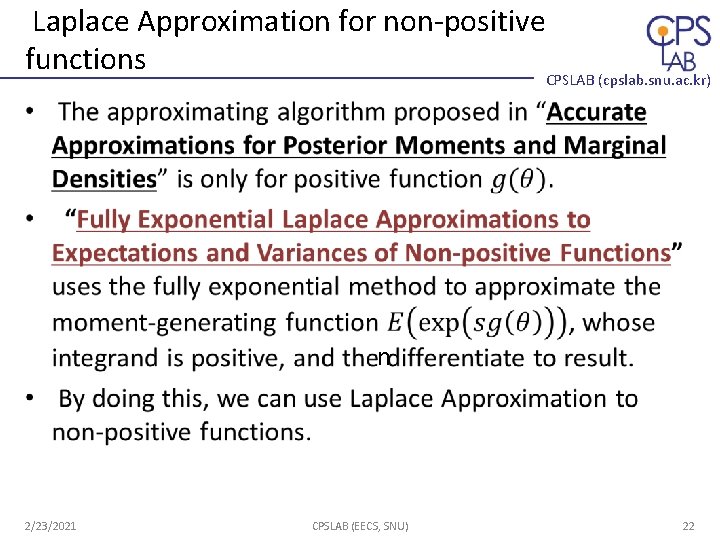

Laplace Approximation for non-positive functions CPSLAB (cpslab. snu. ac. kr) • n 2/23/2021 CPSLAB (EECS, SNU) 22

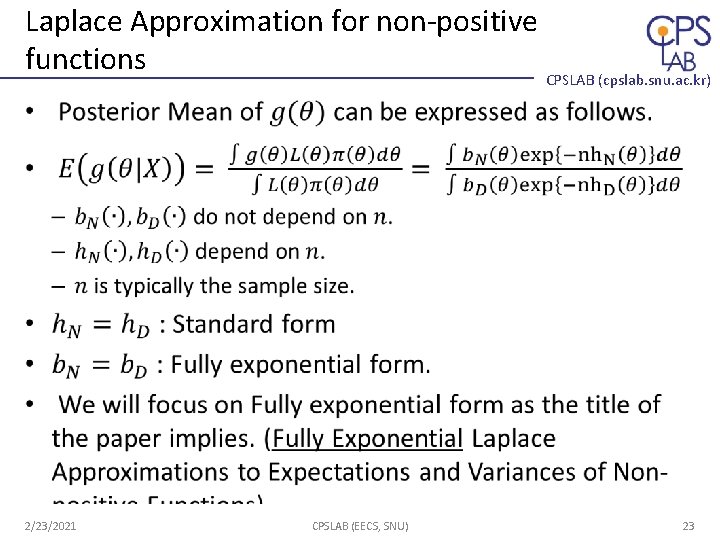

Laplace Approximation for non-positive functions CPSLAB (cpslab. snu. ac. kr) • 2/23/2021 CPSLAB (EECS, SNU) 23

Basic Laplace approximation to integrals CPSLAB (cpslab. snu. ac. kr) • We can directly (2. 3) into posterior mean formulation. 2/23/2021 CPSLAB (EECS, SNU) 24

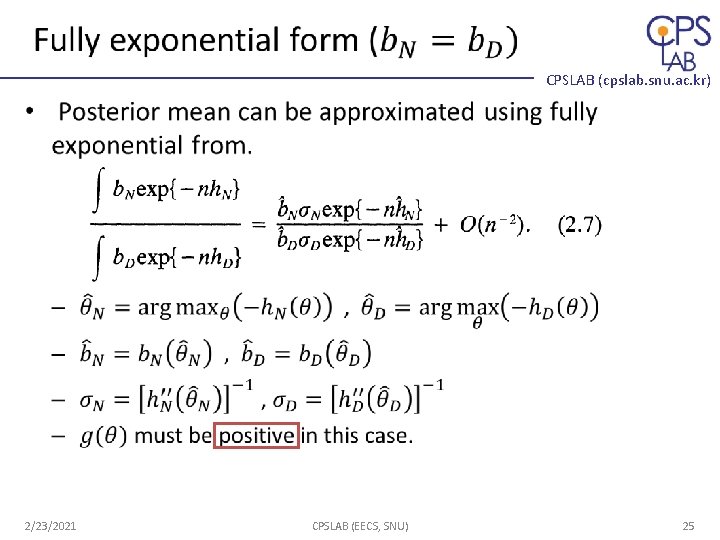

CPSLAB (cpslab. snu. ac. kr) • 2/23/2021 CPSLAB (EECS, SNU) 25

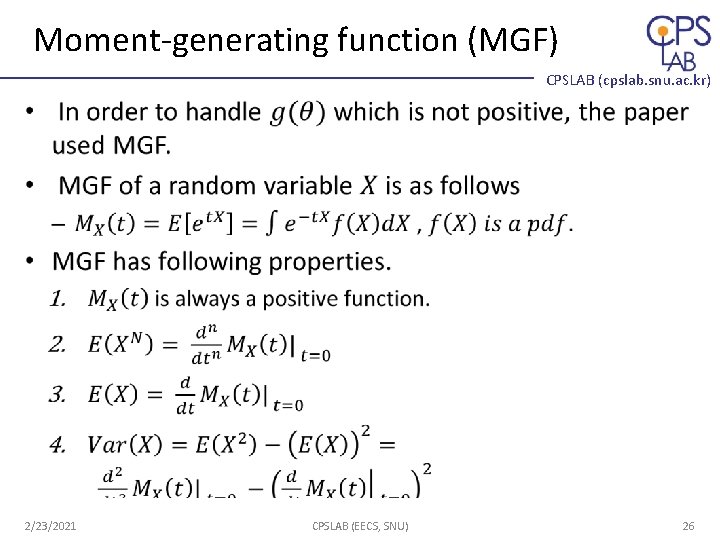

Moment-generating function (MGF) CPSLAB (cpslab. snu. ac. kr) • 2/23/2021 CPSLAB (EECS, SNU) 26

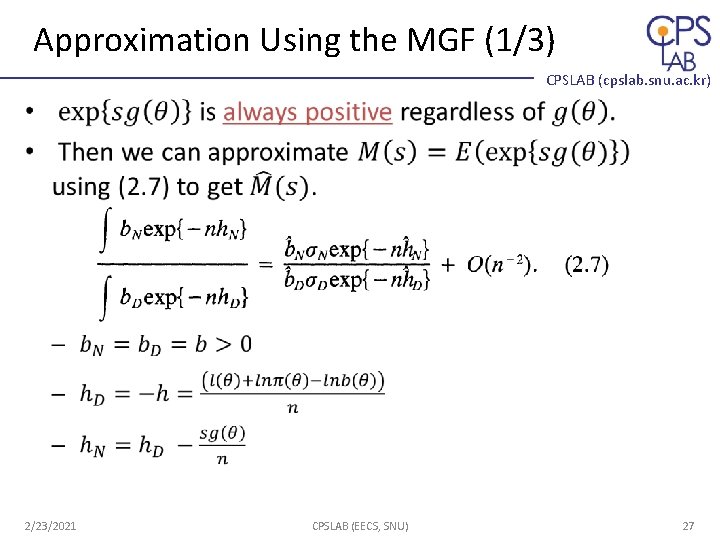

Approximation Using the MGF (1/3) CPSLAB (cpslab. snu. ac. kr) • 2/23/2021 CPSLAB (EECS, SNU) 27

Approximation Using the MGF (2/3) CPSLAB (cpslab. snu. ac. kr) • 2/23/2021 CPSLAB (EECS, SNU) 28

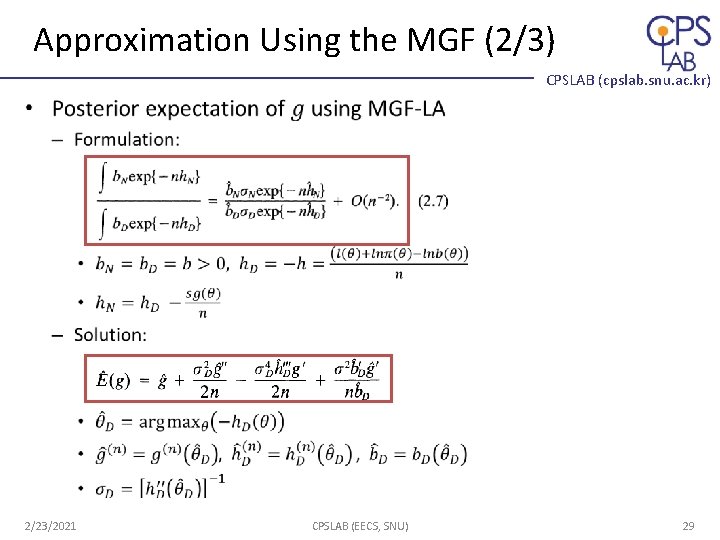

Approximation Using the MGF (2/3) CPSLAB (cpslab. snu. ac. kr) • 2/23/2021 CPSLAB (EECS, SNU) 29

Any Questions about Laplace Approximation using moment-generating function? CPSLAB (cpslab. snu. ac. kr) 2/23/2021 CPSLAB (EECS, SNU) 30

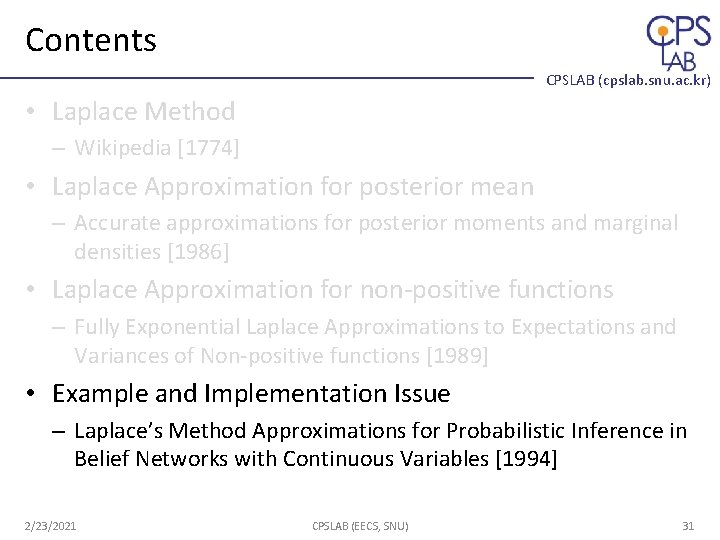

Contents CPSLAB (cpslab. snu. ac. kr) • Laplace Method – Wikipedia [1774] • Laplace Approximation for posterior mean – Accurate approximations for posterior moments and marginal densities [1986] • Laplace Approximation for non-positive functions – Fully Exponential Laplace Approximations to Expectations and Variances of Non-positive functions [1989] • Example and Implementation Issue – Laplace’s Method Approximations for Probabilistic Inference in Belief Networks with Continuous Variables [1994] 2/23/2021 CPSLAB (EECS, SNU) 31

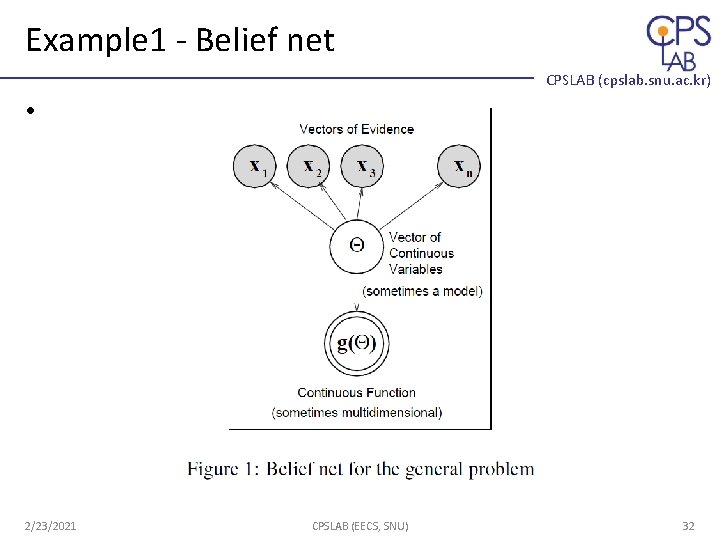

Example 1 - Belief net CPSLAB (cpslab. snu. ac. kr) • 2/23/2021 CPSLAB (EECS, SNU) 32

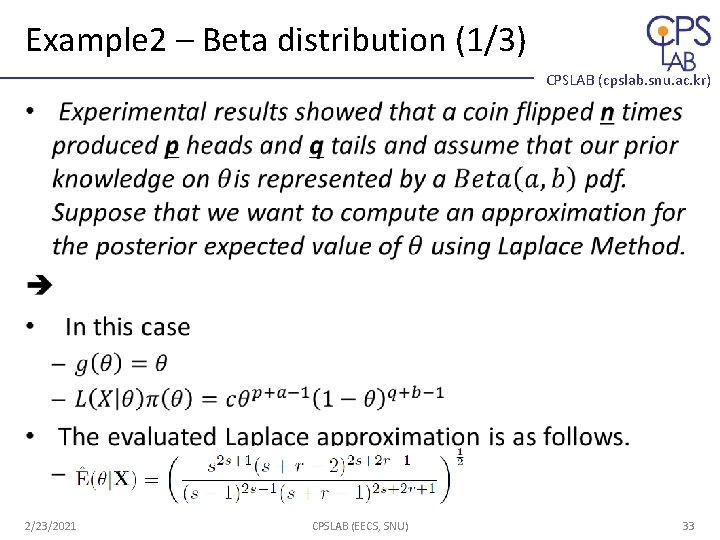

Example 2 – Beta distribution (1/3) CPSLAB (cpslab. snu. ac. kr) • 2/23/2021 CPSLAB (EECS, SNU) 33

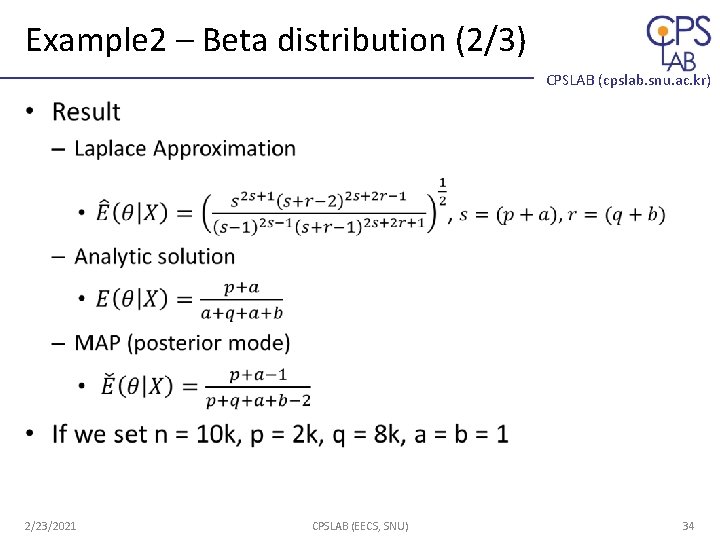

Example 2 – Beta distribution (2/3) CPSLAB (cpslab. snu. ac. kr) • 2/23/2021 CPSLAB (EECS, SNU) 34

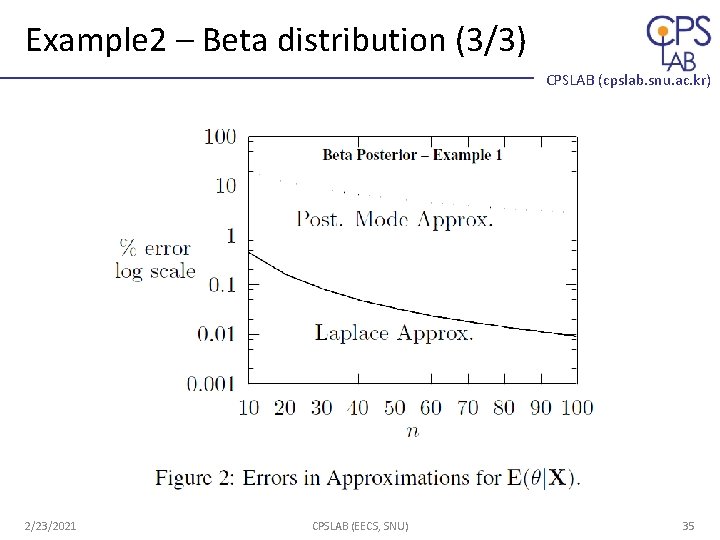

Example 2 – Beta distribution (3/3) CPSLAB (cpslab. snu. ac. kr) 2/23/2021 CPSLAB (EECS, SNU) 35

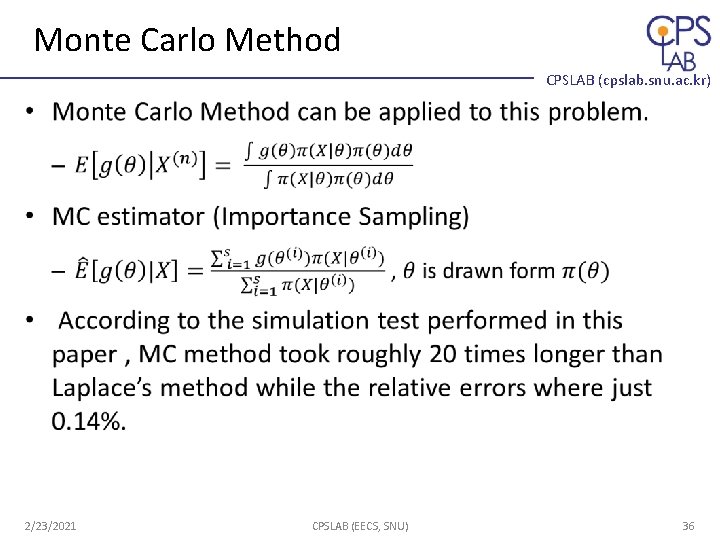

Monte Carlo Method CPSLAB (cpslab. snu. ac. kr) • 2/23/2021 CPSLAB (EECS, SNU) 36

Q&A CPSLAB (cpslab. snu. ac. kr) Thanks to Jungchan 37
