Jug problem What is Jug problem 4 litter

Jug problem

What is Jug problem? 4 litter Jug 3 litter Jug • Use only 2 kinds of jugs above, get 2 litter water. • No tics on each jug.

It’s easy for us…? • Please consider. • Answer is in the next page…

An example of answer 1. Fill up 3 l jug. 2. Move water in 4 l jug into 3 l jug as much as you can. 3. Empty 3 l jug. 4. Move all water in 4 l jug into 3 l jug. 5. Fill up 4 l jug. 6. Move water in 4 l jug into 3 l jug as much as you can. 7. 2 litter water remains in 4 l jug.

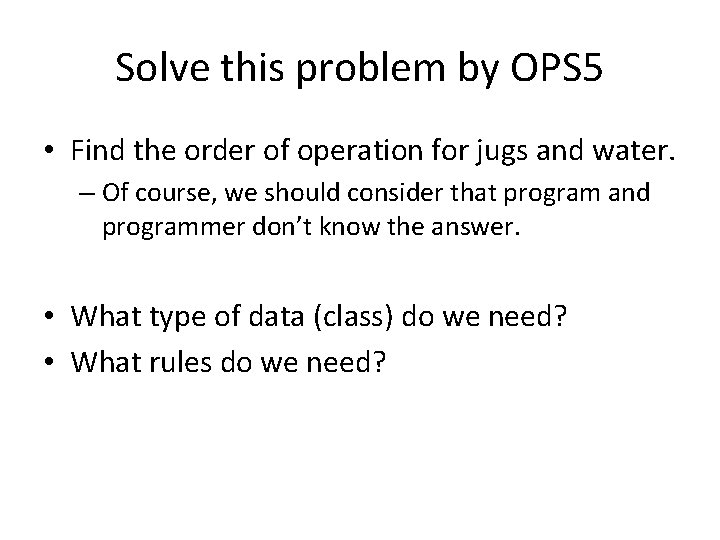

Solve this problem by OPS 5 • Find the order of operation for jugs and water. – Of course, we should consider that program and programmer don’t know the answer. • What type of data (class) do we need? • What rules do we need?

Image of program Status of jugs Rule Fill up 4 l jug Rule Move water from 4 l jug to 3 l jug. Rule • Each rule will be executable depending on the status of jugs. (System choose a rule from executable rules. ) • Repeating rule execution, finish execution when goal status is satisfied.

What rule do we need? • Write all actions for each status of jugs. Ex：If 4 l jug is not full, full up 4 l jug. Formal expression: if x < 4 then (x, y)-> (4, y) Here, (x, y) means amount of water in 4 l and 3 l jug respectively. • Exercise １ 　Write all actions in Japanese(or English) and the formal expression.

Make a rule • Convert a written description to a form of rule. (p rule 1 (youki ^4 l < 4 ^3 l <Y>) --> (make youki ^4 l 4 ^3 l <Y>) ) • Ordinary, class should be defined before rule description, however, in this tutorial, we define rule before class definition, then class will be defined depending on the rule description.

Class definition • Define classes according to the rule. • Consider about the rule in previous page… (literalize youki 4 l 3 l ) • Exercise 2 　　Convert all actions in Ex. 1 into the format of rule in OPS 5. Caution： 　 It is insufficient this class definition. If you add some attribute in making rule, you should modify class definition. Making rule and class definition process will be repeated.

Rule for goal • Goal status is (x, y)=(2, 0), then goal rules will be… (p gole 　　(youki ^4 l 2 ^3 l 0) --> (write |Goal!|(crlf)) (halt) )

Infinite loop problem… • Infinite loop will occur if you make only rules about jugs. Initial: (0, 0) Fill up 4 l jug （４、０） Empty 4 l jug Fill up 4 l jug （０、０） （４、０） A rule for avoiding appearance of same status repeatedly is needed not to get into a infinite loop.

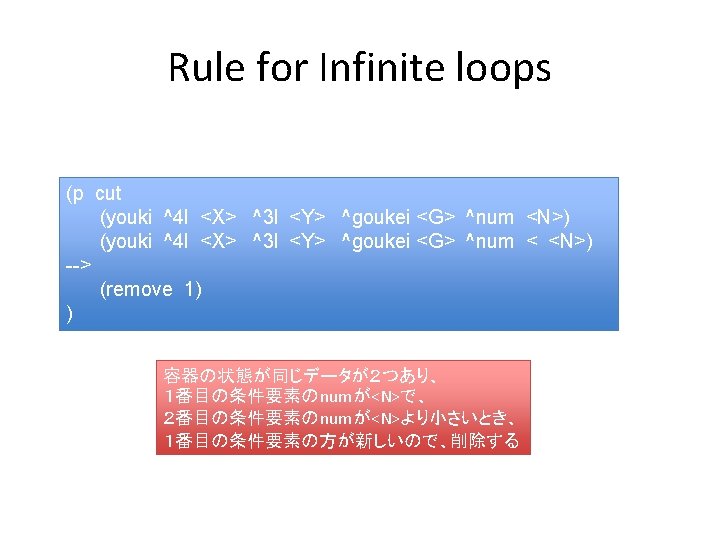

How to deal with the problem • If same status is appeared, the last one is not needed. Initial: (0, 0) Fill up 4 l jugs Empty 4 l jugs （４、０） Same status （０、０） This status is cause of a infinite loop. Remove it. Exercise 3: Make a rule of this operation. It is needed some way to compare new or old data.

From here… • In following pages, class and rules definition is described. These are just examples. • It is not only one way to define class and rules. • There are many kinds of programs to solve this problem. • In this theme, all programs that can solve this problem are accepted.

Class definition • Class definition is following. (literalize youki 4 l 3 l goukei num) • “goukei” keeps the value of the total amount of water. • “num” keeps the value to compare old and new data for avoiding infinite loop.

Rule definition • Rule example If 3 l jug is not full and total amount of water is less than or equal to 3 l, move all water in 4 l jug into 3 l jug (p rule (youki ^4 l {<X> > 0} ^3 l {<Y> < 3} ^goukei <= 3 ^num <N>) --> (make youki ^4 l 0 ^3 l (compute <X> + <Y>) ^goukei (compute <X> + <Y>) ^num (compute <N> + 1 )) (write |4 l=0, 3 l=|(compute <X> + <Y>)(crlf)) ) *In command part, ”make” command is appropriate, because it can not compare old and new data if “modify” command is used. “^num” is a attribute for compare new or old data. In each making of the data, num is increased.

Additional explanation • It is almost by implement the explanation so far. • If some error occurs, please check spaces between words or symbols. （Space is needed in any borders between words or symbols. Otherwise, errors will occur. ) • Furthermore, it is able to set priority for each rules. Please refer the additional explanations in the text book.
