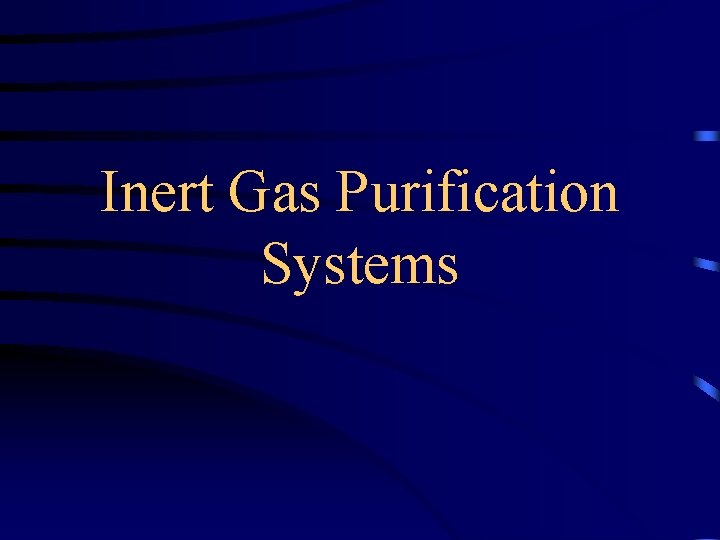

Inert Gas Purification Systems Why do we need

Inert Gas Purification Systems

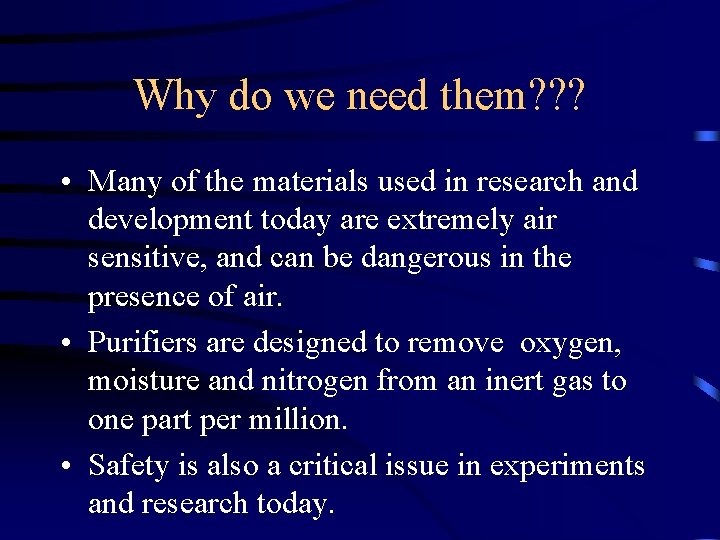

Why do we need them? ? ? • Many of the materials used in research and development today are extremely air sensitive, and can be dangerous in the presence of air. • Purifiers are designed to remove oxygen, moisture and nitrogen from an inert gas to one part per million. • Safety is also a critical issue in experiments and research today.

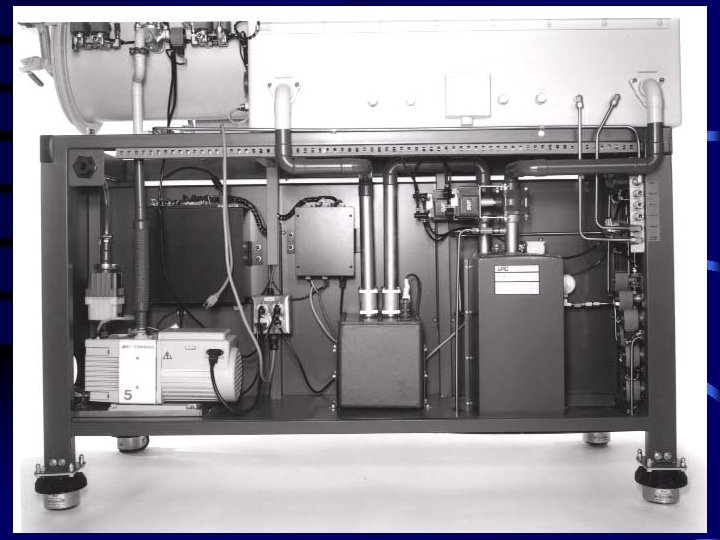

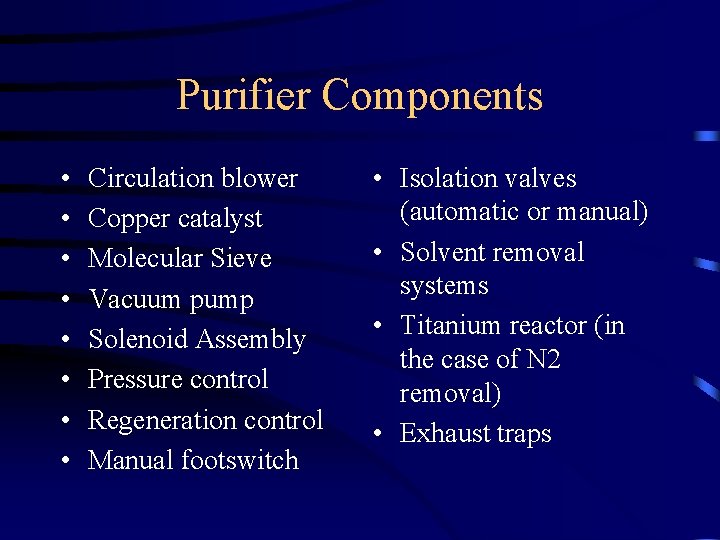

Purifier Components • • Circulation blower Copper catalyst Molecular Sieve Vacuum pump Solenoid Assembly Pressure control Regeneration control Manual footswitch • Isolation valves (automatic or manual) • Solvent removal systems • Titanium reactor (in the case of N 2 removal) • Exhaust traps

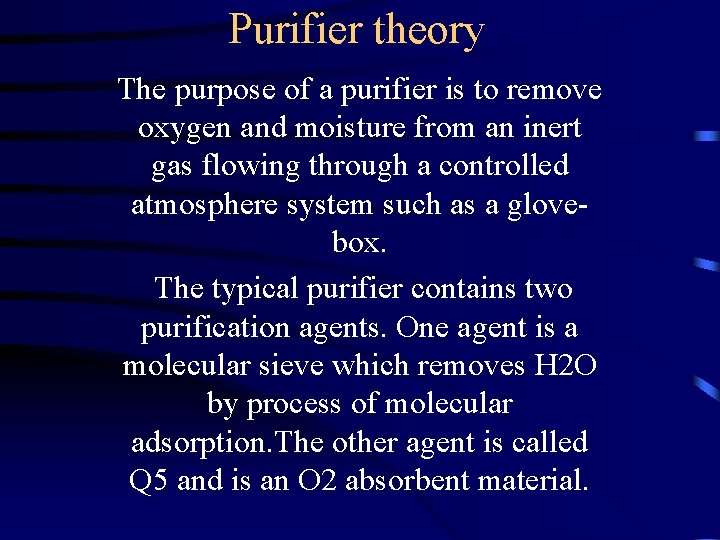

Purifier theory The purpose of a purifier is to remove oxygen and moisture from an inert gas flowing through a controlled atmosphere system such as a glovebox. The typical purifier contains two purification agents. One agent is a molecular sieve which removes H 2 O by process of molecular adsorption. The other agent is called Q 5 and is an O 2 absorbent material.

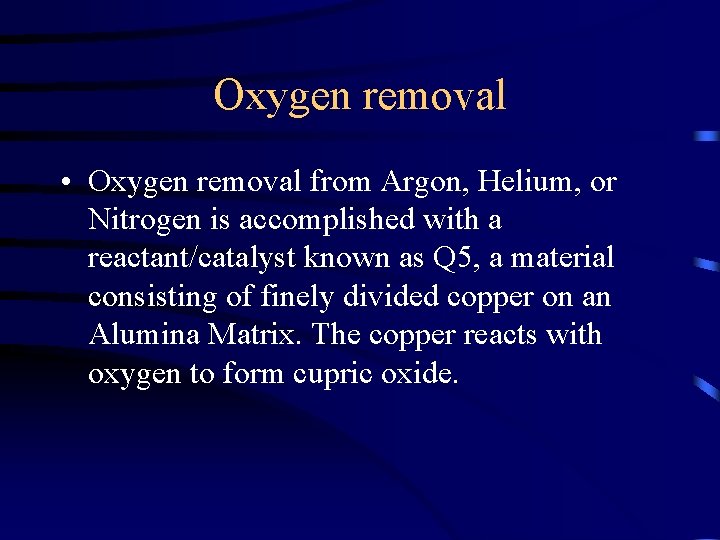

Oxygen removal • Oxygen removal from Argon, Helium, or Nitrogen is accomplished with a reactant/catalyst known as Q 5, a material consisting of finely divided copper on an Alumina Matrix. The copper reacts with oxygen to form cupric oxide.

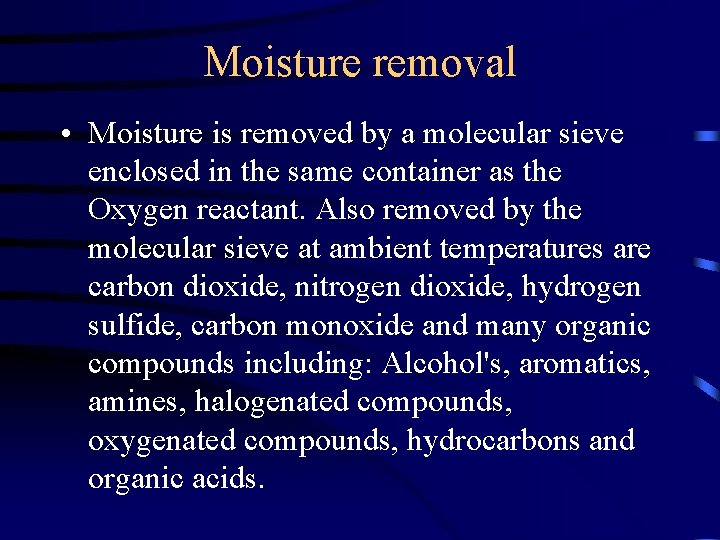

Moisture removal • Moisture is removed by a molecular sieve enclosed in the same container as the Oxygen reactant. Also removed by the molecular sieve at ambient temperatures are carbon dioxide, nitrogen dioxide, hydrogen sulfide, carbon monoxide and many organic compounds including: Alcohol's, aromatics, amines, halogenated compounds, oxygenated compounds, hydrocarbons and organic acids.

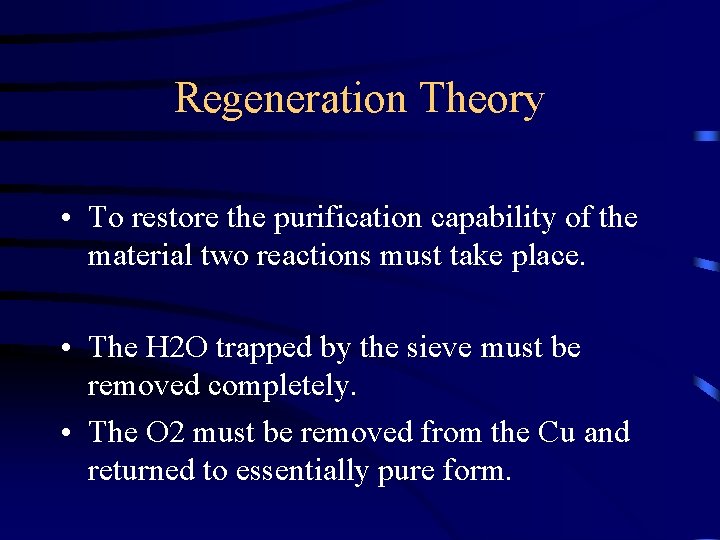

Regeneration Theory • To restore the purification capability of the material two reactions must take place. • The H 2 O trapped by the sieve must be removed completely. • The O 2 must be removed from the Cu and returned to essentially pure form.

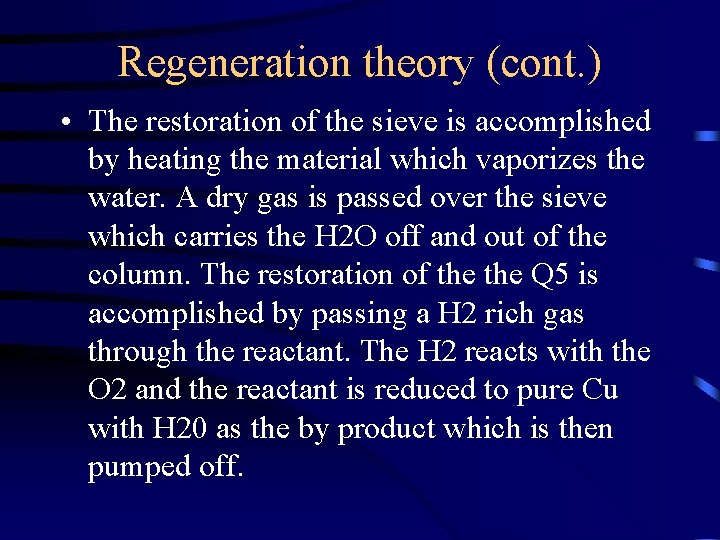

Regeneration theory (cont. ) • The restoration of the sieve is accomplished by heating the material which vaporizes the water. A dry gas is passed over the sieve which carries the H 2 O off and out of the column. The restoration of the Q 5 is accomplished by passing a H 2 rich gas through the reactant. The H 2 reacts with the O 2 and the reactant is reduced to pure Cu with H 20 as the by product which is then pumped off.

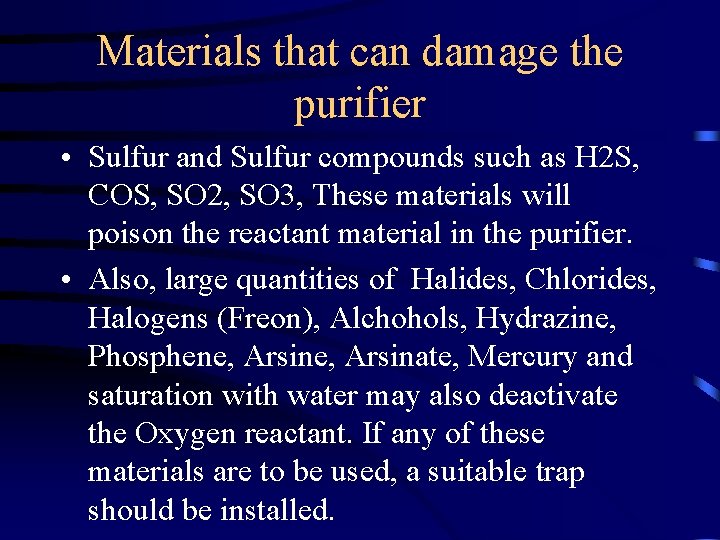

Materials that can damage the purifier • Sulfur and Sulfur compounds such as H 2 S, COS, SO 2, SO 3, These materials will poison the reactant material in the purifier. • Also, large quantities of Halides, Chlorides, Halogens (Freon), Alchohols, Hydrazine, Phosphene, Arsinate, Mercury and saturation with water may also deactivate the Oxygen reactant. If any of these materials are to be used, a suitable trap should be installed.

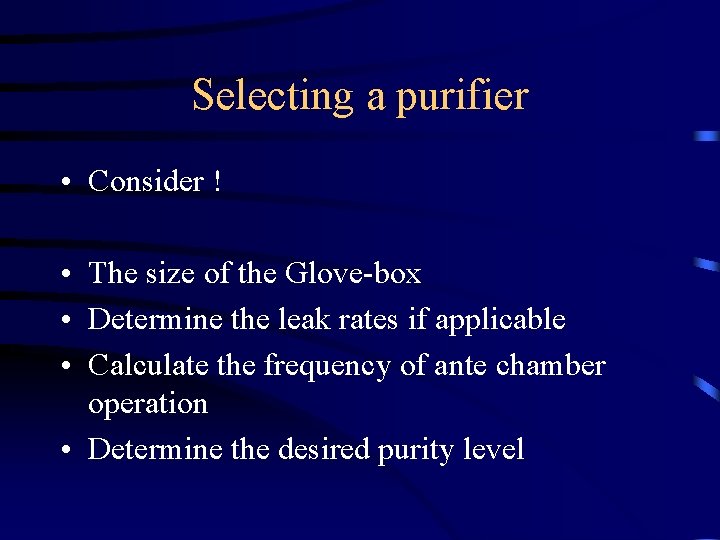

Selecting a purifier • Consider ! • The size of the Glove-box • Determine the leak rates if applicable • Calculate the frequency of ante chamber operation • Determine the desired purity level

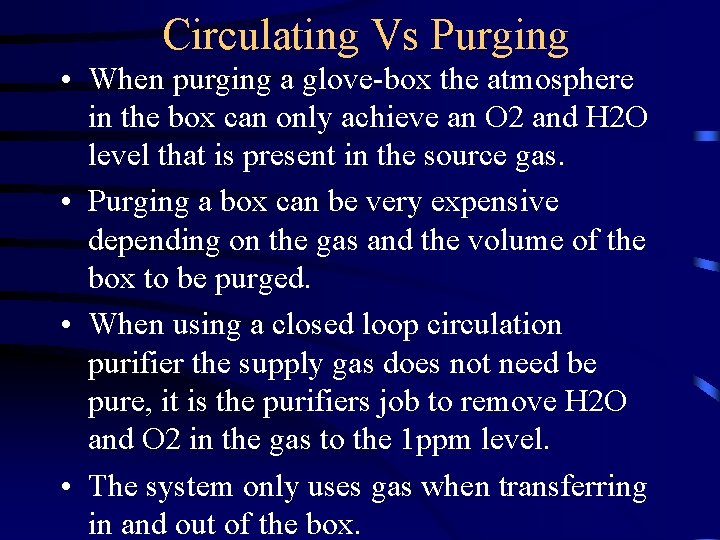

Circulating Vs Purging • When purging a glove-box the atmosphere in the box can only achieve an O 2 and H 2 O level that is present in the source gas. • Purging a box can be very expensive depending on the gas and the volume of the box to be purged. • When using a closed loop circulation purifier the supply gas does not need be pure, it is the purifiers job to remove H 2 O and O 2 in the gas to the 1 ppm level. • The system only uses gas when transferring in and out of the box.

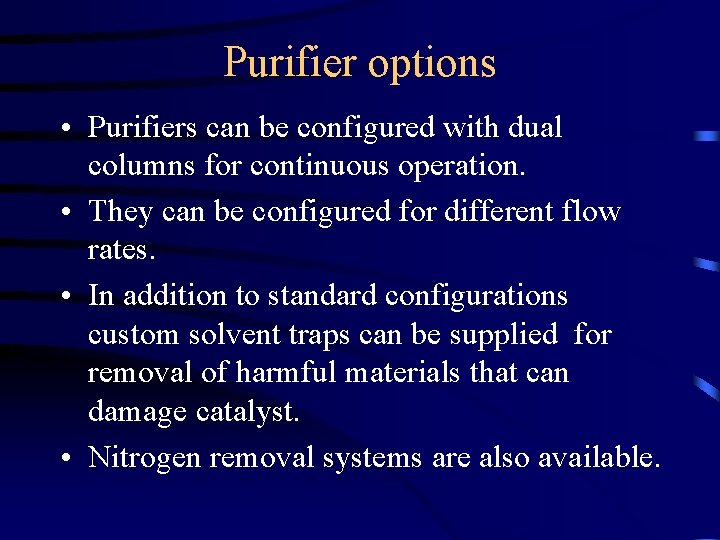

Purifier options • Purifiers can be configured with dual columns for continuous operation. • They can be configured for different flow rates. • In addition to standard configurations custom solvent traps can be supplied for removal of harmful materials that can damage catalyst. • Nitrogen removal systems are also available.

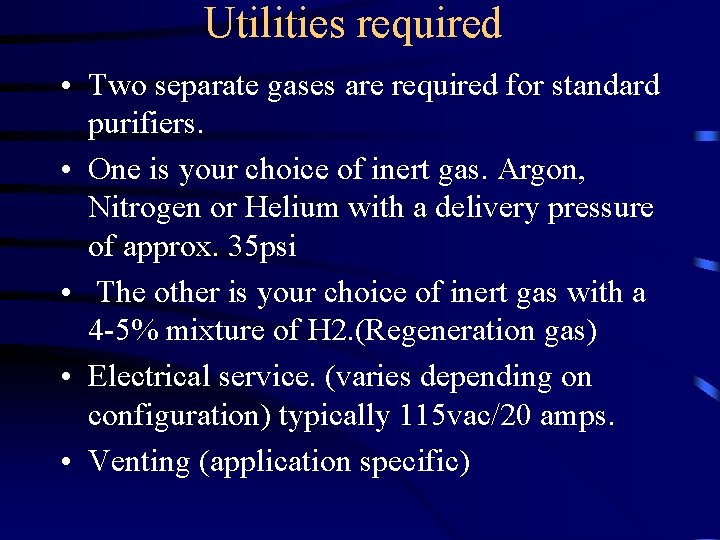

Utilities required • Two separate gases are required for standard purifiers. • One is your choice of inert gas. Argon, Nitrogen or Helium with a delivery pressure of approx. 35 psi • The other is your choice of inert gas with a 4 -5% mixture of H 2. (Regeneration gas) • Electrical service. (varies depending on configuration) typically 115 vac/20 amps. • Venting (application specific)

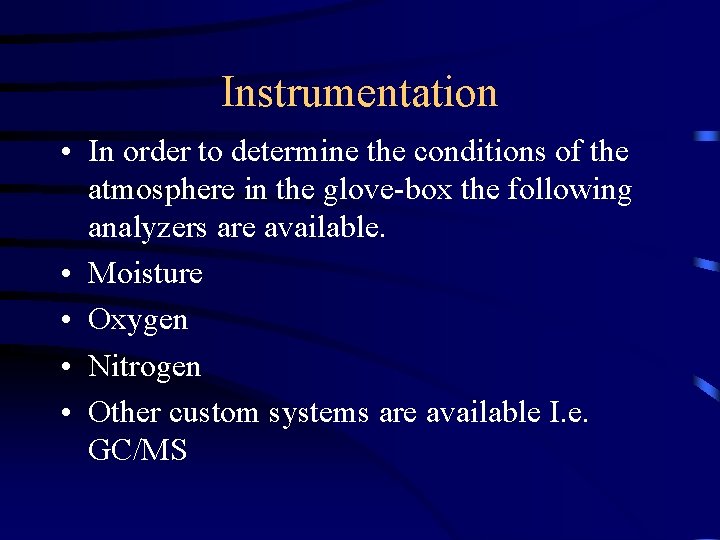

Instrumentation • In order to determine the conditions of the atmosphere in the glove-box the following analyzers are available. • Moisture • Oxygen • Nitrogen • Other custom systems are available I. e. GC/MS
