Inert Gas Purification Systems

Inert Gas Purification Systems

Why do we need them? ? ? • Many of the materials used in

Why do we need them? ? ? • Many of the materials used in research and development today are extremely air sensitive, and can be dangerous in the presence of air. • Purifiers are designed to remove oxygen, moisture and nitrogen/hydrogen from an inert gas to one part per million. • Safety is also a critical issue in experiments and research today.

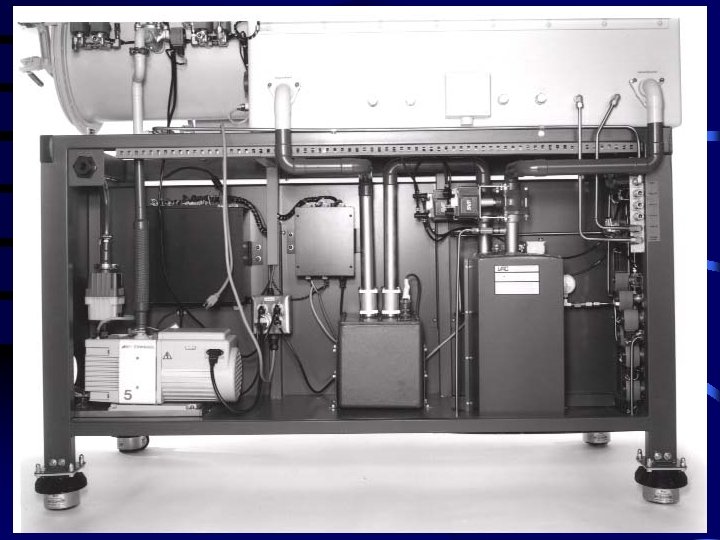

Purifier Components • • Circulation blower Copper catalyst Molecular Sieve Vacuum pump Solenoid Assembly

Purifier Components • • Circulation blower Copper catalyst Molecular Sieve Vacuum pump Solenoid Assembly Pressure control Regeneration control Manual footswitch • Isolation valves (automatic or manual) • Solvent removal systems • Titanium reactor (in the case of N 2/H 2 removal) • Exhaust traps

Purifier theory The purpose of a purifier is to remove oxygen and water from

Purifier theory The purpose of a purifier is to remove oxygen and water from an inert gas flowing through a controlled atmosphere system such as a glovebox. The typical purifier contains two purification agents. One agent is a molecular sieve that removes water by the process of molecular adsorption. The other agent is called Q 5 and is an oxygen reactant material.

Oxygen removal • Oxygen removal from argon, helium, or nitrogen is accomplished with a

Oxygen removal • Oxygen removal from argon, helium, or nitrogen is accomplished with a reactant/catalyst known as Q 5, a material consisting of finely divided copper on an alumina matrix. The copper reacts with oxygen to form copper (II) oxide.

Moisture removal • Moisture is removed by a molecular sieve enclosed in the same

Moisture removal • Moisture is removed by a molecular sieve enclosed in the same container as the oxygen reactant. Also removed by the molecular sieve at ambient temperatures are carbon dioxide, nitrogen dioxide, hydrogen sulfide, carbon monoxide and many organic compounds including: Alcohols, aromatics, amines, halogenated compounds, oxygenated compounds, hydrocarbons and organic acids.

Regeneration Theory • To restore the purification capability of the material two reactions must

Regeneration Theory • To restore the purification capability of the material two reactions must take place. • The H 2 O trapped by the sieve must be removed completely. • The O 2 must be removed from the Q 5 reactant by reduction using hydrogen and heat.

Regeneration theory (cont. ) • The restoration of the sieve is accomplished by heating

Regeneration theory (cont. ) • The restoration of the sieve is accomplished by heating the material to vaporize the water. A dry gas is passed over the sieve that carries the water vapor out of the column. • Restoration of the Q 5 is accomplished by passing a H 2 rich gas through the hot reactant. The H 2 reacts with the saturated reactant to form metallic Cu and H 20. The water is then pumped out.

Materials that can damage the purifier • In general, any chemical that reacts with

Materials that can damage the purifier • In general, any chemical that reacts with copper to form a more stable compound than copper (II) oxide will damage the oxygen reactant. • Volatile compounds containing sulfur or halogens are the most common of this type. • Also, alcohols, phosphenes, arsinate, and mercury vapor may also damage the oxygen reactant. If any of these materials are to be used in large quantities, a suitable trap should be installed. • Organic solvents will also damage the molecular sieve with long term exposure.

Selecting a purifier • Consider ! • The size of the Glove-box • Determine

Selecting a purifier • Consider ! • The size of the Glove-box • Determine the leak rates if applicable • Calculate the frequency of ante chamber operation • Determine the desired purity level

Circulating Vs Purging • When purging a glove-box the atmosphere in the box can

Circulating Vs Purging • When purging a glove-box the atmosphere in the box can only achieve an O 2 and H 2 O level that is present in the source gas. • Purging a box can be very expensive depending on the gas and the volume of the box to be purged. • When using a closed loop circulation purifier the supply gas does not need be pure. It is the job of the purifier to remove H 2 O and O 2 in the gas to the <1 ppm level. • The system only uses gas when transferring in and out of the box.

Purifier options • Purifiers can be configured with dual columns for continuous operation. •

Purifier options • Purifiers can be configured with dual columns for continuous operation. • They can be configured for different flow rates. • In addition to standard configurations custom solvent traps can be supplied for removal of harmful materials that can damage catalyst. • Nitrogen/hydrogen removal systems are also available.

Utilities required • Two separate gases are required for standard purifiers. • Inert gas:

Utilities required • Two separate gases are required for standard purifiers. • Inert gas: Argon, Nitrogen or Helium with a delivery pressure of approx. 35 psi • Regeneration gas: Your choice of a 4 -5% mixture of H 2 in argon or nitrogen. Helium is not recommended due to low molecular weight. • Electrical service: (varies depending on configuration) typically 115 VAC/20 A. • Venting: application specific

Instrumentation • In order to determine the conditions of the atmosphere in the glove-box

Instrumentation • In order to determine the conditions of the atmosphere in the glove-box the following analyzers are available. • Moisture • Oxygen • Nitrogen • Other custom systems are available, i. e. GC/MS
