ILPERSA ENGINEERING QUALITY AND INNOVATION THE COMPANY Since its founding in 1918, ILPERSA has developed its business in the design and manufacturing of grain storage and filtration systems. . Customers of several countries rely on ILPERSA for solve their storage requirements, with our full line of commercial silos: Silo STM: with elevated metallic hopper Silo SAS: with flat bottom or built-in conical hopper.

ILPERSA ENGINEERING QUALITY AND INNOVATION SILOS DESCRIPTION ILPERSA silos are manufactured with sheets of galvanized corrugated plates S 350 GD Z-450 (450 gr/m 2 galvanization) according to EN 10142. Under request, we can supply silos with coated Z-600 or with the innovative metallic coating Magnelis®. The design of our silos has been carried out according to the standard EUROCODE 1 -4. Supplied and manufactured according with dispositions of the actual European Parliament and Council Directive CE. Our silos are capable withstanding seismic loads grade VII in Mercalli Scale and basic acceleration 0, 12 g for soil type III (medium compaction soil).

ILPERSA ENGINEERING QUALITY AND INNOVATION CYLINDER PANELS The ILPERSA unique corrugated galvanized sheets have a 104 mm pitch and 12 mm. depth. The latest numerical control machinery let punching the metallic sheets assuring accurate hole alignment and precise formation of the corrugation The cylinder panels are manufactured with thickness from 1 to 4 mm. in high resistance 3600 kg/cm 2.

ILPERSA ENGINEERING QUALITY AND INNOVATION ROOF SILO The new design of ROOF SILOS are completely bolted (no need to drill holes). Our design enables assemble the roof easy and quickly. The roof panels offer a good capabilities to support big loads, providing durability under heavy snow (80 -200 kg/m 2), ice loads and other extreme weather conditions (wind speed 150 km/h).

ILPERSA ENGINEERING QUALITY AND ROOF LADDER INNOVATION Our roof ladder are manufactured entirely with galvanized steel. The design include a nonskid stair treads and a complete set of columns and handrails.

ILPERSA ENGINEERING QUALITY AND INNOVATION CYLINDER LADDER Complete exterior ladder system, including safety cage and rest platforms each 9 meters.

ILPERSA ENGINEERING QUALITY AND INNOVATION PLATFORMS & CATWALKS The platforms and catwalks are manufactured entirely with galvanized steel. The design include a nonskid floor and a complete set of columns and handrails.

ILPERSA ENGINEERING QUALITY AND INNOVATION LATERALS SUPPORTS Manufactured with galvanized steel, give support to the catwalk, tunnel or conveyor.

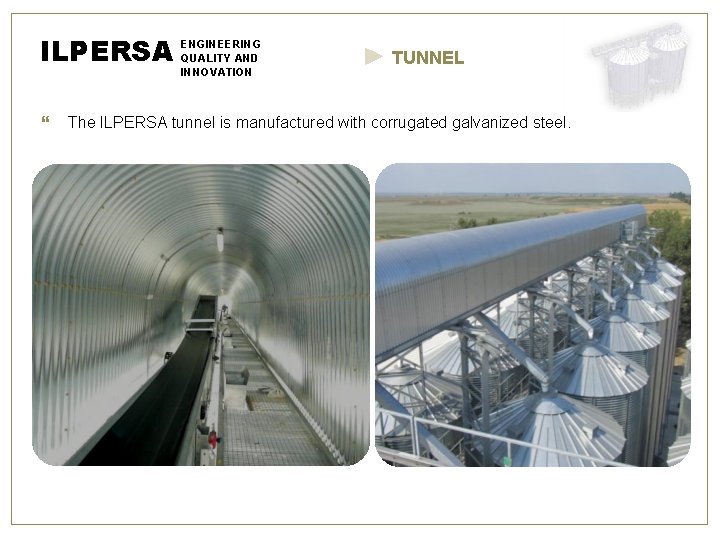

ILPERSA ENGINEERING QUALITY AND INNOVATION TUNNEL The ILPERSA tunnel is manufactured with corrugated galvanized steel.

ILPERSA ENGINEERING QUALITY AND TOWERS & STRUCTURES INNOVATION ILPERSA designs and manufacture customized towers or requirements. structures to meet project

ILPERSA ENGINEERING QUALITY AND INNOVATION The side discharge system allows the gravity loading of the truck. The interior channels allows to discharge the grain without appearing problems of overpressure inside the silo. SIDE DRAW SYSTEM

ILPERSA ENGINEERING QUALITY AND INNOVATION FILTERS

ILPERSA ENGINEERING QUALITY AND INNOVATION FILTERS

ILPERSA ENGINEERING QUALITY AND INNOVATION ENGINEERING DEPARTMENT (1) The new AUTODESK® INVENTOR® 3 D CAD software let us to produce an accurate 3 D model for design and visualize any potential installation of silos. The function i. Part let us create silo families that contain all the size in one table. With the 3 D digital prototype the customer can easily validate the form, fit, and the design of the installation. The new software allows us to more easily share information with OUR PARTNERS.

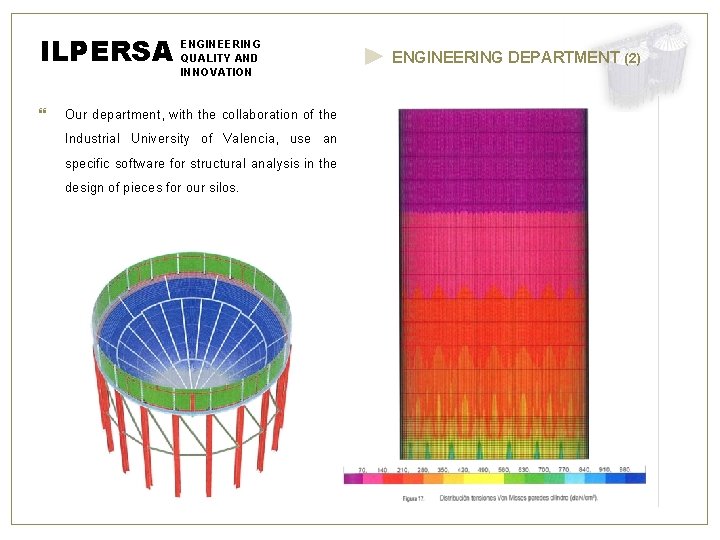

ILPERSA ENGINEERING QUALITY AND INNOVATION Our department, with the collaboration of the Industrial University of Valencia, use an specific software for structural analysis in the design of pieces for our silos. ENGINEERING DEPARTMENT (2)

ILPERSA ENGINEERING QUALITY AND INNOVATION ASSEMBLY INSTRUCTIONS Clearly explained and illustrated assembly instructions, for each part of the silo: roof, cylinder, hopper, etc. Languages supported: Spanish, English, Russian. Other languages under request

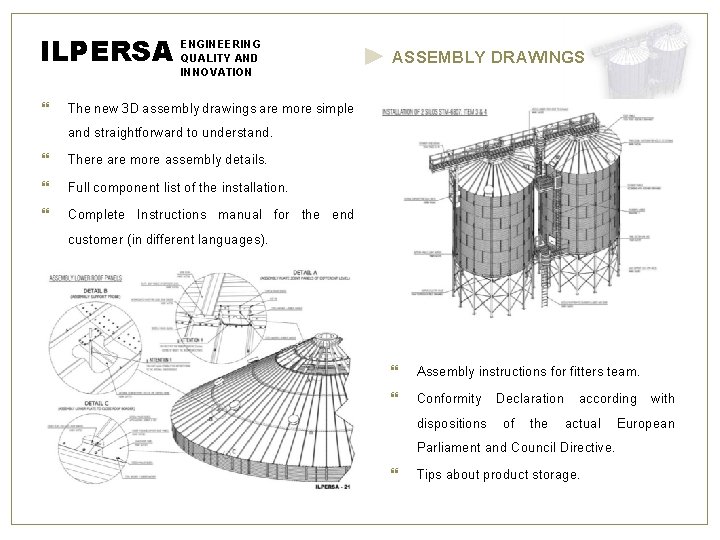

ILPERSA ENGINEERING QUALITY AND INNOVATION ASSEMBLY DRAWINGS The new 3 D assembly drawings are more simple and straightforward to understand. There are more assembly details. Full component list of the installation. Complete Instructions manual for the end customer (in different languages). Assembly instructions for fitters team. Conformity dispositions Declaration of the according actual Parliament and Council Directive. Tips about product storage. with European

ILPERSA ENGINEERING QUALITY AND EFFICIENCY: IMPROVING ERECTION TIME INNOVATION MOUNTING HOURS 2006 2013 1000 800

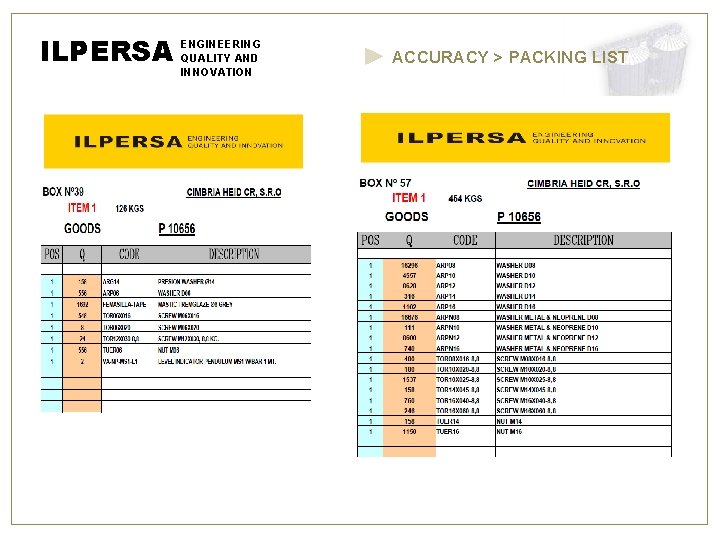

ILPERSA ENGINEERING QUALITY AND INNOVATION ACCURACY > PACKING LIST
