Hierarchical Power Management for Asymmetric MultiCore in Dark

Hierarchical Power Management for Asymmetric Multi-Core in Dark Silicon Era Thannirmalai Somu Muthukaruppan Mihai Pricopi Vanchinathan Venkataramani, Tulika Mitra School of Computing, National University of Singapore Sanjay Vishin Cambridge Silicon Radio DAC’ 13

Motivation �Dark silicon phenomenon ◦ A chip can have many cores but a significant fraction of them are left unpowered, or dark, at any point in time due to power and thermal limits. �Asymmetric multi-core architecture as an alternative ◦ Cores with diverse power-performance characteristics.

This paper �Introduce a hierarchical power management framework for asymmetric multi-cores. ◦ Builds on control theory. ◦ Coordinates multiple controllers in a synergistic manner to achieve optimal power-performance efficiency. ◦ Respects thermal design power budget.

Scenario �System exceeds the Thermal Design Power(TDP). ◦ => power budgets have to be reduced. ◦ => scaling down voltage and frequency. ◦ => the Qo. S degrades. �Reverse the process once the system load decreases. �Avoid oscillations!

ARM big. LITTLE �TC 2 ◦ Two high performance Cortex A 15 and three energy-efficient Cortex A 7 ◦ 3 rd model(HMP) ◦ Per-cluster DVFS

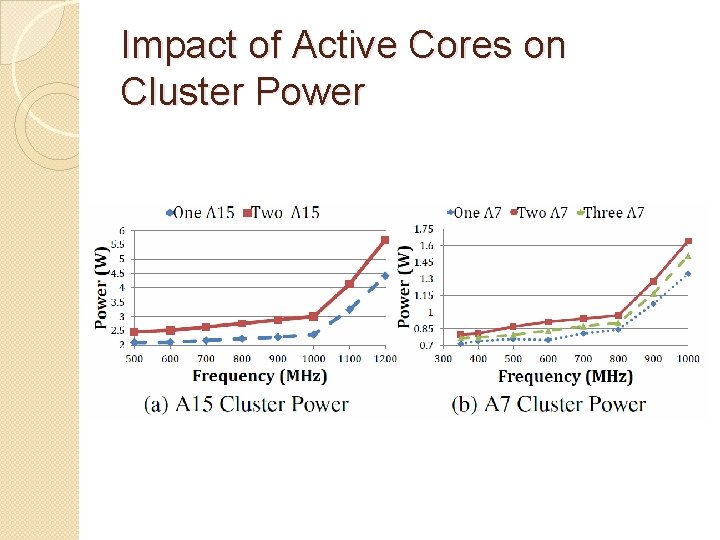

Impact of Active Cores on Cluster Power

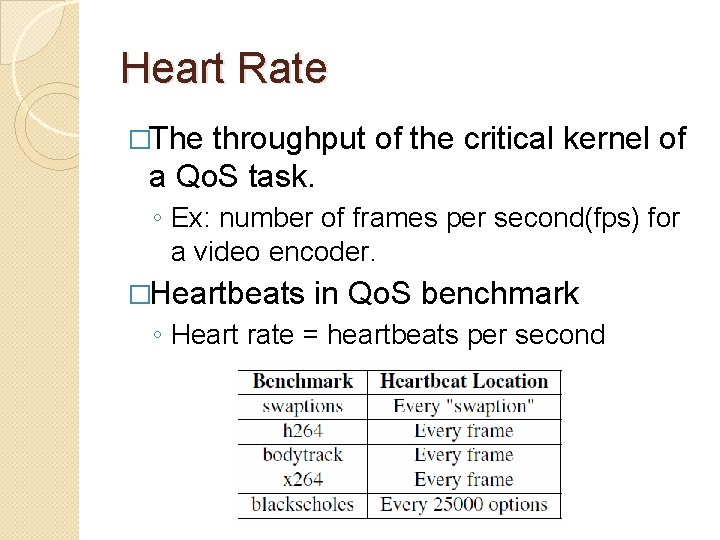

Heart Rate �The throughput of the critical kernel of a Qo. S task. ◦ Ex: number of frames per second(fps) for a video encoder. �Heartbeats in Qo. S benchmark ◦ Heart rate = heartbeats per second

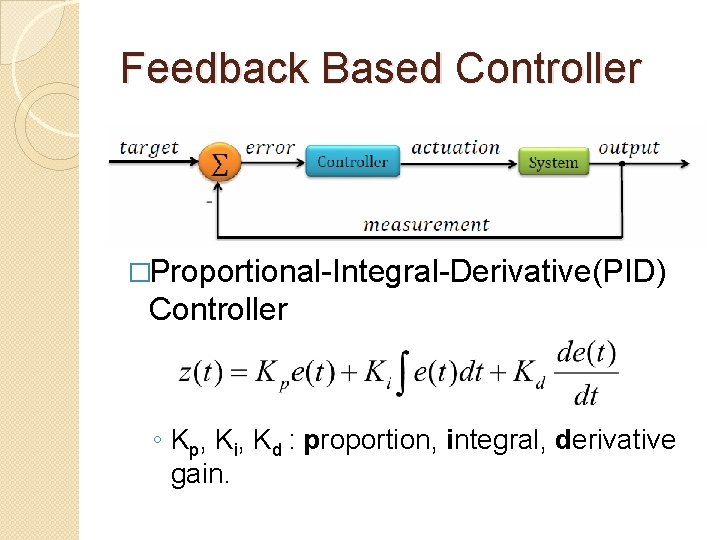

Feedback Based Controller �Proportional-Integral-Derivative(PID) Controller ◦ Kp, Ki, Kd : proportion, integral, derivative gain.

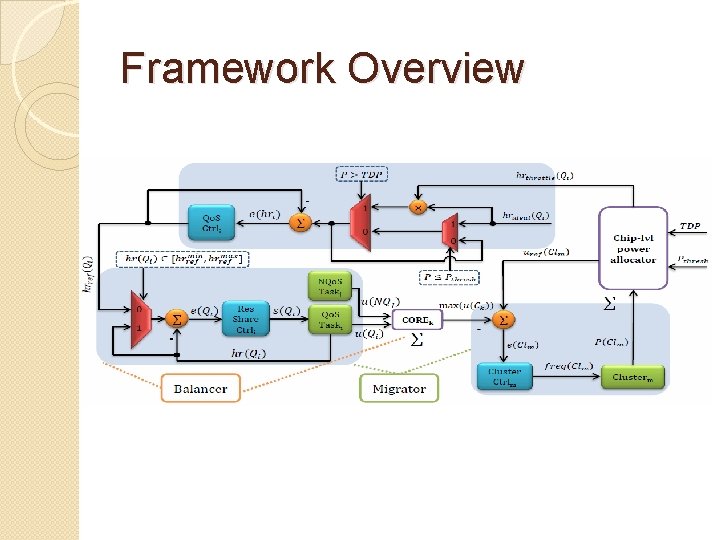

Framework Overview

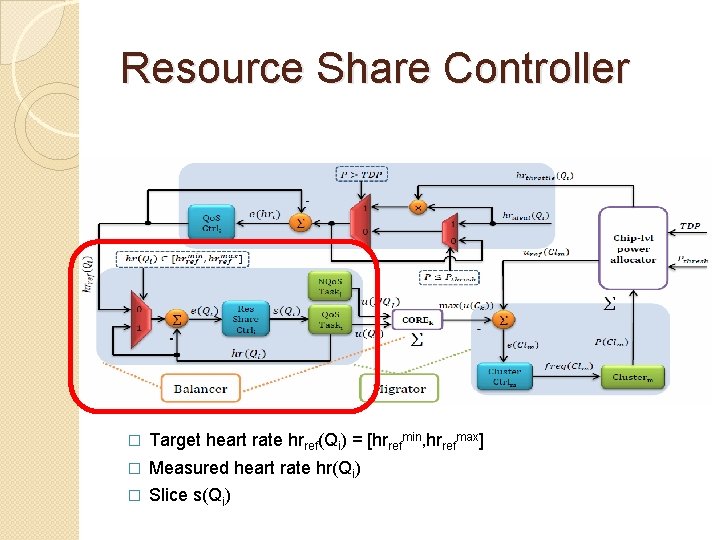

Resource Share Controller � Target heart rate hrref(Qi) = [hrrefmin, hrrefmax] � Measured heart rate hr(Qi) � Slice s(Qi)

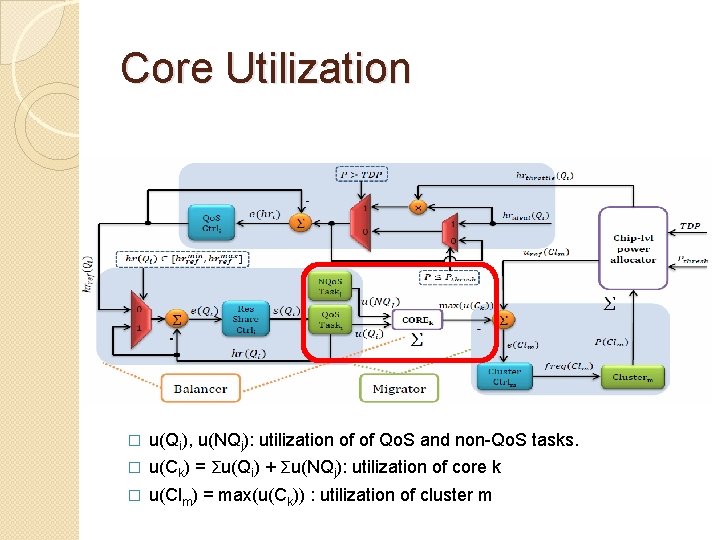

Core Utilization u(Qi), u(NQj): utilization of of Qo. S and non-Qo. S tasks. � u(Ck) = Σu(Qi) + Σu(NQj): utilization of core k � � u(Clm) = max(u(Ck)) : utilization of cluster m

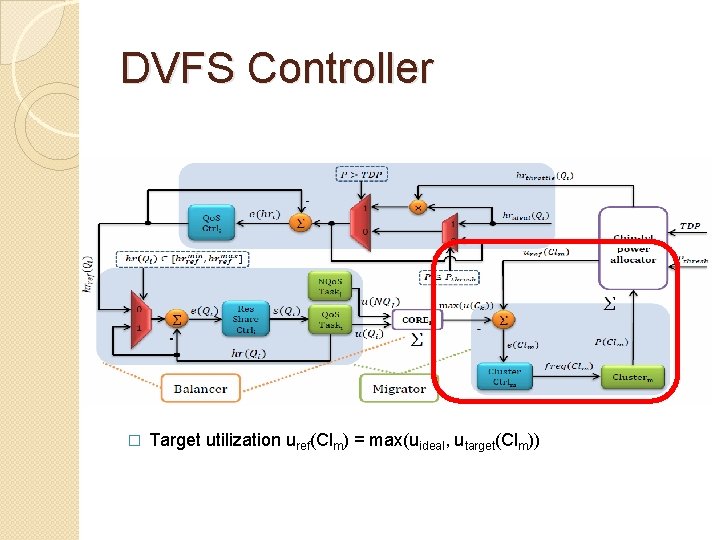

DVFS Controller � Target utilization uref(Clm) = max(uideal, utarget(Clm))

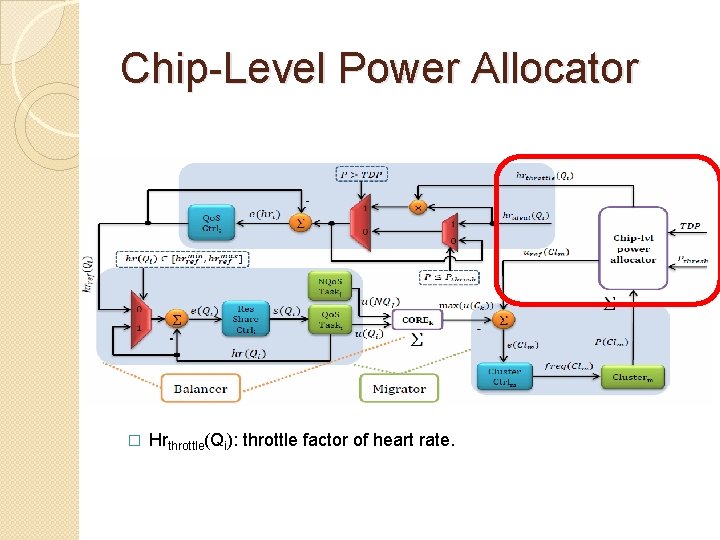

Chip-Level Power Allocator � Hrthrottle(Qi): throttle factor of heart rate.

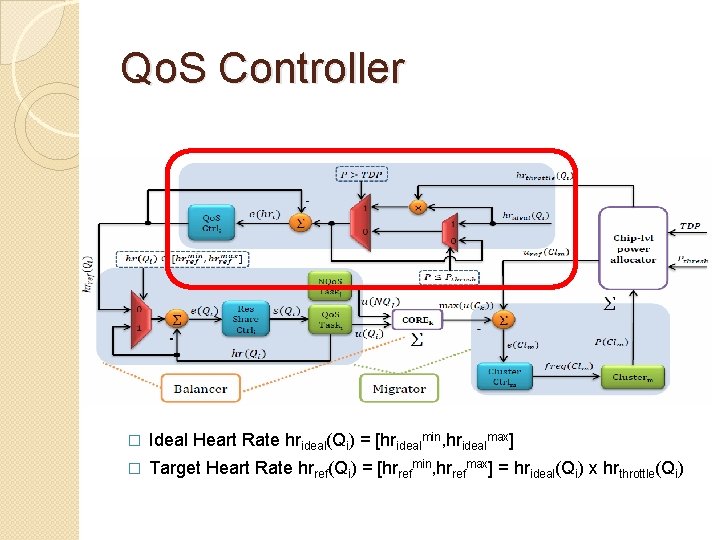

Qo. S Controller � Ideal Heart Rate hrideal(Qi) = [hridealmin, hridealmax] � Target Heart Rate hrref(Qi) = [hrrefmin, hrrefmax] = hrideal(Qi) x hrthrottle(Qi)

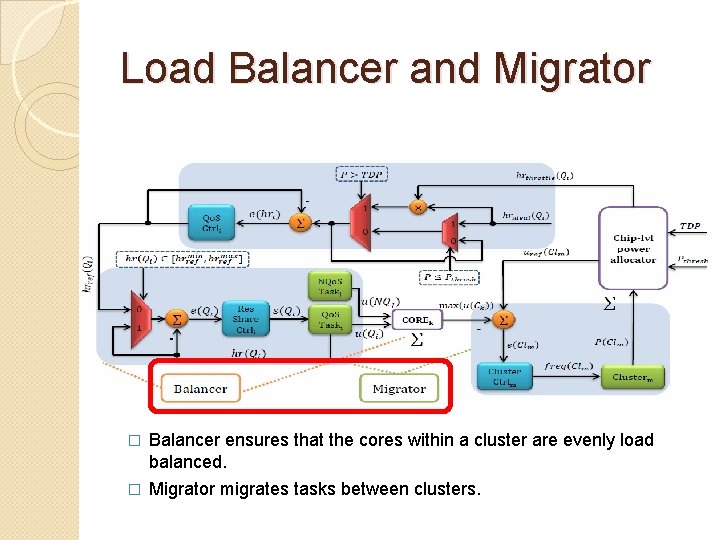

Load Balancer and Migrator � Balancer ensures that the cores within a cluster are evenly load balanced. � Migrator migrates tasks between clusters.

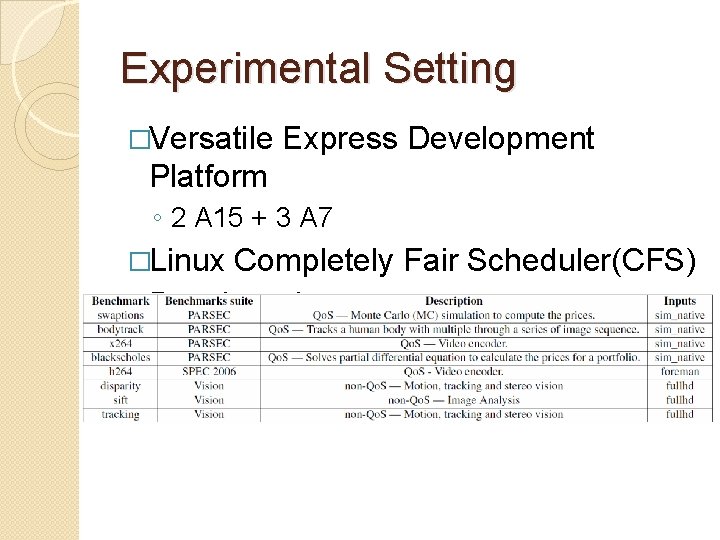

Experimental Setting �Versatile Express Development Platform ◦ 2 A 15 + 3 A 7 �Linux Completely Fair Scheduler(CFS) �Benchmarks:

Asymmetric V. S. Symmetric � x 264 benchmark ◦ Phases with varying performance requirements during execution.

HPM V. S. Linaro scheduler

HPM V. S. Linaro scheduler

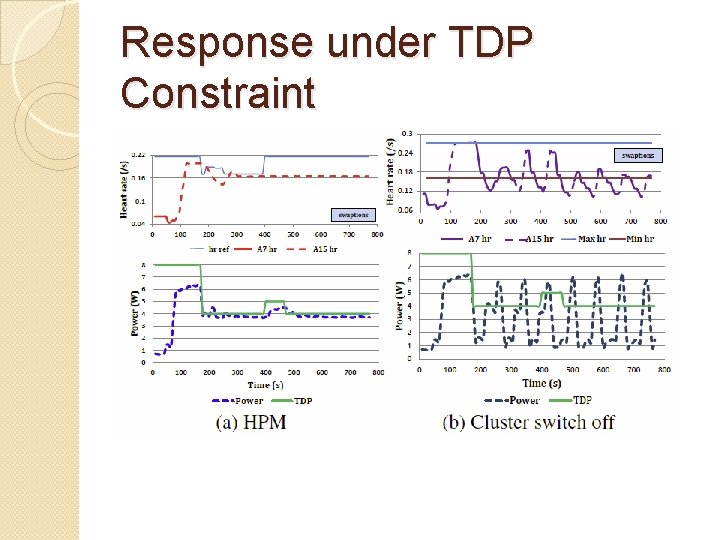

Response under TDP Constraint

Conclusion �The authors present a power management framework for asymmetric multi-cores that based on multiple controllers. ◦ Exploits asymmetry among the cores through selective migration and employs DVFS to minimize power consumption while satisfying Qo. S constraints.
