Getting Started with Oracle Cloud Infrastructure OCI Quickstart

Getting Started with Oracle Cloud Infrastructure OCI Quickstart Andrea Marchesini Oracle Cloud Infrastructure Product Manager November, 2019 © 2019 Oracle

Safe harbor statement The following is intended to outline our general product direction. It is intended for information purposes only, and may not be incorporated into any contract. It is not a commitment to deliver any material, code, or functionality, and should not be relied upon in making purchasing decisions. The development, release, timing, and pricing of any features or functionality described for Oracle’s products may change and remains at the sole discretion of Oracle Corporation. 2 Copyright © 2019, Oracle and/or its affiliates. All rights reserved.

Agenda In this 2 hours session we will cover Oracle Cloud Infrastructure (OCI) basics to get you jumpstarted using OCI quickly and efficiently. We will cover just enough foundational topics for you to be able to provision and configure OCI resources (essentially, a virtual cloud network with a virtual machine running Oracle Linux). • OCI Fundamentals • Core OCI Services overview (identity, network, compute, storage, database) • Break • Quickstart hands-on lab • • Q&A The qloudable hands-on lab environment 45 mins 10 mins 60 mins 5 mins

Oracle Cloud Infrastructure (OCI) is Oracle’s Cloud Platform on which Iaa. S, Paa. S and Saa. S services are built. .

Oracle Cloud Infrastructure Global Footprint October 2019: 16 Regions, 20 Live Planned LONDON NEWPORT, WALES AMSTERDAM FRANKFURT MONTREAL TORONTO EUROPE CHICAGO BAY AREA PHOENIX US GOV ZURICH ASHBURN CHUNCHEON SEOUL ISRAEL TOKYO ASIA JEDDAH SAUDI 2 Commercial Planned DUBAI UAE 2 OSAKA MUMBAI HYDERABAD SINGAPORE Government Planned Microsoft Azure Interconnect BELO HORIZONTE CHILE Microsoft Azure Interconnect Planned Copyright © 2019 Oracle and/or its affiliates. SAO PAULO SOUTH AFRICA SYDNEY MELBOURNE

High Availability Design Fault Domains Availability Domains Regions Protection against failures within datacenters Protection from entire datacenter failures Protection from disaster with Data Residency compliance SLAs on Performance, Management and Availability

High Availability Design Fault Domains Availability Domains Regions Protection against failures within datacenters Protection from entire datacenter failures Protection from disaster with Data Residency compliance SLAs on Performance, Management and Availability

Off Box Network Virtualization COMPUTE, STORAGE, DATABASE, LBs, Security… VMs, Bare Metal, Containers GPU Exadata, RAC DB Systems NVMe, Block Object, Load Balancers, VPN. . File Security VIRTUAL NETWORK PHYSICAL NETWORK REGION FD 1 FD 2 FD 3

Oracle Cloud Infrastructure Services IDENTITY Identity and Access Management Granular, role based access control to cloud resources STORAGE Local, Block, File, Object, Archive Local, Block, File, Object and Archive storage options SECURITY Audit, Key Management Log APIs calls for audit, bring your own keys NETWORKING VCN, VPN, Fast. Connect, LB COMPUTE Bare metal, GPUs, VMs, Containers Isolated software defined private networks DATABASE Bare metal, VMs, RAC, Exadata Bare Metal, VMs with same APIs; Managed kubernetes AUTONOMOUS DATABASE ADW, ATP millions of transactions per second; Exadata, RAC and Active Data Guard support DATA MOVEMENT Storage appliance, Data Transfer Software NAS Gateway, Data Transfer Appliance Only autonomous data warehousing and transaction processing in the cloud EDGE DNS, Other Edge, Email Global DNS, global private connectivity at up to 97% less cost, email delivery

Enables you to control who can do what in your OCI account Identity and Access Management (IAM) Principals – Users/Groups, Instance Principals, Service Principals Auth. N – username/password, API Signing Keys & Auth Tokens Auth. Z – human readable statements (Policies) Compartment – organize and isolate related cloud resources Governance – Supports free form tags and defined tags with a schema Audit Service records calls to OCI services API endpoints as log events

When you sign up for OCI Service Limits Tenancy/ Root Compartment A Compartment B Compartment XYZ Administrators Groups Email id Administrators Policy Compartment C Allow group Administrators to manage all-resources in tenancy Oracle sets up a default Administrator for the account, default Group Administrators with a Tenant Policy Root Compartment can hold all the cloud resources Best practice is to create dedicated Compartments when you need to isolate resources

Private network that you set up in the Oracle Cloud Covers a single, contiguous IPv 4 CIDR block of your choice Networking Services Route Tables for routing traffic to various destinations Security Lists and Network Security Group for traffic isolation Private and Public IP addresses (ephemeral or reserved) Support for multiple network interfaces Load Balancer as a service – Public/Private Load Balancers TCP and HTTP LBaa. S with support for advanced features (SSL, Session Affinity, content based routing) Supports DNS Zones and records

Instances connect to the Internet, Internet Gateway and receive connections Instances reach the Internet w/o receiving connections from it VCN hosts connect to object storage, bypassing internet NAT Gateway Service Gateway Extend an on-premises network IPsec VPN Fast. Connect Privately connect two VCNs in a region Local Peering Gateway Privately connect two VCNs in different regions Remote Peering Connection (DRG)

Comput e Service Bare Metal and VMs with the same APIs Bare Metal for high-performance workloads Run most Windows and Linux workloads Flexible instance sizing for every workloads Supports both Intel and AMD processors with industry leading price/performance Provide GPU and HPC instance options Oracle-provided, custom and Bring your own (BYO) Images Fast provisioning – Instance Configuration and Pools Auto Scaling – Scale out or in Advanced Networking and Storage capabilities

Storage Services Local NVMe SSD storage with SLAs for high-performance workloads Persistent, durable, high-performance block storage service with industry leading price/performance Block storage Clones and automated backups Simplify management of enterprise apps – volume groups Elastic, durable, enterprise-grade file system with industry leading price/performance Object Storage – "hot" storage, and "cold" storage (Archive) Object storage advanced features – cross-region copy, life cycle management, pre-authenticated requests and multipart uploads

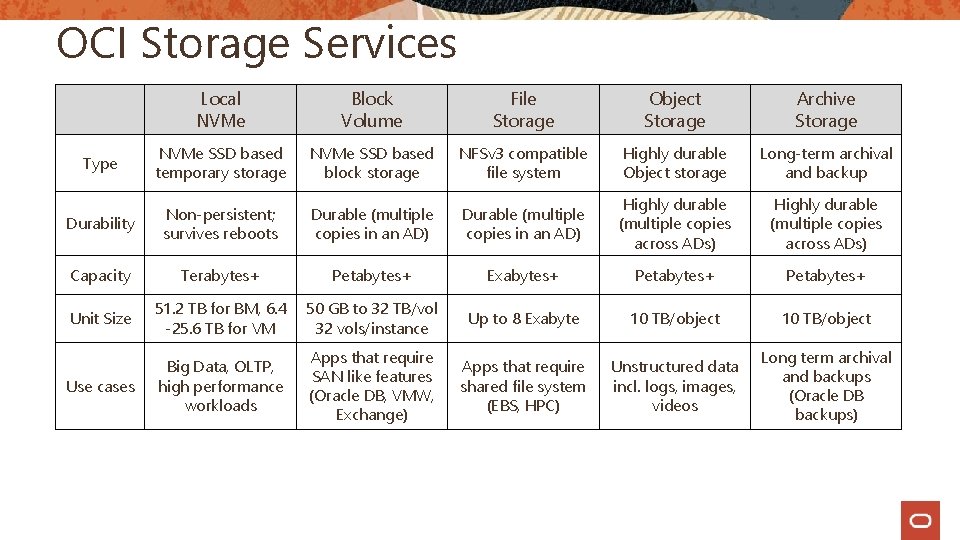

OCI Storage Services Local NVMe Block Volume File Storage Object Storage Archive Storage Type NVMe SSD based temporary storage NVMe SSD based block storage NFSv 3 compatible file system Highly durable Object storage Long-term archival and backup Durability Non-persistent; survives reboots Durable (multiple copies in an AD) Highly durable (multiple copies across ADs) Capacity Terabytes+ Petabytes+ Exabytes+ Petabytes+ Unit Size 51. 2 TB for BM, 6. 4 -25. 6 TB for VM 50 GB to 32 TB/vol 32 vols/instance Up to 8 Exabyte 10 TB/object Use cases Big Data, OLTP, high performance workloads Apps that require SAN like features (Oracle DB, VMW, Exchange) Apps that require shared file system (EBS, HPC) Unstructured data incl. logs, images, videos Long term archival and backups (Oracle DB backups)

Databas e Services Industry’s first autonomous database optimized for both transactional and data warehouse needs Autonomous DB – fast provisioning, automatic tuning, patching, 99. 995% availability DB Systems – comprehensive offerings (Exadata, Bare Metal, RAC, VM) to cover all enterprise database needs Millions of Transactions per second supported DB systems offers complete lifecycle automation, scalability and HA Full RAC and Active Data Guard support

OCI DB Systems Scaling Multiple Homes/Databases Storage Real Application Clusters (RAC) Data Guard Virtual Machines Bare Metal Exadata Storage (number of CPU cores on VM DB cannot be changed) CPU (amount of available storage cannot be changed) CPU can be scaled within a ¼ , ½ and Full rack. Storage cannot be scaled No, single DB and Home only Yes (one edition, but different versions possible) Yes Block Storage Local NVMe disks Local spinning disks and NVMe flash cards Available (2 -node) Not Available Available

Why Oracle Cloud Infrastructure? Technical 1. Security 1. 2. Network Isolation with Off Box Network Virtualization Defense in Depth: o Disk and Data encryption always on. o Least privilege approach 2. Performance 1. 2. 3. Bare Metal + local NVMe storage All SSD Storage No Network, CPU or Memory oversubscription 3. DB Options – Autonomous, BM, VM, Exadata, RAC, Data Guard 4. Oracle Apps (EBS, JDE. . ) Business 1. Aggressive and predictable pricing 2. BYOL and Universal Cloud Credits 3. Support through one org 4. Drink your own champagne (Saa. S on OCI) 5. SLAs on Performance, Management and Availability

“We were seeing 75% utilization and 60 X performance improvements over other cloud providers” Navindra Yadav, founder, Cisco Tetration

Oracle Cloud always free tier: oracle. com/cloud/free/ OCI training and certification: oracle. com/cloud/iaas/training/register-for-training. html oracle. com/cloud/iaas/training/certification. html OCI hands-on labs: ocitraining. qloudable. com/provider/oracle Oracle learning library videos on You. Tube: youtube. com/user/Oracle. Learning Copyright © 2019, Oracle and/or its affiliates. All rights reserved.
