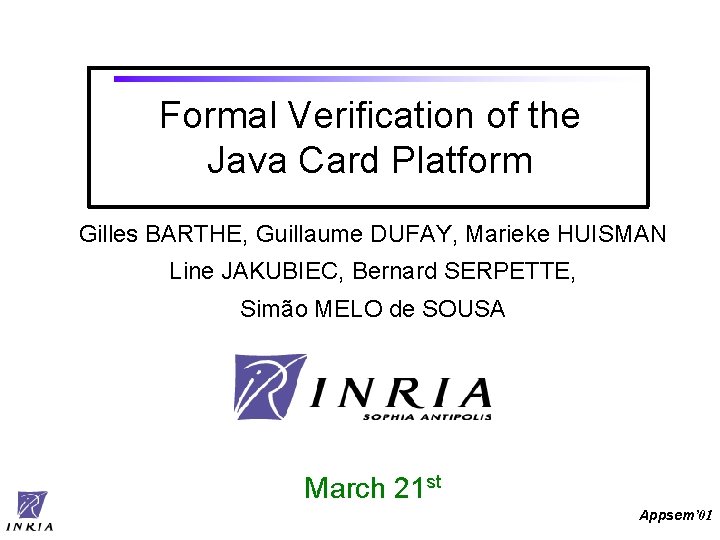

Formal Verification of the Java Card Platform Gilles BARTHE, Guillaume DUFAY, Marieke HUISMAN Line JAKUBIEC, Bernard SERPETTE, Simão MELO de SOUSA March 21 st Appsem’ 01

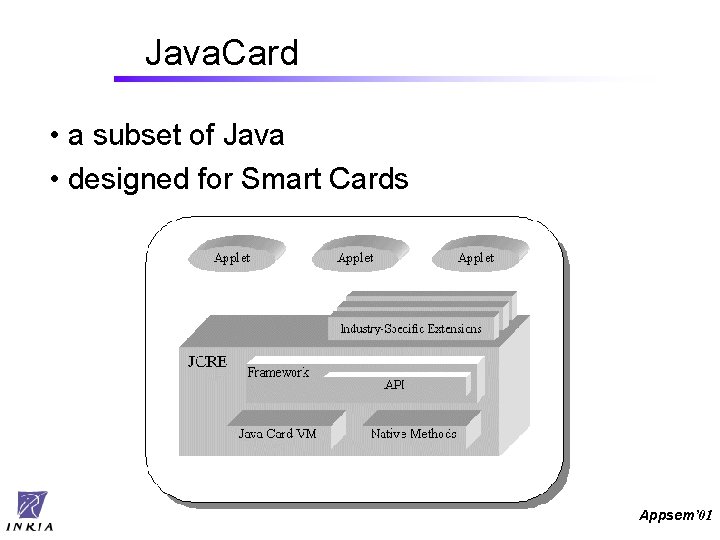

Java. Card • a subset of Java • designed for Smart Cards Appsem’ 01

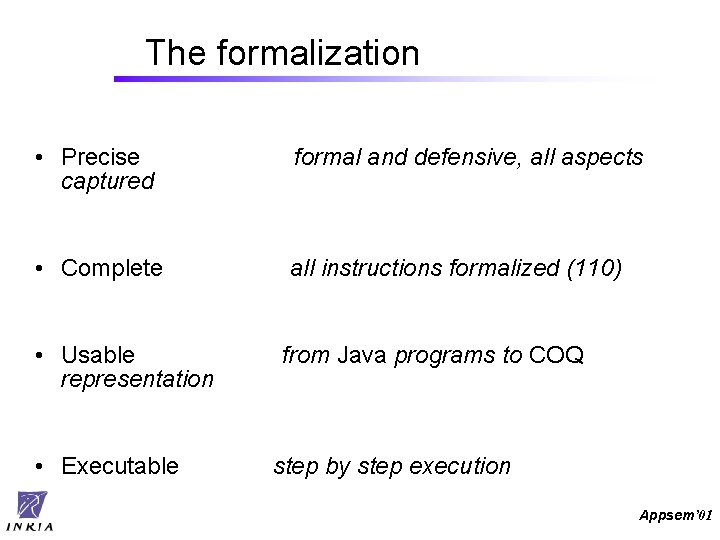

The formalization • Precise captured formal and defensive, all aspects • Complete all instructions formalized (110) • Usable representation • Executable from Java programs to COQ step by step execution Appsem’ 01

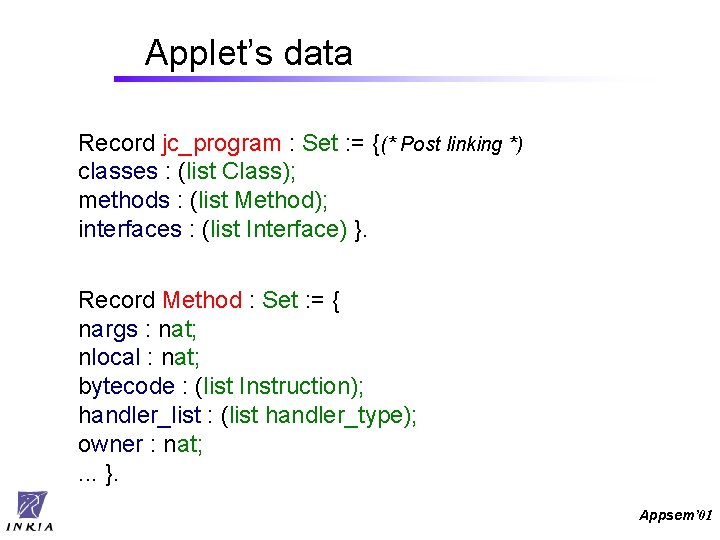

Applet’s data Record jc_program : Set : = {(* Post linking *) classes : (list Class); methods : (list Method); interfaces : (list Interface) }. Record Method : Set : = { nargs : nat; nlocal : nat; bytecode : (list Instruction); handler_list : (list handler_type); owner : nat; . . . }. Appsem’ 01

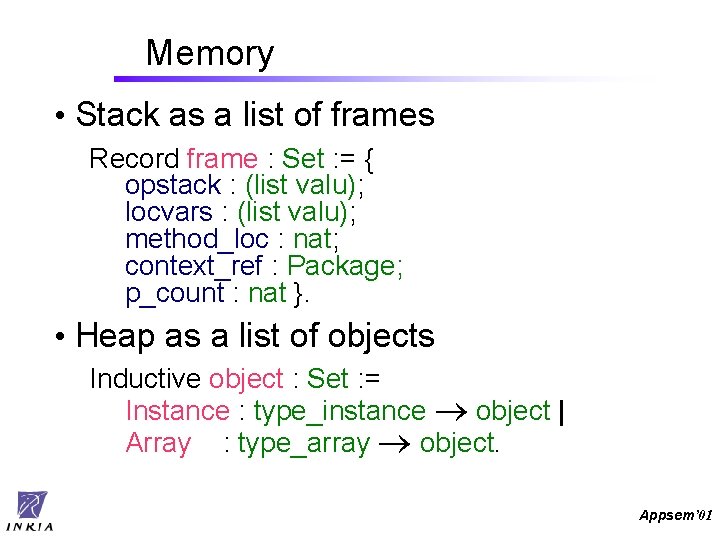

Memory • Stack as a list of frames Record frame : Set : = { opstack : (list valu); locvars : (list valu); method_loc : nat; context_ref : Package; p_count : nat }. • Heap as a list of objects Inductive object : Set : = Instance : type_instance object | Array : type_array object. Appsem’ 01

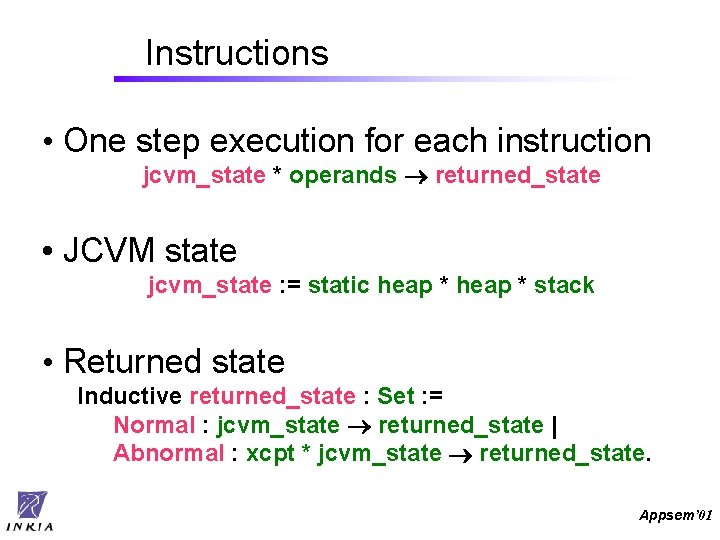

Instructions • One step execution for each instruction jcvm_state * operands ® returned_state • JCVM state jcvm_state : = static heap * stack • Returned state Inductive returned_state : Set : = Normal : jcvm_state ® returned_state | Abnormal : xcpt * jcvm_state ® returned_state. Appsem’ 01

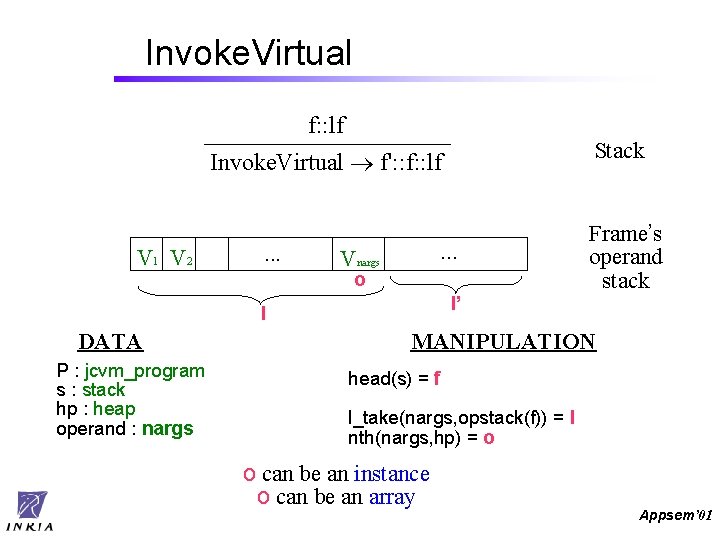

Invoke. Virtual f: : lf Stack Invoke. Virtual f': : f: : lf V 1 V 2 . . . Vnargs o l’ l DATA P : jcvm_program s : stack hp : heap operand : nargs Frame’s operand stack MANIPULATION head(s) = f l_take(nargs, opstack(f)) = l nth(nargs, hp) = o o can be an instance o can be an array Appsem’ 01

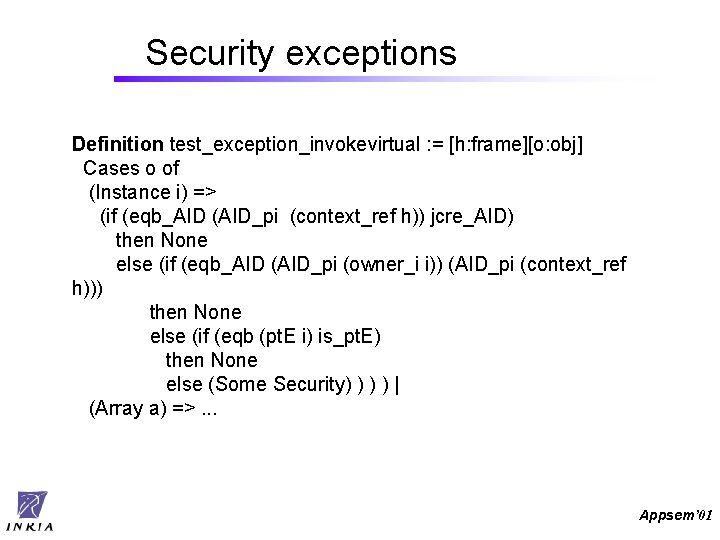

Security exceptions Definition test_exception_invokevirtual : = [h: frame][o: obj] Cases o of (Instance i) => (if (eqb_AID (AID_pi (context_ref h)) jcre_AID) then None else (if (eqb_AID (AID_pi (owner_i i)) (AID_pi (context_ref h))) then None else (if (eqb (pt. E i) is_pt. E) then None else (Some Security) ) | (Array a) =>. . . Appsem’ 01

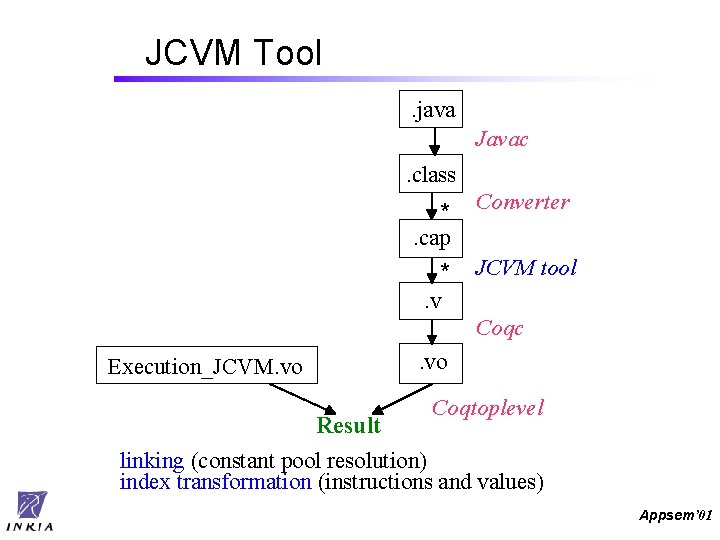

JCVM Tool. java Javac. class * Converter . cap * JCVM tool . v Coqc Execution_JCVM. vo Coqtoplevel Result linking (constant pool resolution) index transformation (instructions and values) Appsem’ 01

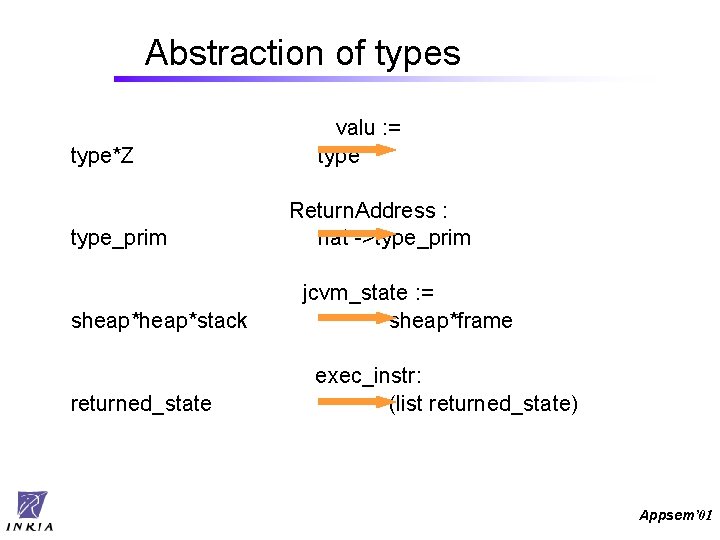

Abstraction of types type*Z type_prim sheap*stack returned_state valu : = type Return. Address : nat ->type_prim jcvm_state : = sheap*frame exec_instr: (list returned_state) Appsem’ 01

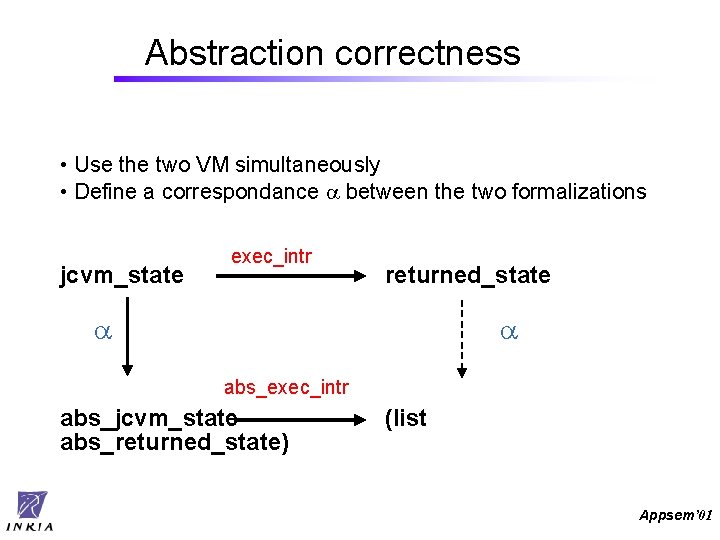

Abstraction correctness • Use the two VM simultaneously • Define a correspondance between the two formalizations jcvm_state exec_intr returned_state abs_exec_intr abs_jcvm_state abs_returned_state) (list Appsem’ 01

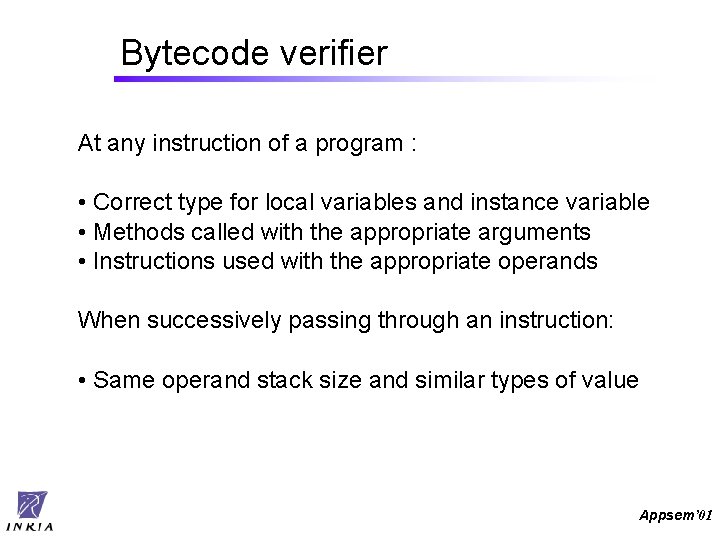

Bytecode verifier At any instruction of a program : • Correct type for local variables and instance variable • Methods called with the appropriate arguments • Instructions used with the appropriate operands When successively passing through an instruction: • Same operand stack size and similar types of value Appsem’ 01

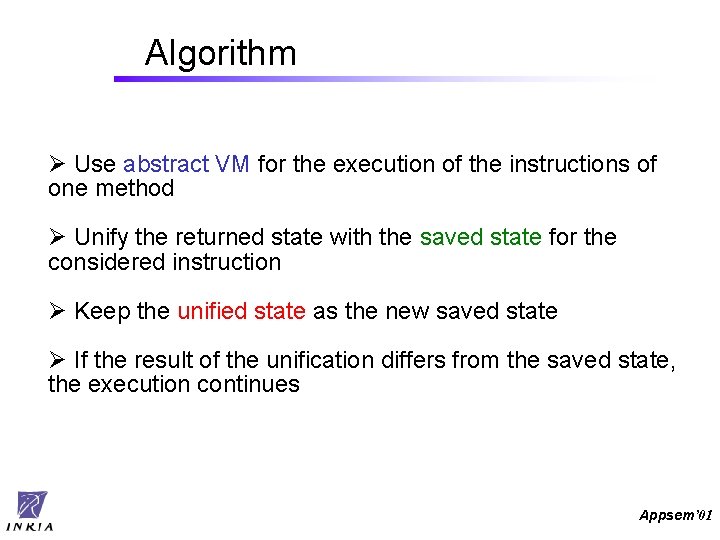

Algorithm Ø Use abstract VM for the execution of the instructions of one method Ø Unify the returned state with the saved state for the considered instruction Ø Keep the unified state as the new saved state Ø If the result of the unification differs from the saved state, the execution continues Appsem’ 01

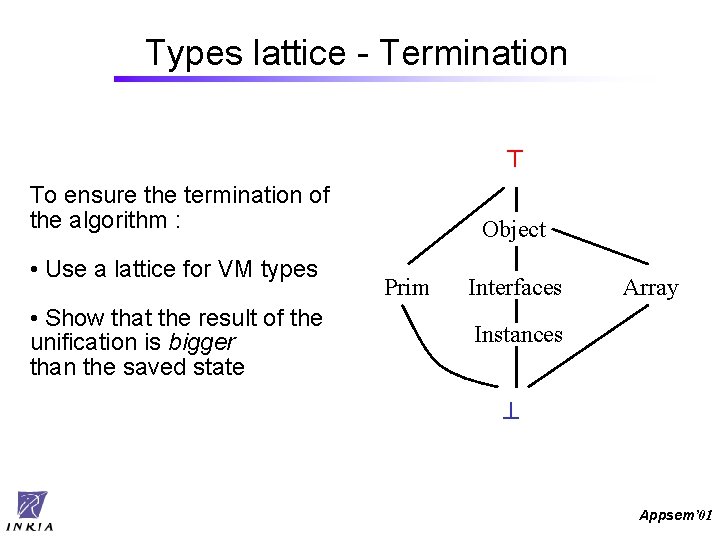

Types lattice - Termination ^ To ensure the termination of the algorithm : • Use a lattice for VM types • Show that the result of the unification is bigger than the saved state Object Prim Interfaces Array Instances ^ Appsem’ 01

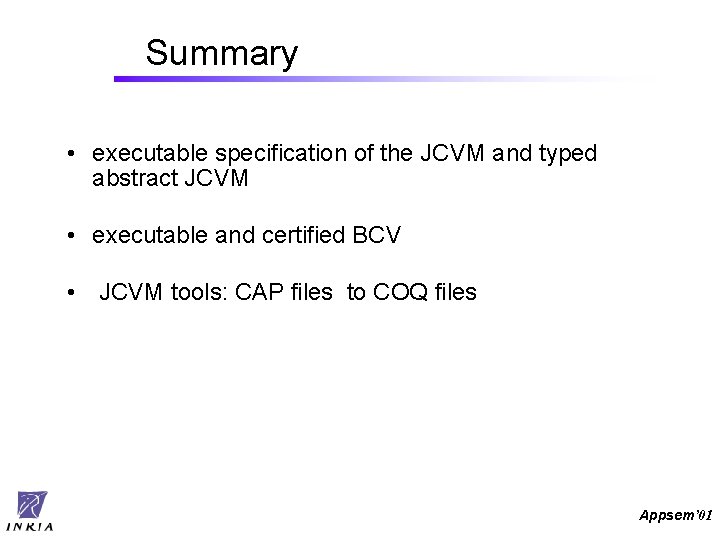

Summary • executable specification of the JCVM and typed abstract JCVM • executable and certified BCV • JCVM tools: CAP files to COQ files Appsem’ 01
Perspectives • Common Criteria evaluation • Garbage collection, VOP (Gemplus, Marseilles) • Prove security properties of Applets • Formal Specification and Verification : tedious looking for automation. Appsem’ 01

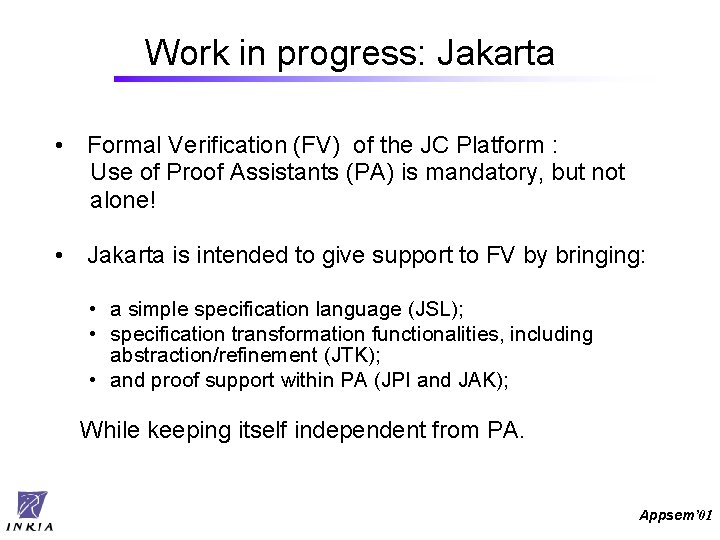

Work in progress: Jakarta • Formal Verification (FV) of the JC Platform : Use of Proof Assistants (PA) is mandatory, but not alone! • Jakarta is intended to give support to FV by bringing: • a simple specification language (JSL); • specification transformation functionalities, including abstraction/refinement (JTK); • and proof support within PA (JPI and JAK); While keeping itself independent from PA. Appsem’ 01

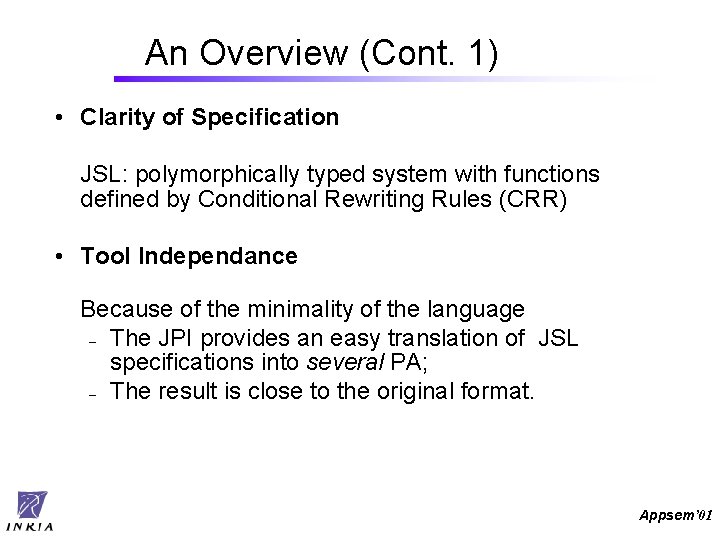

An Overview (Cont. 1) • Clarity of Specification JSL: polymorphically typed system with functions defined by Conditional Rewriting Rules (CRR) • Tool Independance Because of the minimality of the language – The JPI provides an easy translation of JSL specifications into several PA; – The result is close to the original format. Appsem’ 01

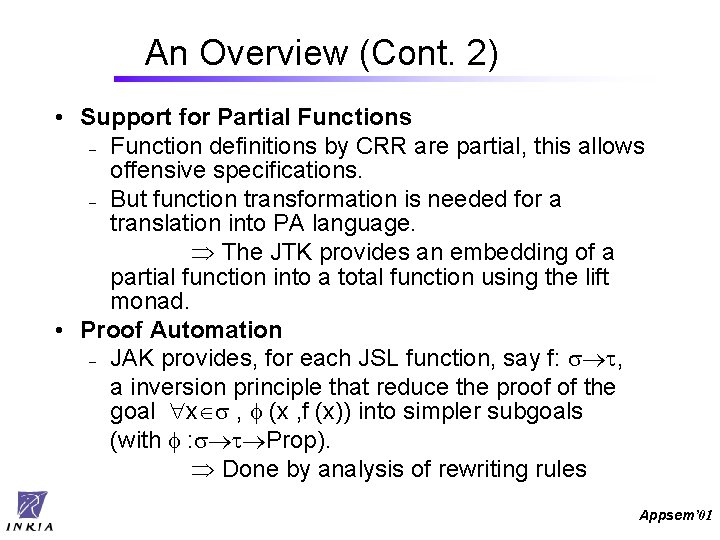

An Overview (Cont. 2) • Support for Partial Functions – Function definitions by CRR are partial, this allows offensive specifications. – But function transformation is needed for a translation into PA language. The JTK provides an embedding of a partial function into a total function using the lift monad. • Proof Automation – JAK provides, for each JSL function, say f: , a inversion principle that reduce the proof of the goal x , (x , f (x)) into simpler subgoals (with : Prop). Done by analysis of rewriting rules Appsem’ 01

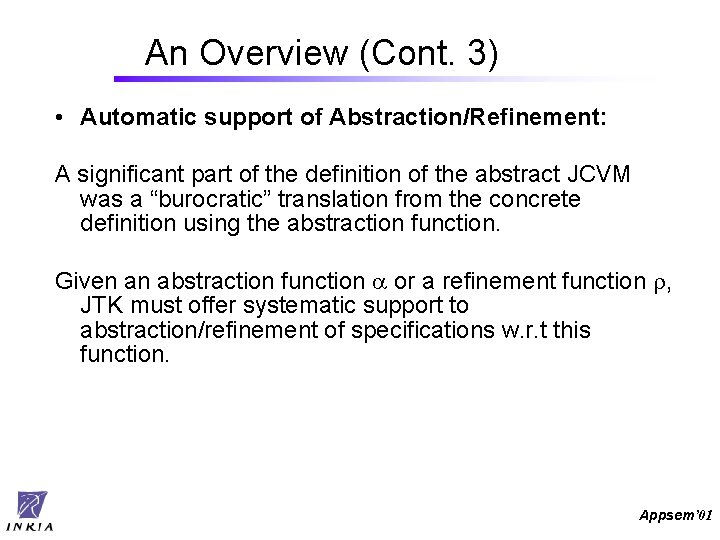

An Overview (Cont. 3) • Automatic support of Abstraction/Refinement: A significant part of the definition of the abstract JCVM was a “burocratic” translation from the concrete definition using the abstraction function. Given an abstraction function or a refinement function , JTK must offer systematic support to abstraction/refinement of specifications w. r. t this function. Appsem’ 01
