EQU705 WM West Memphis Terminal Procedures Terminal and

EQU-705 -WM West Memphis Terminal Procedures Terminal and Dock Hump Valves 08/30/2007 Hump Valves Terminal Side Hump Valves Dockside Hump Valves When the lines are not in use: ØThe Dock side hump valve for each line must be closed ØThe Terminal side hump valves must be open. 9/25/2020 1

EQU-705 -WM West Memphis Terminal Procedures Terminal and Dock Hump Valves 08/30/2007 Barge Product may be received utilizing the Suction Manifold. The diagram shows an example of receiving product from line 4, through the Suction Manifold and filling Tank 807. ØThe following valves must be open: Ø Dock Dolphin Valve on Line 4 Ø Dock Side Hump Valve on Line 4 Ø Line 4 Outboard Isolation Valve Ø Pump 4 Crossover Bypass Valve Ø Main Gate Bypass Valve to Barge Suction Manifold Ø Suction Manifold Splitter Valve Ø Manifold Valve to Tank 807 ØThe following valves must be closed: Ø Terminal Side Hump Valve on Line 4 Ø All non-applicable Dock Side Hump Valves (lines 3 -2 -1) Ø Pump 4 Crossover Pipeline Gate Valve Ø Pump 3 Crossover Bypass Valve Ø Pump 4 Discharge MOV Valve Ø All non-applicable Manifold Tank Valves It may be necessary to receive product via the West Memphis Pipeline using the Barge Suction Manifold due to other product movements at the terminal occupying the receipt manifold. Example: receiving product from Teppco Pipeline. Ø Note: It is essential that both Hump Valves on line 3 are closed for this line-up. Ø The following valves must be open: Ø MOV 002 Main Line Block Valve Ø Pipeline Horizontal Gate Valve to Barge Suction Receipt Lineup Ø MOV 6 – Gasoline Lineup Ø Pump 3 Cross-over Gate Valve Ø Pump 3 Cross-over Bypass Valve Ø Main Gate Bypass Valve to Suction Manifold Ø Suction Manifold Splitter Valve (this example) Ø Appropriate Tank Valve on Suction Manifold (example 806) Ø The following valves must be closed: Ø Both Hump Valves on Line 3 (this example) Ø Pump 4 Cross-over Gate Valve Ø Pump 4 Cross-over Bypass Valve Ø Pump 4 Discharge MOV Valve Ø Pump 3 Discharge MOV Valve Ø Pump 4 Suction Gate Valve Ø Pump 3 Suction Gate Valve Ø Non Applicable Tank Valves on Suction Manifold Ø Pipeline MOV Valves 9, 10 & 11 9/25/2020 2

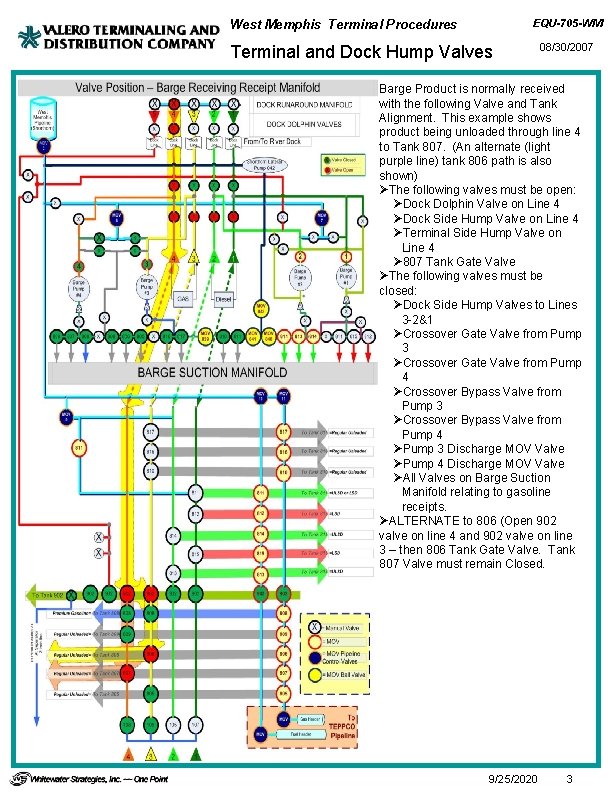

EQU-705 -WM West Memphis Terminal Procedures Terminal and Dock Hump Valves 08/30/2007 Barge Product is normally received with the following Valve and Tank Alignment. This example shows product being unloaded through line 4 to Tank 807. (An alternate (light purple line) tank 806 path is also shown) ØThe following valves must be open: ØDock Dolphin Valve on Line 4 ØDock Side Hump Valve on Line 4 ØTerminal Side Hump Valve on Line 4 Ø 807 Tank Gate Valve ØThe following valves must be closed: ØDock Side Hump Valves to Lines 3 -2&1 ØCrossover Gate Valve from Pump 3 ØCrossover Gate Valve from Pump 4 ØCrossover Bypass Valve from Pump 3 ØCrossover Bypass Valve from Pump 4 ØPump 3 Discharge MOV Valve ØPump 4 Discharge MOV Valve ØAll Valves on Barge Suction Manifold relating to gasoline receipts. ØALTERNATE to 806 (Open 902 valve on line 4 and 902 valve on line 3 – then 806 Tank Gate Valve. Tank 807 Valve must remain Closed. 9/25/2020 3

EQU-705 -WM West Memphis Terminal Procedures Terminal and Dock Hump Valves 08/30/2007 Barge Loading – Standard Setup up on Line 4 ØDetail ØThe following valves must be open: ØTank 807 Valve on Manifold ØPump 4 Suction Valve ØPump 4 Discharge MOV Valve Ø Line 4 Outboard Isolation Valve ØDock Side Hump Valve on Line 4 ØDock Dolphin Valve on Line 4 ØThe following valves must be closed: ØPump 4 Crossover Bypass Valve ØPump 4 Crossover Gate Valve ØTerminal Side Hump Valve on Line 4 ØAll non-applicable Dock Side Hump Valves Barge Loading when Loading with a specific line Pump to a different Line. ØDetail ØThe following valves must be open: ØTank 807 Valve on Manifold ØPump 4 Suction Valve ØPump 4 Discharge MOV Valve ØPump 4 Crossover Bypass Valve ØPump 3 Crossover Bypass Valve ØTerminal Side Hump Valve on Line 4 ØDock Side Hump Valve on Line 3 ØThe following valves must be closed: ØAll non-applicable tank valves on manifold Ø Line 4 Outboard Isolation Valve ØPump 4 Crossover Gate Valve ØPump 3 Crossover Gate Valve ØDock Side Hump Valve on Line 4 ØTerminal Side Hump Valve on Line 4 9/25/2020 4

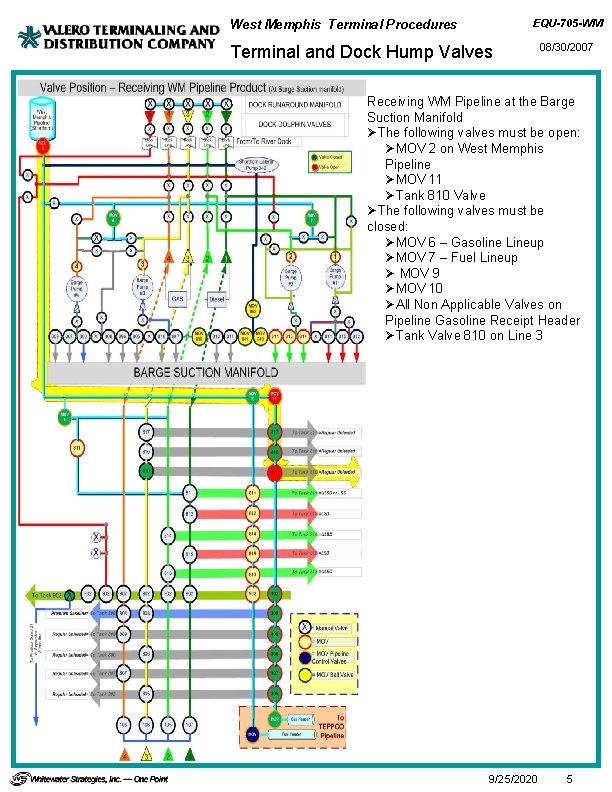

EQU-705 -WM West Memphis Terminal Procedures Terminal and Dock Hump Valves 08/30/2007 Receiving WM Pipeline at the Barge Suction Manifold ØThe following valves must be open: ØMOV 2 on West Memphis Pipeline ØMOV 11 ØTank 810 Valve ØThe following valves must be closed: ØMOV 6 – Gasoline Lineup ØMOV 7 – Fuel Lineup Ø MOV 9 ØMOV 10 ØAll Non Applicable Valves on Pipeline Gasoline Receipt Header ØTank Valve 810 on Line 3 9/25/2020 5

EQU-705 -WM West Memphis Terminal Procedures Terminal and Dock Hump Valves 08/30/2007 In-House Line Wash Runaround ØDetail ØThe following valves must be open: ØTank 808 Valve on Manifold ØPump 3 Suction Valve ØPump 3 Discharge Valve ØDockside Hump Valve on Line 3 ØDock Dolphin Valve on Line 3 ØDock Runaround Manifold Valve on Line 4 ØDock Dolphin Valve on Line 4 ØDockside Hump Valve on Line 4 ØTerminal Side Hump Valve on Line 4 ØTank 807 Valve ØThe following valves must be closed: ØAll non applicable Tank Valves on manifold ØPump 4 Discharge Valve ØPump 4 Crossover Bypass Valve ØPump 4 Crossover Gate Valve ØLine 4 Outboard Isolation Valve ØPump 3 Crossover Gate Valve ØPump 3 Crossover Bypass Valve ØTerminal Side Hump Valve on Line 3 ØAll non-applicable Dockside Hump Valves ØAll non-applicable Dock Dolphin Valves ØAll non-applicable Dock Runaround Manifold valves ØAll Line 3 Tank Valves ØAll non-applicable line 4 Tank Valves ØAll non-applicable tank valves on Tank 902 line ØGate Valve end of Line 4 ØGate Valve end of Line 3 9/25/2020 6

EQU-705 -WM West Memphis Terminal Procedures Terminal and Dock Hump Valves 08/30/2007 Tank to Tank Transfer (example from 807 to 806) ØThe following valves must be open: ØTank 807 Valve on Manifold ØPump 4 Suction Valve ØPump 4 Discharge Valve ØLine 4 Outboard Isolation Valve ØTerminal Side Hump Valve on Line 4 ØTank 902 valve on line 4 ØTank 902 Valve on line 3 ØTank 806 Valve ØThe following valves must be closed: ØAll non-applicable Tank Valves on Manifold ØPump 4 Crossover Bypass Valve ØPump 4 Crossover Gate Valve ØPump 3 Crossover Bypass Valve ØPump 3 Crossover Gate Valve ØPump 3 Discharge Valve ØDock Side Hump Valve on Line 3 ØDock Dolphin Valve on Line 3 ØAll non-applicable tank valves on line 4 ØAll non-applicable Tank 902 valves on 902 line ØAll non-applicable Tank Valves on line 3 ØGate Valve end of Line 4 ØGate Valve end of Line 3 9/25/2020 7

EQU-705 -WM West Memphis Terminal Procedures Terminal and Dock Hump Valves 08/30/2007 Field Set-up Date: 9/25/2020 8

EQU-705 -WM West Memphis Terminal Procedures Terminal and Dock Hump Valves MOV 002 on West Memphis Pipeline 08/30/2007 Pipeline Horizontal Gate Valve to Barge Suction Receipt Lineup Dock Side Hump Valve on Line 4 MOV 2 Dock Side Hump Valves Terminal Side Hump Valves MOV 7 – Fuel Lineup MOV 6 – Gasoline Lineup Line 4 Outboard Isolation Valve Line 3 Crossover Gate Valve Pump 4 Crossover Gate Valve Pump 3 Crossover Bypass Valve Pump 4 Crossover Bypass Valve Pump 3 MOV Discharge Valve Shorthorn Lateral MOV Valves Pump 4 MOV Discharge Valve Main Gate Bypass Valve to Barge Suction Manifold Splitter Valve Pump 4 Suction Valve Tank Valves on Barge Suction Manifold MOV 9 Tank Valves 902 Gate Valves 9/25/2020 9

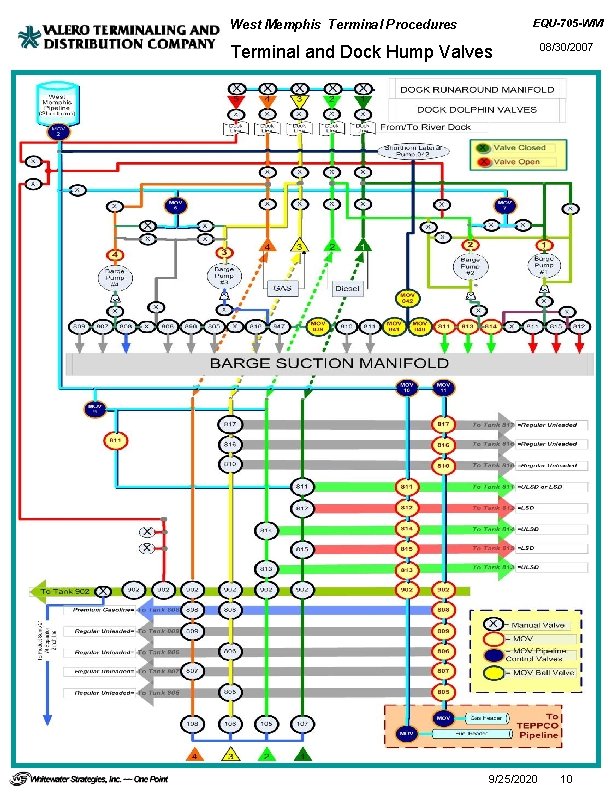

EQU-705 -WM West Memphis Terminal Procedures Terminal and Dock Hump Valves 9/25/2020 08/30/2007 10
