SAM 9 year old MN Mixed Breed Dog Norman Ackerman Memorial Radiography Case Challenge Next Slide

Signalment Sam presents to your clinic with a acute history of cough and exercise intolerance On physical examination, you hear crackling lung sounds cranially, on the right side You order thoracic radiographs Next Slide

Previous Slide Next Slide

Previous Slide Next Slide

Previous Slide Next Slide

Based on your assessment of the radiographs, the thoracic body wall is: A. Normal B. Abnormal Previous Slide

Correct! There are no abnormalities associated with the thoracic wall. Next Slide

Sorry! The thoracic body wall, including the extrathoracic structures, are within normal limits Click here to proceed to the next question

Based on your assessment of the radiographs, the pleural space is: A. Normal B. Abnormal

Correct! There are no abnormalities associated with the pleural space. Next Slide

Sorry! The pleural space is normal Click here to proceed to the next question

Based on your evaluation, the cardiac silhouette is: A. Normal B. Abnormal

Sorry, Try Again The cardiac silhouette is within normal limits. Click here to continue

Correct! There are no abnormalities associated with the cardiac silhouette Next slide

Based on your assessment of the radiographs, the lungs, including the vessels, are: A. Normal B. Abnormal

Sorry! There is an abnormality associated with the lungs. Continue

Correct! There is an area of increased soft tissue opacity mainly on the ventral aspect of the right cranial lung lobe. Based on your assessment, which pulmonary pattern is predominant within that lobe? A. Bronchial B. Alveolar C. Vascular D. Unstrutured Interstitial

Sorry! Indefinition of the pulmonary vessels, air bronchograms, lobar sign, and (in this case, discrete) border effacement of the lobar opacification with the cardiac silhouette are not characteristics of this pulmonary pattern Previous Slide

Correct! This is an example of an alveolar pulmonary pattern. Some of the features of this pattern include: Indefinition of the pulmonary vessels, air bronchograms, lobar sign, and (in this case, discrete) border effacement of the lobar opacification with the cardiac silhouette. Remember: It does not have to have all these features to be considered an alveolar pattern! Continue

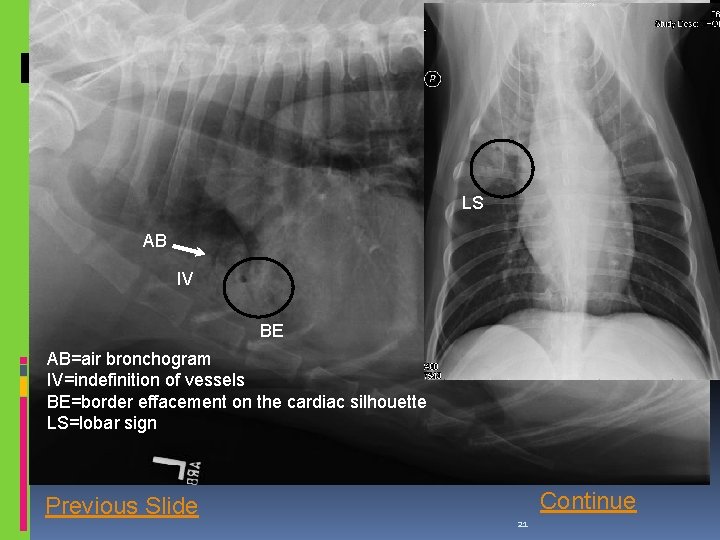

LS AB IV BE AB=air bronchogram IV=indefinition of vessels BE=border effacement on the cardiac silhouette LS=lobar sign Previous Slide Continue 21

Conclusion Your findings now include: increased soft tissue pulmonary opacity within the right cranial lung lobe, with presence of indefinition of the pulmonary vessels, air bronchograms, lobar sign, and (in this case, discrete) border effacement of the lobar opacification with the cardiac silhouette. This represents an alveolar pulmonary pattern, which, in this case, is mainly ventral. click next.

Conclusion What is top differential diagnosis? Cardiogenic pulmonary edema Aspiration pneumonia Recumbence atelectasia 23

Sorry! Usually cardiogenic edema has a caudodorsal distribution within the lung parenquima of dogs Although we cannot totally ruled out cardiac disease just using radiographs, the cardiac silhouette is within normal limits in this case. One more try! 24

Sorry! In addition to the soft tissue opacification within the lungs, in cases of atelectasis, usually is observed a decreased volume of the affected lung lobe, and sometimes ipsilateral mediastinal shift (MS). In Sam’s case, the volume of the right cranial lung lobe is normal (not decreased). MS 25 One more try!

Correct! Aspiration pneumonias are usually ventral, due to gravitational forces. This also goes along with the acute clinical signs. 26 Next

Some causes of Aspiration Pneumonia (Dennis, Kirberger, Barr, Wrigley: Handbook of Small Animal Radiology and Ultrasound, 2 nd ed. , 2010): Regurgitation and vomiting, especially if esophageal dilation is present; Iatrogenic aspiration: force feeding, medication, anesthesia and oral administration of contrast medium; Swallowing disorders; Weakness and debilitation; Cleft palate; Tracheo-esophageal or broncho-esophageal fistula. Return to the webpage Return to the beginning 27
