December 5 th-6 th, 2018 | San Jose, CA Enabling TSO in Ov. S-DPDK Tiago Lam Intel

Agenda • • • What is TSO? Why TSO in Userspace DPDK? Enable TSO in Userspace DPDK Performance results Considerations Status and future work

TSO (TCP Segmentation Offload) • TSO is the segmentation of large chunks of data, relative to the MTU, into smaller segments, performed by the network NIC; DATA S C S E T H T I C P P DATA C Segmentation Checksum

Why TSO in Userspace DPDK? NIC Ov. S-DPDK VM 1 Host 1 Intra-host Inter-host Ov. S-DPDK VM 2 VM 1 Host 2 VM 2

Non TSO overview VM 1 DATA Application Layer VM OS Userspac e T I C P P DATA E T H T I C P P DATA TCP/IP Layers Link Layer T I C P P DATA E T H T I C P P DATA VM OS Kernel eth 0 vhuc 0 Ov. S-DPDK vhuc 1 dpdk 0 Intra-host VM 2 Host 1 NIC Inter-host Host 2 Host OS Userspac e

The cost of non TSO DATA • Higher CPU loads; • Lower overall throughput: S E T H T I C P P DATA C E T H T I C P P DATA C • More noticeable in Intra-host. S C Segmentation Checksum

TSO in Userspace DPDK

Single-segment mbufs • Used in master Ov. S-DPDK (<=2. 10); • Mbufs allocated with the maximum packet size (e. g. 9 Ki. B); Mbuf struct ETH IP TCP DATA • No flexibility to hold different sized packets. Mbuf struct ETH IP TCP DATA

A case for multi-segment mbufs • Mbufs allocated with a default size (2 k); • Chained together if needed to hold bigger packets; Mbuf struct E T H I P T C P DATA Mbuf struct DATA

A case for multi-segment mbufs • Mbufs allocated with a default size (2 k); • Chained together if needed to hold bigger packets; Mbuf struct E T H I P T C P DATA Mbuf struct • Data is no longer held contiguously in memory: DATA Mbuf struct DATA struct ip_header *ip; … if (OVS_UNLIKELY(!dp_packet_ip_checksum_valid(packet ))) { if (csum(ip, IP_IHL(ip->ip_ihl_ver) * 4 )) { VLOG_WARN_RL(&err_rl, "ip packet has invalid checksum "); return NULL; } } …

A case for multi-segment mbufs NIC Ov. S-DPDK Mbuf struct vhuc 1 VM 1 vhuc 0 VM 2 ETH IP TC P DATA

TSO integration • Set mbuf’s layer l 2_len, l 3_len and l 4_len fields; Mbuf struct ETH l 2_len=0 x 0 e l 3_len=0 x 14 mbuf l 4_len=0 x 14 IP TC P DATA

TSO integration • Set mbuf’s layer l 2_len, l 3_len and l 4_len fields; • Mark packet for offload with flags: • PKT_TX_IPV 4 | PKT_TX_IP_CKSUM; • PKT_TX_TCP_SEG | PKT_TX_TCP_CKSUM. Mbuf struct ETH IP TC P DATA l 2_len=0 x 0 e l 3_len=0 x 14 mbuf l 4_len=0 x 14 ol_flags=PKT_TX_IPV 4 | PKT_TX_IP_CKSUM | PKT_TX_TCP_CKSUM | PKT_TX_TCP_SEG;

TSO integration • Set mbuf’s layer l 2_len, l 3_len and l 4_len fields; • Mark packet for offload with flags: • PKT_TX_IPV 4 | PKT_TX_IP_CKSUM; • PKT_TX_TCP_SEG | PKT_TX_TCP_CKSUM. • Set the TSO segment size; Mbuf struct ETH IP TC P DATA l 2_len=0 x 0 e l 3_len=0 x 14 mbuf l 4_len=0 x 14 ol_flags=PKT_TX_IPV 4 | PKT_TX_IP_CKSUM | PKT_TX_TCP_CKSUM | PKT_TX_TCP_SEG; tso_segsz=$mtu - l 3_len - l 4_len

TSO integration • Set mbuf’s layer l 2_len, l 3_len and l 4_len fields; • Mark packet for offload with flags: • PKT_TX_IPV 4 | PKT_TX_IP_CKSUM; • PKT_TX_TCP_SEG | PKT_TX_TCP_CKSUM. • Set the TSO segment size; • Prepare packet for tx offload: • rte_eth_tx_prepare(); ipv 4_hdr->hdr_checksum=0; tcp_hdr->cksum=rte_ipv 4_phdr_cksum(ipv 4_hdr, mbuf->ol_flags); Mbuf struct ETH IP TC P DATA l 2_len=0 x 0 e l 3_len=0 x 14 mbuf l 4_len=0 x 14 ol_flags=PKT_TX_IPV 4 | PKT_TX_IP_CKSUM | PKT_TX_TCP_CKSUM | PKT_TX_TCP_SEG; tso_segsz=$mtu - l 3_len - l 4_len * Note: In older versions of DPDK checksum calculations differ between NICs / replaced by rte_eth_tx_prepare();

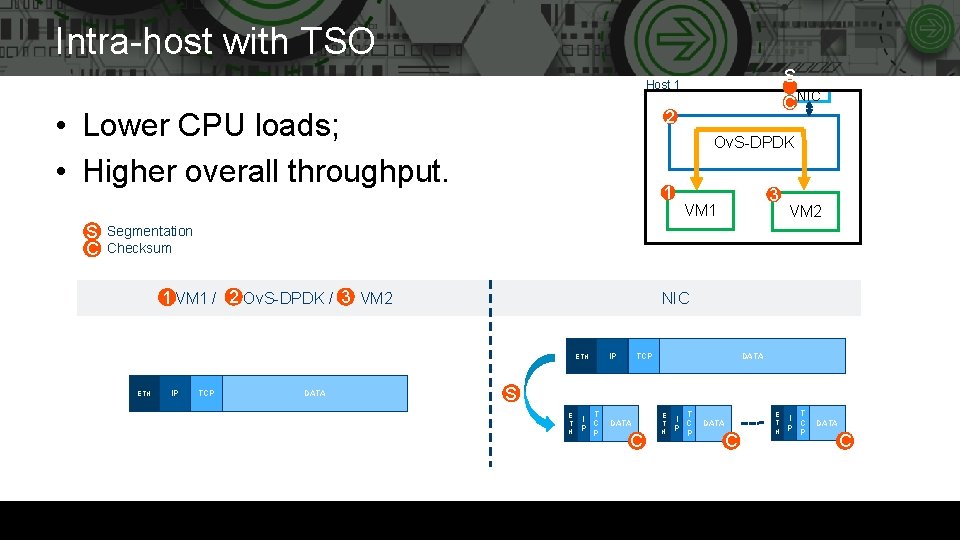

Intra-host with TSO S C NIC Host 1 • Lower CPU loads; • Higher overall throughput. S C 2 Ov. S-DPDK 1 3 VM 1 VM 2 Segmentation Checksum 2 3 1 VM 1 / Ov. S-DPDK / VM 2 NIC ETH IP TCP DATA S E T H T I C P P DATA C

Performance results 35 32. 3 30 25. 9 Gbps 25 20 15 9. 22 10 5. 5 5. 22 5 0 Intra-Host Inter-Host Master TSO In-Kernel 9. 34

Considerations • No vectorized optimizations: • Found to affect 64 B packets only. • DPDK v 17. 11 vs v 18. 11: • Better support to query devices on offload capabilities. • Contiguous vs non-contiguous memory; • No GSO fall-back;

Status and future work • Two patches submitted upstream: • Add support for multi-segment mbufs [1]; • Add support for TSO (RFC) [2]. • Focus on getting multi-segment mbufs upstreamed; • GSO support.

Thanks!

References • [1] https: //mail. openvswitch. org/pipermail/ovs-dev/2018 October/352889. html • [2] https: //mail. openvswitch. org/pipermail/ovs-dev/2018 August/350832. html
