D 0 Run II Farms Heidi Schellman Farms and SAM 10/7/2020 D 0 Farms by n e l o St rtram e B Iain 1

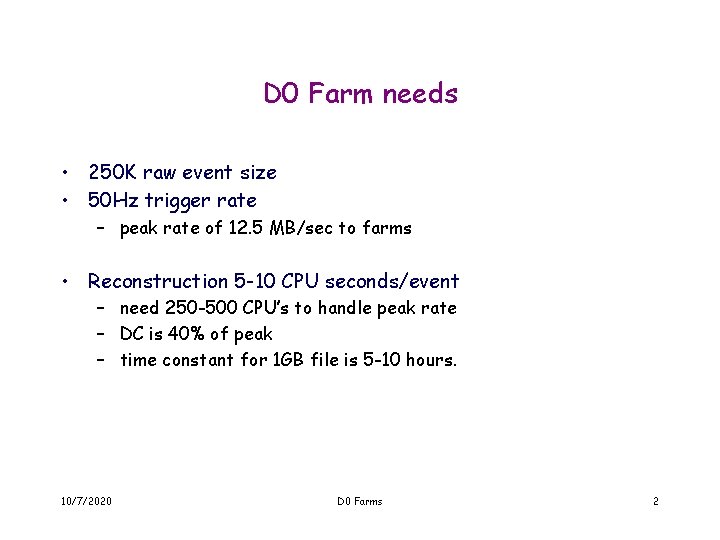

D 0 Farm needs • 250 K raw event size • 50 Hz trigger rate – peak rate of 12. 5 MB/sec to farms • Reconstruction 5 -10 CPU seconds/event – need 250 -500 CPU’s to handle peak rate – DC is 40% of peak – time constant for 1 GB file is 5 -10 hours. 10/7/2020 D 0 Farms 2

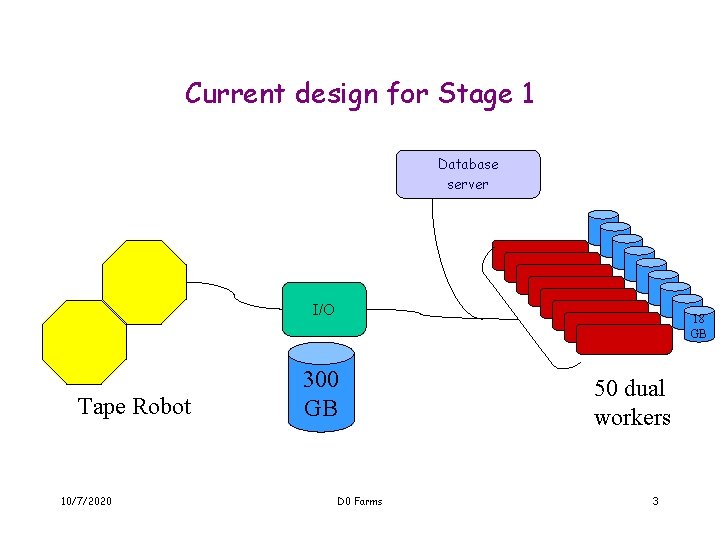

Current design for Stage 1 Database server I/O Tape Robot 10/7/2020 18 GB 300 GB D 0 Farms 50 dual workers 3

Data Access is SAM/enstore • Good news: – no direct mounted tape drives on farm – data handling and much of book-keeping done by SAM - farm control is easier to write • Bad news: – increase load on network – need to integrate two(3? ) systems 10/7/2020 D 0 Farms 4

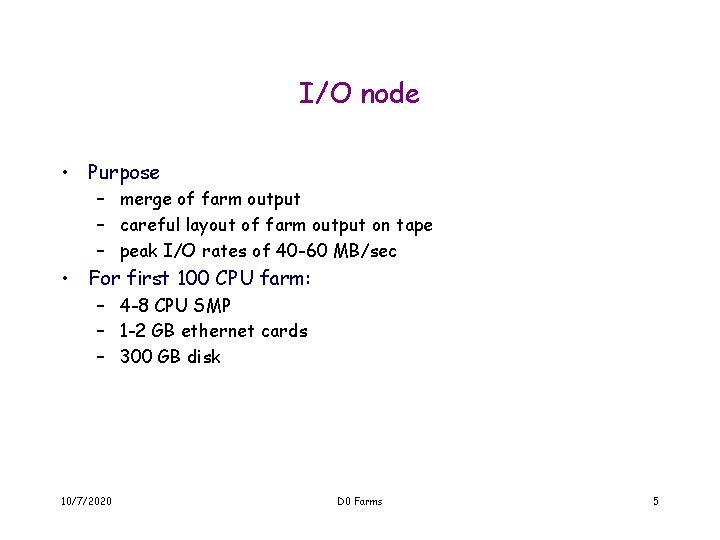

I/O node • Purpose – merge of farm output – careful layout of farm output on tape – peak I/O rates of 40 -60 MB/sec • For first 100 CPU farm: – 4 -8 CPU SMP – 1 -2 GB ethernet cards – 300 GB disk 10/7/2020 D 0 Farms 5

Worker Nodes • Dual Pentium III? • 256 MB/CPU • 2 data disks (9 or 18 GB) + 6 GB system • Generic FNAL farm nodes ular! p stem y o s p r e a r l sa simi a Farm g n i build e r a rience e p D 0 -UK x e local r u o using 10/7/2020 D 0 Farms 6

Worker Configuration • Workers act as remote nodes – – – 10/7/2020 avoid dependence on NFS products download on change D 0 Farm executables download at job start databases either download or access through Dbserver data access through SAM/encp/rcp D 0 Farms 7

Present Status • Two parallel paths – D 0 specific code/farm control • covered on Monday (1 slide) – SAM integration with farm 10/7/2020 D 0 Farms 8

What we learned from MCC 99 production • Processed 75, 000 events several times • Takes less than a week at very low efficiency – (errors, SAM tests) • Lessons – FBS system robust, works reliably – FBS control scripts easy to write – D 0 code and parameter files can be downloaded to remote machines - no need for NFS – Linux systems not very forgiving of executable growth – rcp transfers generally reliable - should not do too many at once. 10/7/2020 D 0 Farms 9

Path II - SAM/FBS integration • SAM/enstore now in ups/upd distribution – All I have to do is: setup farms setup sam setup encp – and can use the system • Have successfully (5 -27 -99) read files from SAM (disk) to worker nodes and reconstructed them. • (6 -4 -99) successfully read files from SAM(encp tape) to worker nodes 10/7/2020 D 0 Farms 10

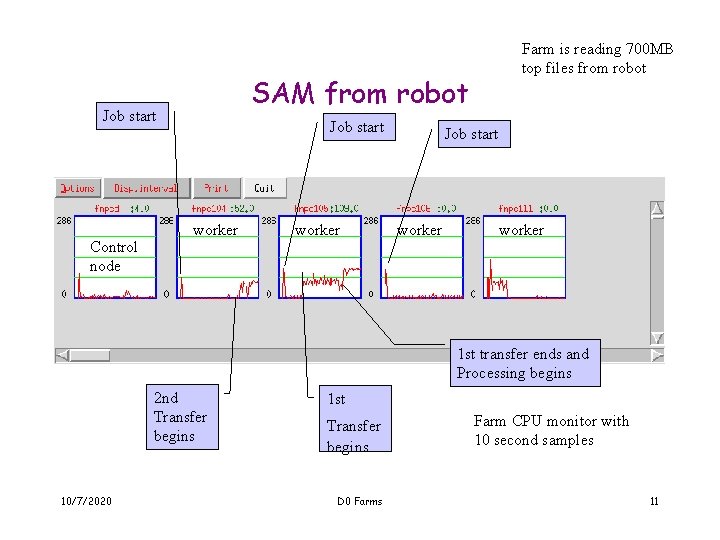

SAM from robot Job start Control node Farm is reading 700 MB top files from robot Job start worker 1 st transfer ends and Processing begins 2 nd Transfer begins 10/7/2020 1 st Transfer begins D 0 Farms Farm CPU monitor with 10 second samples 11

What we learned • SAM written and tested on another platform required very few fixes to integrate with farm. • small conflict between FBS and encp assumptions about job cleanup identified and fixed. • Error messages not idiot proof yet. • SAM is already easier to use than standalone scripts 10/7/2020 D 0 Farms 12

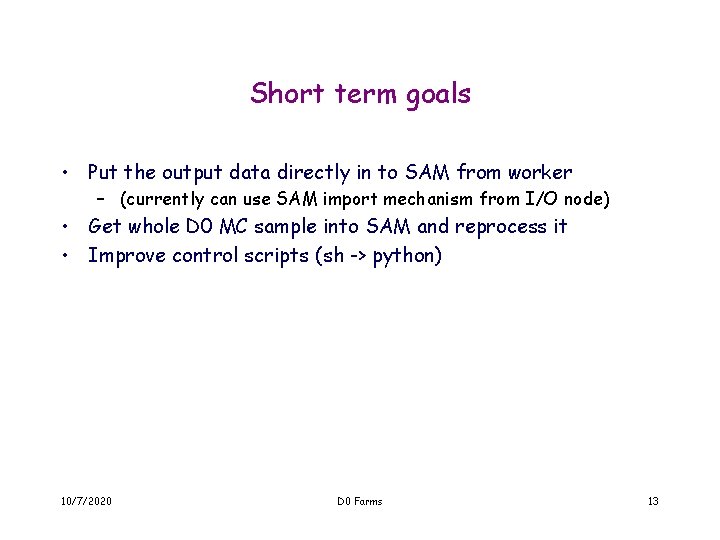

Short term goals • Put the output data directly in to SAM from worker – (currently can use SAM import mechanism from I/O node) • Get whole D 0 MC sample into SAM and reprocess it • Improve control scripts (sh -> python) 10/7/2020 D 0 Farms 13

Long Term (Fall 99) • Eliminate need for NFS on workers • Get a 100 CPU system going when it arrives • Get scripts for general farm control – – project generation monitoring/accounting error recovery file merging • generate/process MC 99_2 10/7/2020 D 0 Farms 14
