Cross Sections What you see when you slice
- Slides: 10
Cross Sections What you see when you slice.
What is a Cross Section? A cross section is the two-dimensional figure that results when a plane intersects with a three-dimensional figure.
Cross Section Another way of saying it: a cross section is the shape you see on the inside when you slice off a piece of a figure. Cutting an orange in half is a good example. When you slice the orange in half and then look at the new face you just made, what is its shape? A circle.
Cross Sections all Around Examples when of Cross Sections: you cut your birthday cake every loaf of sliced bread a floor plan of a house Diagrams in science books MRI images maps
Cross Sections of a Cylinder parallel to base cross-section: slanted cross-section: perpendicular to base cross-section: ELLIPSE/OVAL CIRCLE RECTANGLE
Cross Section of Cone parallel to base cross-section: CIRCLE perpendicular to base cross-section: TRIANGLE slanted cross-section: ELLIPSE/OVAL

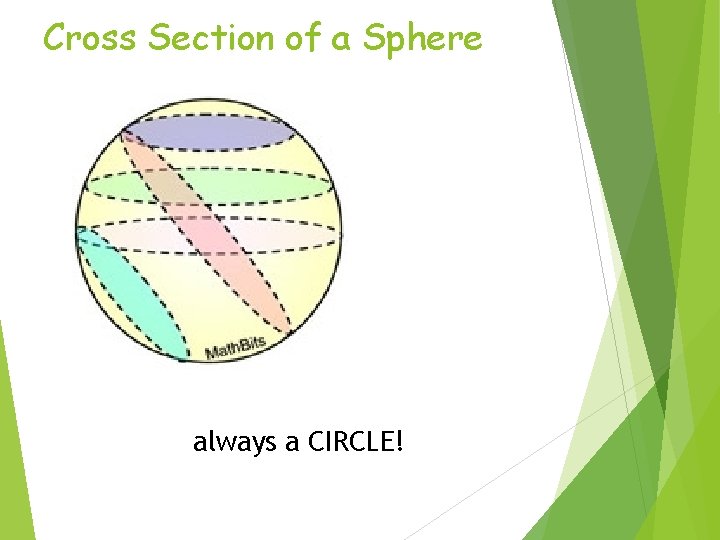

Cross Section of a Sphere always a CIRCLE!
Cross Section of a Triangular Prism it depends on the orientation … a TRIANGLE or a RECTANGLE
Miscellaneous Cross Sections
Quiz Yourself! Click on the Math. Bits. Notebook image and answer questions 1 – 9 to quiz yourself. Think outside of the box!!
