Congruent Triangles Worksheet A The worksheet is in
- Slides: 9

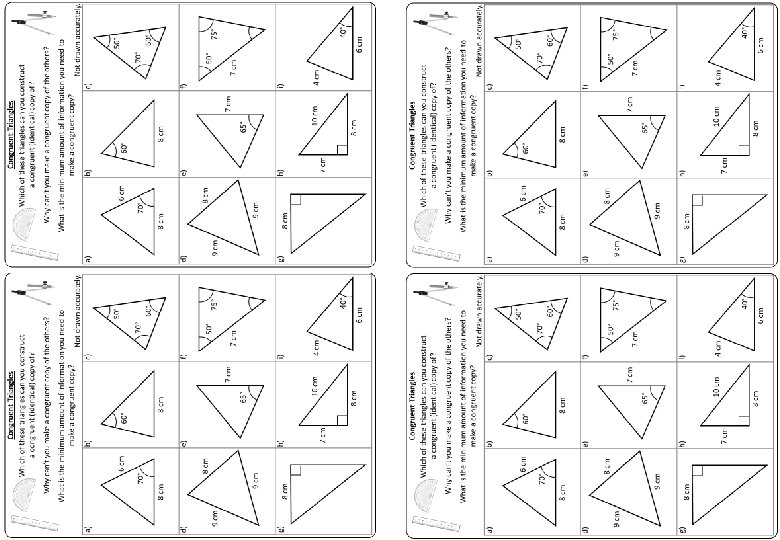

Congruent Triangles – Worksheet A The worksheet is in 2 sizes.
Printing To print handouts from slides Select the slide from the left. Then click: File > Print > ‘Print Current Slide’ To print multiple slides Click on a section title to highlight all those slides, or press ‘Ctrl’ at the same time as selecting slides to highlight more than one. Then click: File > Print > ‘Print Selection’ To print double-sided handouts Highlight both slides before using ‘Print Selection’. Choose ‘Print on Both Sides’ and ‘Flip on Short Edge’.

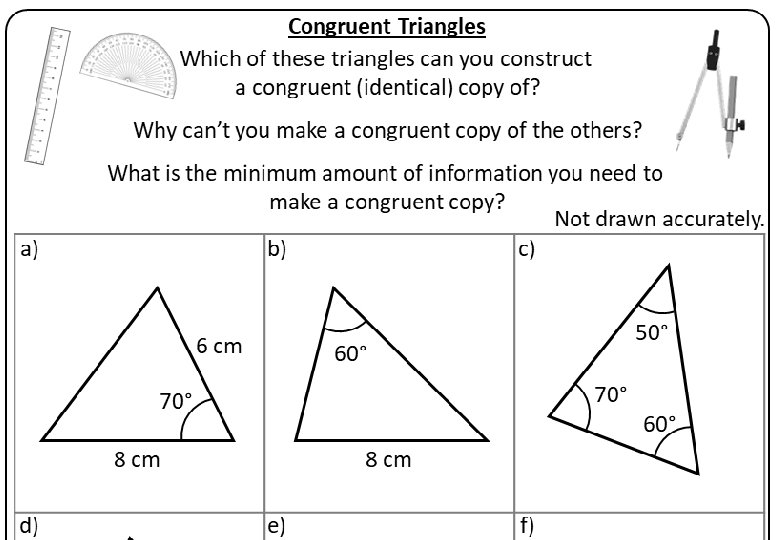

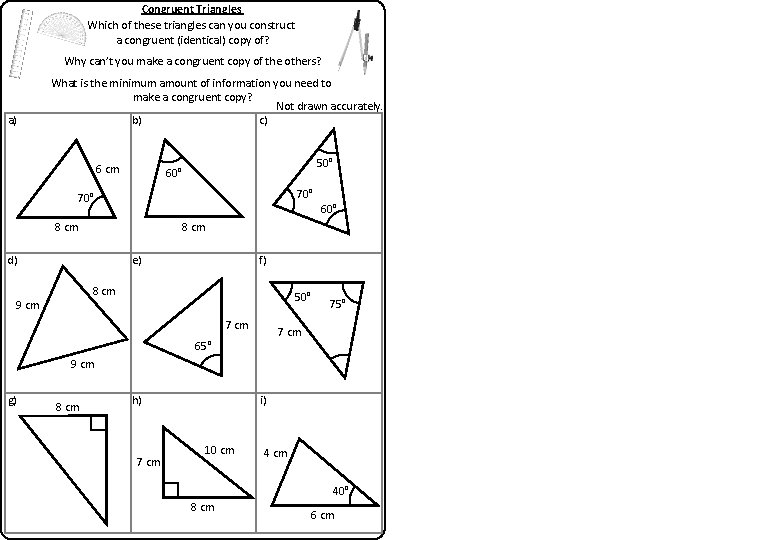

Congruent Triangles Which of these triangles can you construct a congruent (identical) copy of? Why can’t you make a congruent copy of the others? a) What is the minimum amount of information you need to make a congruent copy? Not drawn accurately. b) c) 6 cm 50° 60° 70° 60° 8 cm d) e) f) 8 cm 9 cm 50° 7 cm 75° 7 cm 65° 9 cm g) 8 cm h) 7 cm i) 10 cm 40° 8 cm 6 cm

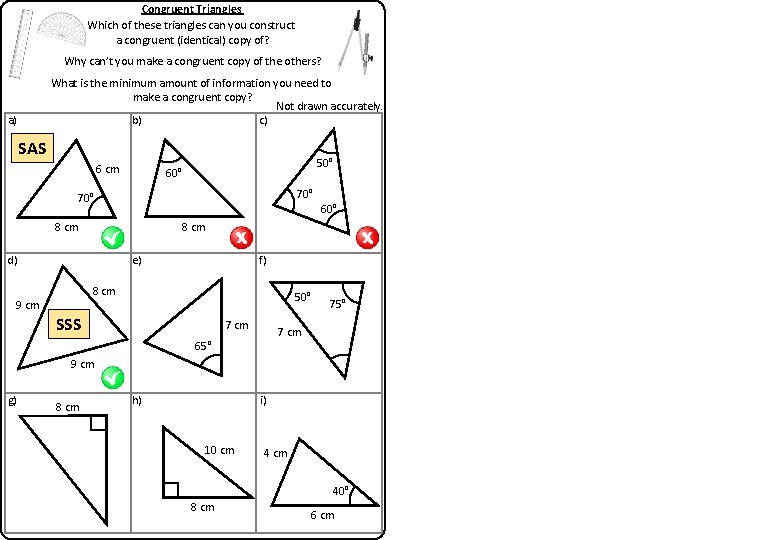

Congruent Triangles Which of these triangles can you construct a congruent (identical) copy of? Why can’t you make a congruent copy of the others? What is the minimum amount of information you need to make a congruent copy? Not drawn accurately. b) c) a) SAS 6 cm 50° 60° 70° 60° 8 cm d) e) f) 8 cm 9 cm 50° SSS 7 cm 75° 7 cm 65° 9 cm g) 8 cm h) i) 10 cm 40° 8 cm 6 cm

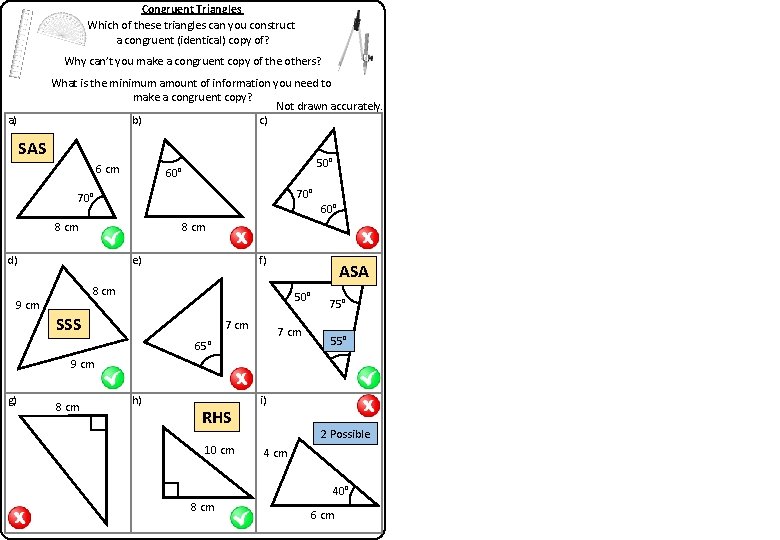

Congruent Triangles Which of these triangles can you construct a congruent (identical) copy of? Why can’t you make a congruent copy of the others? What is the minimum amount of information you need to make a congruent copy? Not drawn accurately. b) c) a) SAS 6 cm 50° 60° 70° 60° 8 cm d) e) f) ASA 8 cm 9 cm 50° SSS 7 cm 65° 75° 55° 9 cm g) 8 cm h) RHS 10 cm i) 2 Possible 4 cm 40° 8 cm 6 cm
a) Congruent Triangles Which of these triangles can you construct a congruent (identical) copy of? Why can’t you make a congruent copy of the others? What is the minimum amount of information you need to make a congruent copy? Not drawn accurately. b) c) 6 cm 50° 6 cm 70° 8 cm d) f) 50° 75° e) f) 8 cm 9 cm 50° 7 cm 65° 9 cm 8 cm 60° 8 cm d) 8 cm 7 cm g) 70° 8 cm e) 50° 60° 70° 60° 8 cm 9 cm a) What is the minimum amount of information you need to make a congruent copy? Not drawn accurately. b) c) 9 cm h) 7 cm i) 10 cm g) 4 cm 8 cm h) 7 cm i) 10 cm 40° 8 cm 6 cm
Questions? Comments? Suggestions? …or have you found a mistake!? Any feedback would be appreciated . Please feel free to email: tom@goteachmaths. co. uk
