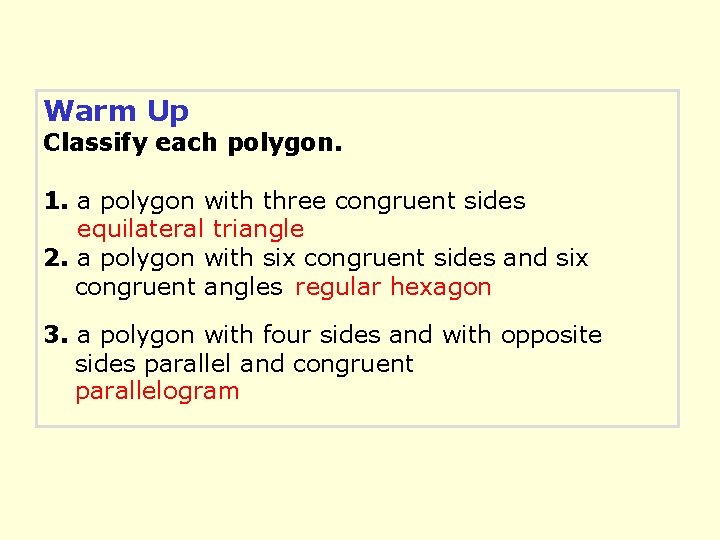

Warm Up Classify each polygon. 1. a polygon with three congruent sides equilateral triangle

Warm Up Classify each polygon. 1. a polygon with three congruent sides equilateral triangle 2. a polygon with six congruent sides and six congruent angles regular hexagon 3. a polygon with four sides and with opposite sides parallel and congruent parallelogram

Notes 12 -1, 12 -2 Three Dimensional Figures, Nets, and Surface Areas

Notes 12 -1, 12 -2 Three Dimensional Figures, Nets, and Surface Areas

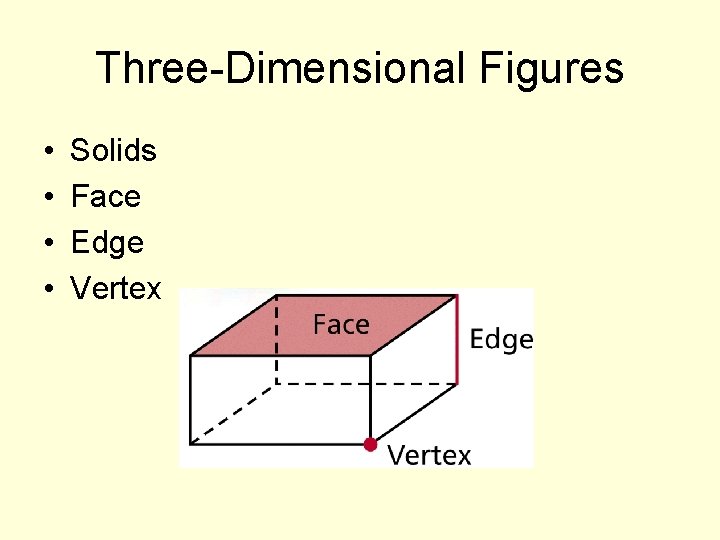

Three-Dimensional Figures • • Solids Face Edge Vertex

Three-Dimensional Figures • • Solids Face Edge Vertex

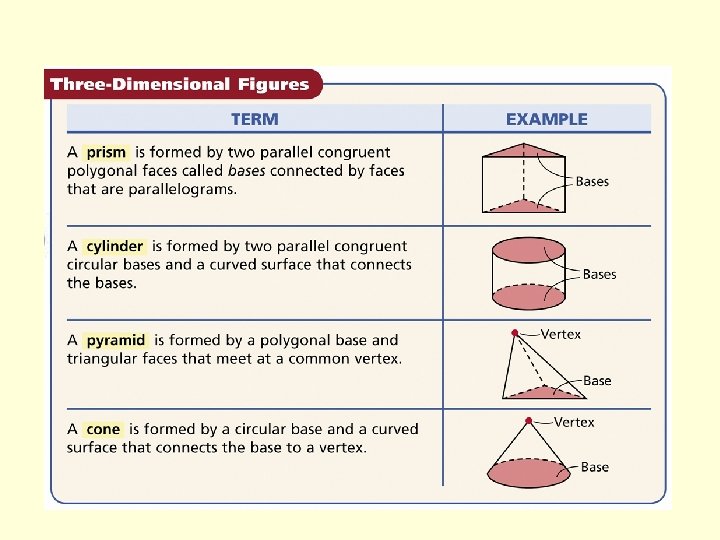

Prisms and Pyramids • Named for their bases.

Prisms and Pyramids • Named for their bases.

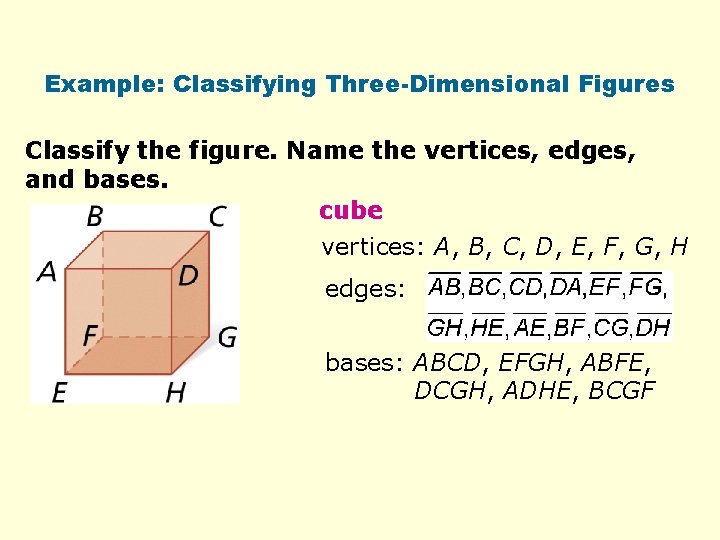

Example: Classifying Three-Dimensional Figures Classify the figure. Name the vertices, edges, and bases. cube

Example: Classifying Three-Dimensional Figures Classify the figure. Name the vertices, edges, and bases. cube vertices: A, B, C, D, E, F, G, H edges: bases: ABCD, EFGH, ABFE, DCGH, ADHE, BCGF

Example: Classifying Three-Dimensional Figures Classify the figure. Name the vertices, edges, and bases. pentagonal

Example: Classifying Three-Dimensional Figures Classify the figure. Name the vertices, edges, and bases. pentagonal pyramid vertices: A, B, C, D, E, F edges: base: ABCDE

Orthogonal Drawings

Orthogonal Drawings

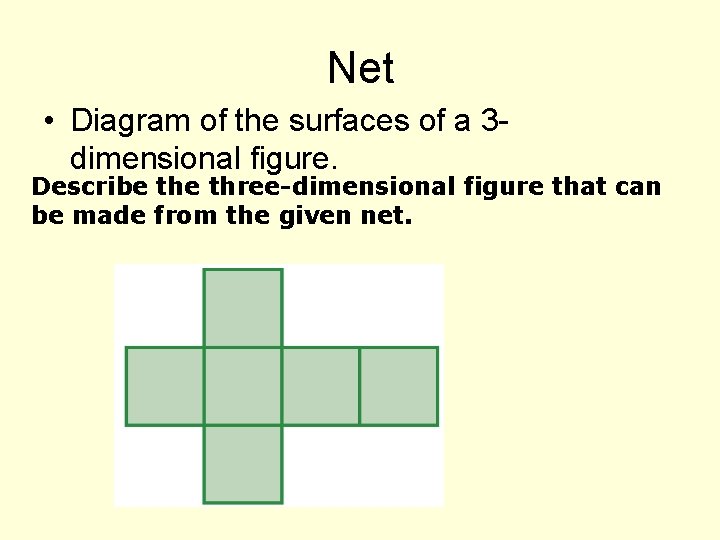

Net • Diagram of the surfaces of a 3 dimensional figure. Describe three-dimensional figure

Net • Diagram of the surfaces of a 3 dimensional figure. Describe three-dimensional figure that can be made from the given net.

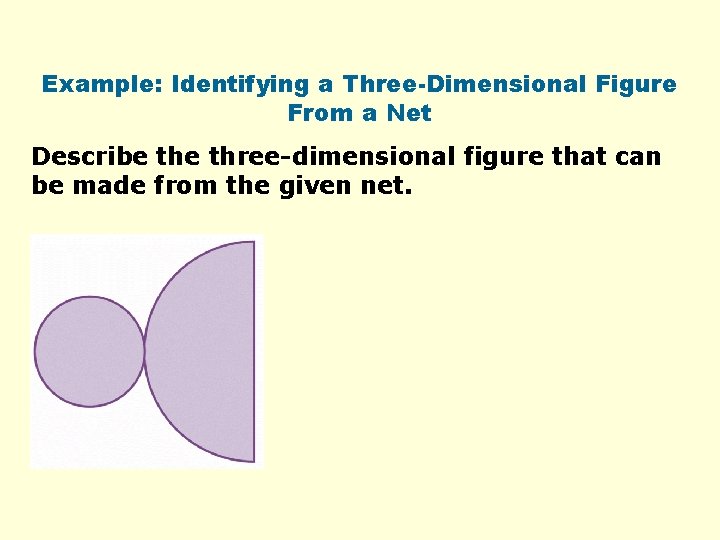

Example: Identifying a Three-Dimensional Figure From a Net Describe three-dimensional figure that can be

Example: Identifying a Three-Dimensional Figure From a Net Describe three-dimensional figure that can be made from the given net.

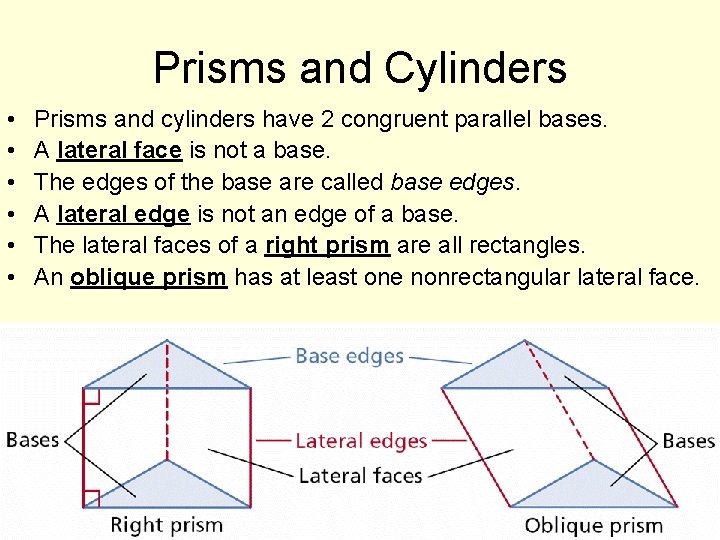

Prisms and Cylinders • • • Prisms and cylinders have 2 congruent parallel bases.

Prisms and Cylinders • • • Prisms and cylinders have 2 congruent parallel bases. A lateral face is not a base. The edges of the base are called base edges. A lateral edge is not an edge of a base. The lateral faces of a right prism are all rectangles. An oblique prism has at least one nonrectangular lateral face.

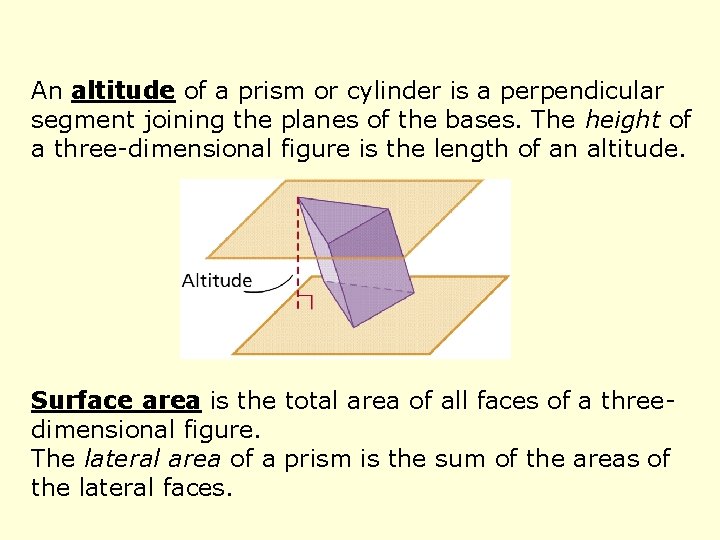

An altitude of a prism or cylinder is a perpendicular segment joining the planes

An altitude of a prism or cylinder is a perpendicular segment joining the planes of the bases. The height of a three-dimensional figure is the length of an altitude. Surface area is the total area of all faces of a threedimensional figure. The lateral area of a prism is the sum of the areas of the lateral faces.

Cylinders • The lateral surface of a cylinder is the curved surface that connects

Cylinders • The lateral surface of a cylinder is the curved surface that connects the two bases. • The axis of a cylinder is the segment with endpoints at the centers of the bases. • The axis of a right cylinder is perpendicular to its bases. • The axis of an oblique cylinder is not perpendicular to its bases. • The altitude of a right cylinder is the same length as the axis.

Lesson Quiz: Part I 1. Classify the figure. Name the vertices, edges, and bases.

Lesson Quiz: Part I 1. Classify the figure. Name the vertices, edges, and bases. triangular prism; vertices: A, B, C, D, E, F; edges: bases: ∆ABC and ∆DEF

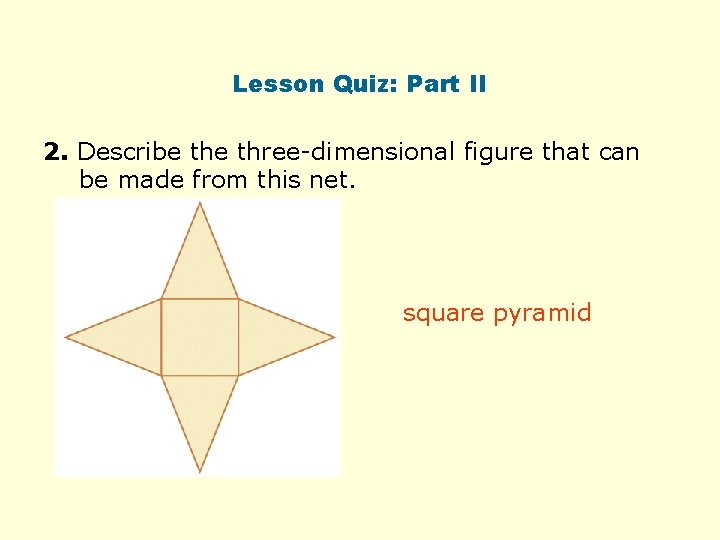

Lesson Quiz: Part II 2. Describe three-dimensional figure that can be made from this

Lesson Quiz: Part II 2. Describe three-dimensional figure that can be made from this net. square pyramid
