Concurrency Operating Systems Spring 2004 OS Spring 04

Concurrency Operating Systems Spring 2004 OS Spring’ 04

Concurrency pros and cons § Concurrency is good for users One of the reasons for multiprogramming w Working on the same problem, simultaneous execution of programs, background execution § Concurrency is a “pain in the neck” for the system Access to shared data structures Deadlock due to resource contention OS Spring’ 04

Mutual Exclusion § OS is an instance of concurrent programming Multiple activities may take place in the same time § Concurrent execution of operations involving multiple steps is problematic Example: updating linked list § Concurrent access to a shared data structure must be mutually exclusive OS Spring’ 04

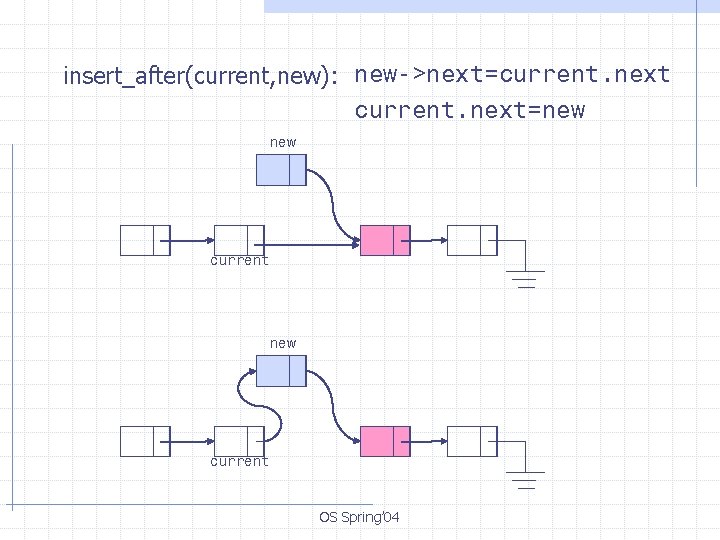

insert_after(current, new): new->next=current. next=new current OS Spring’ 04

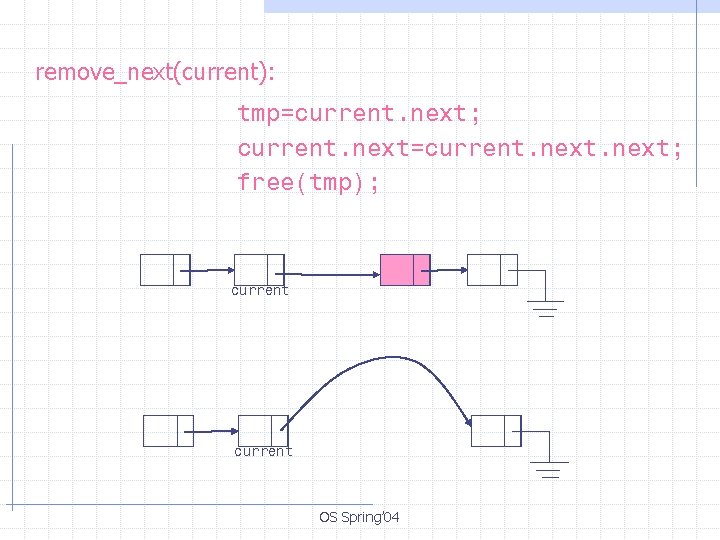

remove_next(current): tmp=current. next; current. next=current. next; free(tmp); current OS Spring’ 04

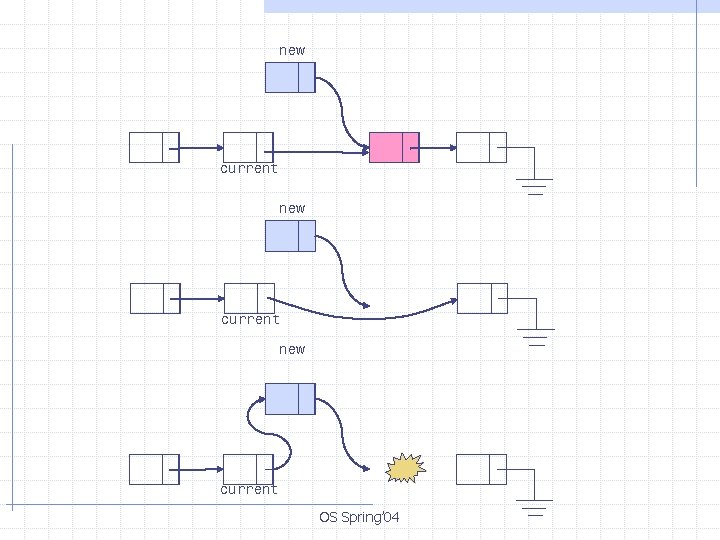

new current OS Spring’ 04

Atomic operations § A generic solution is to ensure atomic execution of operations All the steps are perceived as executed in a single point of time insert_after(current, new) remove_next(current), or remove_next(current) insert_after(current, new) OS Spring’ 04

The Critical Section Model § A code within a do { critical section must be executed exclusively by a single process entry section critical section exit section remainder section } while(1) OS Spring’ 04

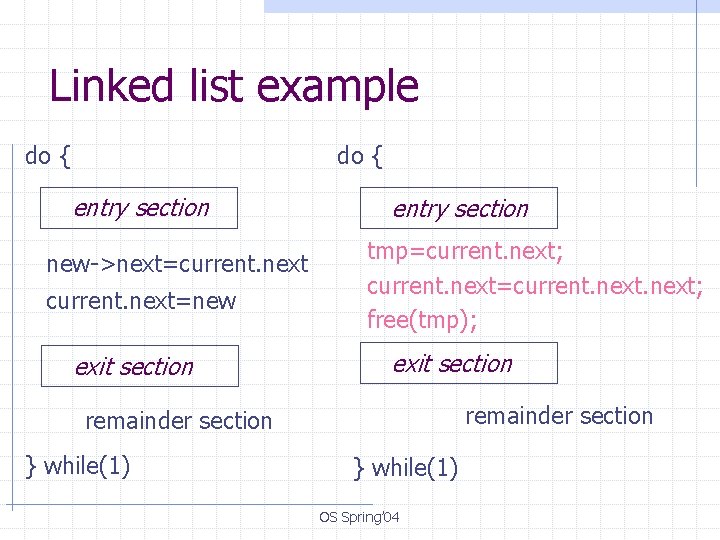

Linked list example do { entry section new->next=current. next=new exit section entry section tmp=current. next; current. next=current. next; free(tmp); exit section remainder section } while(1) OS Spring’ 04

The Critical Section Problem § n processes P 0, …, Pn-1 § No assumptions on relative process speeds, no synchronized clocks, etc… Models inherent non-determinism of process scheduling § No assumptions on process activity when executing within Critical and reminder sections OS Spring’ 04

Shared variables § Processes are communicating through shared atomic read/write variables x is a shared variable, l is a local variable Read: takes the current value: Write: assigns a provided value: OS Spring’ 04

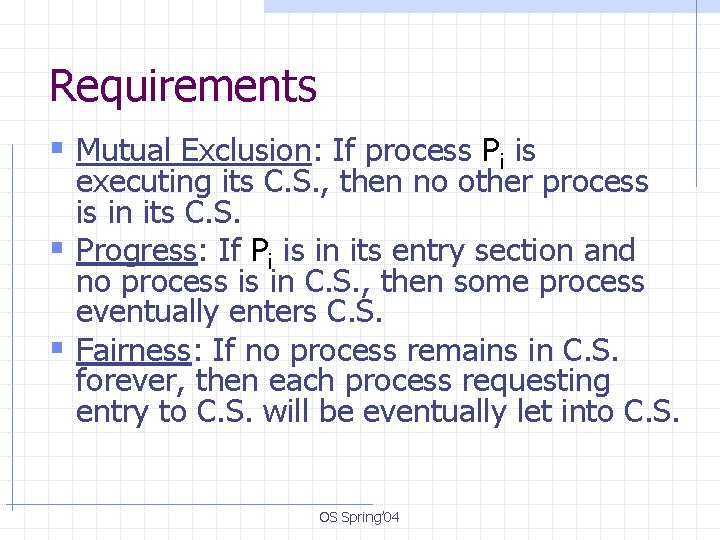

Requirements § Mutual Exclusion: If process Pi is executing its C. S. , then no other process is in its C. S. § Progress: If Pi is in its entry section and no process is in C. S. , then some process eventually enters C. S. § Fairness: If no process remains in C. S. forever, then each process requesting entry to C. S. will be eventually let into C. S. OS Spring’ 04

Solving the CS problem (n=2) OS Spring’ 04

Solving the CS problem (n=2) OS Spring’ 04

Solving the CS problem (n=2) OS Spring’ 04

Peterson’s algorithm for n=2 OS Spring’ 04

Bakery algorithm of Lamport § Critical section algorithm for any n>1 § Each time a process is requesting an entry to CS, assign it a ticket which is Unique and monotonically increasing § Let the process into CS in the order of their numbers OS Spring’ 04

Choosing a ticket Does not guarantee uniqueness! Use process Ids: Process need to know that somebody perhaps chose a smaller number: OS Spring’ 04

Bakery algorithm for n processes OS Spring’ 04

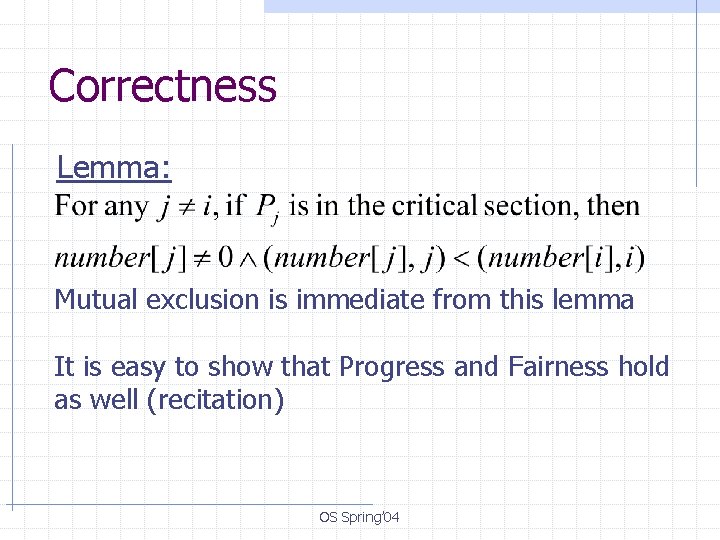

Correctness Lemma: Mutual exclusion is immediate from this lemma It is easy to show that Progress and Fairness hold as well (recitation) OS Spring’ 04

Hardware primitives § Elementary building blocks capable of performing certain steps atomically Should be universal to allow for solving versatile synchronization problems § Numerous such primitives were identified: Test-and-set Fetch-and-add Compare-and-swap OS Spring’ 04

Test-and-Set (TS( boolean test-and-set(boolean &lock) { temp=lock; lock=TRUE; return temp; } reset(boolean &lock) { lock=FALSE; } OS Spring’ 04

Critical section using TS Shared boolean lock, initially FALSE do { while(test-and-set(&lock)); critical section; Check yourself! reset(&lock); • Is mutual exclusion reminder section; satisfied? } while(1); • Is progress satisfied? • Is fairness satisfied? OS Spring’ 04

Discussion § Satisfies Mutual Exclusion and Progress § Does not satisfy Fairness § Provides exclusion among unbounded number of processes Process IDs and number are unknown § Busy waiting Burning CPU cycles while being blocked OS Spring’ 04

Fetch-and-Add (FAA( s: shared, a: local int FAA(int &s, int a) { temp=s; s=s+a; return temp; FAA can be used } as a ticket machine OS Spring’ 04

Critical section using FAA Shared: int s, turn; Initially: s = 0; turn=0; Process Pi code: Entry: me = FAA(s, 1); while(turn < me); // busy wait for my turn Critical section Check yourself! Exit: • Is mutual exclusion FAA(turn, 1); satisfied? OS Spring’ 04 • Is progress satisfied? • Is fairness satisfied?

Discussion § Satisfies all three properties § Supports unbounded number of processes § Unbounded counter § Busy waiting OS Spring’ 04

Problems with studied synchronization methods § Critical section framework is inconvenient for programming § Performance penalty Busy waiting Too coarse synchronization § Using hardware primitives directly results in non-portable code OS Spring’ 04

Higher Level Abstractions § Higher level software abstractions are represented by Semaphores Monitors OS Spring’ 04

Semaphores § Invented by Edsger Dijkstra in 1968 § Interface consists of two primitives: P() and V() OS Spring’ 04

Notes on the Language § Dutch: P: Proberen, V: Verhogen § Hebrew: P: , פחות V: ועוד § English: P(): wait(), V(): signal() OS Spring’ 04

Semaphores: initial value § Initial value of a semaphore indicates how many identical instances of the critical resource exist § A semaphore initialized to 1 is called a mutex (mutual exclusion) OS Spring’ 04

Programming with semaphores § Semaphores is a powerful programming abstraction § Define a semaphore for each critical resource E. g. , one for each linked list Granularity? § Concurrent processes access appropriate semaphores when synchronization is needed OS Spring’ 04

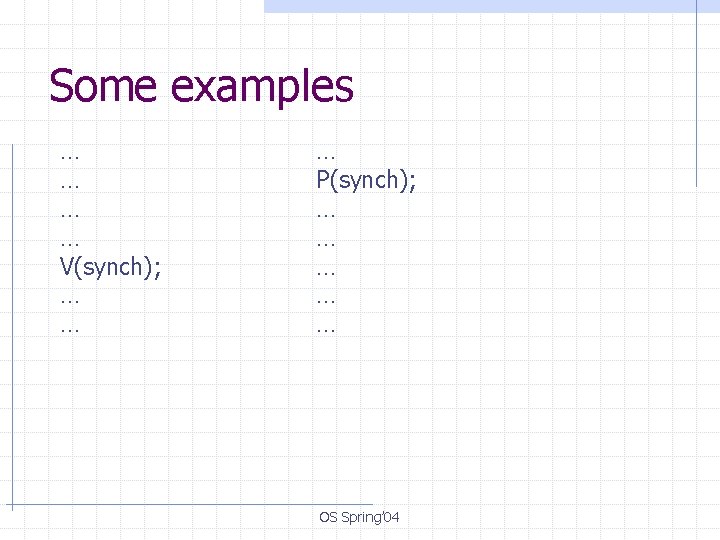

Some examples … … V(synch); … … … P(synch); … … … OS Spring’ 04

Some examples Do { P(mutex); critical section V(mutex); Remainder section; While(1); OS Spring’ 04

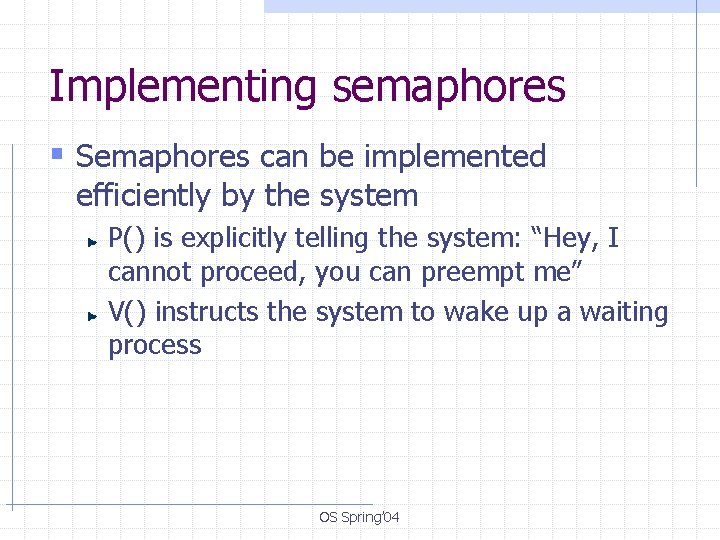

Implementing semaphores § Semaphores can be implemented efficiently by the system P() is explicitly telling the system: “Hey, I cannot proceed, you can preempt me” V() instructs the system to wake up a waiting process OS Spring’ 04

Implementing Semaphores type semaphore = record count: integer; queue: list of process end; var S: semaphore; S. count must be initialized to a nonnegative value (depending on application) OS Spring’ 04

Implementing Semaphores P(S): S. count--; if (S. count<0) { add this process to S. queue block this process; } V(S): S. count++; if (S. count <= 0) { remove a process P from S. queue place this process P on ready queue } OS Spring’ 04

We’re still cheating… § P() and V() must be executed atomically § In uniprocessor system may disable interrupts § In multi-processor system, use hardware synchronization primitives TS, FAA, etc… § Involves a some limited amount of busy waiting OS Spring’ 04

Monitors monitor-name { shared variable declarations } procedure P 1(…) { … } … procedure Pn() { … } § Only a single process at a time can be active within the monitor => other processes calling Pi() are queued § Conditional variables for finer grain synchronization x. wait() suspend the execution until another process calls x. signal() OS Spring’ 04
