Briefing: Leverage HPE Storage Solutions in Windows/Hyper-V Rambo Wang Technical Marketing Engineering, HPE Storage
HPE 3 PAR Solutions for Windows/Hyper-V

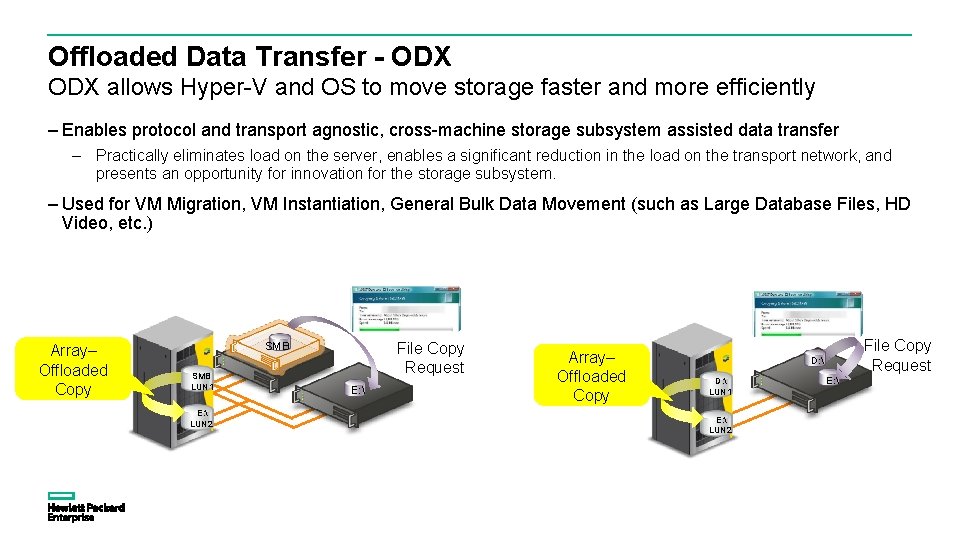

Offloaded Data Transfer - ODX allows Hyper-V and OS to move storage faster and more efficiently – Enables protocol and transport agnostic, cross-machine storage subsystem assisted data transfer – Practically eliminates load on the server, enables a significant reduction in the load on the transport network, and presents an opportunity for innovation for the storage subsystem. – Used for VM Migration, VM Instantiation, General Bulk Data Movement (such as Large Database Files, HD Video, etc. ) Array– Offloaded Copy File Copy Request SMB LUN 1 E: LUN 2 E: Array– Offloaded Copy File Copy Request D: LUN 1 E: LUN 2 E:

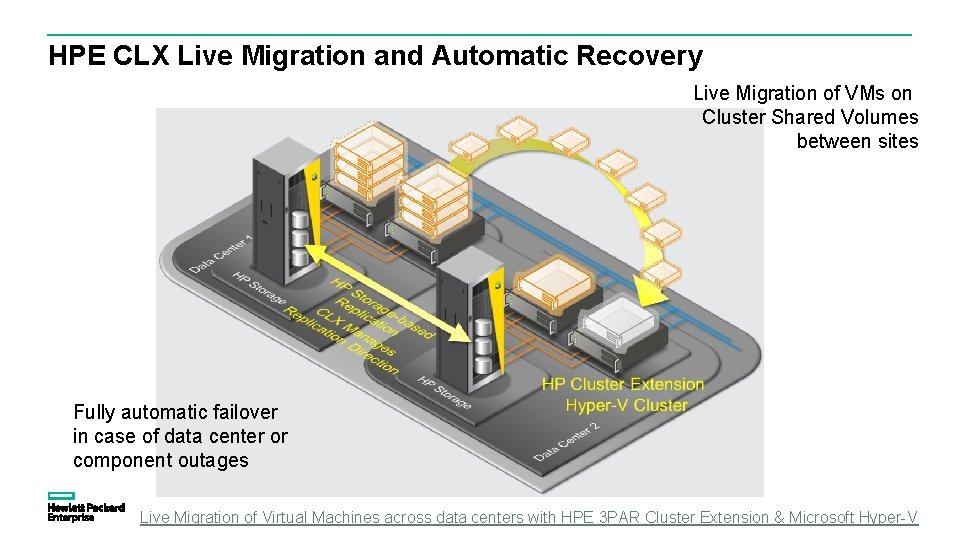

HPE CLX Live Migration and Automatic Recovery Live Migration of VMs on Cluster Shared Volumes between sites Fully automatic failover in case of data center or component outages Live Migration of Virtual Machines across data centers with HPE 3 PAR Cluster Extension & Microsoft Hyper-V

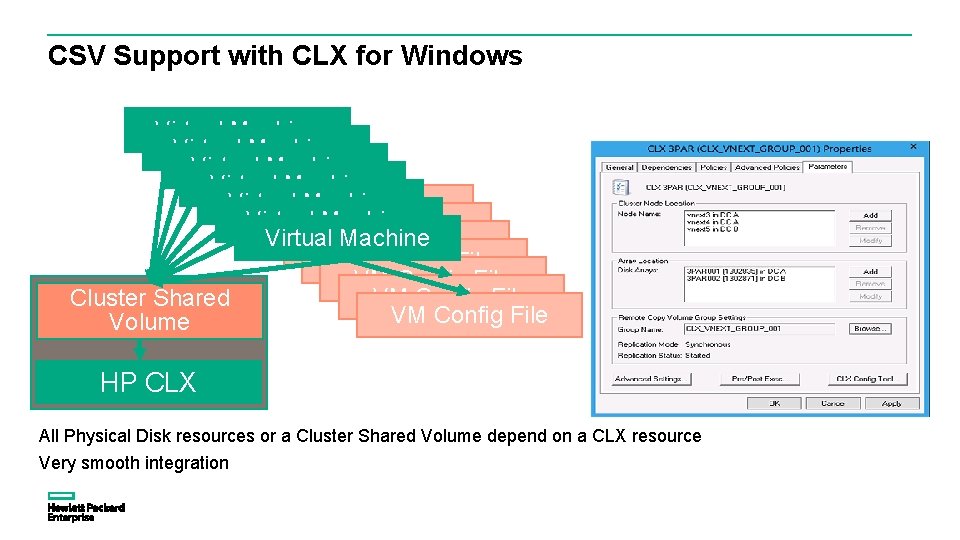

CSV Support with CLX for Windows Virtual Machine Virtual Machine VM Config File VM Config File Cluster Shared VM Config File Volume HP CLX All Physical Disk resources or a Cluster Shared Volume depend on a CLX resource Very smooth integration

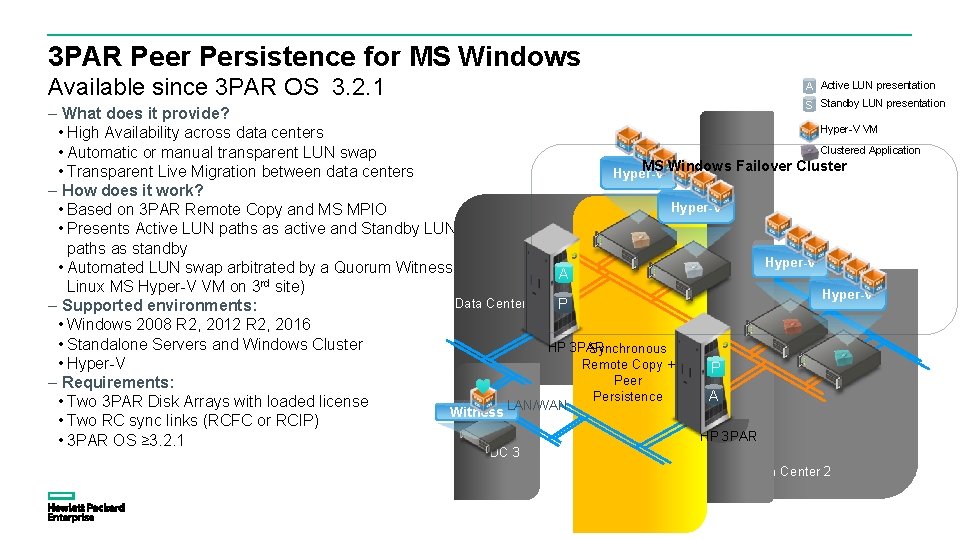

3 PAR Peer Persistence for MS Windows Available since 3 PAR OS 3. 2. 1 A Active LUN presentation S Standby LUN presentation – What does it provide? Hyper-V VM • High Availability across data centers Clustered Application • Automatic or manual transparent LUN swap MS Windows Failover Cluster • Transparent Live Migration between data centers Hyper-V – How does it work? Hyper-V • Based on 3 PAR Remote Copy and MS MPIO • Presents Active LUN paths as active and Standby LUN paths as standby Hyper-V • Automated LUN swap arbitrated by a Quorum Witness (QW A Linux MS Hyper-V VM on 3 rd site) Hyper-V Data Center 1 P – Supported environments: • Windows 2008 R 2, 2012 R 2, 2016 • Standalone Servers and Windows Cluster HP 3 PAR Synchronous • Hyper-V Remote Copy + P Peer – Requirements: A Persistence • Two 3 PAR Disk Arrays with loaded license LAN/WAN Witness • Two RC sync links (RCFC or RCIP) QW HP 3 PAR • 3 PAR OS ≥ 3. 2. 1 DC 3 Data Center 2

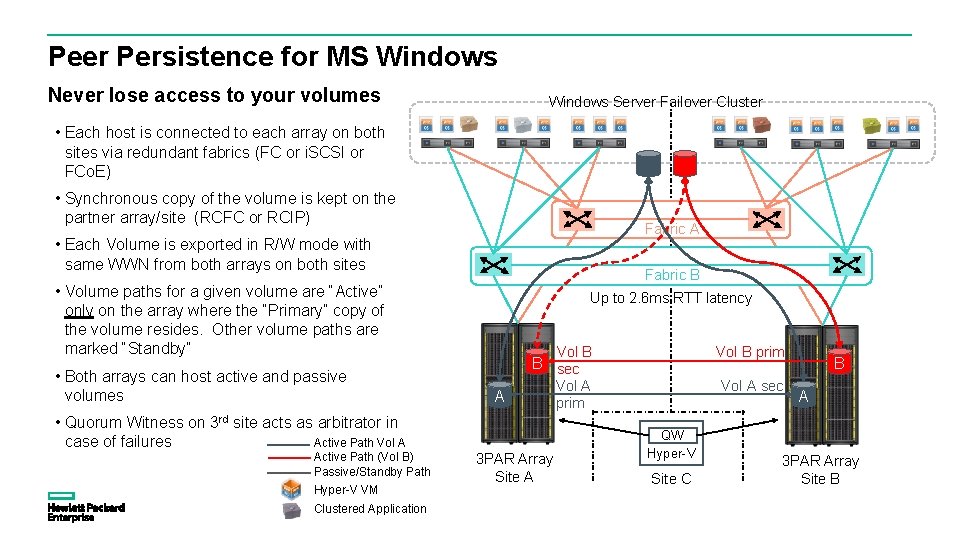

Peer Persistence for MS Windows Never lose access to your volumes Windows Server Failover Cluster • Each host is connected to each array on both sites via redundant fabrics (FC or i. SCSI or FCo. E) • Synchronous copy of the volume is kept on the partner array/site (RCFC or RCIP) Fabric A • Each Volume is exported in R/W mode with same WWN from both arrays on both sites Fabric B • Volume paths for a given volume are “Active” only on the array where the “Primary” copy of the volume resides. Other volume paths are marked “Standby” • Both arrays can host active and passive volumes Up to 2. 6 ms RTT latency A • Quorum Witness on 3 rd site acts as arbitrator in Active Path Vol A case of failures Active Path (Vol B) Passive/Standby Path Hyper-V VM Clustered Application Vol B prim Vol A sec B sec 3 PAR Array Site A QW Hyper-V Site C B A 3 PAR Array Site B
Peer Persistence for Windows – MPIO Path View Windows Server Failover Cluster 2 2’ Windows MPIO View 2 Vol A prim Vol A sec 2’ QW 3 PAR Array Site A 3 PAR SSMC Remote Copy View Hyper-V Site C 3 PAR Array Site B

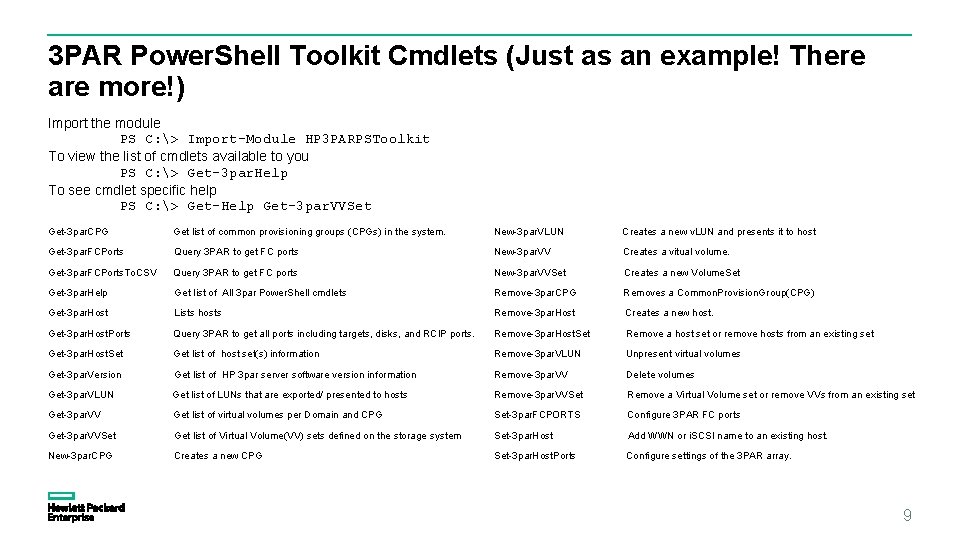

3 PAR Power. Shell Toolkit Cmdlets (Just as an example! There are more!) Import the module PS C: > Import-Module HP 3 PARPSToolkit To view the list of cmdlets available to you PS C: > Get-3 par. Help To see cmdlet specific help PS C: > Get-Help Get-3 par. VVSet Get-3 par. CPG Get list of common provisioning groups (CPGs) in the system. New-3 par. VLUN Creates a new v. LUN and presents it to host Get-3 par. FCPorts Query 3 PAR to get FC ports New-3 par. VV Creates a vitual volume. Get-3 par. FCPorts. To. CSV Query 3 PAR to get FC ports New-3 par. VVSet Creates a new Volume. Set Get-3 par. Help Get list of All 3 par Power. Shell cmdlets Remove-3 par. CPG Removes a Common. Provision. Group(CPG) Get-3 par. Host Lists hosts Remove-3 par. Host Creates a new host. Get-3 par. Host. Ports Query 3 PAR to get all ports including targets, disks, and RCIP ports. Remove-3 par. Host. Set Remove a host set or remove hosts from an existing set Get-3 par. Host. Set Get list of host set(s) information Remove-3 par. VLUN Unpresent virtual volumes Get-3 par. Version Get list of HP 3 par server software version information Remove-3 par. VV Delete volumes Get-3 par. VLUN Get list of LUNs that are exported/ presented to hosts Remove-3 par. VVSet Remove a Virtual Volume set or remove VVs from an existing set Get-3 par. VV Get list of virtual volumes per Domain and CPG Set-3 par. FCPORTS Configure 3 PAR FC ports Get-3 par. VVSet Get list of Virtual Volume(VV) sets defined on the storage system Set-3 par. Host Add WWN or i. SCSI name to an existing host. New-3 par. CPG Creates a new CPG Set-3 par. Host. Ports Configure settings of the 3 PAR array. 9
