Boosting Mobile GPU Performance with a Decoupled Access/Execute Fragment Processor José-María Arnau, Joan-Manuel Parcerisa (UPC) Polychronis Xekalakis (Intel)

Focusing on Mobile GPUs 1 Market demands Energy-efficient mobile GPUs 2 1 http: //www. digitalversus. com/mobile-phone/samsung-galaxy-note-p 11735/test. html Samsung galaxy SII vs Samsung Galaxy Note when running the game Shadow Gun 3 D 2 http: //www. ispsd. com/02/battery-psd-templates/ Technology limitations Jose-Maria Arnau, Joan-Manuel Parcerisa, Polychronis Xekalakis 2

GPU Performance and Memory A mobile single-threaded GPU with perfect caches achieves a speedup of 3. 2 x on a set of commercial Android games Graphical workloads: Large working sets not amenable to caching Texture memory accesses are fine-grained and unpredictable Traditional techniques to deal with memory: Caches Prefetching Multithreading Jose-Maria Arnau, Joan-Manuel Parcerisa, Polychronis Xekalakis 3

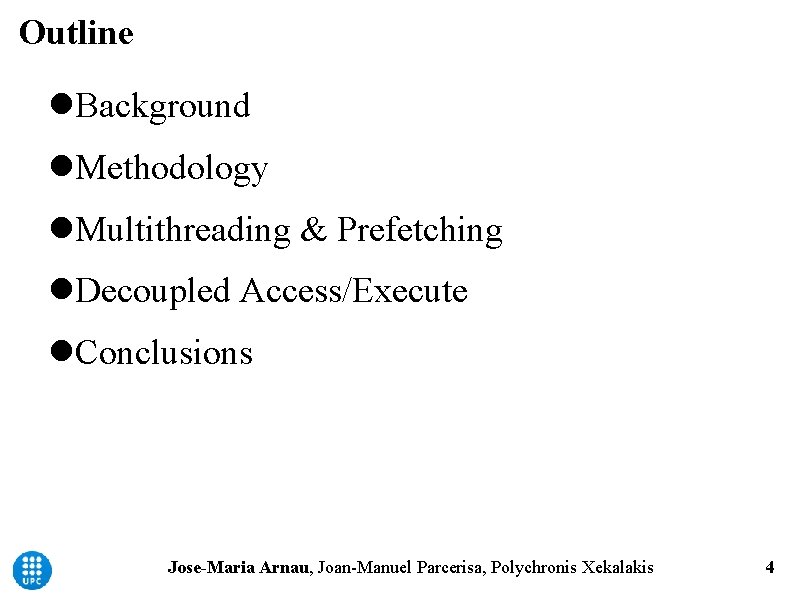

Outline Background Methodology Multithreading & Prefetching Decoupled Access/Execute Conclusions Jose-Maria Arnau, Joan-Manuel Parcerisa, Polychronis Xekalakis 4

Assumed GPU Architecture Jose-Maria Arnau, Joan-Manuel Parcerisa, Polychronis Xekalakis 5

Assumed Fragment Processor Warp: group of threads executed in lockstep mode (SIMD group) 4 threads per warp 4 -wide vectorial registers (16 bytes) 36 registers per thread Jose-Maria Arnau, Joan-Manuel Parcerisa, Polychronis Xekalakis 6

Methodology Main memory Latency = 100 cycles Bandwidth = 4 bytes/cycle Pixel/Textures caches 2 KB, 2 -way, 2 cycles L 2 cache 32 KB, 8 -way, 12 cycles Number of cores 4 vertex, 4 pixel processors Warp width 4 threads Register file size 2304 bytes per warp Number of warps 1 -16 warps/core Power Model: CACTI 6. 5 and Qsilver Jose-Maria Arnau, Joan-Manuel Parcerisa, Polychronis Xekalakis 7

Workload Selection 2 D games Simple 3 D games Small/medium sized textures Texture filtering: 1 memory access Small fragment programs Small/medium sized textures Texture filtering: 1 -4 memory accesses Small/medium fragment programs Complex 3 D games Medium/big sized textures Texture filtering: 4 -8 memory accesses Big, memory intensive fragment programs Jose-Maria Arnau, Joan-Manuel Parcerisa, Polychronis Xekalakis 8

Improving Performance Using Multithreading Very effective High energy cost (25% more energy) Huge register file to maintain the state of all the threads 36 KB MRF for a GPU with 16 warps/core (bigger than L 2) Jose-Maria Arnau, Joan-Manuel Parcerisa, Polychronis Xekalakis 9

Employing Prefetching Hardware prefetchers: Global History Buffer Many-Thread Aware K. J. Nesbit and J. E. Smith. “Data Cache Prefetching Using a Global History Buffer”. HPCA, 2004. J. Lee, N. B. Lakshminarayana, H. Kim and R, Vuduc. “Many-Thread Aware Prefetching Mechanisms for GPGPU Applications”. MICRO, 2010. Prefetching is effective but there is still ample room for improvement Jose-Maria Arnau, Joan-Manuel Parcerisa, Polychronis Xekalakis 10

Decoupled Access/Execute Use the fragment information to compute the addresses that will be requested when processing the fragment Issue memory requests while the fragments are waiting in the tile queue Tile queue size: Too small: timeliness is not achieved Too big: cache conflicts Jose-Maria Arnau, Joan-Manuel Parcerisa, Polychronis Xekalakis 11

Inter-Core Data Sharing 66. 3% of cache misses are requests to data available in the L 1 cache of another fragment processor Use the prefetch queue to detect inter-core data sharing Saves bandwidth to the L 2 cache Saves power (L 1 caches smaller than L 2) Associative comparisons require additional energy Jose-Maria Arnau, Joan-Manuel Parcerisa, Polychronis Xekalakis 12

Decoupled Access/Execute 33% faster than hardware prefetchers, 9% energy savings DAE with 2 warps/core achieves 93% of the performance of a bigger GPU with 16 warps/core, providing 34% energy savings Jose-Maria Arnau, Joan-Manuel Parcerisa, Polychronis Xekalakis 13

Benefits of Remote L 1 Cache Accesses Single threaded GPU Baseline: Global History Buffer 30% speedup 5. 4% energy savings Jose-Maria Arnau, Joan-Manuel Parcerisa, Polychronis Xekalakis 14

Conclusions High performance, energy efficient GPUs can be architected based on the decoupled access/execute concept A combination of decoupled access/execute -to hide memory latency- and multithreading -to hide functional units latency- provides the most energy efficient solution Allowing for remote L 1 cache accesses provides L 2 cache bandwidth savings and energy savings The decoupled access/execute architecture outperforms hardware prefetchers: 33% speedup, 9% energy savings Jose-Maria Arnau, Joan-Manuel Parcerisa, Polychronis Xekalakis 15
