Axi Cool Unit Cooler Evaporator Plug Play Fan

Axi. Cool Unit Cooler / Evaporator - „Plug & Play“ Fan series GLV 955 - GTB/MM-November 2013 1

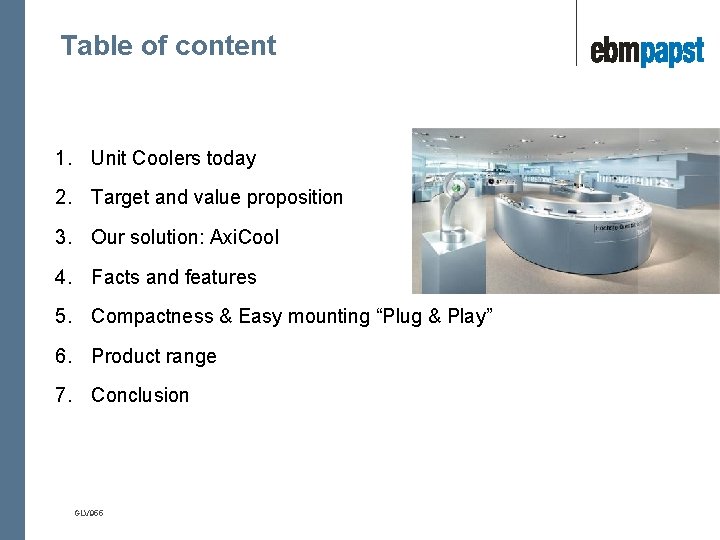

Table of content 1. Unit Coolers today 2. Target and value proposition 3. Our solution: Axi. Cool 4. Facts and features 5. Compactness & Easy mounting “Plug & Play” 6. Product range 7. Conclusion GLV 955

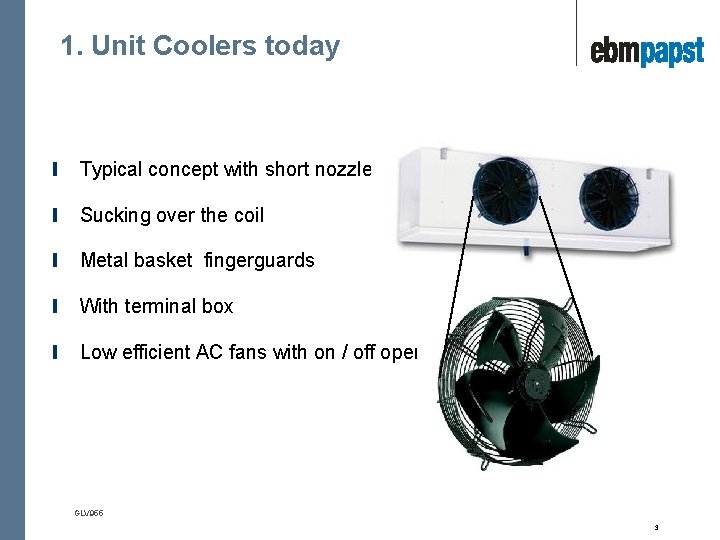

1. Unit Coolers today Typical concept with short nozzle Sucking over the coil Metal basket fingerguards With terminal box Low efficient AC fans with on / off operation GLV 955 3

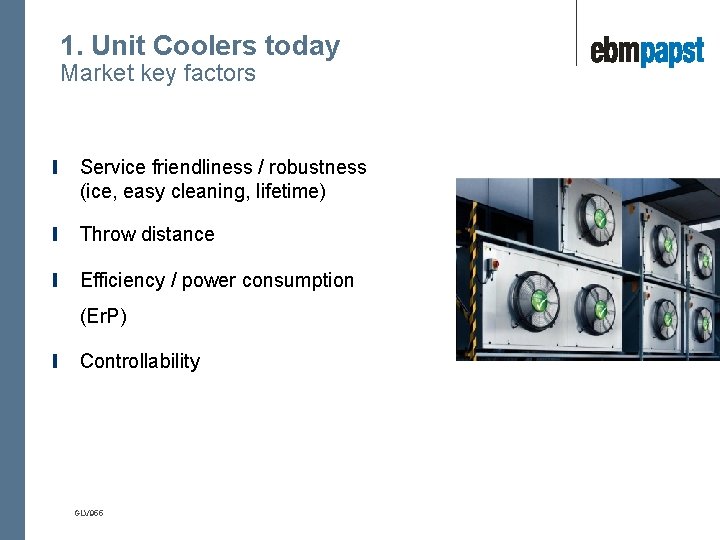

1. Unit Coolers today Market key factors Service friendliness / robustness (ice, easy cleaning, lifetime) Throw distance Efficiency / power consumption (Er. P) Controllability GLV 955

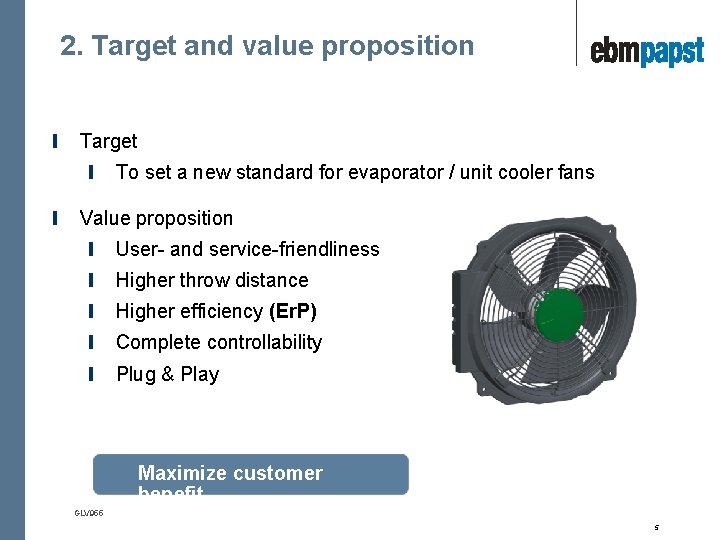

2. Target and value proposition Target To set a new standard for evaporator / unit cooler fans Value proposition User- and service-friendliness Higher throw distance Higher efficiency (Er. P) Complete controllability Plug & Play Maximize customer benefit GLV 955 5

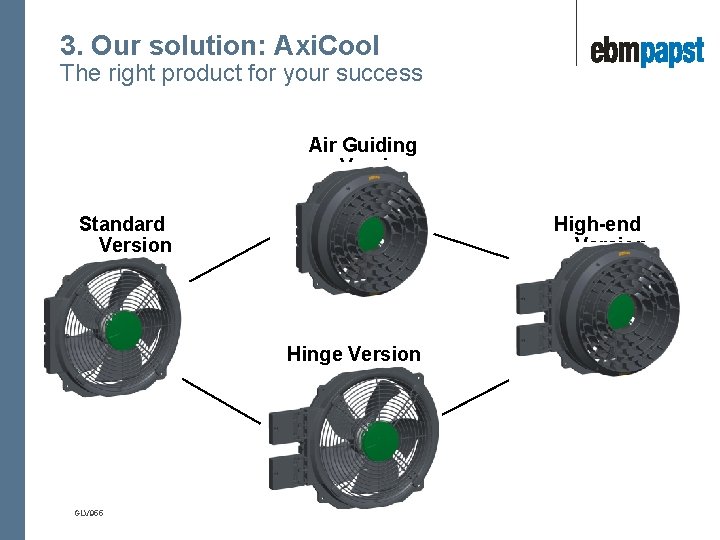

3. Our solution: Axi. Cool The right product for your success Air Guiding Version Standard Version High-end Version Hinge Version GLV 955

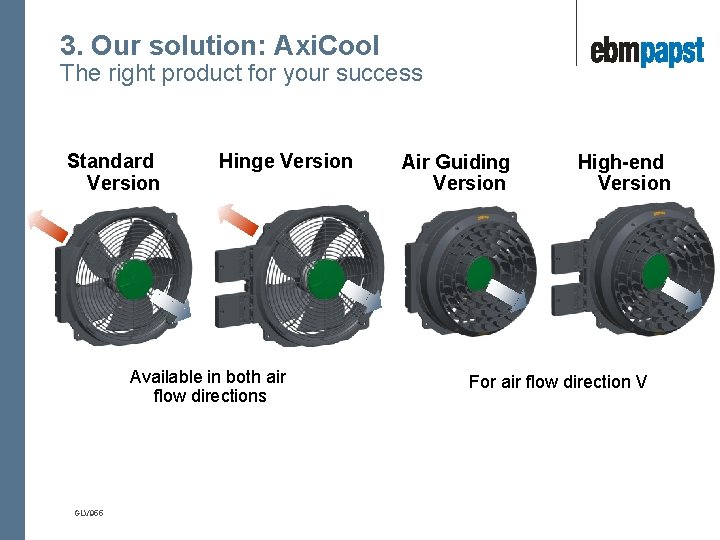

3. Our solution: Axi. Cool The right product for your success Standard Version Hinge Version Available in both air flow directions GLV 955 Air Guiding Version High-end Version For air flow direction V

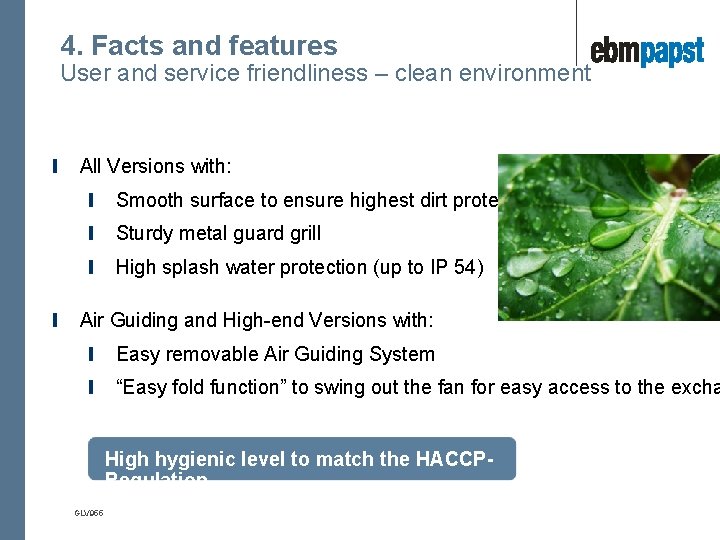

4. Facts and features User and service friendliness – clean environment All Versions with: Smooth surface to ensure highest dirt protection Sturdy metal guard grill High splash water protection (up to IP 54) Air Guiding and High-end Versions with: Easy removable Air Guiding System “Easy fold function” to swing out the fan for easy access to the excha High hygienic level to match the HACCPRegulation GLV 955

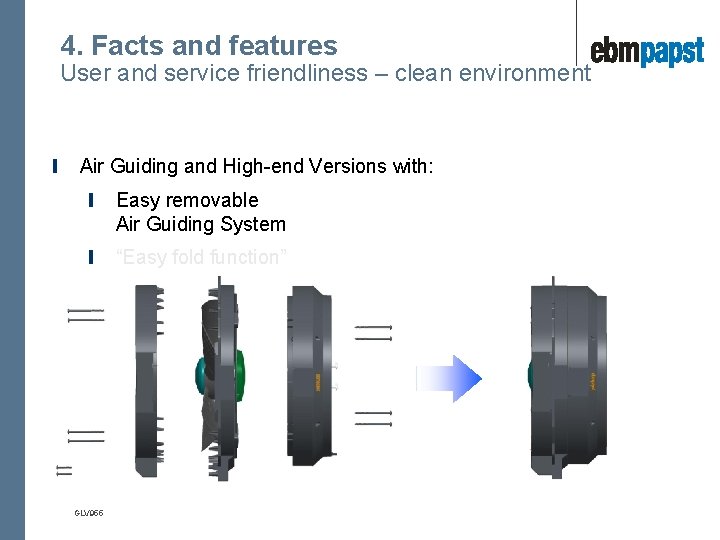

4. Facts and features User and service friendliness – clean environment Air Guiding and High-end Versions with: Easy removable Air Guiding System “Easy fold function” GLV 955

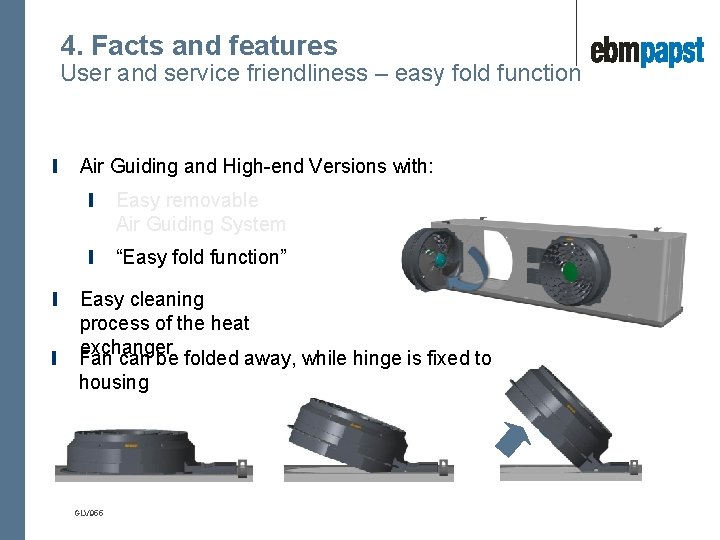

4. Facts and features User and service friendliness – easy fold function Air Guiding and High-end Versions with: Easy removable Air Guiding System “Easy fold function” Easy cleaning process of the heat exchanger Fan can be folded away, while hinge is fixed to housing GLV 955

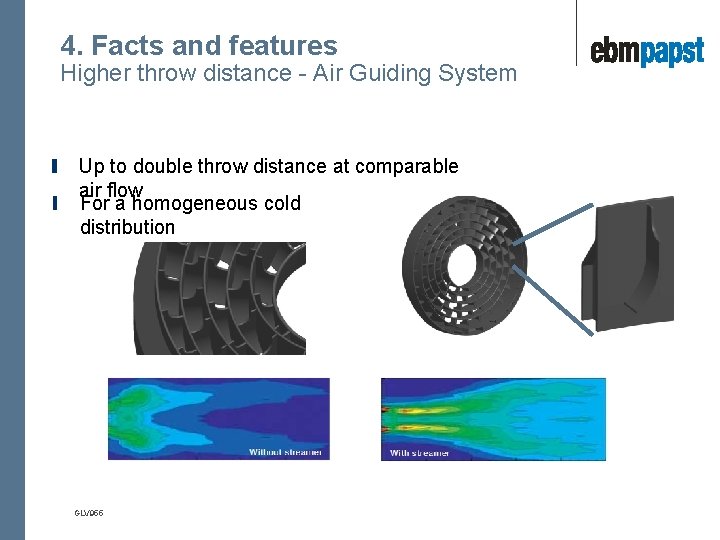

4. Facts and features Higher throw distance - Air Guiding System Up to double throw distance at comparable air flow For a homogeneous cold distribution GLV 955

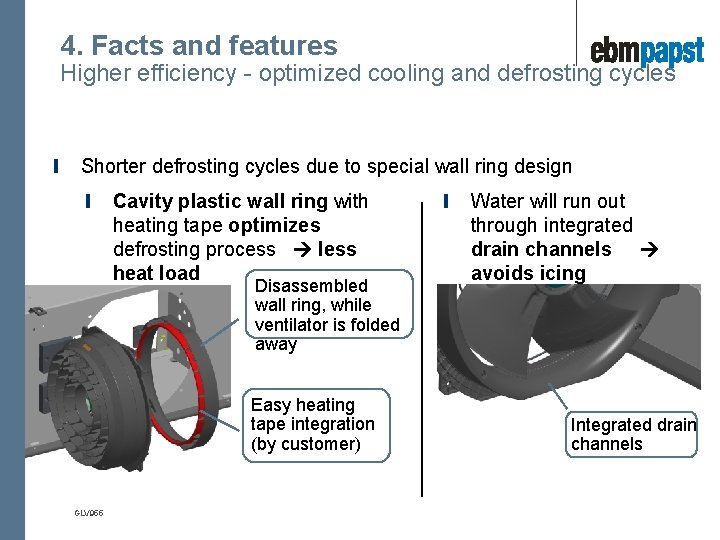

4. Facts and features Higher efficiency - optimized cooling and defrosting cycles Shorter defrosting cycles due to special wall ring design Cavity plastic wall ring with heating tape optimizes defrosting process less heat load Disassembled wall ring, while ventilator is folded away Easy heating tape integration (by customer) GLV 955 Water will run out through integrated drain channels avoids icing Integrated drain channels

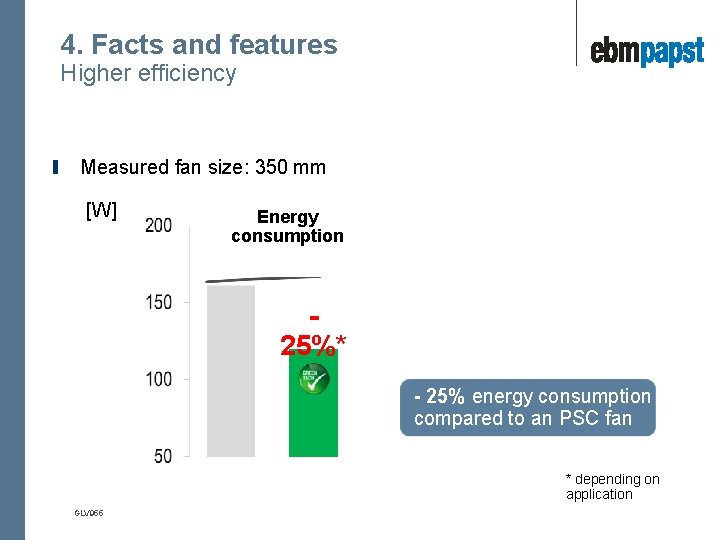

4. Facts and features Higher efficiency Measured fan size: 350 mm [W] Energy consumption 25%* - 25% energy consumption compared to an PSC fan * depending on application GLV 955

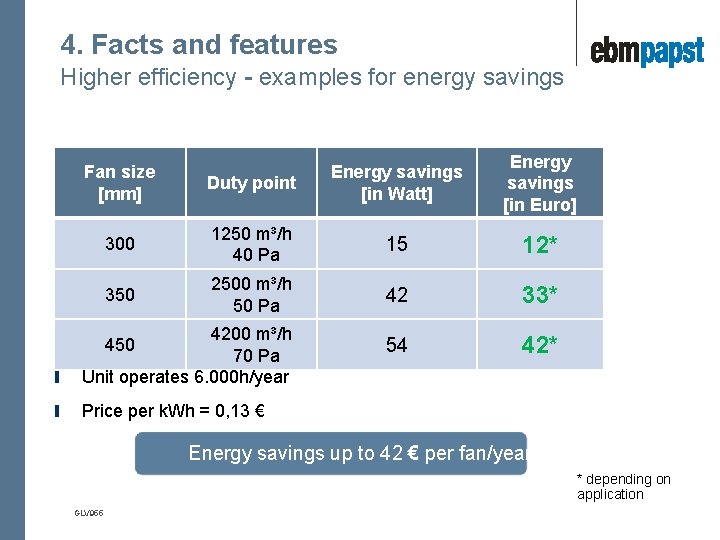

4. Facts and features Higher efficiency - examples for energy savings Duty point Energy savings [in Watt] Energy savings [in Euro] 300 1250 m³/h 40 Pa 15 12* 350 2500 m³/h 50 Pa 42 33* 54 42* Fan size [mm] 4200 m³/h 70 Pa Unit operates 6. 000 h/year 450 Price per k. Wh = 0, 13 € Energy savings up to 42 € per fan/year * depending on application GLV 955

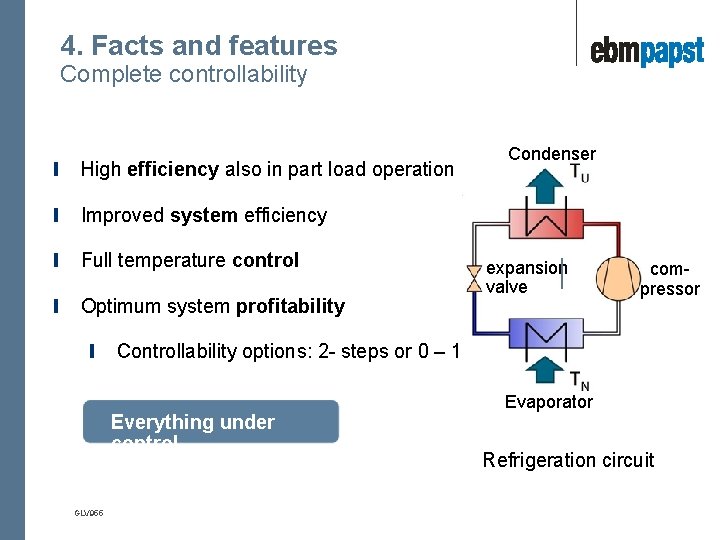

4. Facts and features Complete controllability Condenser High efficiency also in part load operation Improved system efficiency Full temperature control Optimum system profitability expansion valve compressor Controllability options: 2 - steps or 0 – 10 V Everything under control GLV 955 Evaporator Refrigeration circuit

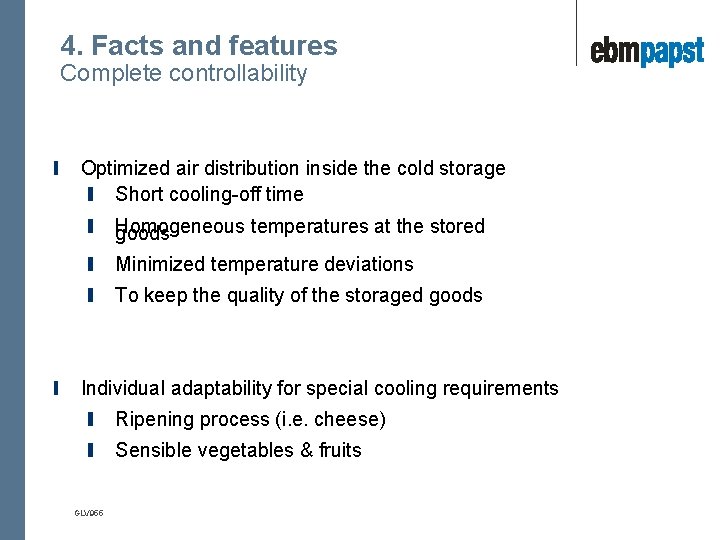

4. Facts and features Complete controllability Optimized air distribution inside the cold storage Short cooling-off time Homogeneous temperatures at the stored goods Minimized temperature deviations To keep the quality of the storaged goods Individual adaptability for special cooling requirements Ripening process (i. e. cheese) Sensible vegetables & fruits GLV 955

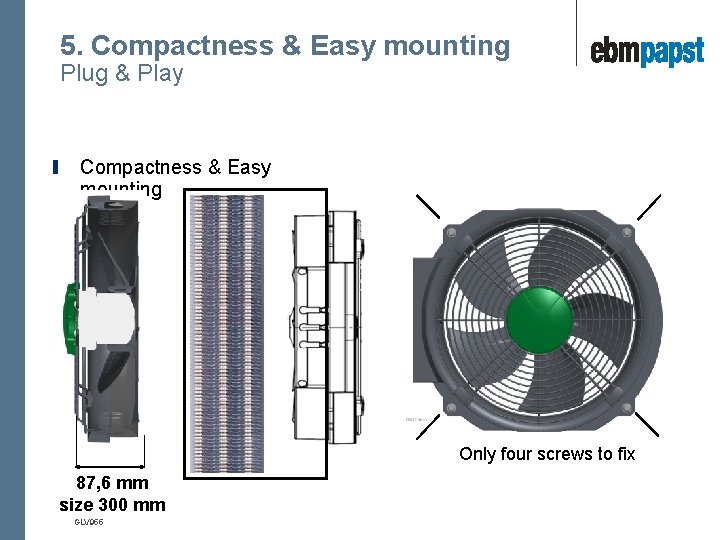

5. Compactness & Easy mounting Plug & Play Compactness & Easy mounting Only four screws to fix 87, 6 mm size 300 mm GLV 955

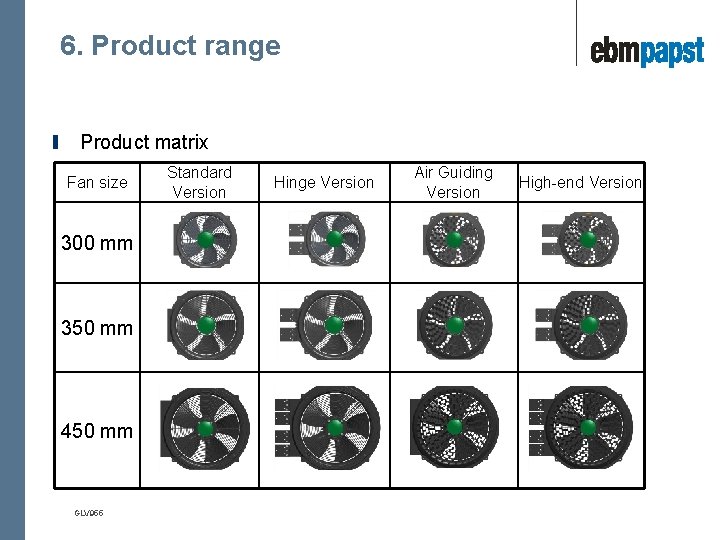

6. Product range Product matrix Fan size 300 mm 350 mm 450 mm GLV 955 Standard Version Hinge Version Air Guiding Version High-end Version

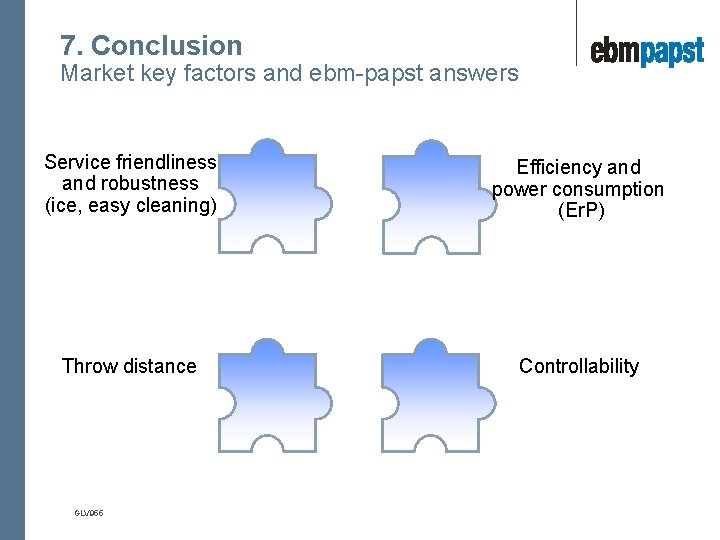

7. Conclusion Market key factors and ebm-papst answers Service friendliness and robustness (ice, easy cleaning) Efficiency and power consumption (Er. P) Throw distance Controllability GLV 955

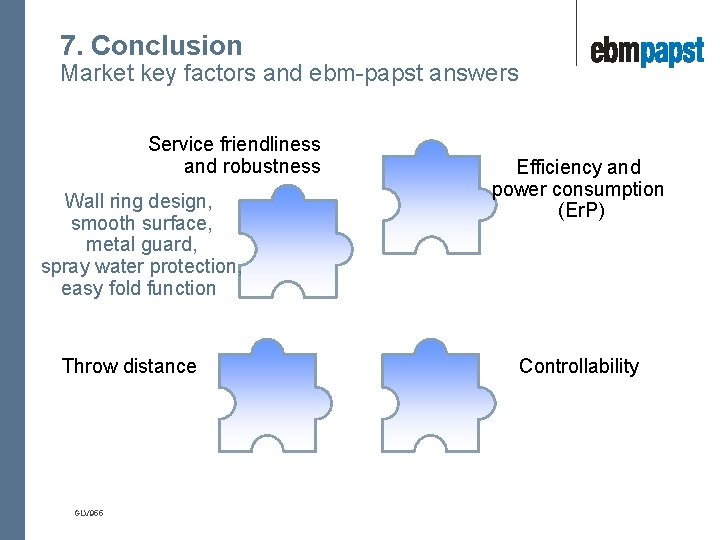

7. Conclusion Market key factors and ebm-papst answers Service friendliness and robustness Wall ring design, smooth surface, metal guard, spray water protection, easy fold function Throw distance GLV 955 Efficiency and power consumption (Er. P) Controllability

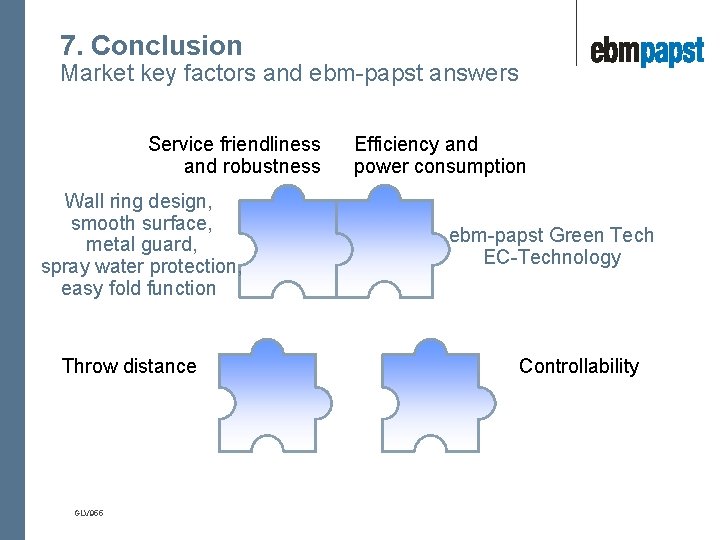

7. Conclusion Market key factors and ebm-papst answers Service friendliness and robustness Wall ring design, smooth surface, metal guard, spray water protection, easy fold function Throw distance GLV 955 Efficiency and power consumption ebm-papst Green Tech EC-Technology Controllability

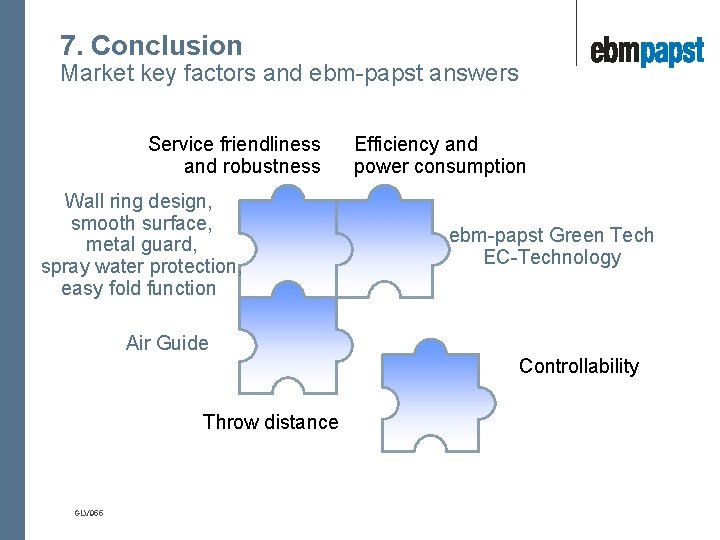

7. Conclusion Market key factors and ebm-papst answers Service friendliness and robustness Wall ring design, smooth surface, metal guard, spray water protection, easy fold function Efficiency and power consumption ebm-papst Green Tech EC-Technology Air Guide Controllability Throw distance GLV 955

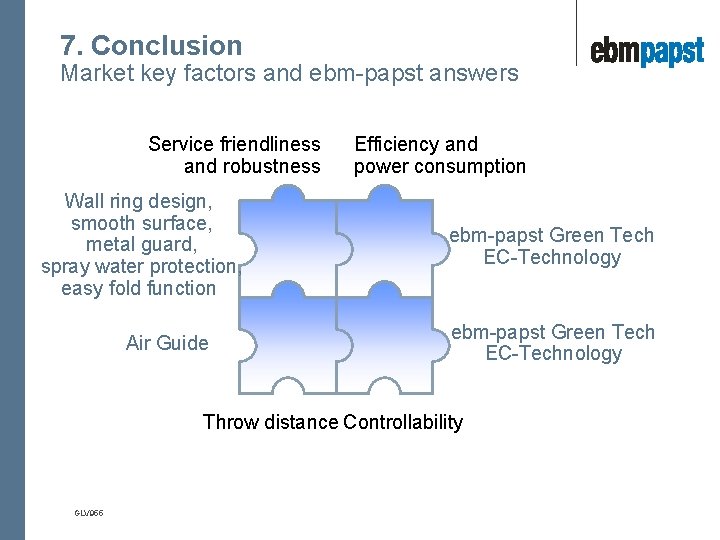

7. Conclusion Market key factors and ebm-papst answers Service friendliness and robustness Wall ring design, smooth surface, metal guard, spray water protection, easy fold function Air Guide Efficiency and power consumption ebm-papst Green Tech EC-Technology Throw distance Controllability GLV 955

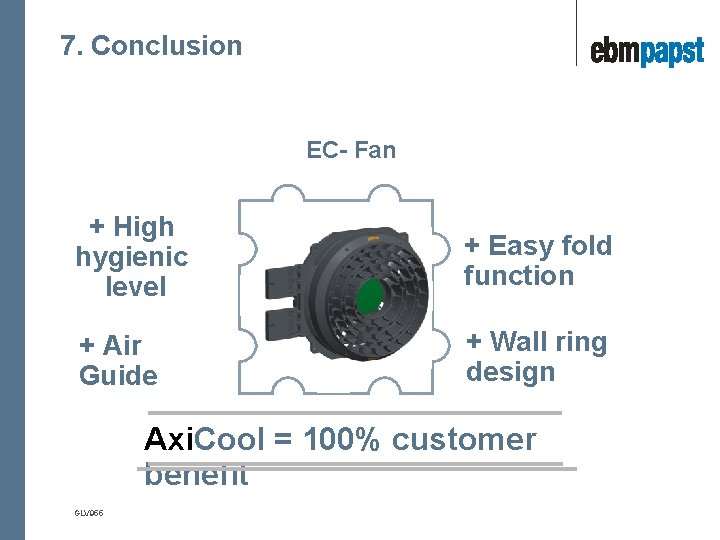

7. Conclusion EC- Fan + High hygienic level + Easy fold function + Air Guide + Wall ring design Axi. Cool = 100% customer benefit GLV 955

Axi. Cool Evaporator Plug & Play fan solution GLV 955 - GTB/MM-November 2013

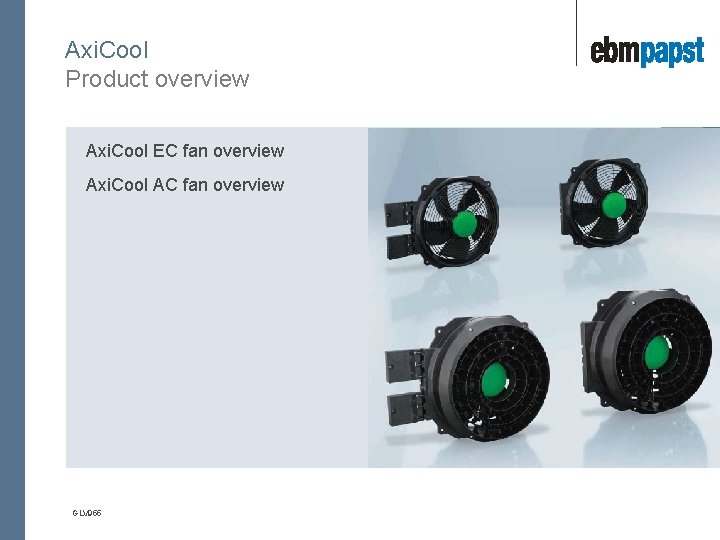

Axi. Cool Product overview Axi. Cool EC fan overview 3 Axi. Cool AC fan overview 4 GLV 955

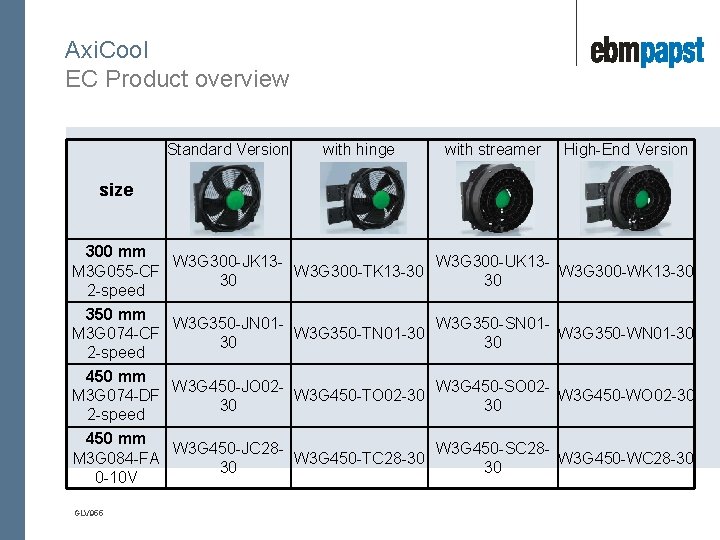

Axi. Cool EC Product overview Standard Version with hinge with streamer High-End Version size 300 mm M 3 G 055 -CF 2 -speed 350 mm M 3 G 074 -CF 2 -speed 450 mm M 3 G 074 -DF 2 -speed 450 mm M 3 G 084 -FA 0 -10 V GLV 955 W 3 G 300 -JK 13 W 3 G 300 -UK 13 W 3 G 300 -TK 13 -30 W 3 G 300 -WK 13 -30 30 30 W 3 G 350 -JN 01 W 3 G 350 -SN 01 W 3 G 350 -TN 01 -30 W 3 G 350 -WN 01 -30 30 30 W 3 G 450 -JO 02 W 3 G 450 -SO 02 W 3 G 450 -TO 02 -30 W 3 G 450 -WO 02 -30 30 30 W 3 G 450 -JC 28 W 3 G 450 -SC 28 W 3 G 450 -TC 28 -30 W 3 G 450 -WC 28 -30 30 30

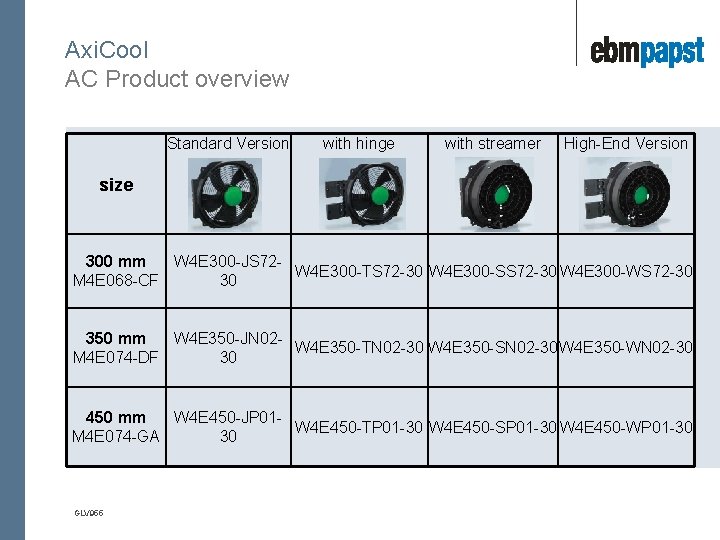

Axi. Cool AC Product overview Standard Version with hinge with streamer High-End Version size 300 mm W 4 E 300 -JS 72 W 4 E 300 -TS 72 -30 W 4 E 300 -SS 72 -30 W 4 E 300 -WS 72 -30 M 4 E 068 -CF 30 350 mm W 4 E 350 -JN 02 W 4 E 350 -TN 02 -30 W 4 E 350 -SN 02 -30 W 4 E 350 -WN 02 -30 M 4 E 074 -DF 30 450 mm W 4 E 450 -JP 01 W 4 E 450 -TP 01 -30 W 4 E 450 -SP 01 -30 W 4 E 450 -WP 01 -30 M 4 E 074 -GA 30 GLV 955
