Lexium SD 2 and Lexium SD 3 Stepper

Lexium SD 2 and Lexium SD 3 Stepper Drives and Motors -Lexium SD 2 - two-phase range up to 9. 2 Nm -Lexium SD 3 - three-phase range up to 19. 7 Nm

High-precision motion control Schneider Electric – Global Marketing – CGD – April 2011 2

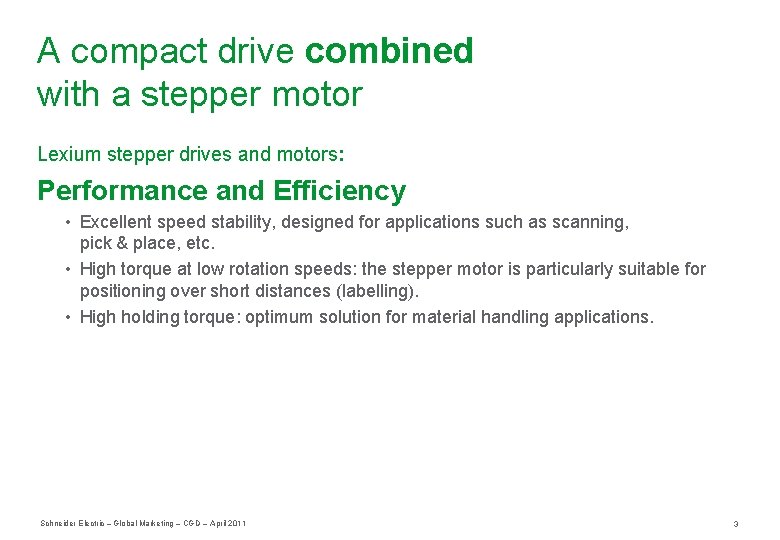

A compact drive combined with a stepper motor Lexium stepper drives and motors: Performance and Efficiency • Excellent speed stability, designed for applications such as scanning, pick & place, etc. • High torque at low rotation speeds: the stepper motor is particularly suitable for positioning over short distances (labelling). • High holding torque: optimum solution for material handling applications. Schneider Electric – Global Marketing – CGD – April 2011 3

Higher precision and efficiency Schneider Electric – Global Marketing – CGD – April 2011 4

Precise positionning and improved motor efficiency • High precision • • • of positioning over short distances High-precision positioning (0. 036° to 1. 8°) No vibration when the step is activated Withstands significant variations in the load Synchronised positioning via CANmotion (on the Lexium SD 3 28 A) A wide range of motors (torque from 0. 07 to 16. 5 Nm) to meet your installation requirements • Better motor efficiency for your installations • With Lexium stepper drives and motor sinusoidal switching operation of any resonance Schneider Electric – Global Marketing – CGD – April 2011 is free 5

Simplicity of use and time savings • “Plug & Play”: Just plug in and set the step resolution: • • • Application ready to use Encoderless control Instant start-up without a software interface High torque avoiding the need to use a gearbox in the majority of applications Easy configuration: customisable menu Automatic current reduction Schneider Electric – Global Marketing – CGD – April 2011 6

Enhanced communication and ease of integration • Enhanced communication • Different types of links possible with control products • Very easy to mount: less wiring, easily integrated in an enclosure, etc. 01: So. Machine software 02: Modicon M 258 controller 03: Magellis Human-Machine Interface 04: Altivar 32 variable speed drives 05: Lexium SD 3 28 stepper drive 06: Lexium 32 servo drive 07: Asynchronous or synchronous motors 08: Lexium BRS 3 stepper motor 09: Lexium Ilx integrated drive 10: Lexium BMH servo motors 11: Modicon remote I/O 12: Osisense electronic sensors Schneider Electric – Global Marketing – CGD – April 2011 7

2 ranges to meet your installation requirements Schneider Electric – Global Marketing – CGD – April 2011 8

Lexium SD 2: a 2 -phase range for small machines • Types of machines • • Small labelling machine Medical and laboratory machines Electronic card assembly machines Spinning machines, etc. • Numerous communication interfaces for programming or control: • RS 485, CANopen, Pulse/Direction • Motor compatibility: • Compatible with the Lexium BRS 2 range of two-phase stepper motors 9. 2 Nm) Schneider Electric – Global Marketing – CGD – April 2011 (up to 9

Lexium SD 3: a 3 -phase range for higher power machines • A rugged range for: • Printing machines • Material handling machines • Milling machines, turning machines, etc. • Scanners • Packaging machines, etc. . • More openness to networks: • CANopen, Modbus, PROFIBUS DP and CANmotion (on Lexium SD 3 28) • Integrated EMC filter • to protect the installation and generate savings • Motor compatibility: • Compatible with the Lexium BRS 3 range of three-phase stepper motors (up to 19. 7 Nm) • Greater safety with «Safe Torque Off» function • Integrated in the Lexium SD 3 28, • Optional on the other products of the range Schneider Electric – Global Marketing – CGD – April 2011 10

A complete range of stepper drives & motors ● 2 ranges: 2 & 3 -phase ● For applications requiring high precision & positioning: ● scanning ● pick & place ● labelling ● printing ● material handling, ● Etc. ● Plug & Play ● Improve motor efficiency Lexium SD 2 Schneider Electric – Global Marketing – CGD – April 2011 Lexium SD 3 11
