Introducing Agilus 30 üA new base-line in rubber-like Poly. Jet materials üThe Agilus 30 family includes the following basic materials: ü Agilus 30 - a translucent material with a Shore A hardness of 30. ü Agilus 30 Black - a black material with a Shore A hardness of 30. üProvides new levels of RP design verification and a further step towards RP functional performance üProviding superior tear-resistance, elongation, feel and ease-of-use üEnabling a new, enhanced range of Digital Materials from Shore 30: (including 40, 50, 60, 70, 85 & 95) üCompatible with Soluble support (SUP 706) (Peeling and Water Jet only – not hands-free) üQ 1 – Availability for Objet 260, 350 & 500 Connex 1, 2, 3 platforms only üRequires upgrade to OS 9. 2. 11. 6785 and up 2 STRATASYS / THE 3 D PRINTING SOLUTIONS COMPANY

Agilus 30 Key Applications 3 STRATASYS / THE 3 D PRINTING SOLUTIONS COMPANY

Applications for Agilus 30 Practical applications for Agilus 30 materials include: q Realistic simulation of rubber parts q Soft-touch parts and non-slip surfaces q Rubber-like surrounds and over molding q Knobs, grips, seals, gaskets, hoses, handles, etc. q Footwear & clothing q Masks and Covers 4 STRATASYS / THE 3 D PRINTING SOLUTIONS COMPANY

Agilus 30 Specs 5 STRATASYS / THE 3 D PRINTING SOLUTIONS COMPANY

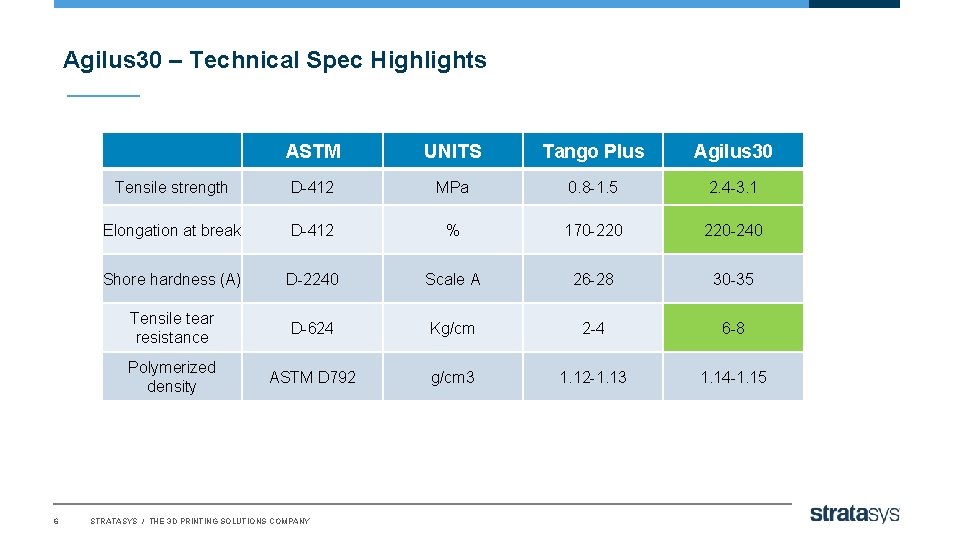

Agilus 30 – Technical Spec Highlights 6 ASTM UNITS Tango Plus Agilus 30 Tensile strength D-412 MPa 0. 8 -1. 5 2. 4 -3. 1 Elongation at break D-412 % 170 -220 220 -240 Shore hardness (A) D-2240 Scale A 26 -28 30 -35 Tensile tear resistance D-624 Kg/cm 2 -4 6 -8 Polymerized density ASTM D 792 g/cm 3 1. 12 -1. 13 1. 14 -1. 15 STRATASYS / THE 3 D PRINTING SOLUTIONS COMPANY

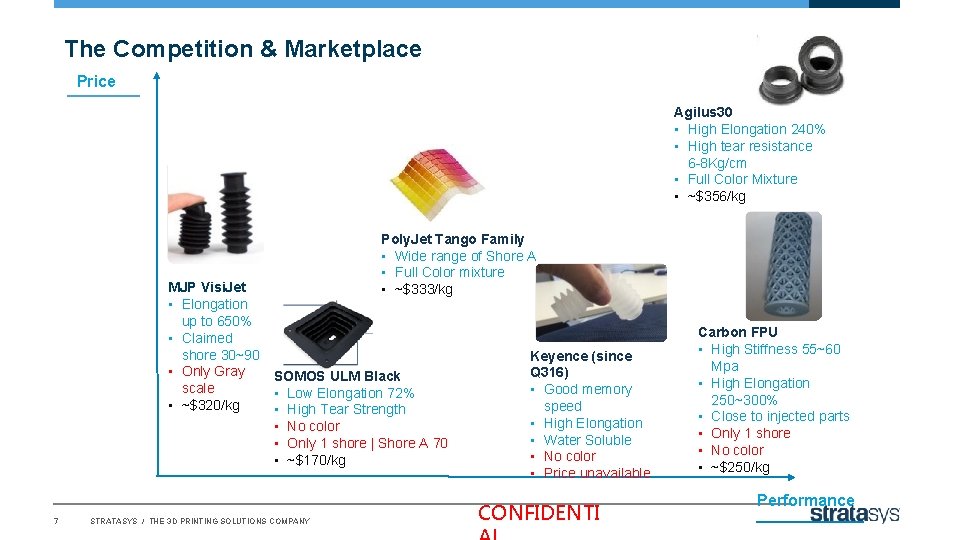

The Competition & Marketplace Price Agilus 30 • High Elongation 240% • High tear resistance 6 -8 Kg/cm • Full Color Mixture • ~$356/kg Poly. Jet Tango Family • Wide range of Shore A • Full Color mixture • ~$333/kg MJP Visi. Jet • Elongation up to 650% • Claimed shore 30~90 • Only Gray SOMOS ULM Black scale • Low Elongation 72% • ~$320/kg • High Tear Strength • No color • Only 1 shore | Shore A 70 • ~$170/kg 7 STRATASYS / THE 3 D PRINTING SOLUTIONS COMPANY Keyence (since Q 316) • Good memory speed • High Elongation • Water Soluble • No color • Price unavailable CONFIDENTI Carbon FPU • High Stiffness 55~60 Mpa • High Elongation 250~300% • Close to injected parts • Only 1 shore • No color • ~$250/kg Performance

Agilus 30 Digital Materials 10 STRATASYS / THE 3 D PRINTING SOLUTIONS COMPANY

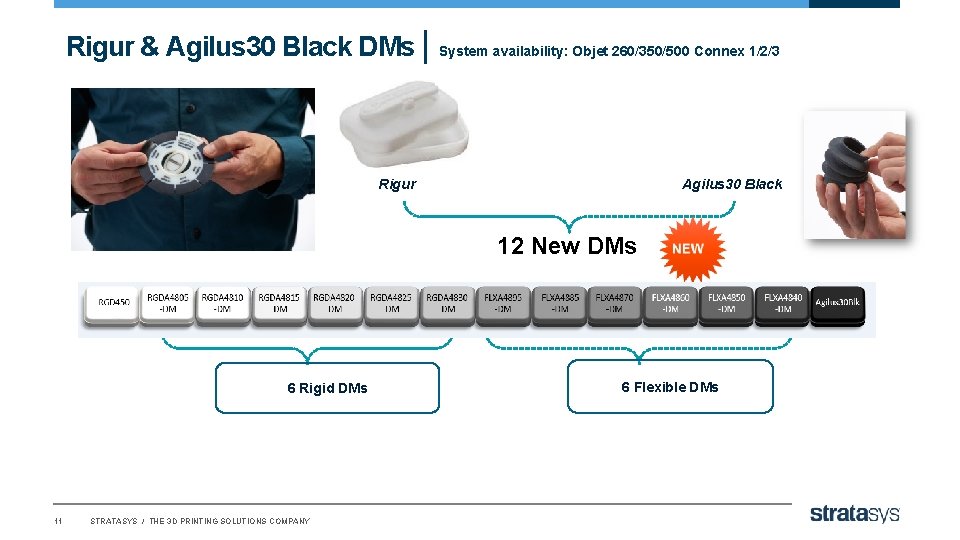

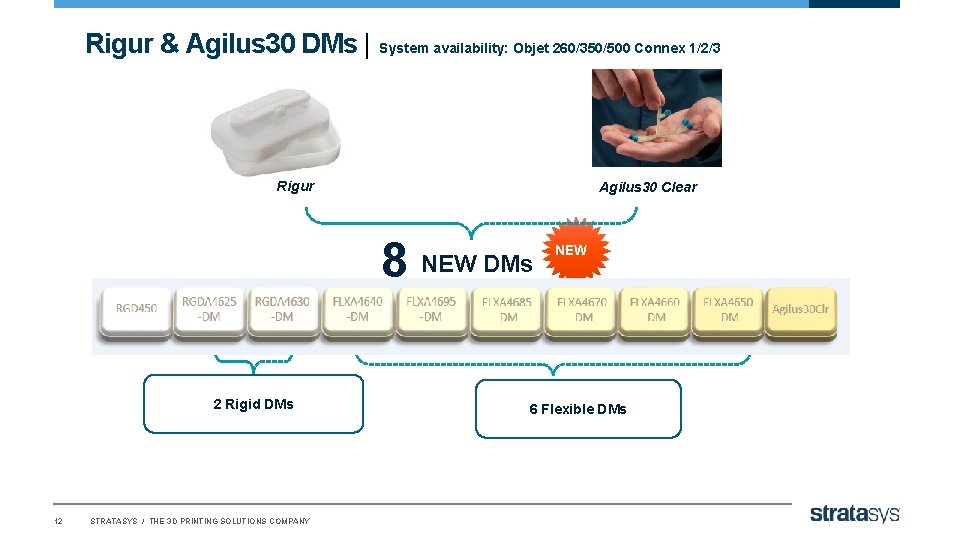

Rigur & Agilus 30 Black DMs | System availability: Objet 260/350/500 Connex 1/2/3 Rigur Agilus 30 Black 12 New DMs 6 Rigid DMs 11 STRATASYS / THE 3 D PRINTING SOLUTIONS COMPANY 6 Flexible DMs

Rigur & Agilus 30 DMs | System availability: Objet 260/350/500 Connex 1/2/3 Rigur Agilus 30 Clear 8 NEW DMs 2 Rigid DMs 12 STRATASYS / THE 3 D PRINTING SOLUTIONS COMPANY NEW 6 Flexible DMs

Color in Flexible & More… Darker is Harder! Rubber-like and rigid color combinations in 6 new palettes • Palettes combining a wide range of Shore A values (30 -95) 4 new rigid black, white and color/clear palettes Choice of 10 more palettes 13 STRATASYS / THE 3 D PRINTING SOLUTIONS COMPANY

Printing Recommendations and Tips 14 STRATASYS / THE 3 D PRINTING SOLUTIONS COMPANY

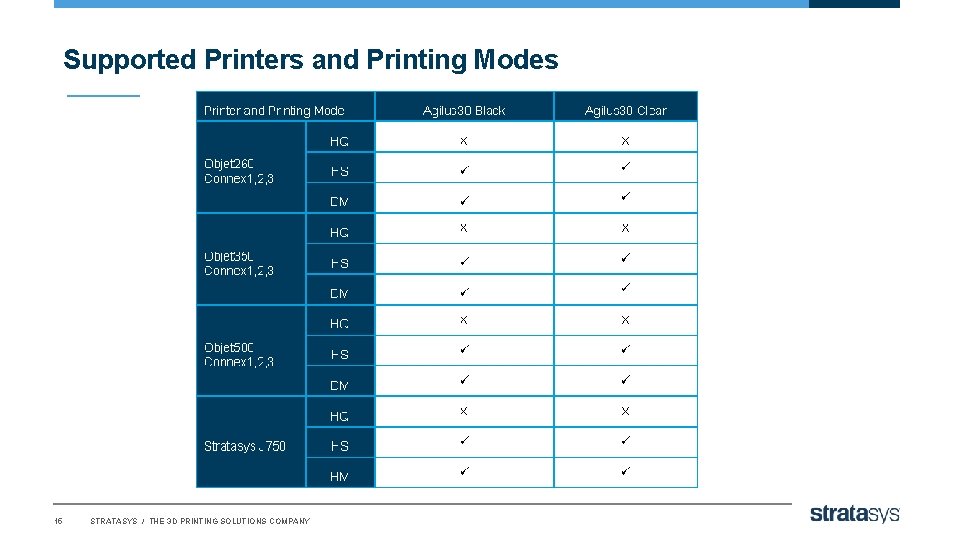

Supported Printers and Printing Modes 15 STRATASYS / THE 3 D PRINTING SOLUTIONS COMPANY

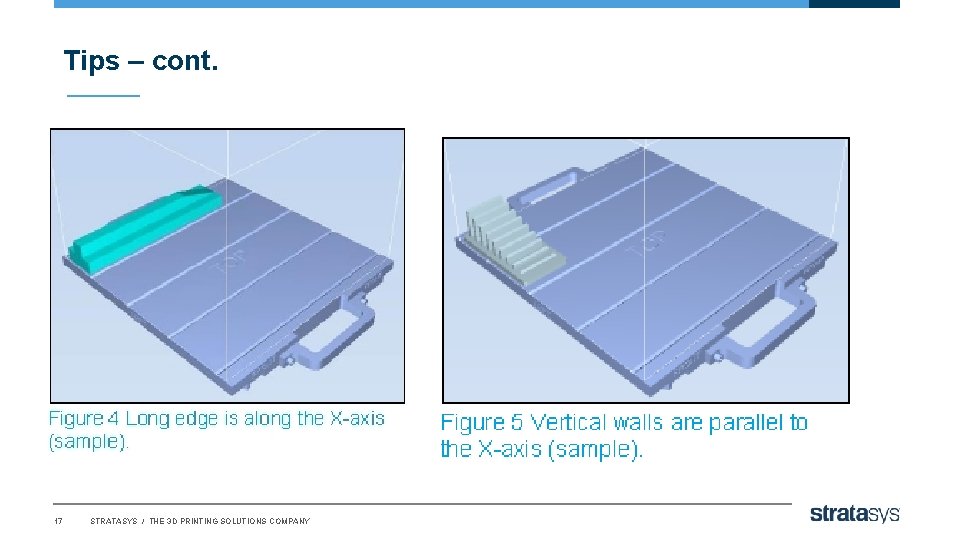

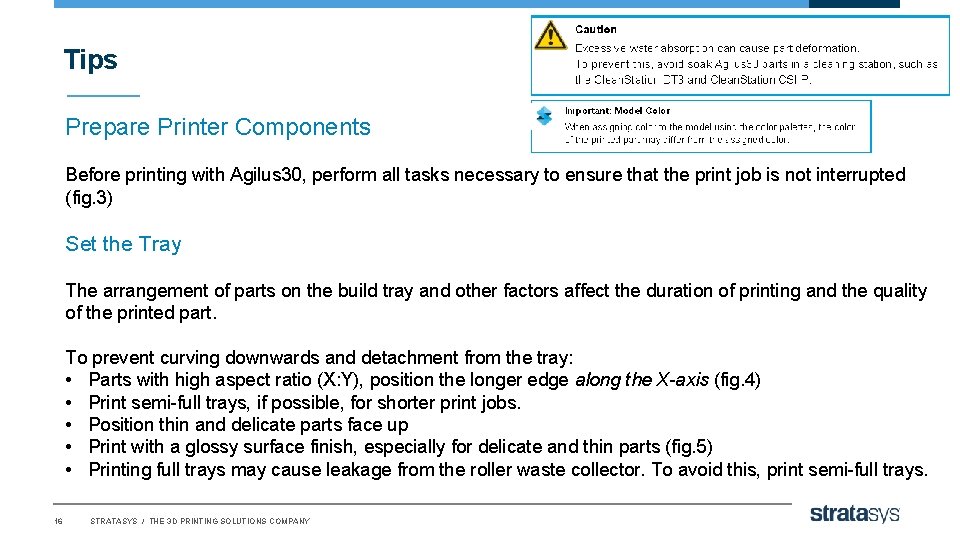

Tips Prepare Printer Components Before printing with Agilus 30, perform all tasks necessary to ensure that the print job is not interrupted (fig. 3) Set the Tray The arrangement of parts on the build tray and other factors affect the duration of printing and the quality of the printed part. To prevent curving downwards and detachment from the tray: • Parts with high aspect ratio (X: Y), position the longer edge along the X-axis (fig. 4) • Print semi-full trays, if possible, for shorter print jobs. • Position thin and delicate parts face up • Print with a glossy surface finish, especially for delicate and thin parts (fig. 5) • Printing full trays may cause leakage from the roller waste collector. To avoid this, print semi-full trays. 16 STRATASYS / THE 3 D PRINTING SOLUTIONS COMPANY

Tips – cont. 17 STRATASYS / THE 3 D PRINTING SOLUTIONS COMPANY

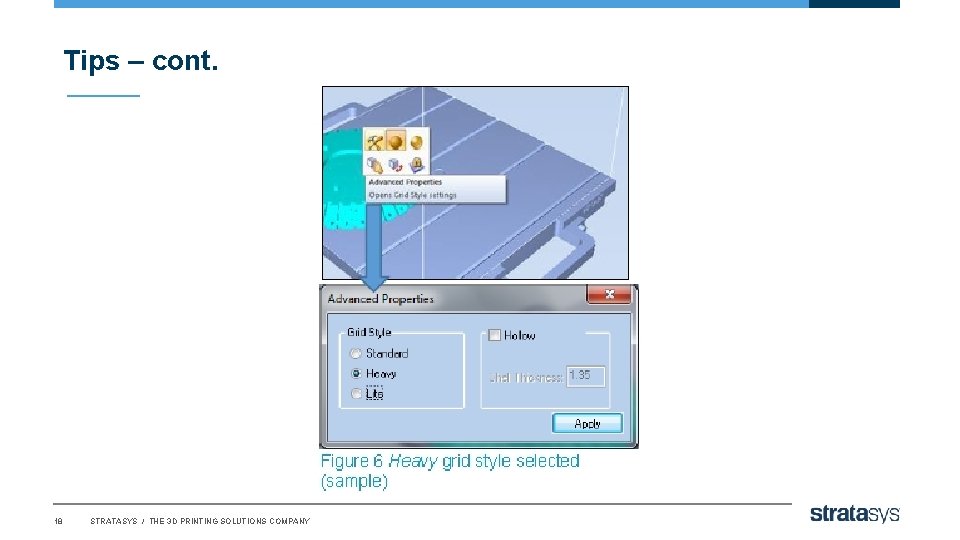

Tips – cont. 18 STRATASYS / THE 3 D PRINTING SOLUTIONS COMPANY

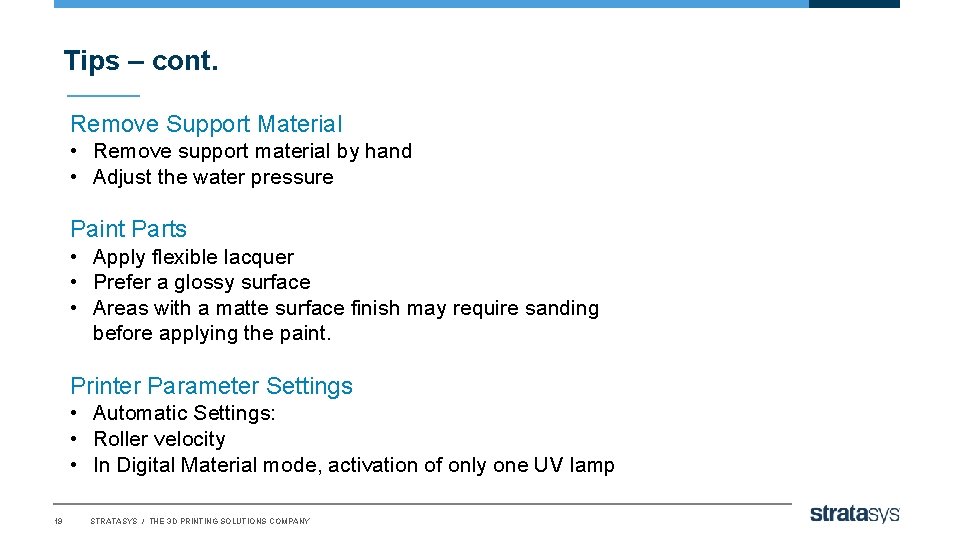

Tips – cont. Remove Support Material • Remove support material by hand • Adjust the water pressure Paint Parts • Apply flexible lacquer • Prefer a glossy surface • Areas with a matte surface finish may require sanding before applying the paint. Printer Parameter Settings • Automatic Settings: • Roller velocity • In Digital Material mode, activation of only one UV lamp 19 STRATASYS / THE 3 D PRINTING SOLUTIONS COMPANY

Agilus 30 Sample Parts 20 STRATASYS / THE 3 D PRINTING SOLUTIONS COMPANY

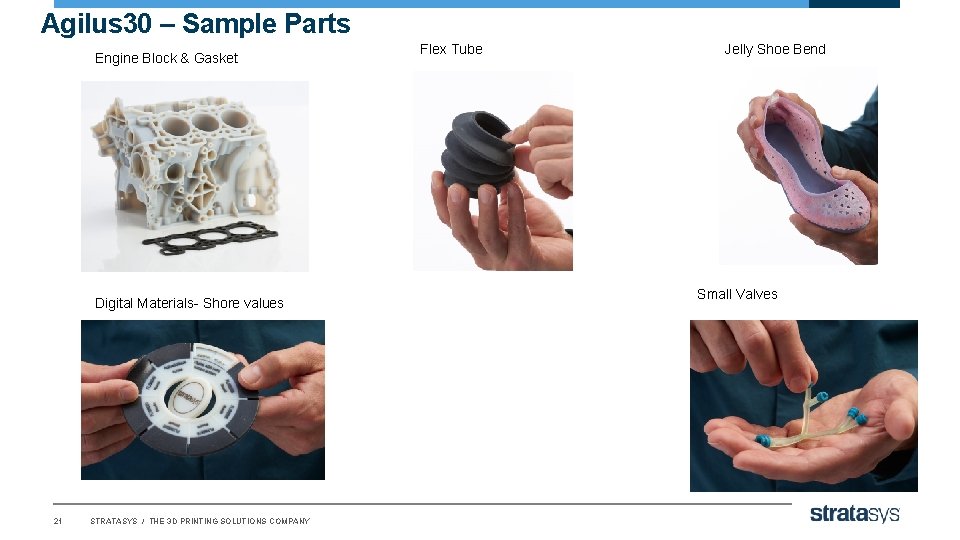

Agilus 30 – Sample Parts Engine Block & Gasket Digital Materials- Shore values 21 STRATASYS / THE 3 D PRINTING SOLUTIONS COMPANY Flex Tube Jelly Shoe Bend Small Valves

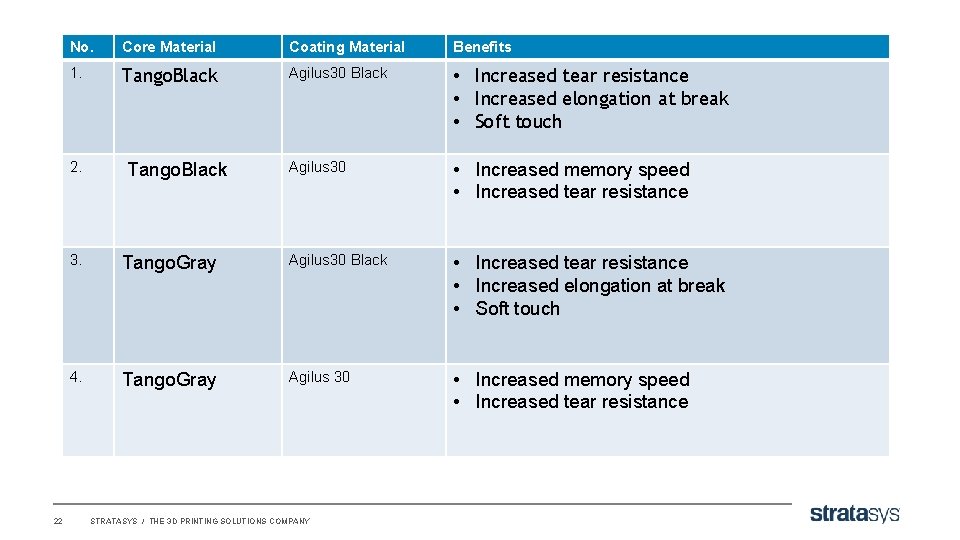

No. Core Material Coating Material Benefits 1. Tango. Black Agilus 30 Black • Increased tear resistance • Increased elongation at break • Soft touch Agilus 30 • Increased memory speed • Increased tear resistance 2. 22 Tango. Black 3. Tango. Gray Agilus 30 Black • Increased tear resistance • Increased elongation at break • Soft touch 4. Tango. Gray Agilus 30 • Increased memory speed • Increased tear resistance STRATASYS / THE 3 D PRINTING SOLUTIONS COMPANY
