Aditya Kurulkar HTE Google March 16 th 2016

Aditya Kurulkar HTE (Google) March 16 th 2016 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 1

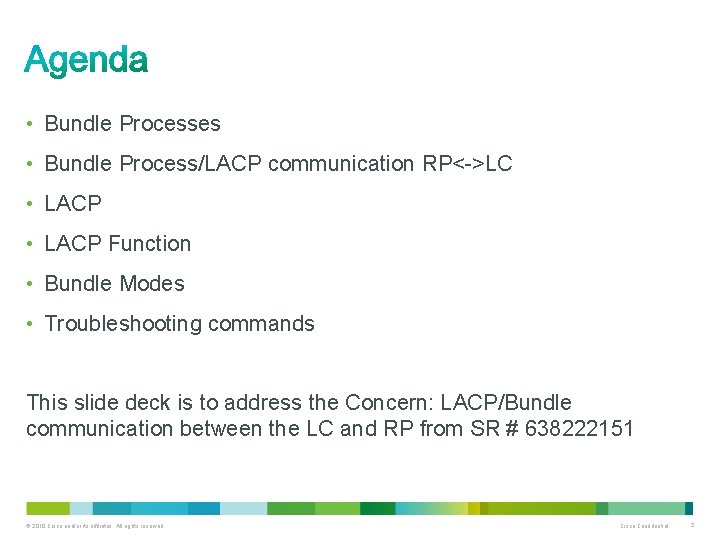

• Bundle Processes • Bundle Process/LACP communication RP<->LC • LACP Function • Bundle Modes • Troubleshooting commands This slide deck is to address the Concern: LACP/Bundle communication between the LC and RP from SR # 638222151 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 2

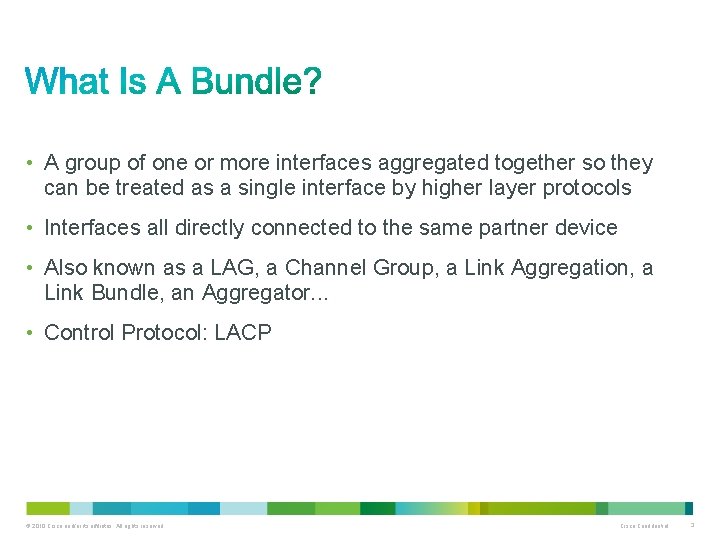

• A group of one or more interfaces aggregated together so they can be treated as a single interface by higher layer protocols • Interfaces all directly connected to the same partner device • Also known as a LAG, a Channel Group, a Link Aggregation, a Link Bundle, an Aggregator. . . • Control Protocol: LACP © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 3

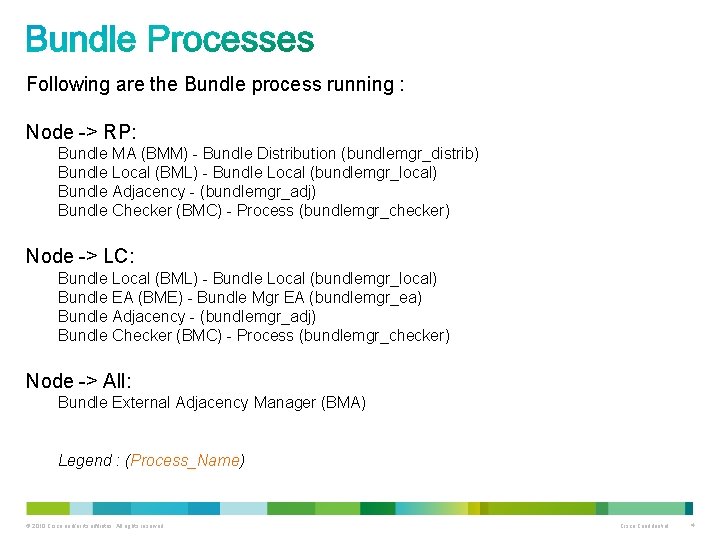

Following are the Bundle process running : Node -> RP: Bundle MA (BMM) - Bundle Distribution (bundlemgr_distrib) Bundle Local (BML) - Bundle Local (bundlemgr_local) Bundle Adjacency - (bundlemgr_adj) Bundle Checker (BMC) - Process (bundlemgr_checker) Node -> LC: Bundle Local (BML) - Bundle Local (bundlemgr_local) Bundle EA (BME) - Bundle Mgr EA (bundlemgr_ea) Bundle Adjacency - (bundlemgr_adj) Bundle Checker (BMC) - Process (bundlemgr_checker) Node -> All: Bundle External Adjacency Manager (BMA) Legend : (Process_Name) © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 4

Bundle MA (BMM): • Processes the configuration; Creates the bundle in IM (Interface Manager) • Replicates a bundle to its members (via IM) • Publishes the BMI attribute • Informing the BML process of per-link information, including LACP state via GSP (Group Services Protocol) • Runs various LACP state machines for bundles and bundle members © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 5

Bundle Config BMM le nd ted Bu rea c Sys. DB IM (RP) BMA BMI attribute published IM (LC) RP LC BMA © 2010 Cisco and/or its affiliates. All rights reserved. BMA Platform DLL Cisco Confidential 6

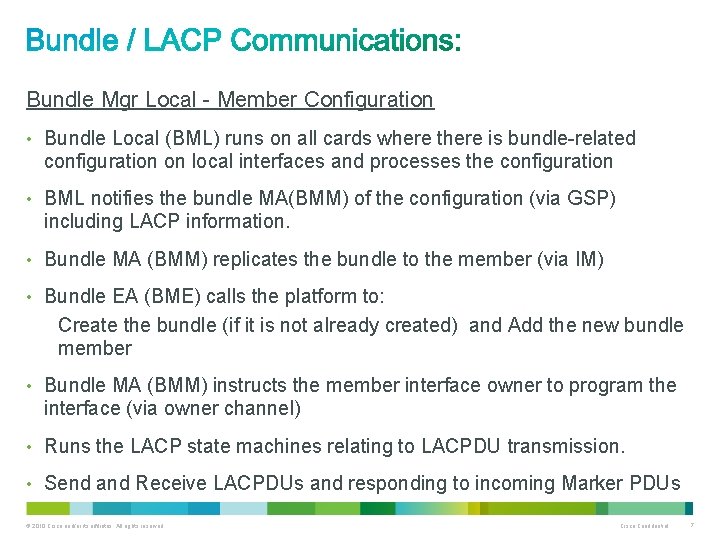

Bundle Mgr Local - Member Configuration • Bundle Local (BML) runs on all cards where there is bundle-related configuration on local interfaces and processes the configuration • BML notifies the bundle MA(BMM) of the configuration (via GSP) including LACP information. • Bundle MA (BMM) replicates the bundle to the member (via IM) • Bundle EA (BME) calls the platform to: Create the bundle (if it is not already created) and Add the new bundle member • Bundle MA (BMM) instructs the member interface owner to program the interface (via owner channel) • Runs the LACP state machines relating to LACPDU transmission. • Send and Receive LACPDUs and responding to incoming Marker PDUs © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 7

Da Bu ta nd Se le nt M to A Bundle Config Processed Sys. DB BML © 2010 Cisco and/or its affiliates. All rights reserved. BMM GSP (RP) IM (RP) GSP (LC) IM (LC) Interface programmed Interface Owner RP Net. IO BME LC BME Platform DLL Bundle replicated to member Cisco Confidential 8

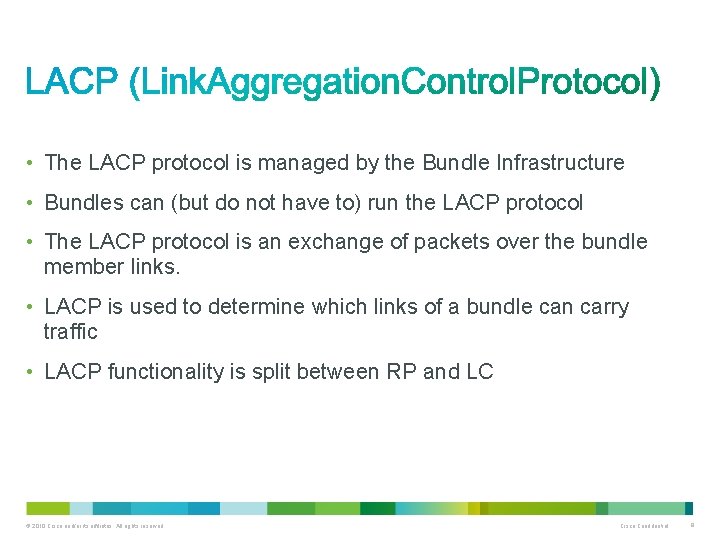

• The LACP protocol is managed by the Bundle Infrastructure • Bundles can (but do not have to) run the LACP protocol • The LACP protocol is an exchange of packets over the bundle member links. • LACP is used to determine which links of a bundle can carry traffic • LACP functionality is split between RP and LC © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 9

• LACP ensures : 1. The links in the bundle all terminate on the same partner device 2. The links are all configured to be in the same bundle on the partner device 3. The partner device is likely to be ready to receive traffic on the links • Information is exchanged between devices in LACPDUs (LACP packets) on each link • LACPDUs exchanged periodically as a heartbeat mechanism © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 10

• A Link Aggregation Group consists of either One or more links such that 1. All links terminate in the same pair of systems 2. All ports belong to the same key group on each system • Membership of a LAG is determined by the LAGID • The LAGID for a link is constructed from the following parameters from the two systems it connects The system identifier The (operational) key assigned to the port The port identifier, if the link is identified as an Individual link • Ports with the same LAGID can be attached to an aggregator (bundle) with a matching key © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 11

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 12

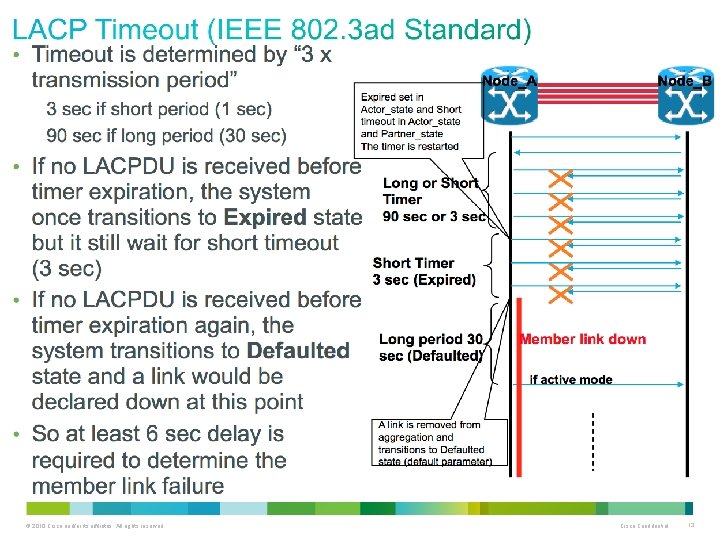

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 13

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 14

• The Bundle “mode” defines if LACP is sent/received; listen-only or disabled. • “Active” Bundle Member will always send out periodic LACPDUs to its partner, and will start negotiations when it receives a response. • “Passive” LACPDUs are only sent if an active LACP partner is believed to be present; i. e. if a LACP packet has been received and is marked to indicate that the partner is "active", and the partner has not timed out. This means that if a link is configured to be "passive" at both ends, the link will not go active • “On” Does not run LACP on the local link. (Note: these links will be used in forwarding traffic only if all the links in the bundle (local and peer node) are configured to be mode “on”) © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 15

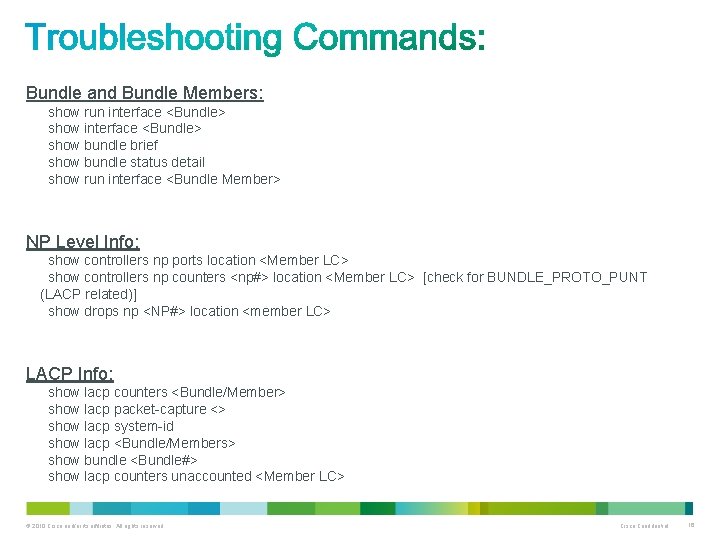

Bundle and Bundle Members: show run interface <Bundle> show bundle brief show bundle status detail show run interface <Bundle Member> NP Level Info: show controllers np ports location <Member LC> show controllers np counters <np#> location <Member LC> [check for BUNDLE_PROTO_PUNT (LACP related)] show drops np <NP#> location <member LC> LACP Info: show lacp counters <Bundle/Member> show lacp packet-capture <> show lacp system-id show lacp <Bundle/Members> show bundle <Bundle#> show lacp counters unaccounted <Member LC> © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 16

Internal: show gsp stats clien process 130 location <Member LC> show gsp groups location <Member LC> show process location <Member LC> | i bund [Lists the Bundle process on the LC] show process location 0/rp 0/CPU 0 | i bund [Lists the Bundle process on the RP] Show-tech: Show tech bundle Show tech gsp Show tech sysdb Debug: debug lacp packets <Bundle Member> decode [Checking the LACP exchange between 2 nodes: ] debug bundle infrastructure local all location <member LC> [LACP communication between LC and RP Bundle process] © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 17
