A rectangular loop is placed in a uniform magnetic field with the plane of the loop perpendicular to the direction of the field. If a current is made to flow through the loop in the sense shown by the arrows, the field exerts on the loop: I 1. a net force. 2. a net torque. 3. a net force and a net torque. 4. neither a net force nor a net torque. PI
A rectangular loop is placed in a uniform magnetic field with the plane of the loop parallel to the direction of the field. If a current is made to flow through the loop in the sense shown by the arrows, the field exerts on the loop: I 1. a net force. 2. a net torque. 3. a net force and a net torque. 4. neither a net force nor a net torque. PI
What is for this current loop?
A rectangular loop of wire carries a current I in a magnetic field Which of the following gives the torque on the loop?
i o Loop area = A θ 1. What is the magnetic flux through the wire loop of area A above? (a) AB (b) AB cosθ (c) AB sinθ (d) zero 2. If θ is increased, which direction does the induced current flow in the wire loop? (a) i (b) o 3. If θ is constant but B = B 0 + αt, which direction does the induced current flow? (a) i (b) o
i o Loop area = A θ Φ = BA cosθ. If θ is increased, what is the expression for the induced voltage around the loop? (a) V = B cosθ d. A/dt (b) V = A cosθ d. B/dt (b) V = AB d cosθ /dt
A sphere of radius R is placed near a long, straight wire that carries a steady current I. The magnetic field generated by the current at the sphere is B. The total magnetic flux passing through the sphere is (a) μ 0 I (b) μ 0 I/(4πR 2) (c) 4πR 2 μ 0 I (d) zero (e) need more information
A uniform magnetic field is directed into the screen as shown below. A loop of wire is moved to the right through this field. Does the magnetic flux through the loop, into the screen, (a) increase (b) decrease (c) remain the same

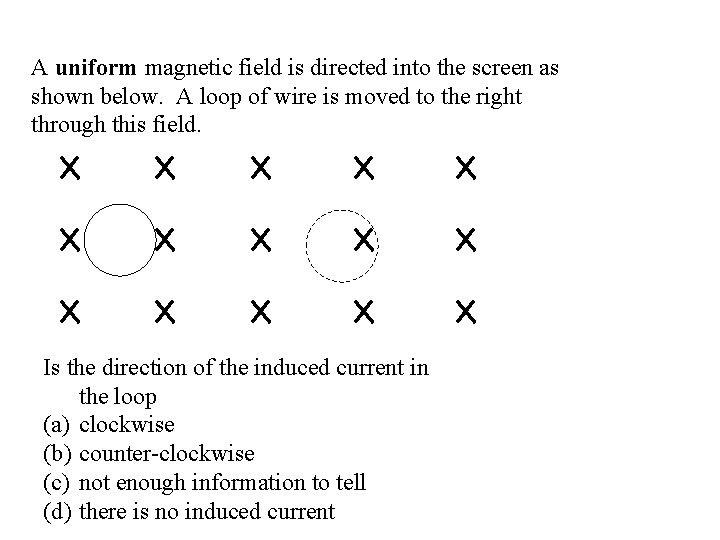

A uniform magnetic field is directed into the screen as shown below. A loop of wire is moved to the right through this field. Is the direction of the induced current in the loop (a) clockwise (b) counter-clockwise (c) not enough information to tell (d) there is no induced current
A non-uniform magnetic field is directed into the screen as shown below. A loop of wire is moved to the right through this field. Does the magnetic flux through the loop, into the screen, (a) increase (b) decrease (c) remain the same
A non-uniform magnetic field is directed into the screen as shown below. A loop of wire is moved to the right through this field. Is the direction of the induced current in the loop (a) clockwise (b) counter-clockwise (c) not enough information to tell (d) there is no induced current
Consider a square loop made of 4 equal length conducting rods in a uniform magnetic field in to the screen 1. If the corners ‘a’ and ‘b’ are pulled apart, does the magnetic flux through the loop 2. (a) decrease 3. (c) stay the same (b) increase 2. Is the induced current in the loop (a) clockwise (b) counter-clockwise (c) there is no induced current
Is there an induced current in this circuit? If so, what is its direction? 1. Yes, clockwise 2. Yes, counterclockwise 3. No From Knight
A current-carrying wire is pulled away from a conducting loop in the direction shown. As the wire is moving, there is (a) a clockwise current around the loop (b) a counterclockwise current around the loop (c) no current around the loop From Knight
A conducting loop is halfway into a magnetic field. Suppose the magnetic field begins to increase rapidly in strength. What happens to the loop? (a) The loop is pushed toward the top of the screen. (b) The loop is pushed toward the bottom of the page. (c) The loop is pushed to the left. (d) The loop is pushed to the right. (e) The tension is the wires increases but the loop does not move. From Knight
In the figure below, when the bar magnet is inserted into the coil, is the direction shown for induced current I (a) correct? (b) reversed? (c) No current is induced in the coil.
As the wire loop begins to enter the field of the magnet, is the current in the loop a) Zero b) directed as shown c) directed opposite to what is shown?
For the situation on the right, which plot best represents the magnetic flux through the loop?

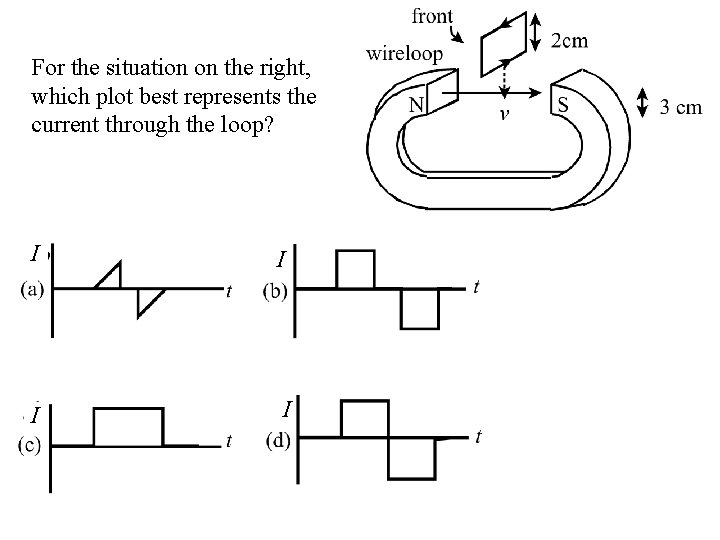

For the situation on the right, which plot best represents the current through the loop? I I
