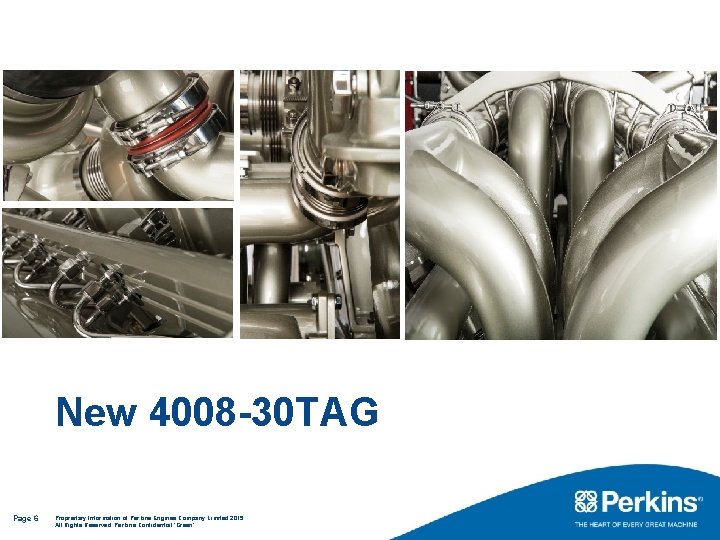

New 4008 -30 TAG Page 6 Proprietary Information of Perkins Engines Company Limited 2015

4008 -30 TAG 3 key power nodes Tropical cooling pack as standard Performance optimised

4008 -30 TAG Delivering more power from a reliable / proven platform 4008 -30

Over 13% more power. 4008 -30 TAG - Power Nodes Moving from good to

4008 -30 TAG – Performance Overview Improved performance Fuel Load acceptance consumption maintaining capability

More power nodes Performance Improvements Standby Prime 4008 TAG 1 4008 -30 TAG 1

Building on a Reliable Core Branch manifolds with band clamped exhaust bellows Inlet manifolds

4008 -30 TAG 2 vs Key Competition 50 Hz Manufacturer Model Cylinders Number Displacement

4008 -30 TAG 3 vs Key Competition 50 Hz Manufacturer Model Cylinders Number Displacement

Take to Market Material Electropak Build Lists: 4008 -30 TAG 1 – DGAH 8644

4008 -30 TAG Increased power and performance from a proven reliable core. Page 16

Slides: 16

Download presentation

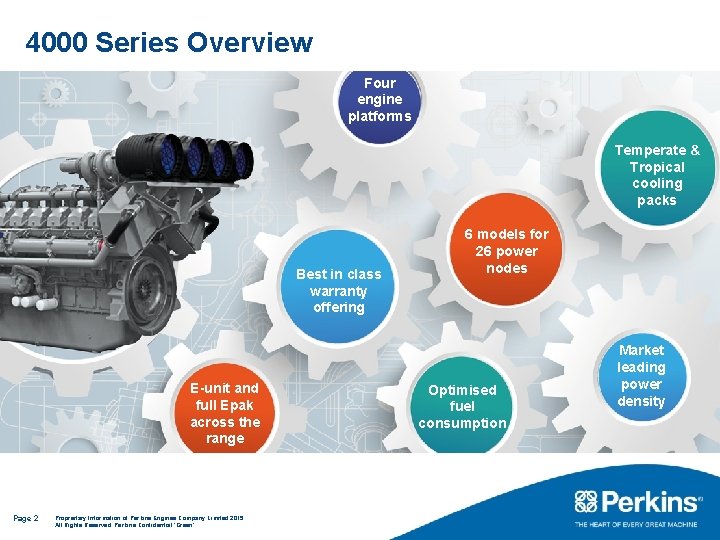

4000 Series Overview Four engine platforms Temperate & Tropical cooling packs Best in class warranty offering E-unit and full Epak across the range Page 2 Proprietary Information of Perkins Engines Company Limited 2015 All Rights Reserved. Perkins Confidential ‘Green’ 6 models for 26 power nodes Optimised fuel consumption Market leading power density

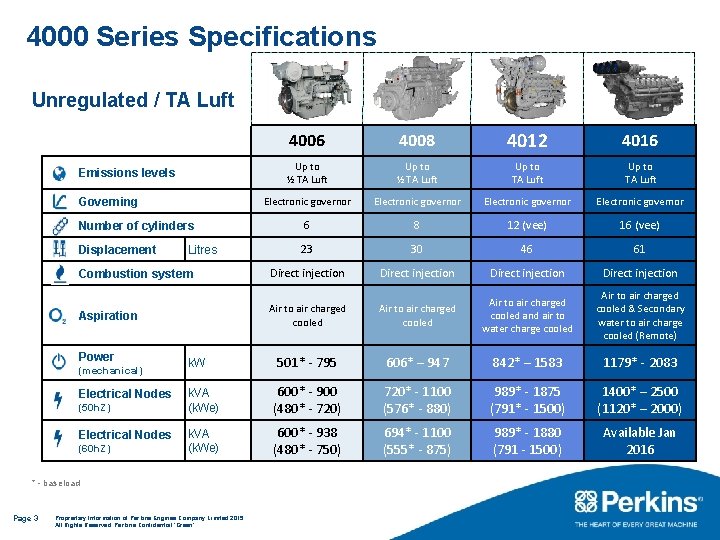

4000 Series Specifications Unregulated / TA Luft 4006 4008 4012 4016 Up to ½ TA Luft Up to TA Luft Electronic governor Number of cylinders 6 8 12 (vee) 16 (vee) Displacement 23 30 46 61 Direct injection Air to air charged cooled and air to water charge cooled Air to air charged cooled & Secondary water to air charge cooled (Remote) 501* - 795 606* – 947 842* – 1583 1179* - 2083 k. VA (k. We) 600* - 900 (480* - 720) 720* - 1100 (576* - 880) 989* - 1875 (791* - 1500) 1400* – 2500 (1120* – 2000) k. VA (k. We) 600* - 938 (480* - 750) 694* - 1100 (555* - 875) 989* - 1880 (791 - 1500) Available Jan 2016 Emissions levels Governing Litres Combustion system Aspiration Power (mechanical) Electrical Nodes (50 h. Z) Electrical Nodes (60 h. Z) k. W * - baseload Page 3 Proprietary Information of Perkins Engines Company Limited 2015 All Rights Reserved. Perkins Confidential ‘Green’

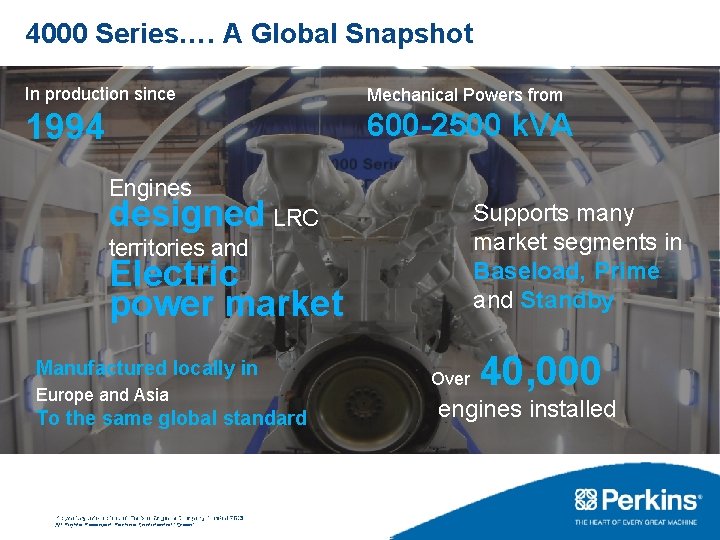

4000 Series…. A Global Snapshot In production since Mechanical Powers from 1994 600 -2500 k. VA Engines designed LRC Supports many market segments in Baseload, Prime and Standby territories and Electric power market Manufactured locally in Europe and Asia To the same global standard Page 4 Proprietary Information of Perkins Engines Company Limited 2015 Copyright © Proprietary Information of Perkins Engines Company All Rights Reserved. Perkins Confidential ‘Green’ Over 40, 000 engines installed

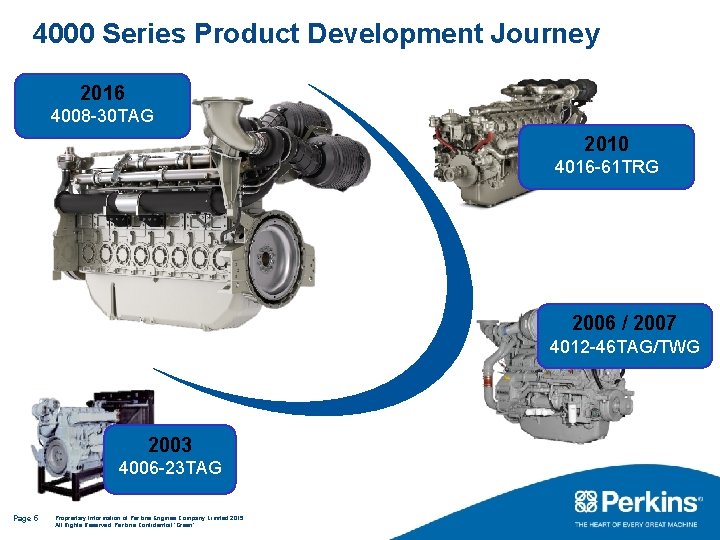

4000 Series Product Development Journey 2016 4008 -30 TAG 2010 4016 -61 TRG 2006 / 2007 4012 -46 TAG/TWG 2003 4006 -23 TAG Page 5 Proprietary Information of Perkins Engines Company Limited 2015 All Rights Reserved. Perkins Confidential ‘Green’

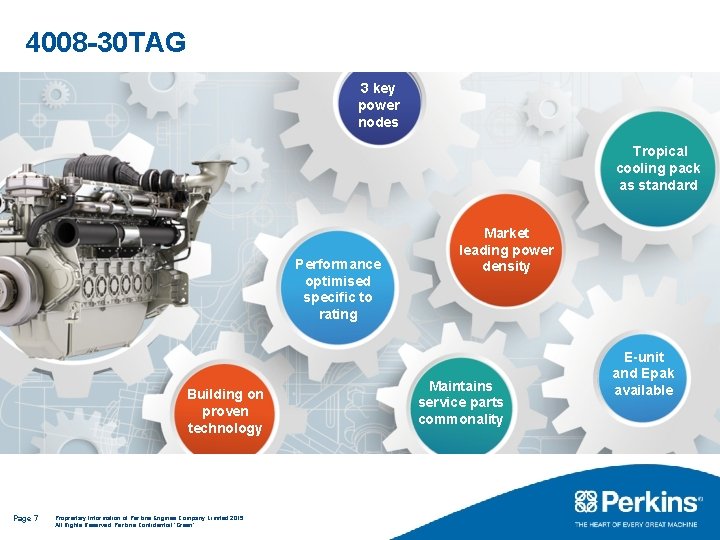

4008 -30 TAG 3 key power nodes Tropical cooling pack as standard Performance optimised specific to rating Building on proven technology Page 7 Proprietary Information of Perkins Engines Company Limited 2015 All Rights Reserved. Perkins Confidential ‘Green’ Market leading power density Maintains service parts commonality E-unit and Epak available

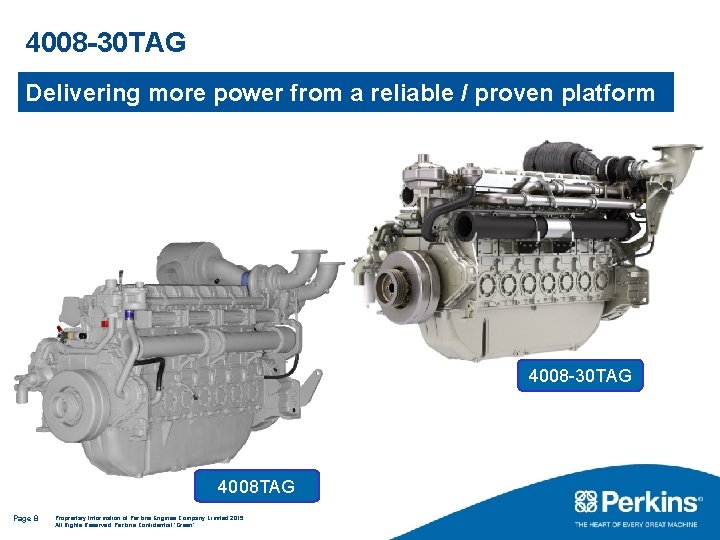

4008 -30 TAG Delivering more power from a reliable / proven platform 4008 -30 TAG 4008 TAG Page 8 Proprietary Information of Perkins Engines Company Limited 2015 All Rights Reserved. Perkins Confidential ‘Green’

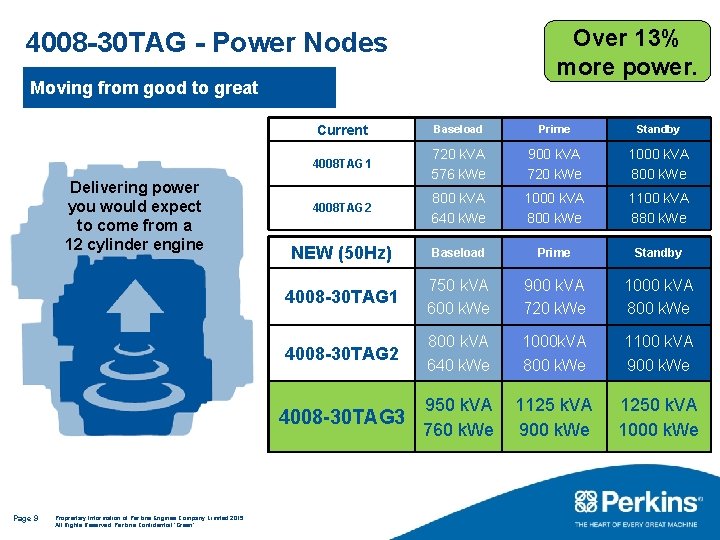

Over 13% more power. 4008 -30 TAG - Power Nodes Moving from good to great Delivering power you would expect to come from a 12 cylinder engine Current Baseload Prime Standby 4008 TAG 1 720 k. VA 576 k. We 900 k. VA 720 k. We 1000 k. VA 800 k. We 4008 TAG 2 800 k. VA 640 k. We 1000 k. VA 800 k. We 1100 k. VA 880 k. We NEW (50 Hz) Baseload Prime Standby 4008 -30 TAG 1 750 k. VA 600 k. We 900 k. VA 720 k. We 1000 k. VA 800 k. We 4008 -30 TAG 2 800 k. VA 640 k. We 1000 k. VA 800 k. We 1100 k. VA 900 k. We 1125 k. VA 900 k. We 1250 k. VA 1000 k. We 950 k. VA 4008 -30 TAG 3 760 k. We Page 9 Proprietary Information of Perkins Engines Company Limited 2015 All Rights Reserved. Perkins Confidential ‘Green’

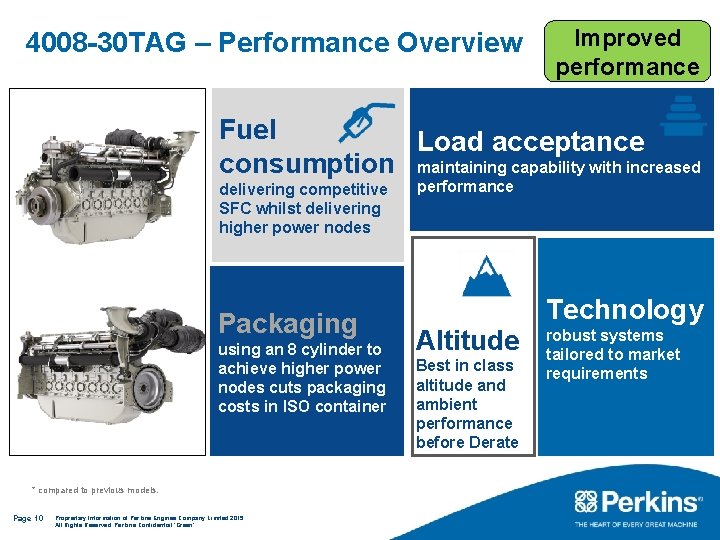

4008 -30 TAG – Performance Overview Improved performance Fuel Load acceptance consumption maintaining capability with increased delivering competitive SFC whilst delivering higher power nodes Packaging using an 8 cylinder to achieve higher power nodes cuts packaging costs in ISO container * compared to previous models. Page 10 Proprietary Information of Perkins Engines Company Limited 2015 All Rights Reserved. Perkins Confidential ‘Green’ performance Altitude Best in class altitude and ambient performance before Derate Technology robust systems tailored to market requirements

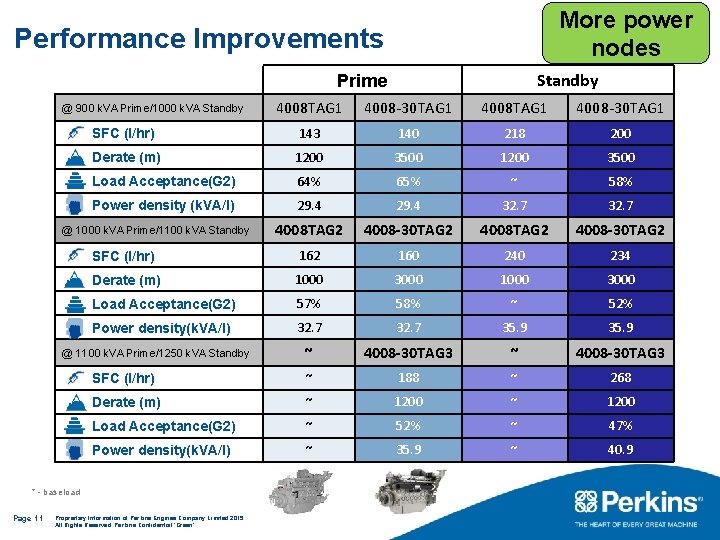

More power nodes Performance Improvements Standby Prime 4008 TAG 1 4008 -30 TAG 1 SFC (l/hr) 143 140 218 200 Derate (m) 1200 3500 Load Acceptance(G 2) 64% 65% ~ 58% Power density (k. VA/l) 29. 4 32. 7 4008 TAG 2 4008 -30 TAG 2 SFC (l/hr) 162 160 240 234 Derate (m) 1000 3000 Load Acceptance(G 2) 57% 58% ~ 52% Power density(k. VA/l) 32. 7 35. 9 ~ 4008 -30 TAG 3 SFC (l/hr) ~ 188 ~ 268 Derate (m) ~ 1200 Load Acceptance(G 2) ~ 52% ~ 47% Power density(k. VA/l) ~ 35. 9 ~ 40. 9 @ 900 k. VA Prime/1000 k. VA Standby @ 1000 k. VA Prime/1100 k. VA Standby @ 1100 k. VA Prime/1250 k. VA Standby * - baseload Page 11 Proprietary Information of Perkins Engines Company Limited 2015 All Rights Reserved. Perkins Confidential ‘Green’

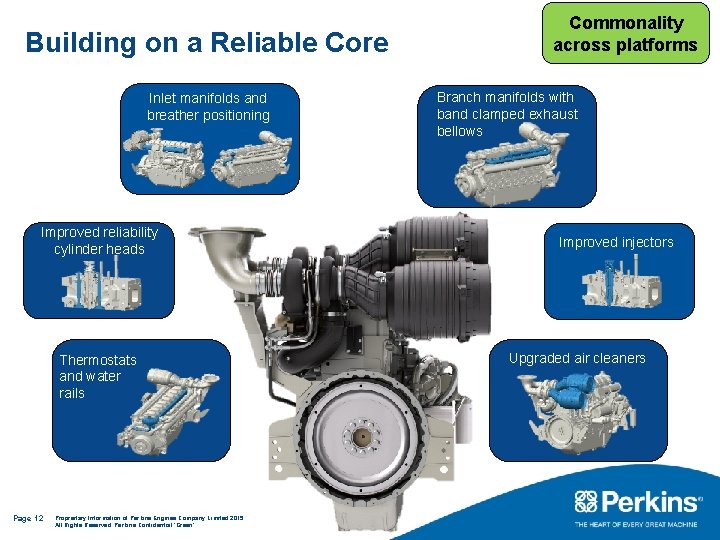

Building on a Reliable Core Branch manifolds with band clamped exhaust bellows Inlet manifolds and breather positioning Improved reliability cylinder heads Thermostats and water rails Page 12 Proprietary Information of Perkins Engines Company Limited 2015 All Rights Reserved. Perkins Confidential ‘Green’ Commonality across platforms Building on a proven core engine Improved injectors Upgraded air cleaners

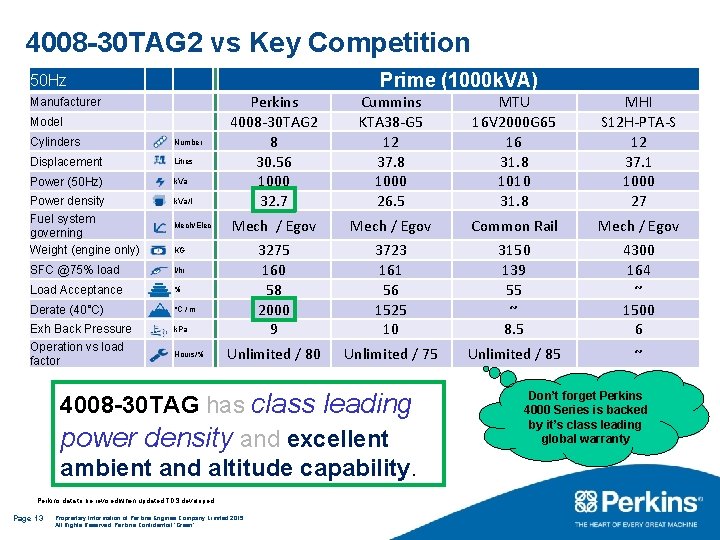

4008 -30 TAG 2 vs Key Competition 50 Hz Manufacturer Model Cylinders Number Displacement Litres Power (50 Hz) k. Va Power density Fuel system governing Weight (engine only) k. Va/l SFC @75% load l/hr Load Acceptance % Derate (40°C) °C / m Exh Back Pressure Operation vs load factor k. Pa Mech/Elec Prime (1000 k. VA) Perkins 4008 -30 TAG 2 8 30. 56 1000 32. 7 Cummins KTA 38 -G 5 12 37. 8 1000 26. 5 MTU 16 V 2000 G 65 16 31. 8 1010 31. 8 MHI S 12 H-PTA-S 12 37. 1 1000 27 Mech / Egov Common Rail Mech / Egov 3275 160 58 2000 9 3723 161 56 1525 10 3150 139 55 ~ 8. 5 4300 164 ~ 1500 6 Unlimited / 80 Unlimited / 75 Unlimited / 85 ~ KG Hours/% 4008 -30 TAG has class leading power density and excellent ambient and altitude capability. Perkins data to be revised when updated TDS developed. Page 13 Proprietary Information of Perkins Engines Company Limited 2015 All Rights Reserved. Perkins Confidential ‘Green’ Don’t forget Perkins 4000 Series is backed by it’s class leading global warranty

4008 -30 TAG 3 vs Key Competition 50 Hz Manufacturer Model Cylinders Number Displacement Litres Power (50 Hz) k. Va Power density Fuel system governing Weight (engine only) k. Va/l SFC @75% load l/hr Load Acceptance % Derate (40°C) °C / m Exh Back Pressure Operation vs load factor k. Pa Mech/Elec Stand by (1250 k. VA) Perkins 4008 -30 TAG 3 8 30. 56 1250 40. 9 Cummins KTA 38 -G 9 12 37. 8 1250 33. 1 MTU 18 V 2000 G 65 18 35. 8 1250 34. 9 MHI S 12 H-PTA-S 12 37. 1 1250 33. 7 Mech / Egov Common Rail Mech / Egov 3275 188 47 1200 8 3730 196 45 600 10 3500 157 50 ~ 5 4300 182 ~ 1500 ? 6 500/80 200/70 500/85 ~ KG Hours/% 4008 -30 TAG has class leading power density and excellent ambient and altitude capability. Perkins data to be revised when updated TDS developed. Page 14 Proprietary Information of Perkins Engines Company Limited 2015 All Rights Reserved. Perkins Confidential ‘Green’ Don’t forget Perkins 4000 Series is backed by it’s class leading global warranty

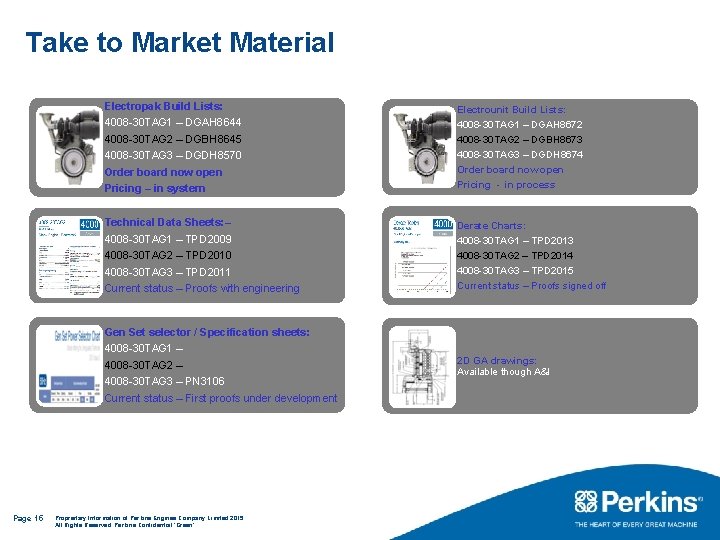

Take to Market Material Electropak Build Lists: 4008 -30 TAG 1 – DGAH 8644 4008 -30 TAG 2 – DGBH 8645 4008 -30 TAG 3 – DGDH 8570 Page 15 Electrounit Build Lists: 4008 -30 TAG 1 – DGAH 8672 Order board now open Pricing – in system 4008 -30 TAG 2 – DGBH 8673 4008 -30 TAG 3 – DGDH 8674 Order board now open Pricing - in process Technical Data Sheets: – 4008 -30 TAG 1 – TPD 2009 4008 -30 TAG 2 – TPD 2010 4008 -30 TAG 3 – TPD 2011 Current status – Proofs with engineering Derate Charts: 4008 -30 TAG 1 – TPD 2013 4008 -30 TAG 2 – TPD 2014 4008 -30 TAG 3 – TPD 2015 Current status – Proofs signed off Gen Set selector / Specification sheets: 4008 -30 TAG 1 – 4008 -30 TAG 2 – 4008 -30 TAG 3 – PN 3106 Current status – First proofs under development 2 D GA drawings: Available though A&I Proprietary Information of Perkins Engines Company Limited 2015 All Rights Reserved. Perkins Confidential ‘Green’
