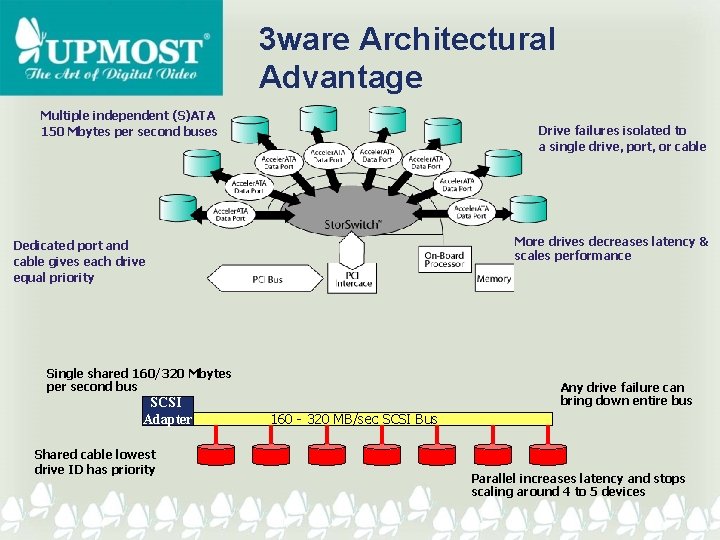

3 ware Architectural Advantage Multiple independent (S)ATA 150 Mbytes per second buses Drive failures isolated to a single drive, port, or cable More drives decreases latency & scales performance Dedicated port and cable gives each drive equal priority Single shared 160/320 Mbytes per second bus SCSI Adapter Shared cable lowest drive ID has priority Any drive failure can bring down entire bus 160 - 320 MB/sec SCSI Bus Parallel increases latency and stops scaling around 4 to 5 devices

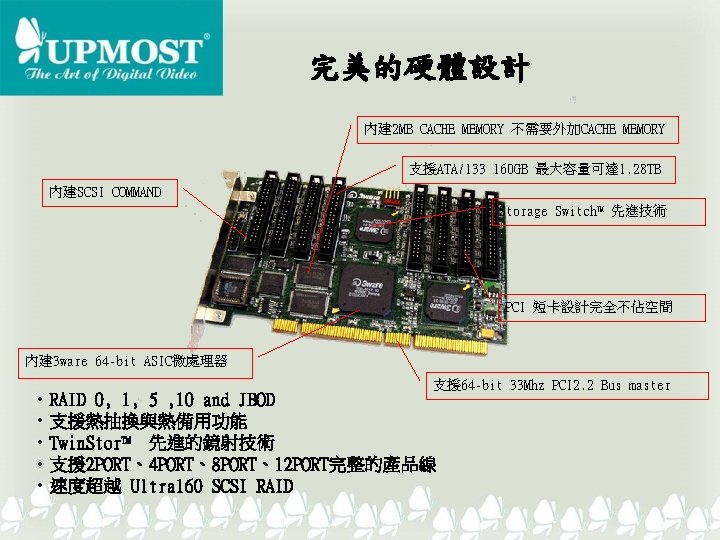

完美的硬體設計 內建 2 MB CACHE MEMORY 不需要外加CACHE MEMORY 支援ATA/133 160 GB 最大容量可達 1. 28 TB 內建SCSI COMMAND Storage Switch™ 先進技術 PCI 短卡設計完全不佔空間 內建 3 ware 64 -bit ASIC微處理器 支援 64 -bit 33 Mhz PCI 2. 2 Bus master • RAID 0, 1, 5 , 10 and JBOD • 支援熱抽換與熱備用功能 • Twin. Stor™ 先進的鏡射技術 • 支援 2 PORT、4 PORT、8 PORT、12 PORT完整的產品線 • 速度超越 Ultra 160 SCSI RAID

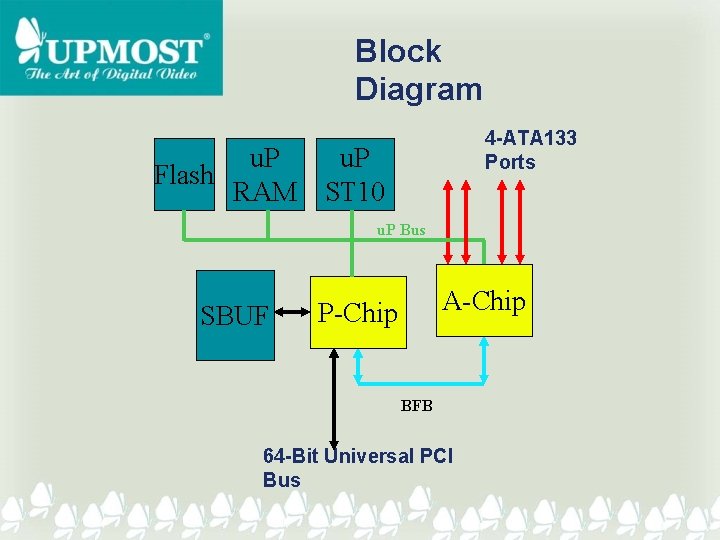

Block Diagram 4 -ATA 133 Ports u. P Flash RAM ST 10 u. P Bus SBUF A-Chip P-Chip BFB 64 -Bit Universal PCI Bus

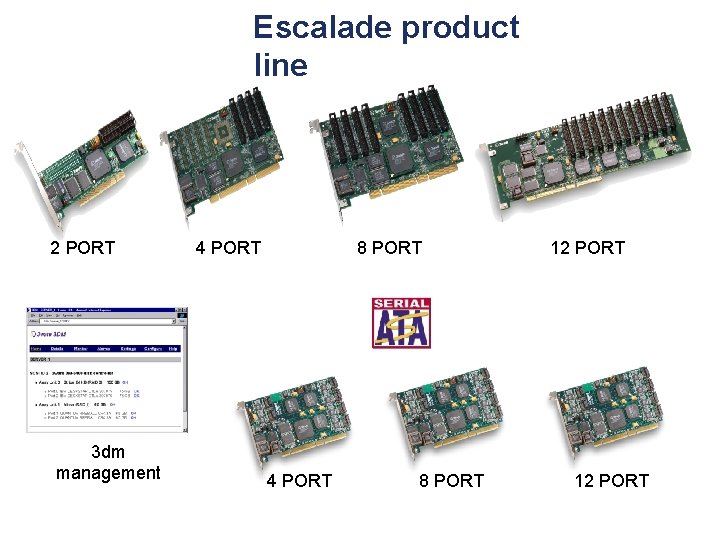

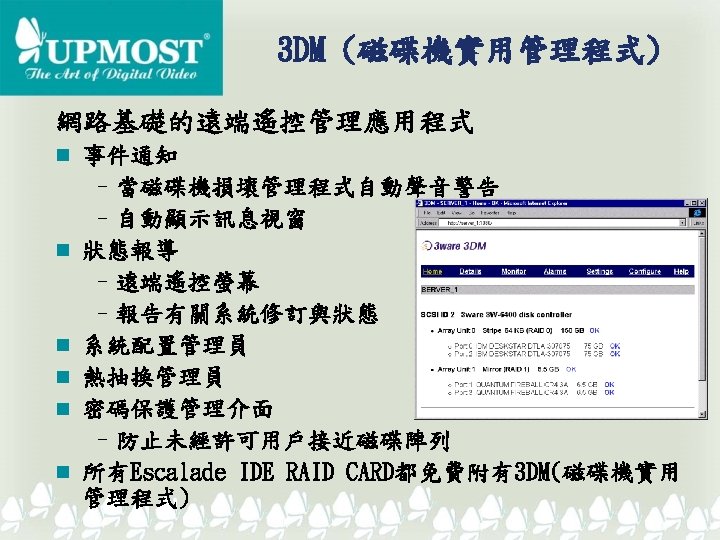

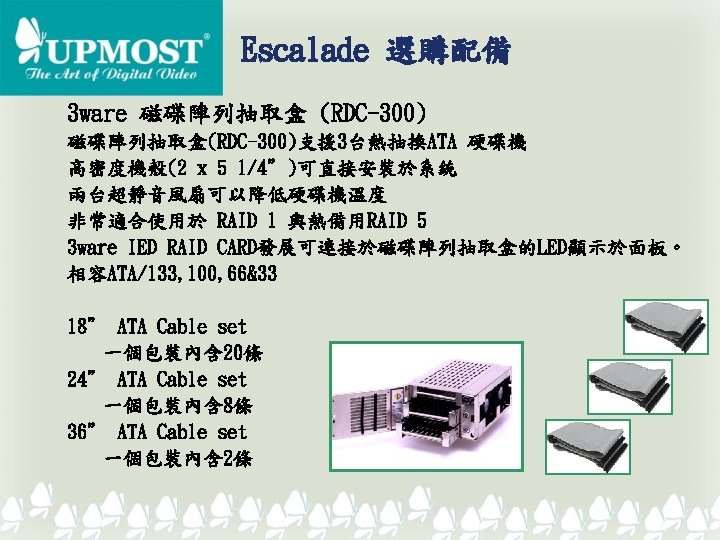

Escalade product line 2 PORT 3 dm management 4 PORT 8 PORT 12 PORT

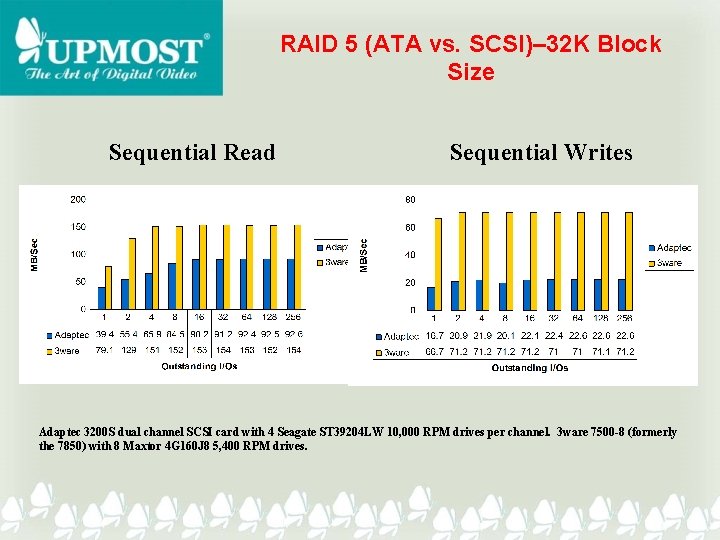

RAID 5 (ATA vs. SCSI)– 32 K Block Size Sequential Read Sequential Writes Adaptec 3200 S dual channel SCSI card with 4 Seagate ST 39204 LW 10, 000 RPM drives per channel. 3 ware 7500 -8 (formerly the 7850) with 8 Maxtor 4 G 160 J 8 5, 400 RPM drives.

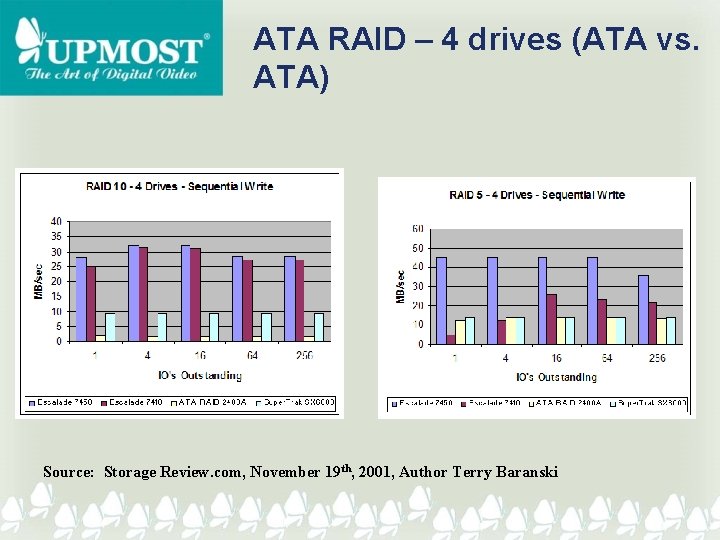

ATA RAID – 4 drives (ATA vs. ATA) Source: Storage Review. com, November 19 th, 2001, Author Terry Baranski

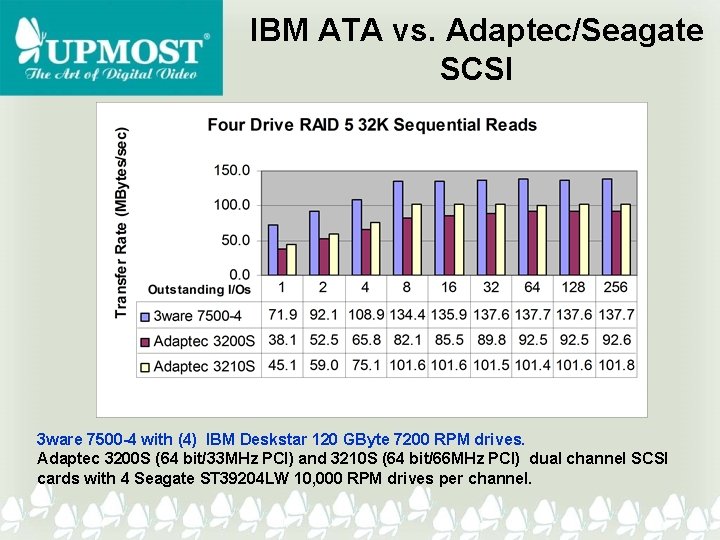

IBM ATA vs. Adaptec/Seagate SCSI 3 ware 7500 -4 with (4) IBM Deskstar 120 GByte 7200 RPM drives. Adaptec 3200 S (64 bit/33 MHz PCI) and 3210 S (64 bit/66 MHz PCI) dual channel SCSI cards with 4 Seagate ST 39204 LW 10, 000 RPM drives per channel.

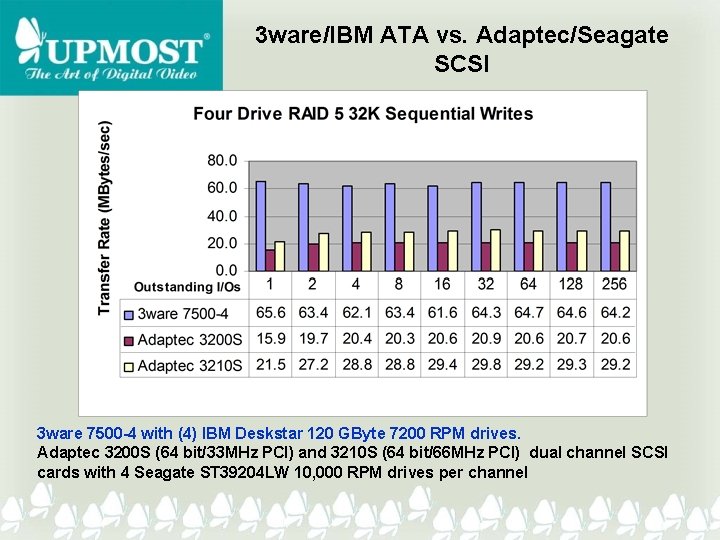

3 ware/IBM ATA vs. Adaptec/Seagate SCSI 3 ware 7500 -4 with (4) IBM Deskstar 120 GByte 7200 RPM drives. Adaptec 3200 S (64 bit/33 MHz PCI) and 3210 S (64 bit/66 MHz PCI) dual channel SCSI cards with 4 Seagate ST 39204 LW 10, 000 RPM drives per channel

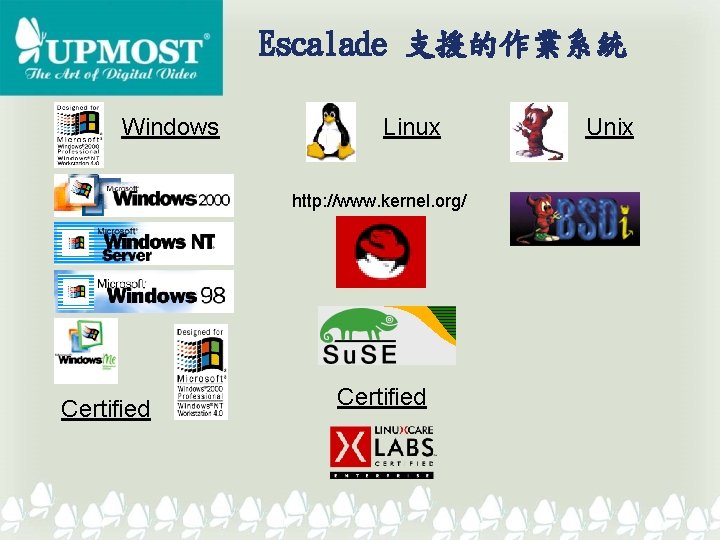

Escalade 支援的作業系統 Windows Linux http: //www. kernel. org/ Certified Unix

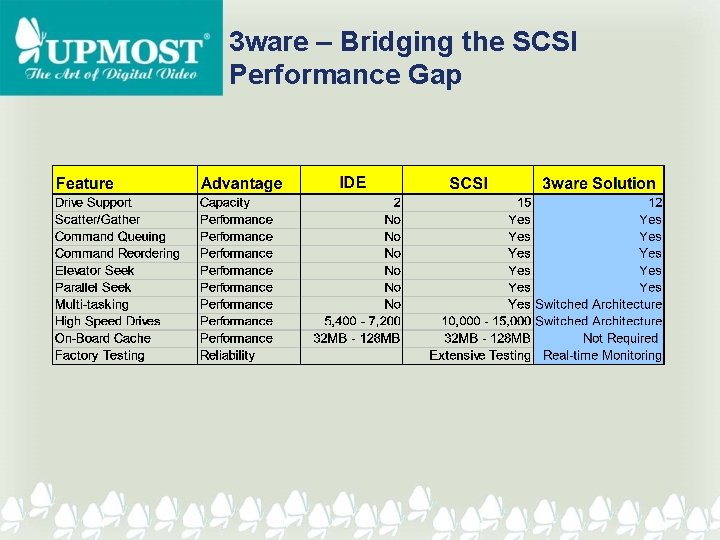

3 ware – Bridging the SCSI Performance Gap

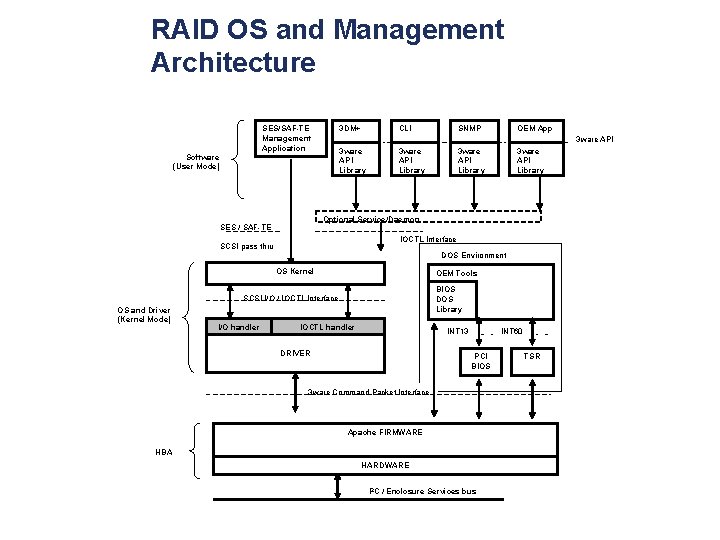

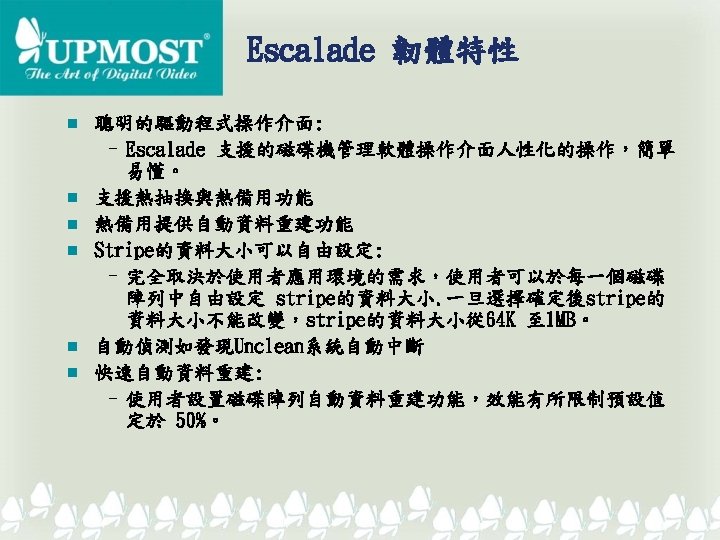

RAID OS and Management Architecture SES/SAF-TE Management Application CLI SNMP OEM App 3 ware API Library 3 ware API Software (User Mode) Optional Service/Daemon IOCTL Interface SES / SAF-TE SCSI pass thru 3 DM+ DOS Environment OS Kernel BIOS DOS Library SCSI I/O / IOCTL Interface OEM Tools OS and Driver (Kernel Mode) I/O handler IOCTL handler INT 13 DRIVER PCI BIOS 3 ware Command Packet Interface HBA Apache FIRMWARE HARDWARE I 2 C / Enclosure Services bus INT 60 TSR

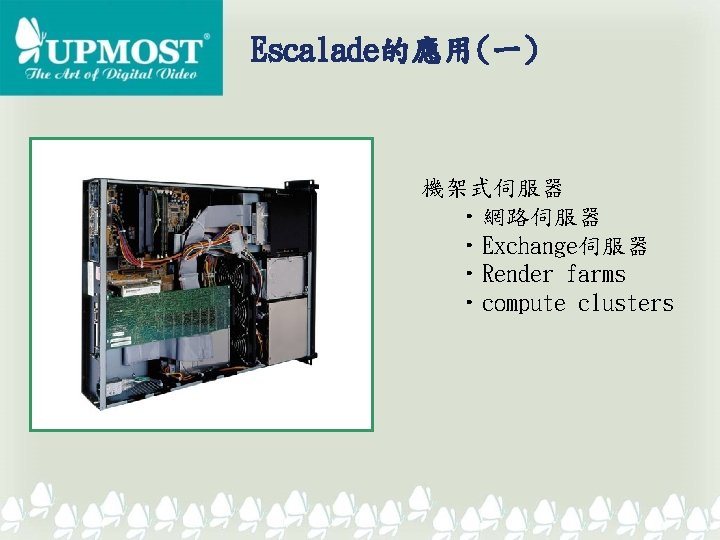

Escalade的應用(一) 機架式伺服器 • 網路伺服器 • Exchange伺服器 • Render farms • compute clusters

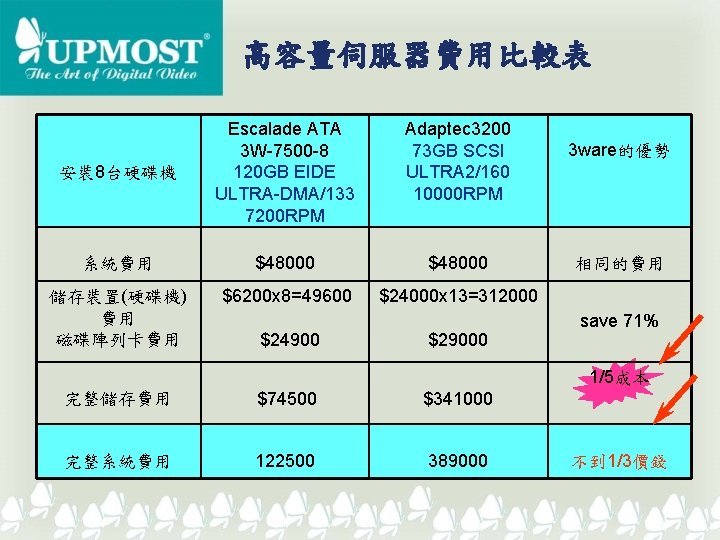

高容量伺服器費用比較表 安裝 8台硬碟機 系統費用 儲存裝置(硬碟機) 費用 磁碟陣列卡費用 Escalade ATA 3 W-7500 -8 120 GB EIDE ULTRA-DMA/133 7200 RPM Adaptec 3200 73 GB SCSI ULTRA 2/160 10000 RPM 3 ware的優勢 $48000 相同的費用 $6200 x 8=49600 $24000 x 13=312000 $24900 $29000 完整儲存費用 $74500 $341000 完整系統費用 122500 389000 save 71% 1/5成本 不到 1/3價錢

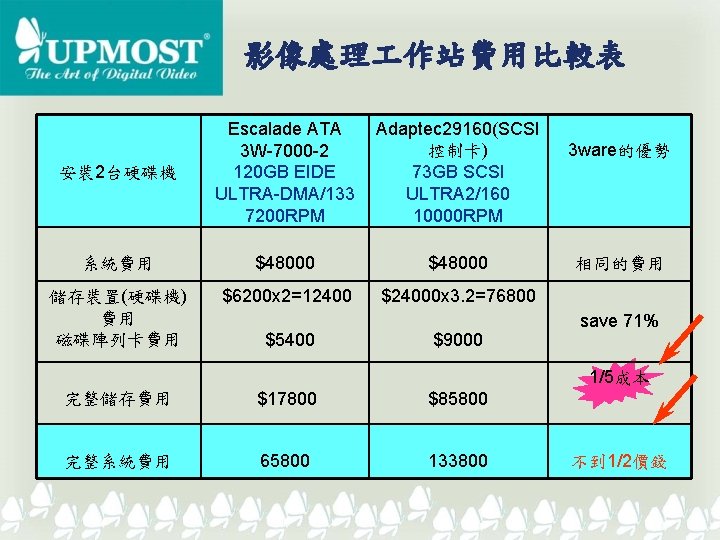

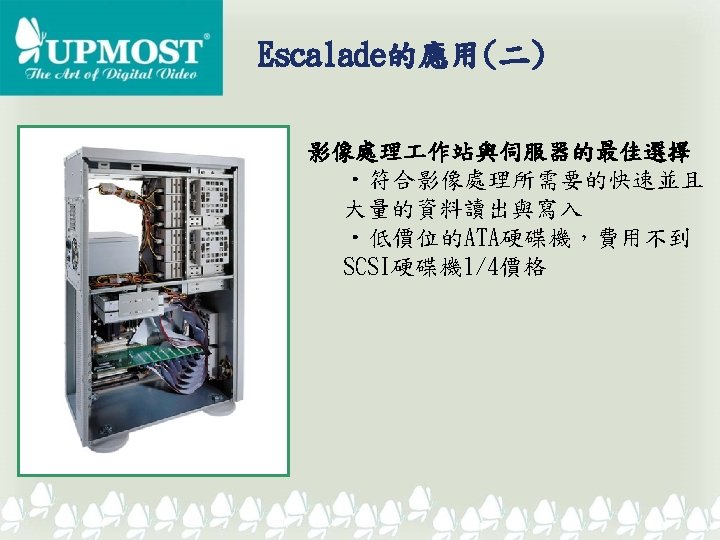

影像處理 作站費用比較表 安裝 2台硬碟機 系統費用 儲存裝置(硬碟機) 費用 磁碟陣列卡費用 Escalade ATA Adaptec 29160(SCSI 控制卡) 3 W-7000 -2 120 GB EIDE 73 GB SCSI ULTRA-DMA/133 ULTRA 2/160 7200 RPM 10000 RPM $48000 $6200 x 2=12400 $24000 x 3. 2=76800 $5400 $9000 完整儲存費用 $17800 $85800 完整系統費用 65800 133800 3 ware的優勢 相同的費用 save 71% 1/5成本 不到 1/2價錢
