Debug Tools GDBDDD on Andes platform Andes Technology

Debug Tools (GDB+DDD) on Andes platform Andes Technology WWW. ANDESTECH. COM

Outline v Debug environment setup v Debug tools working procedure v Andes GDB Introduction v DDD + Andes GDB Introduction v Demo Page 2 ANDES Confidential

Debug environment setup v EVB board v AICE v PC- windows XP § Iceman § UART § network v PC- linux § nds 32 -elf-gdb § DDD § network Page 3 PC linux network EVB board UART JTAG PC XP ANDES Confidential USB AICE

Debug tools working procedure 1. 2. 3. 4. 5. 6. Debug environment setup is ready EVB board boot up Execute “iceman” on XP Check XP IP Compiler source code and generate ELF image Start DDD+ Andes GDB link to iceman through network 7. Debugging Page 4 ANDES Confidential

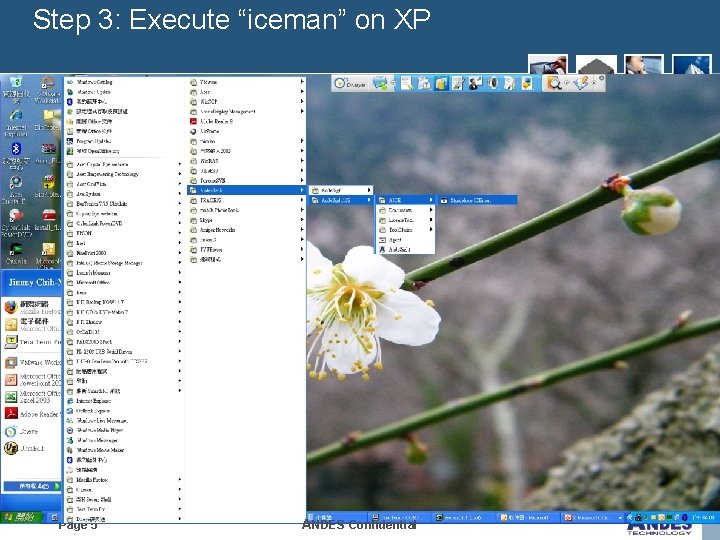

Step 3: Execute “iceman” on XP Page 5 ANDES Confidential

Step 3: con’t Page 6 ANDES Confidential

Step 4: Check XP (iceman) IP Page 7 ANDES Confidential

Step 5: Compiler source code and generate ELF image Page 8 ANDES Confidential

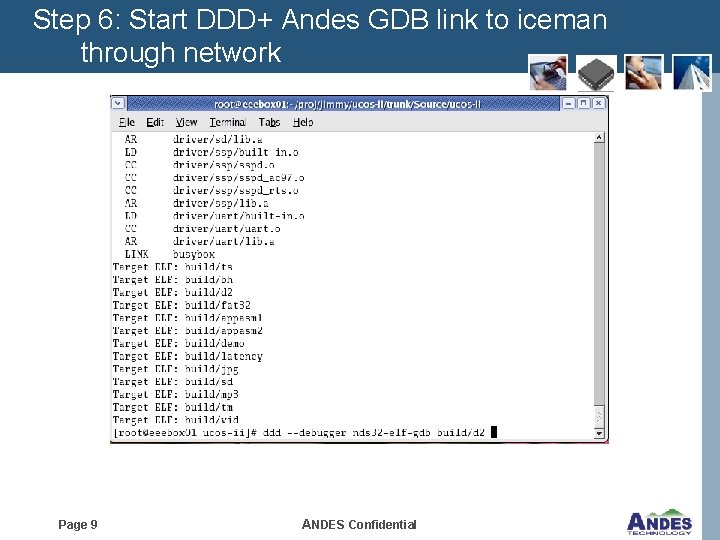

Step 6: Start DDD+ Andes GDB link to iceman through network Page 9 ANDES Confidential

Step 7: Debugging Page 10 ANDES Confidential

GDB Introduction 1 Page 11 ANDES Confidential

GDB Introduction 2 Page 12 ANDES Confidential

DDD + Andes GDB Introduction – command mode #ddd –debugger nds 32 le-elf-gdb build/d 2 PC Page 13 ANDES Confidential

Load ELF file to EVB board Page 14 ANDES Confidential

Debugger -> /breakpoint/step run/check variable Page 15 ANDES Confidential

UART result Page 16 ANDES Confidential

DDD + Andes GDB Introduction – script mode #ddd –debugger nds 32 -elf-gdb -x script. txt build/d 2 script. txt: target remote 10. 0. 2. 132: 1234 load Page 17 ANDES Confidential

Lab: Debugging Demo v Networking Demo program § § § § Boot up EVB Connection ICE and PC Execute iceman Start DDD, nds 32 le-elf-gdb, ELF image gdb link to iceman via networking load image Debug example: APP_Init Page 18 ANDES Confidential
