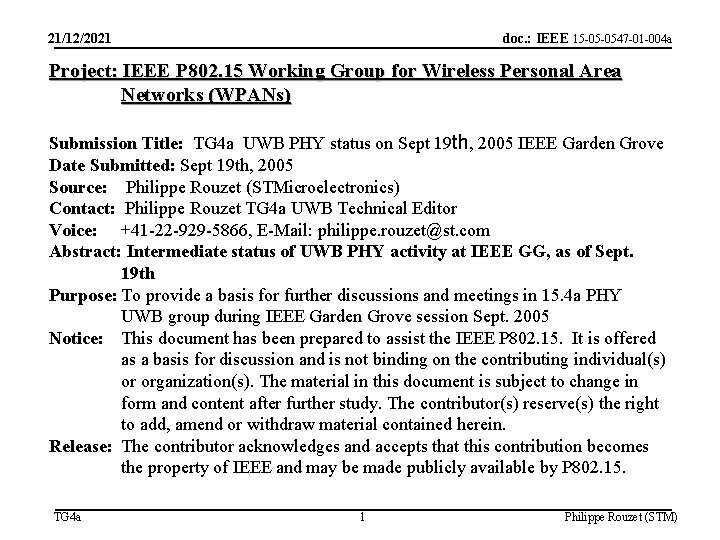

21/12/2021 doc. : IEEE 15 -05 -0547 -01 -004 a Project: IEEE P 802. 15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title: TG 4 a UWB PHY status on Sept 19 th, 2005 IEEE Garden Grove Date Submitted: Sept 19 th, 2005 Source: Philippe Rouzet (STMicroelectronics) Contact: Philippe Rouzet TG 4 a UWB Technical Editor Voice: +41 -22 -929 -5866, E-Mail: philippe. rouzet@st. com Abstract: Intermediate status of UWB PHY activity at IEEE GG, as of Sept. 19 th Purpose: To provide a basis for further discussions and meetings in 15. 4 a PHY UWB group during IEEE Garden Grove session Sept. 2005 Notice: This document has been prepared to assist the IEEE P 802. 15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P 802. 15. TG 4 a 1 Philippe Rouzet (STM)

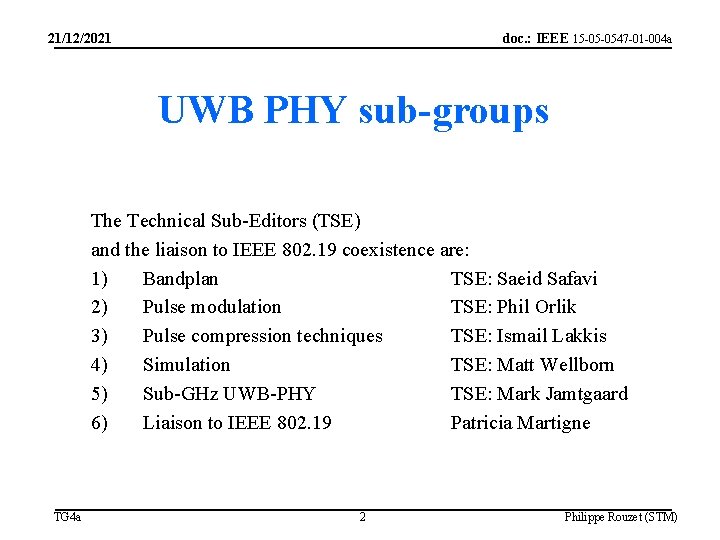

21/12/2021 doc. : IEEE 15 -05 -0547 -01 -004 a UWB PHY sub-groups The Technical Sub-Editors (TSE) and the liaison to IEEE 802. 19 coexistence are: 1) Bandplan TSE: Saeid Safavi 2) Pulse modulation TSE: Phil Orlik 3) Pulse compression techniques TSE: Ismail Lakkis 4) Simulation TSE: Matt Wellborn 5) Sub-GHz UWB-PHY TSE: Mark Jamtgaard 6) Liaison to IEEE 802. 19 Patricia Martigne TG 4 a 2 Philippe Rouzet (STM)

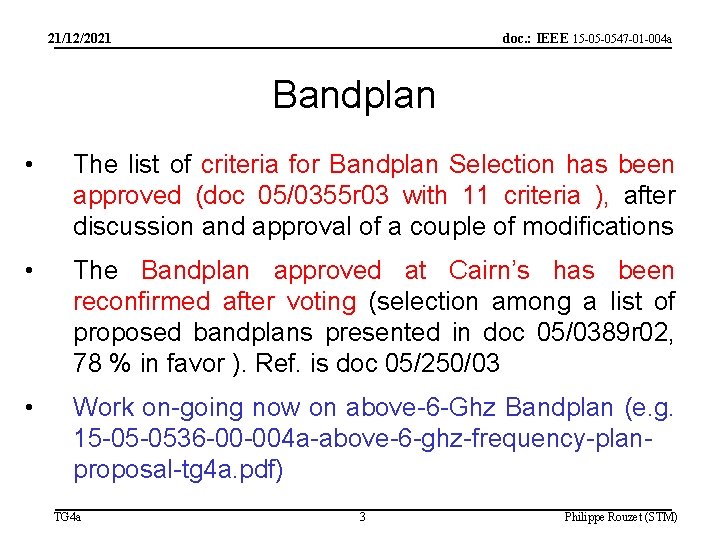

21/12/2021 doc. : IEEE 15 -05 -0547 -01 -004 a Bandplan • The list of criteria for Bandplan Selection has been approved (doc 05/0355 r 03 with 11 criteria ), after discussion and approval of a couple of modifications • The Bandplan approved at Cairn’s has been reconfirmed after voting (selection among a list of proposed bandplans presented in doc 05/0389 r 02, 78 % in favor ). Ref. is doc 05/250/03 • Work on-going now on above-6 -Ghz Bandplan (e. g. 15 -05 -0536 -00 -004 a-above-6 -ghz-frequency-planproposal-tg 4 a. pdf) TG 4 a 3 Philippe Rouzet (STM)

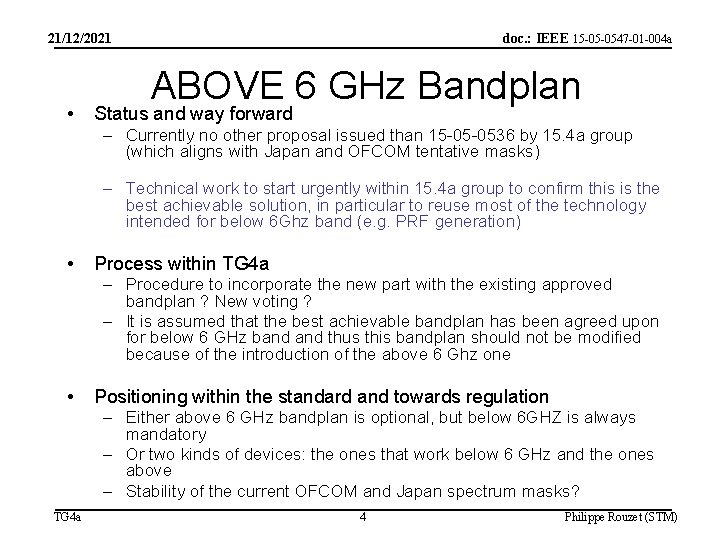

21/12/2021 • doc. : IEEE 15 -05 -0547 -01 -004 a ABOVE 6 GHz Bandplan Status and way forward – Currently no other proposal issued than 15 -05 -0536 by 15. 4 a group (which aligns with Japan and OFCOM tentative masks) – Technical work to start urgently within 15. 4 a group to confirm this is the best achievable solution, in particular to reuse most of the technology intended for below 6 Ghz band (e. g. PRF generation) • Process within TG 4 a – Procedure to incorporate the new part with the existing approved bandplan ? New voting ? – It is assumed that the best achievable bandplan has been agreed upon for below 6 GHz band thus this bandplan should not be modified because of the introduction of the above 6 Ghz one • Positioning within the standard and towards regulation – Either above 6 GHz bandplan is optional, but below 6 GHZ is always mandatory – Or two kinds of devices: the ones that work below 6 GHz and the ones above – Stability of the current OFCOM and Japan spectrum masks? TG 4 a 4 Philippe Rouzet (STM)

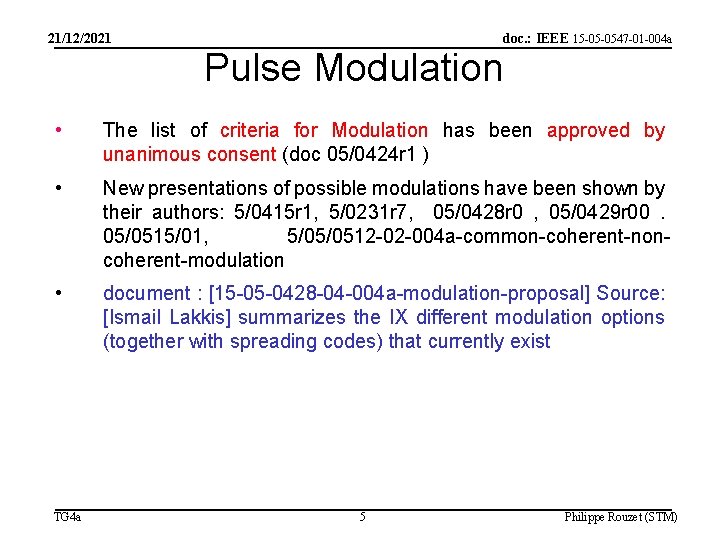

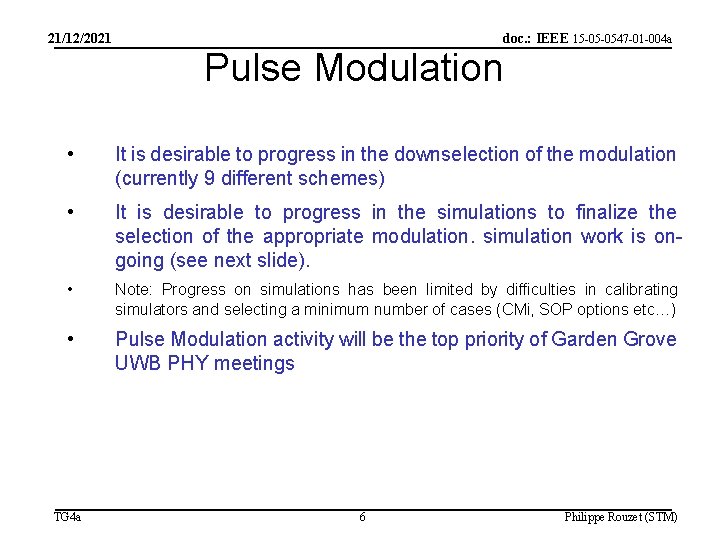

21/12/2021 doc. : IEEE 15 -05 -0547 -01 -004 a Pulse Modulation • The list of criteria for Modulation has been approved by unanimous consent (doc 05/0424 r 1 ) • New presentations of possible modulations have been shown by their authors: 5/0415 r 1, 5/0231 r 7, 05/0428 r 0 , 05/0429 r 00. 05/0515/01, 5/05/0512 -02 -004 a-common-coherent-noncoherent-modulation • document : [15 -05 -0428 -04 -004 a-modulation-proposal] Source: [Ismail Lakkis] summarizes the IX different modulation options (together with spreading codes) that currently exist TG 4 a 5 Philippe Rouzet (STM)

21/12/2021 doc. : IEEE 15 -05 -0547 -01 -004 a Pulse Modulation • It is desirable to progress in the downselection of the modulation (currently 9 different schemes) • It is desirable to progress in the simulations to finalize the selection of the appropriate modulation. simulation work is ongoing (see next slide). • Note: Progress on simulations has been limited by difficulties in calibrating simulators and selecting a minimum number of cases (CMi, SOP options etc…) • Pulse Modulation activity will be the top priority of Garden Grove UWB PHY meetings TG 4 a 6 Philippe Rouzet (STM)

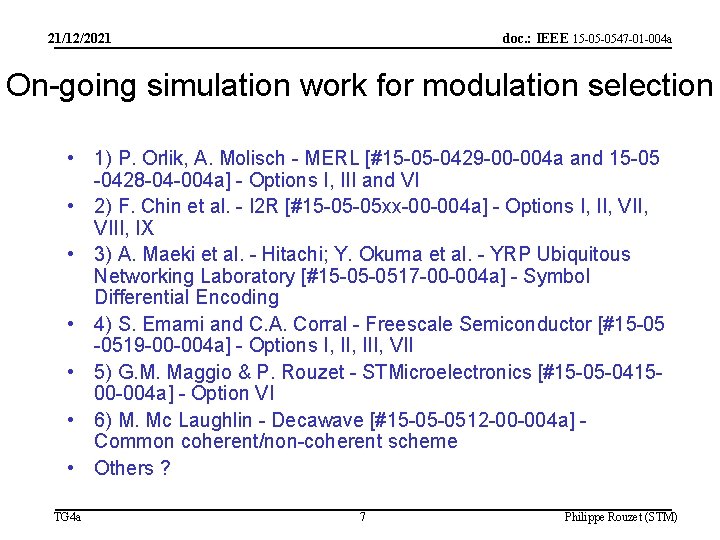

21/12/2021 doc. : IEEE 15 -05 -0547 -01 -004 a On-going simulation work for modulation selection • 1) P. Orlik, A. Molisch - MERL [#15 -05 -0429 -00 -004 a and 15 -05 -0428 -04 -004 a] - Options I, III and VI • 2) F. Chin et al. - I 2 R [#15 -05 -05 xx-00 -004 a] - Options I, II, VIII, IX • 3) A. Maeki et al. - Hitachi; Y. Okuma et al. - YRP Ubiquitous Networking Laboratory [#15 -05 -0517 -00 -004 a] - Symbol Differential Encoding • 4) S. Emami and C. A. Corral - Freescale Semiconductor [#15 -05 -0519 -00 -004 a] - Options I, III, VII • 5) G. M. Maggio & P. Rouzet - STMicroelectronics [#15 -05 -041500 -004 a] - Option VI • 6) M. Mc Laughlin - Decawave [#15 -05 -0512 -00 -004 a] Common coherent/non-coherent scheme • Others ? TG 4 a 7 Philippe Rouzet (STM)

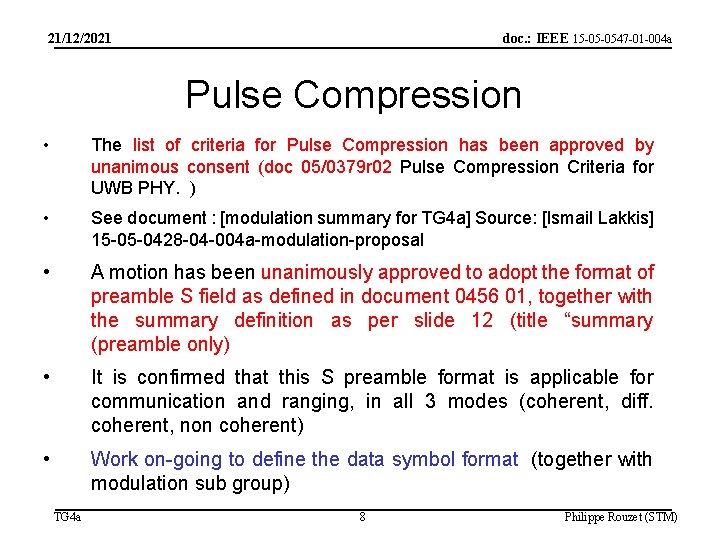

21/12/2021 doc. : IEEE 15 -05 -0547 -01 -004 a Pulse Compression • The list of criteria for Pulse Compression has been approved by unanimous consent (doc 05/0379 r 02 Pulse Compression Criteria for UWB PHY. ) • See document : [modulation summary for TG 4 a] Source: [Ismail Lakkis] 15 -05 -0428 -04 -004 a-modulation-proposal • A motion has been unanimously approved to adopt the format of preamble S field as defined in document 0456 01, together with the summary definition as per slide 12 (title “summary (preamble only) • It is confirmed that this S preamble format is applicable for communication and ranging, in all 3 modes (coherent, diff. coherent, non coherent) • Work on-going to define the data symbol format (together with modulation sub group) TG 4 a 8 Philippe Rouzet (STM)

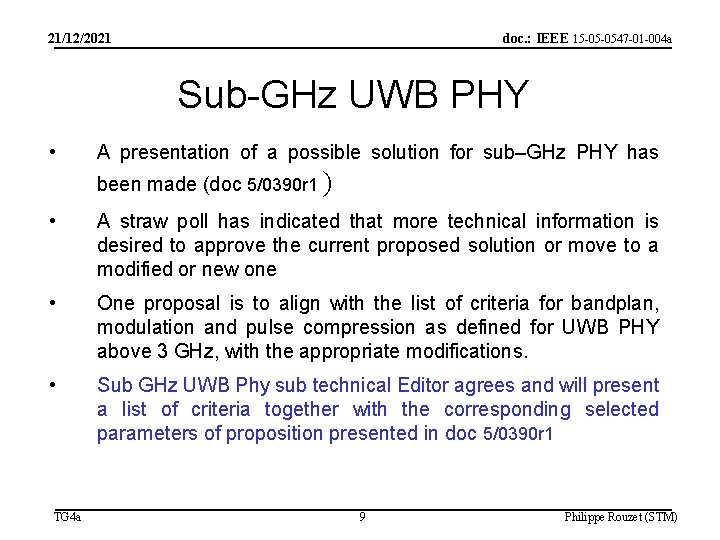

21/12/2021 doc. : IEEE 15 -05 -0547 -01 -004 a Sub-GHz UWB PHY • A presentation of a possible solution for sub–GHz PHY has been made (doc 5/0390 r 1 ) • A straw poll has indicated that more technical information is desired to approve the current proposed solution or move to a modified or new one • One proposal is to align with the list of criteria for bandplan, modulation and pulse compression as defined for UWB PHY above 3 GHz, with the appropriate modifications. • Sub GHz UWB Phy sub technical Editor agrees and will present a list of criteria together with the corresponding selected parameters of proposition presented in doc 5/0390 r 1 TG 4 a 9 Philippe Rouzet (STM)

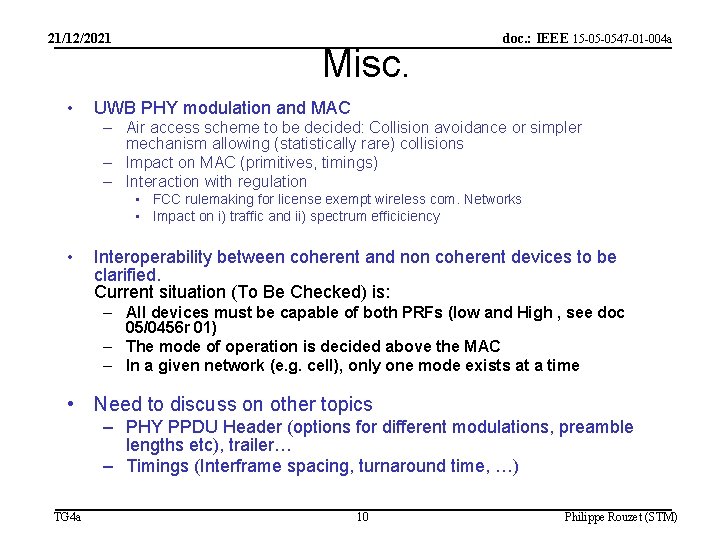

21/12/2021 • Misc. doc. : IEEE 15 -05 -0547 -01 -004 a UWB PHY modulation and MAC – Air access scheme to be decided: Collision avoidance or simpler mechanism allowing (statistically rare) collisions – Impact on MAC (primitives, timings) – Interaction with regulation • FCC rulemaking for license exempt wireless com. Networks • Impact on i) traffic and ii) spectrum efficiciency • Interoperability between coherent and non coherent devices to be clarified. Current situation (To Be Checked) is: – All devices must be capable of both PRFs (low and High , see doc 05/0456 r 01) – The mode of operation is decided above the MAC – In a given network (e. g. cell), only one mode exists at a time • Need to discuss on other topics – PHY PPDU Header (options for different modulations, preamble lengths etc), trailer… – Timings (Interframe spacing, turnaround time, …) TG 4 a 10 Philippe Rouzet (STM)
