1 TIRGUL 10 Dijkstras algorithm BellmanFord Algorithm Weighted

• 1 TIRGUL 10 • Dijkstra’s algorithm • Bellman-Ford Algorithm

Weighted distance • Until now we have only considered unweighted graphs. • Today we will focus on weighted graphs. • Reminder: a weighted graph is G=(V, E, W), where W: Vx. V ℝ. • For now, we will assume that for all w ∈ W, w>0 • That is, every edge gets a positive number representing it’s weight.

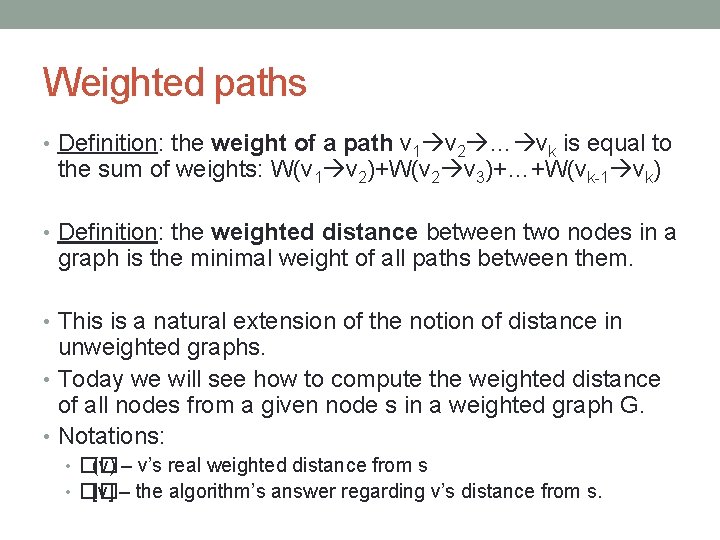

Weighted paths • Definition: the weight of a path v 1 v 2 … vk is equal to the sum of weights: W(v 1 v 2)+W(v 2 v 3)+…+W(vk-1 vk) • Definition: the weighted distance between two nodes in a graph is the minimal weight of all paths between them. • This is a natural extension of the notion of distance in unweighted graphs. • Today we will see how to compute the weighted distance of all nodes from a given node s in a weighted graph G. • Notations: • �� (v) – v’s real weighted distance from s • �� [v] – the algorithm’s answer regarding v’s distance from s.

Finding the minimal weighted distance • In unweighted graphs we used BFS to compute the distance between a node v and all other nodes. • Q: Can we use it on weighted graphs by adding up weights as we go? • A: no! • Example: �� =4 �� =3 a 4 s 1 2 �� =2 b

Insights • Why does this fail? 4 3 a 4 s 1 2 2 b • Visiting a first fails since we marked it as ‘visited’. • Insight #1: a given distance cannot be fixed - we need to be able update it’s distance once we find shorter path

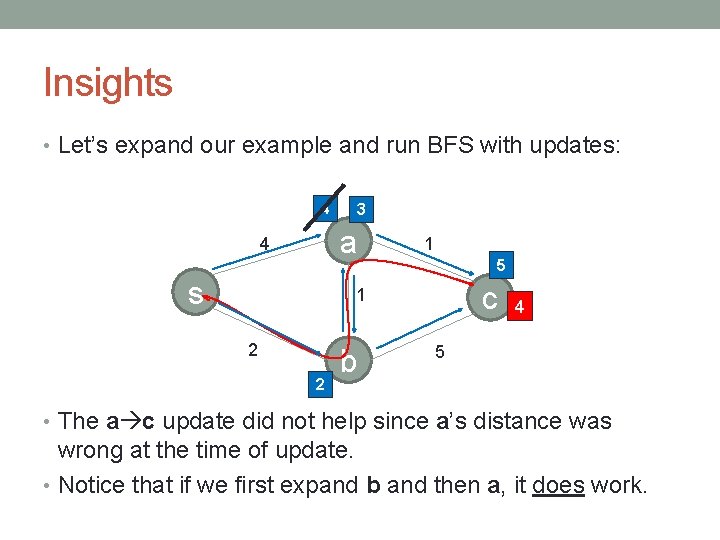

Insights • Let’s expand our example and run BFS with updates: 4 3 a 4 s 1 5 c 1 2 2 b 4 5 • The a c update did not help since a’s distance was wrong at the time of update. • Notice that if we first expand b and then a, it does work.

Insights • Let’s expand our example and run BFS with updates: 4 3 a 4 s 1 5 c 1 2 2 b 4 5 • The a c update did not help since a’s distance was wrong at the time of update. • Notice that if we first expand b and then a, it does work.

Insights • Insight #2: allowing distance updates is not enough – we must visit nodes in a certain order. 4 3 a 4 s 1 5 c 1 2 2 b 4 5 • Q: Is it true that there always exists an ordering such that BFS returns the correct weighted distances? • A: YES!

Insights • But what is a good order? • We saw that updates can be ‘missed’ – when does this happen? 4 3 a 4 s 1 5 c 1 2 2 b 4 5 • Insight #3: if we went through the nodes in order of their actual distance, we would never miss an update. • But finding the distance is the problem itself…

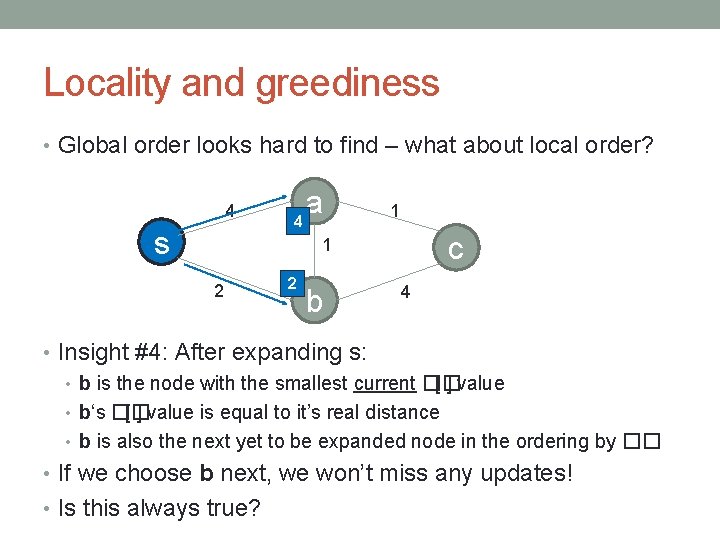

Locality and greediness • Global order looks hard to find – what about local order? 4 s 4 a 1 c 1 2 2 b 4 • Insight #4: After expanding s: • b is the node with the smallest current �� [ ] value • b‘s �� [ ] value is equal to it’s real distance • b is also the next yet to be expanded node in the ordering by �� • If we choose b next, we won’t miss any updates! • Is this always true?

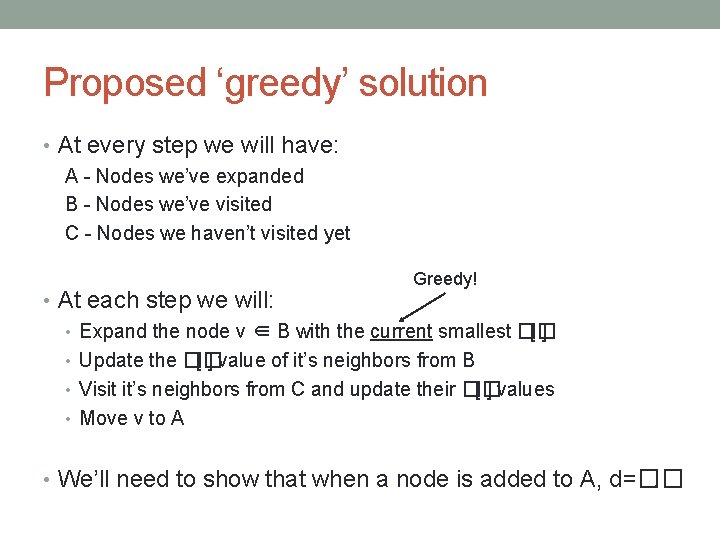

Proposed ‘greedy’ solution • At every step we will have: A - Nodes we’ve expanded B - Nodes we’ve visited C - Nodes we haven’t visited yet Greedy! • At each step we will: • Expand the node v ∈ B with the current smallest �� [] • Update the �� [ ] value of it’s neighbors from B • Visit it’s neighbors from C and update their �� [ ] values • Move v to A • We’ll need to show that when a node is added to A, d=��.

Algorithm: • Almost. Dijkstra(G, s) • For all v≠s • �� [v]=∞ • �� [s] = 0 �� , B = {s}, C = VS • While B ≠ �� • A= • Choose v ∈ B with minimal �� [] • For all neighbors u ∈ B, C of v • �� [u] = min(�� [u], �� [v]+W(v, u)) • if u ∈ C, move u into B • Move v from B to A

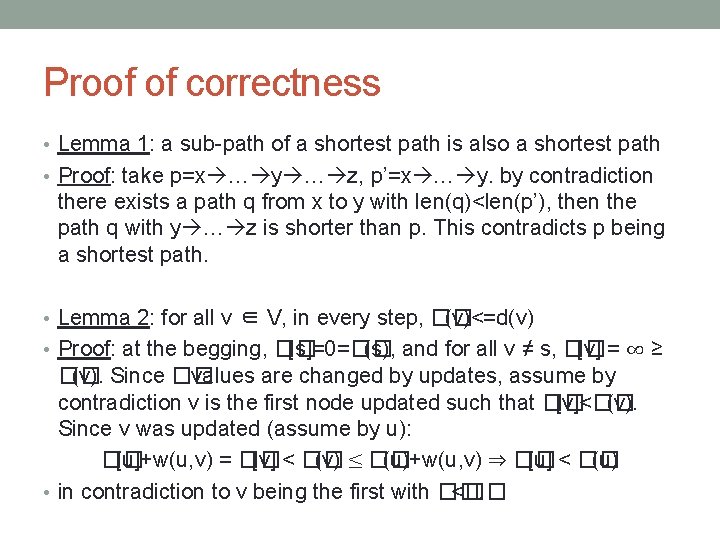

Proof of correctness • Lemma 1: a sub-path of a shortest path is also a shortest path • Proof: take p=x … y … z, p’=x … y. by contradiction there exists a path q from x to y with len(q)<len(p’), then the path q with y … z is shorter than p. This contradicts p being a shortest path. • Lemma 2: for all v ∈ V, in every step, �� (v)<=d(v) • Proof: at the begging, �� [s]=0=�� (s), and for all v ≠ s, �� [v] = ∞ ≥ �� (v). Since �� values are changed by updates, assume by contradiction v is the first node updated such that �� [v]<�� (v). Since v was updated (assume by u): �� [u]+w(u, v) = �� [v] < �� (v) ≤ �� (u)+w(u, v) ⇒ �� [u] < �� (u) • in contradiction to v being the first with �� <��.

Proof of correctness • • Induction on n=|A|. Claim: All nodes in A have a correct �� [ ] value Basis: n=1, A={s}, and �� [s] = 0 = �� (s). Step: we will assume for all k<n, and prove for n. Let v be the n’th node inserted into A. Let p be a true shortest weighted path between s and v. • Case 1 - p ⊆ A: • Before inserting v into A it’s size was less than n, so by the induction assumption for all w ∈ A, �� [w] = �� (w). • Let u be the node before v in p. Since u ∈ A, by the above �� [u] = �� (u). Since v is a neighbor of u, when u was inserted into A, v’s �� [ ] value was updated. Since (u, v) ∈ p and p is a shortest path, after the update �� [v] ≤ �� (v). From lemma 1 �� [v] ≥ �� (v), therefore �� [v] = �� (v).

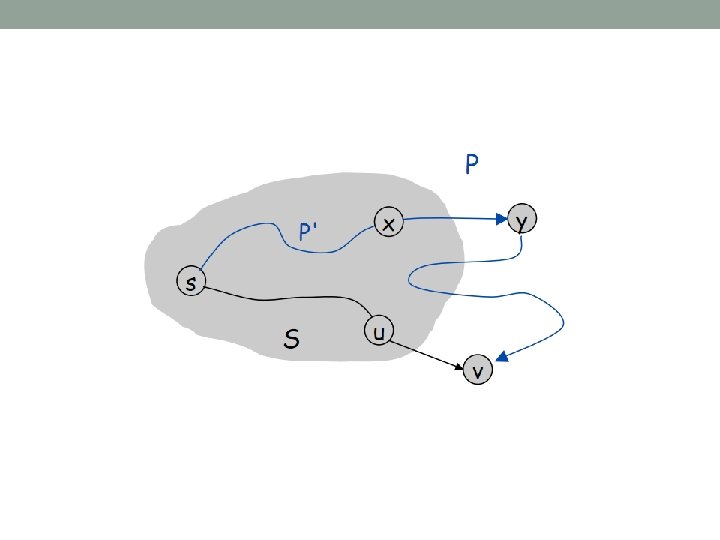

Proof of correctness • Case 2 - p ⊈ A: • By contradiction, assume v is inserted into A with a wrong �� [ ]. • Let y be the first node in p that is not in A (y ≠ v, otherwise we’d be in case 1). s ∈ A, so A is not empty. Therefore, let x be y’s predecessor in p, so (x, y) ∈ E, x ∈ A. Since x ∈ A, and since x was inserted into A when it’s size was less than n, by the induction assumption it’s �� [x] = �� (x). • Consider �� (y) and �� [y]. From lemma 2, �� (y) ≤ �� [y]. From lemma 1, the sub-path p’=s … x y ⊈ p is a shortest path from s to x. Since all of x’s neighbors (including y) were updated when x was inserted into A, and at that time �� [x]=�� (x), after the update �� [y]=�� (y) (From lemma 1 again, any other update could not have resulted in �� [y]<�� (y) ).

Proof of correctness • Since the length of p’ is less than p, since they are both shortest paths, and since w>0, we get that �� (y) < �� (v). • Since from lemma 1 �� (v) ≤ �� [v], we get that: �� [y] = �� (y) < �� (v) ≤ �� [v] • So �� [y]< �� [v] , in contradiction to the algorithm choosing the node with the smallest �� [ ] value. • Therefore, �� (v) = �� [v].

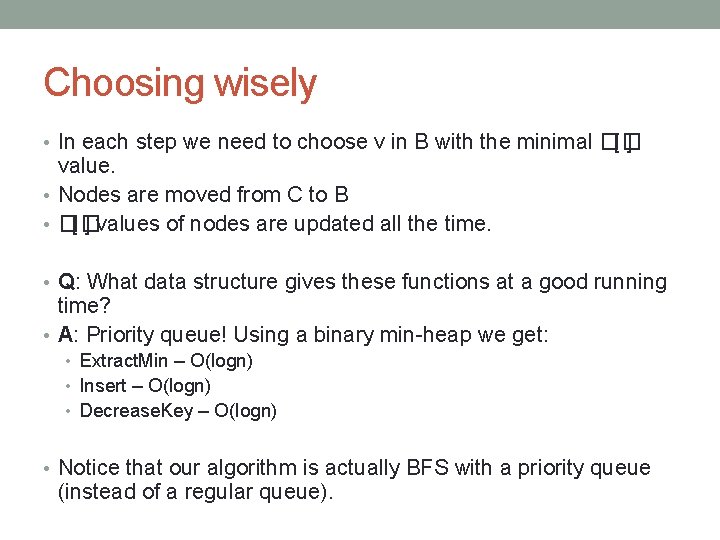

Choosing wisely • In each step we need to choose v in B with the minimal �� [] value. • Nodes are moved from C to B • �� [ ] values of nodes are updated all the time. • Q: What data structure gives these functions at a good running time? • A: Priority queue! Using a binary min-heap we get: • Extract. Min – O(logn) • Insert – O(logn) • Decrease. Key – O(logn) • Notice that our algorithm is actually BFS with a priority queue (instead of a regular queue).

Dijkstra’s Algorithm • Input: • graph G=(V, E, W) , directed or undirected • Starting node s • W consists of positive edges • Output: • for each node v ∈ V: • It’s weighted distance from s • A shortest weighted path from s 19

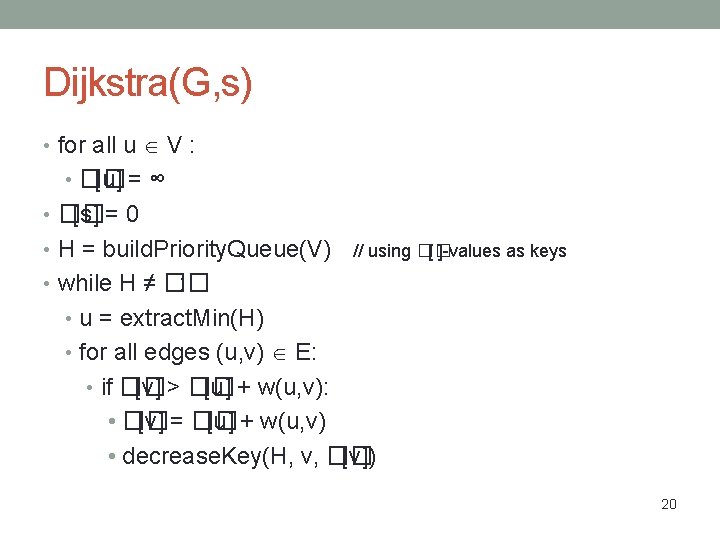

Dijkstra(G, s) • for all u V : • �� [u] = ∞ • �� [s] = 0 • H = build. Priority. Queue(V) // using �� [ ]-values as keys • while H ≠ �� : • u = extract. Min(H) • for all edges (u, v) E: • if �� [v] > �� [u] + w(u, v): • �� [v] = �� [u] + w(u, v) • decrease. Key(H, v, �� [v]) 20

Dijkstra-Running Example A: 0 4 A B B: 4 B: ∞ D 3 8 2 C 5 1 E C: 2 C: ∞ D: 10 D: ∞ D: 8 E: ∞ 77 E: 21

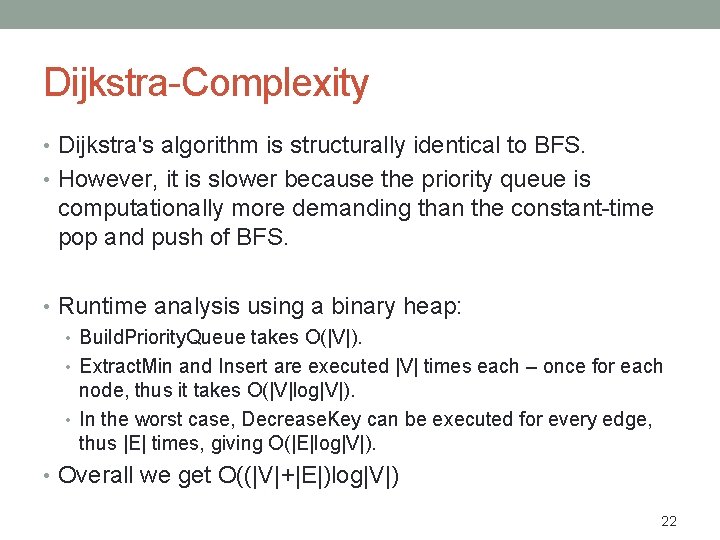

Dijkstra-Complexity • Dijkstra's algorithm is structurally identical to BFS. • However, it is slower because the priority queue is computationally more demanding than the constant-time pop and push of BFS. • Runtime analysis using a binary heap: • Build. Priority. Queue takes O(|V|). • Extract. Min and Insert are executed |V| times each – once for each node, thus it takes O(|V|log|V|). • In the worst case, Decrease. Key can be executed for every edge, thus |E| times, giving O(|E|log|V|). • Overall we get O((|V|+|E|)log|V|) 22

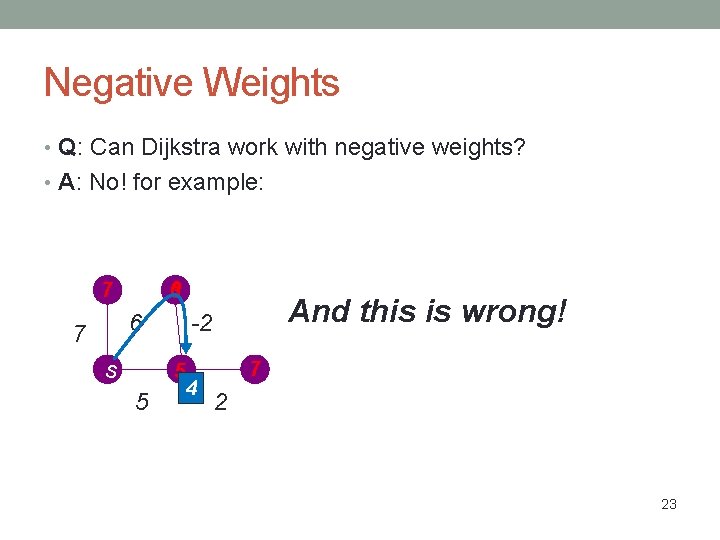

Negative Weights • Q: Can Dijkstra work with negative weights? • A: No! for example: 63 7 6 7 s 5 5 And this is wrong! -2 4 7 2 23

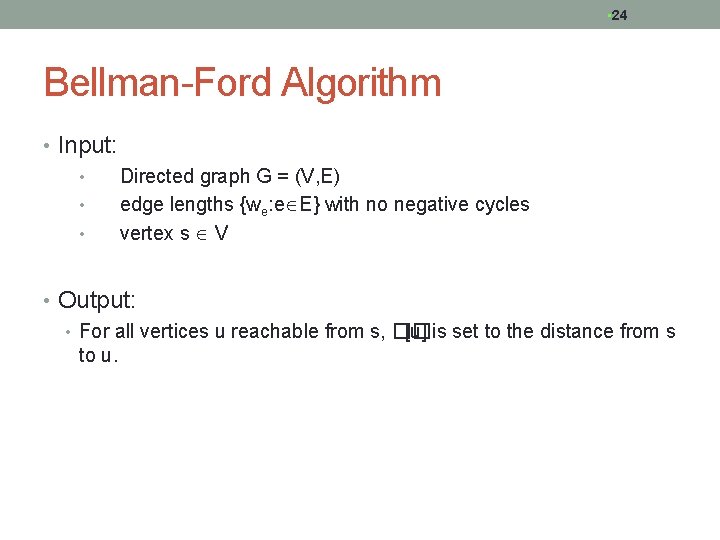

• 24 Bellman-Ford Algorithm • Input: • • • Directed graph G = (V, E) edge lengths {we: e E} with no negative cycles vertex s V • Output: • For all vertices u reachable from s, �� [u] is set to the distance from s to u.

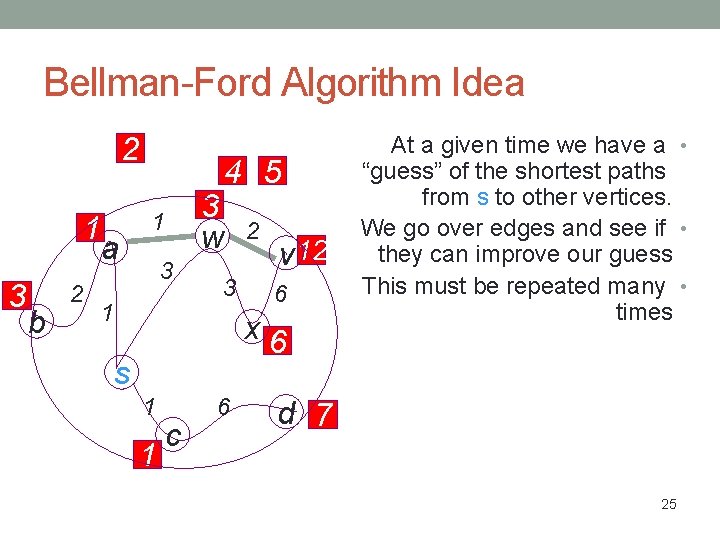

Bellman-Ford Algorithm Idea 2 1 3 b 2 a 4 5 1 3 w 3 2 v 12 6 x 6 s 1 1 c 6 At a given time we have a • “guess” of the shortest paths from s to other vertices. We go over edges and see if • they can improve our guess This must be repeated many • times d 7 25

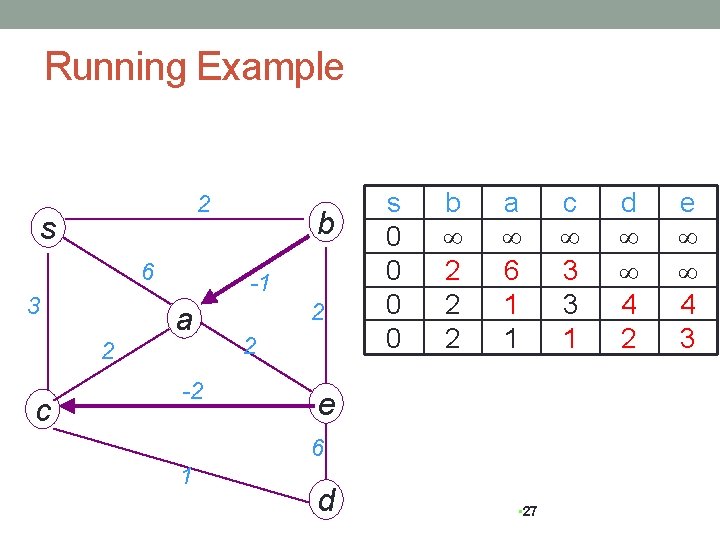

Running Example 2 s 6 3 -1 a 2 c b -2 2 2 s 0 0 b 2 2 2 a 6 1 1 e 6 1 d • 27 c 3 3 1 d 4 2 e 4 3

Bellman Ford & Negative cycles • When there is a negative cycle in a graph shortest path -5 are not (well) defined. 2 2 3 s 6 2 • How can the algorithm detect negative cycles ? • Such a cycle would allow us to endlessly apply rounds of update operations, reducing �� [ ] estimates every time. • So instead of stopping after |V|-1 iterations, perform one extra round. • There is a negative cycle if and only if some �� [ ] value is reduced during this final round. 28

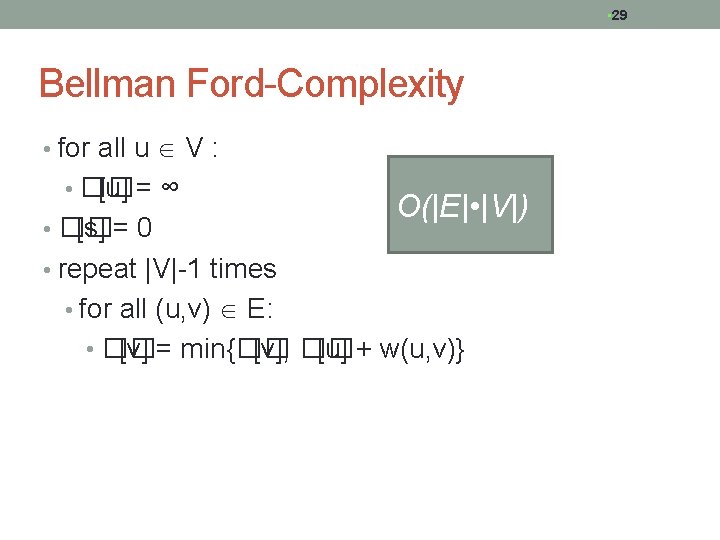

• 29 Bellman Ford-Complexity • for all u V : • �� [u] = ∞ • �� [s] = 0 O(|E| • |V|) • repeat |V|-1 times • for all (u, v) E: • �� [v] = min{�� [v], �� [u] + w(u, v)}
