1 st Meeting for Satellite Overhauser Magnetometer WMMSAT

1 st Meeting for Satellite Overhauser Magnetometer WMMSAT Dr. Ivan Hrvoic, Ph. D. , P. Eng. President, GEM Systems Inc. Canada August 11 -12, 2008 Boulder, Colorado NGDC, 325 Broadway, Boulder, CO 80305, DSRC Conference Room 1 B 402

Overview • Brief History of GEM Systems. • Theory of Operation of Quantum Magnetometers. • Polarization Theory. • Overhauser Effect. • Instrument Description. • Specifications of the Proposed Overhauser Magnetometer. • Sensor Bottle. • Signal Acquisition / Processing Electronics. • Statement of Work. • Conclusion

Brief History of GEM Systems has been incorporated in 1980 specializing in scalar magnetometers for Earth’s magnetic field. • Grant from DSS in Ottawa for GSM-11 continuous Overhauser magnetometer in 1980 • Series of grants O. H. various projects Ontario Industrial Research and Development. • Early development of PULSED mag/grad convenient for field work – mineral exploration, magnetic observations etc. • Potassium in 1990 – Russian research group in St. Petersburg cooperation now Americanized components, new developments. • Very high sensitivity - Airborne

Theory of Operation of Quantum Magnetometers Spin of charged particles (protons, electrons, some other nuclei) = n p = n Ih/2 Only discrete orientations are allowed in magnetic field. B 1 o = B M 2 Rotation (precession in the plane perpendicular to field)

Polarization Theory Statistical distribution of orientations of the assembly of, say, protons prefers lower energy state. As a result a tiny magnetization in the direction of field is created B M Assembly of protons (water, alcohol, etc)

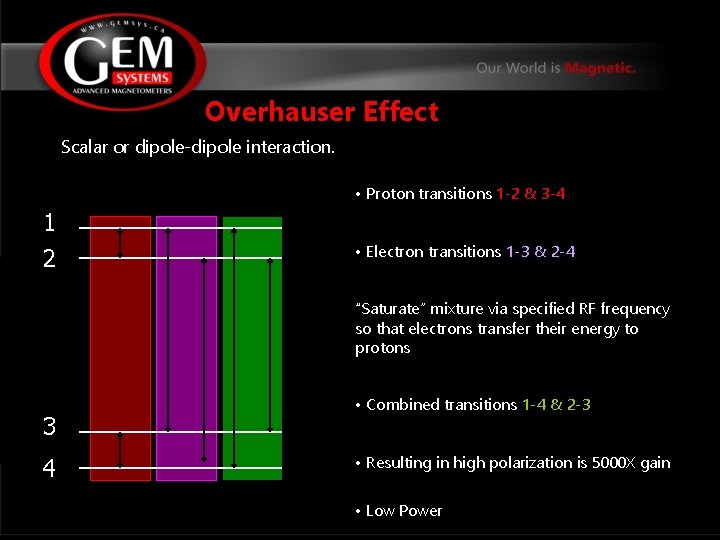

Overhauser Effect Scalar or dipole-dipole interaction. • Proton transitions 1 -2 & 3 -4 1 2 • Electron transitions 1 -3 & 2 -4 “Saturate” mixture via specified RF frequency so that electrons transfer their energy to protons 3 4 • Combined transitions 1 -4 & 2 -3 • Resulting in high polarization is 5000 X gain • Low Power

Pulsed Overhauser 1. RF ON 2. Short DC deflect Pulse 3. Free precession 4. No _1_ noise f

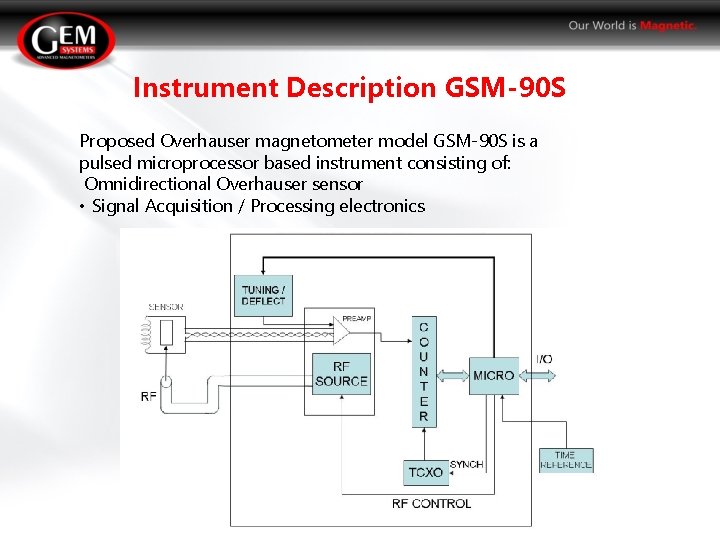

Instrument Description GSM-90 S Proposed Overhauser magnetometer model GSM-90 S is a pulsed microprocessor based instrument consisting of: Omnidirectional Overhauser sensor • Signal Acquisition / Processing electronics

Specifications of the Proposed Overhauser Range of measurement: 15 μT Magnetometer – 65 μT (638 Hz – 2. 8 k. Hz proton precession frequency) Resolution: 10 p. T Sensitivity: < 20 p. T rms Absolute accuracy: < 0. 2 n. T Rate of reading: 1 Hz (up to 5 Hz optional) Nyquist Bandwidth (no filtering) Heading error: < 0. 1 n. T Power consumption: < 12 V 1. 5 W Sensor weight: 1. 35 kg Sensor dimensions: 175 x 75 mm dia Electronics weight: 2. 25 kg battery included Electronics dimensions: 223 x 69 x 240 mm Sensor is isotropic (Omnidirectional ) – no dead zones. Signal amplitude variation over 360º spatial variation of the magnetic field direction is within 10%, With no offset reading.

Sensor Bottle Signal Acquisition / Processing Electronics

Statement of Work We plan to do the following steps in preparation for manufacture of proposed magnetometers: 1. Sensor Optimization. a) Standard sensor is Omnidirectional. Experiments with the shape and size of the sensor will be carried out. b) Ruggedization. The sensor must survive acceleration of the rocket launch. Probably increase in the thickness of glass of the glass sensor bottle will suffice. c) Argon bubble in the sensor allowing solvent expansion with temperature may change the tuning of RF resonator. Reduction or elimination of this effect will be sought. d) Influence of radiation. Free radical in the sensor liquid is a stable chemical. However, we will investigate its resilience to expected radiation and the steps to reduce / eliminate it.

Statement of Work (continue. . ) 2. Cabling between sensor and electronics. Cables will be assessed for work in vacuum and under radiation. No major problems are expected. 3. Electronics. Starting from standard, commercial electronics following steps will be done: a) All components will be replaced by radiation tolerant ones. Additional radiation protection may be designed in electronics enclosure. b) Acceleration / vibration tolerance will be assessed experimentally. No serious problems are expected. c) Operation in vacuum will be experimentally confirmed.

Statement of Work (continue. . ) 4. Link to the system. a) Magnetometers will need power connection +12 VDC at about 120 m. A. Twisted pair robust wires will be used to bring power to the system. b) Communication link. We expect serial link (RS 232 or USB, ASCII format). Rate of data is low. c) Time synchronization pulse from GPS can be sent through serial link. Its precision of 1μ sec will keep magnetometer’s TCXO tied to absolute time. d) A series of ASCII commands to the magnetometer will control the operation of the magnetometer in full. Timings of the above operations will be dependant on the overall schedule of satellite preparation. All of the above operations can comfortably be accomplished within 1 to 1. 5 years or even less. NOTE: GEM systems will try to engage a consultant experienced in

Our standard, Overhauser magnetometer model GSM-90, very popular in magnetic observatories around the world can be adapted for satellite operation with relatively minor modifications. Conclusion

Thank you for your attention.
