University of Washington Buffer Overflow Buffer overflows are

University of Washington Buffer Overflow ¢ ¢ Buffer overflows are possible because C doesn’t check array boundaries Buffer overflows are dangerous because buffers for user input are often stored on the stack § Probably the most common type of security vulnerability ¢ Today we’ll go over: § § Address space layout Input buffers on the stack Overflowing buffers and injecting code Defenses against buffer overflows Buffer Overflow

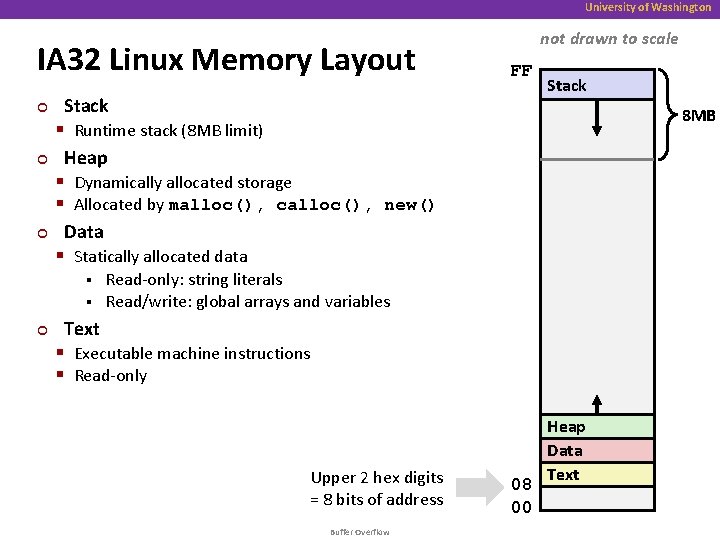

University of Washington IA 32 Linux Memory Layout ¢ ¢ ¢ not drawn to scale FF Stack § Runtime stack (8 MB limit) Heap § Dynamically allocated storage § Allocated by malloc(), calloc(), new() Data § Statically allocated data Stack 8 MB Read-only: string literals § Read/write: global arrays and variables § ¢ Text § Executable machine instructions § Read-only Upper 2 hex digits = 8 bits of address Buffer Overflow 08 00 Heap Data Text

University of Washington Memory Allocation Example not drawn to scale FF Stack char big_array[1<<24]; /* 16 MB */ char huge_array[1<<28]; /* 256 MB */ int beyond; char *p 1, *p 2, *p 3, *p 4; int useless() { int { p 1 p 2 p 3 p 4 /* } return 0; } main() = malloc(1 Some print <<28); /* << 8); /* statements 256 256. . . MB B */ Where does everything go? */ */ 08 00 Buffer Overflow Heap Data Text

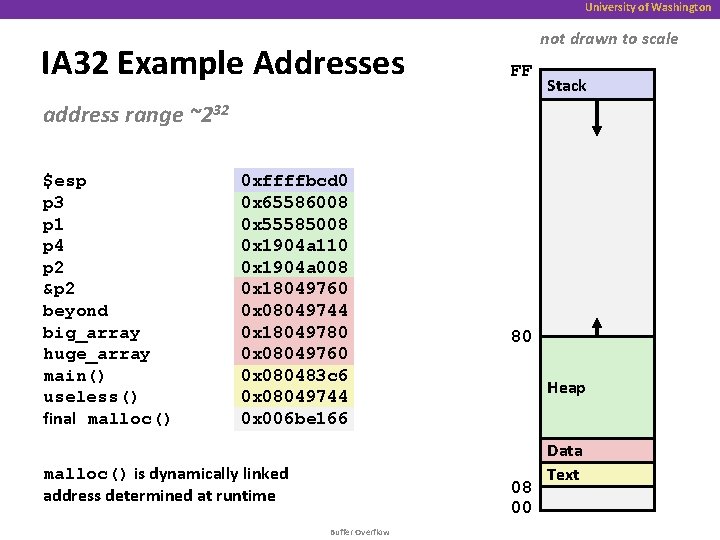

University of Washington IA 32 Example Addresses not drawn to scale FF Stack address range ~232 $esp p 3 p 1 p 4 p 2 &p 2 beyond big_array huge_array main() useless() final malloc() 0 xffffbcd 0 0 x 65586008 0 x 55585008 0 x 1904 a 110 0 x 1904 a 008 0 x 18049760 0 x 08049744 0 x 18049780 0 x 08049760 0 x 080483 c 6 0 x 08049744 0 x 006 be 166 malloc() is dynamically linked address determined at runtime 80 Heap 08 00 Buffer Overflow Data Text

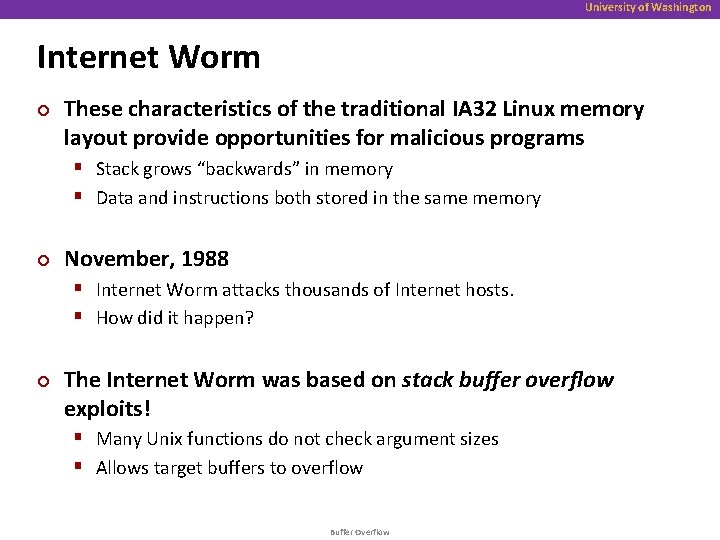

University of Washington Internet Worm ¢ These characteristics of the traditional IA 32 Linux memory layout provide opportunities for malicious programs § Stack grows “backwards” in memory § Data and instructions both stored in the same memory ¢ November, 1988 § Internet Worm attacks thousands of Internet hosts. § How did it happen? ¢ The Internet Worm was based on stack buffer overflow exploits! § Many Unix functions do not check argument sizes § Allows target buffers to overflow Buffer Overflow

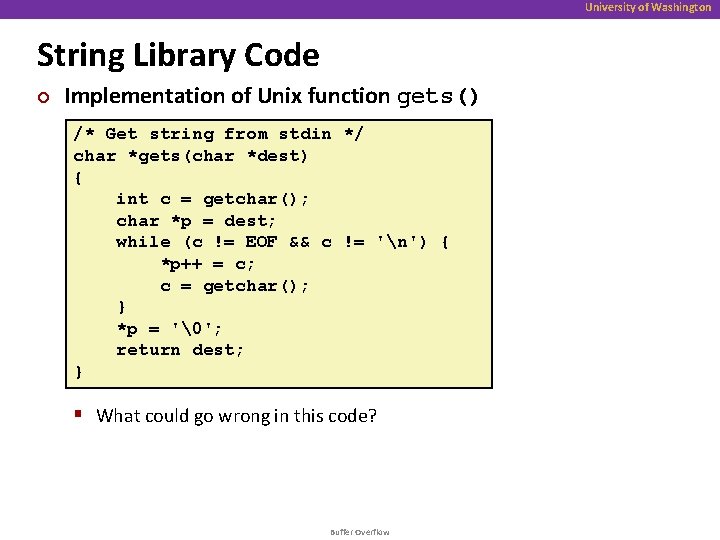

University of Washington String Library Code ¢ Implementation of Unix function gets() /* Get string from stdin */ char *gets(char *dest) { int c = getchar(); char *p = dest; while (c != EOF && c != 'n') { *p++ = c; c = getchar(); } *p = ''; return dest; } § What could go wrong in this code? Buffer Overflow

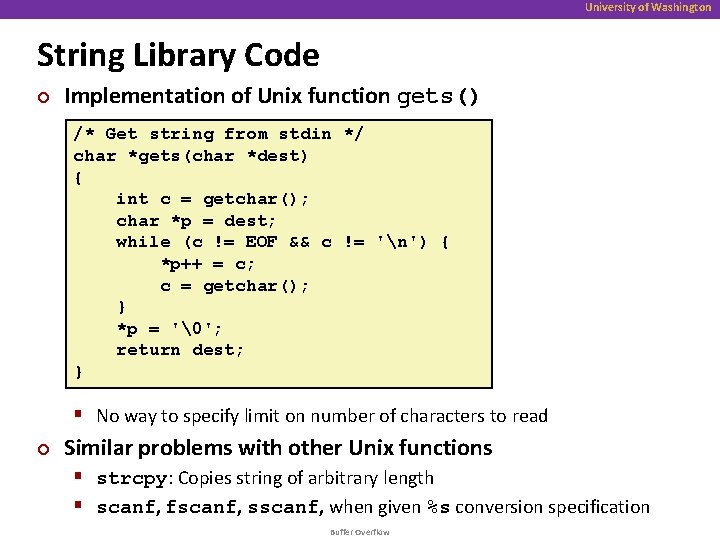

University of Washington String Library Code ¢ Implementation of Unix function gets() /* Get string from stdin */ char *gets(char *dest) { int c = getchar(); char *p = dest; while (c != EOF && c != 'n') { *p++ = c; c = getchar(); } *p = ''; return dest; } § No way to specify limit on number of characters to read ¢ Similar problems with other Unix functions § strcpy: Copies string of arbitrary length § scanf, fscanf, sscanf, when given %s conversion specification Buffer Overflow

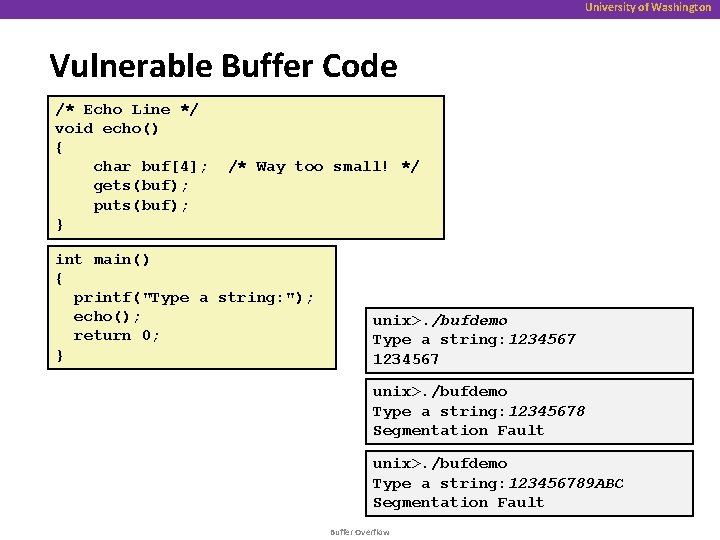

University of Washington Vulnerable Buffer Code /* Echo Line */ void echo() { char buf[4]; gets(buf); puts(buf); } /* Way too small! */ int main() { printf("Type a string: "); echo(); return 0; } unix>. /bufdemo Type a string: 12345678 Segmentation Fault unix>. /bufdemo Type a string: 123456789 ABC Segmentation Fault Buffer Overflow

University of Washington Buffer Overflow Disassembly 080484 f 0 <echo>: 80484 f 0: 55 80484 f 1: 89 e 5 80484 f 3: 53 80484 f 4: 8 d 5 d 80484 f 7: 83 ec 80484 fa: 89 1 c 80484 fd: e 8 ae 8048502: 89 1 c 8048505: e 8 8 a 804850 a: 83 c 4 804850 d: 5 b 804850 e: c 9 804850 f: c 3 80485 f 2: 80485 f 7: 80485 fa: 80485 fb: 80485 fd: f 8 14 24 ff ff ff 24 fe ff ff 14 push mov push lea sub mov call add pop leave ret %ebp %esp, %ebp %ebx 0 xfffffff 8(%ebp), %ebx $0 x 14, %esp %ebx, (%esp) 80484 b 0 <gets> %ebx, (%esp) 8048394 <puts@plt> $0 x 14, %esp %ebx e 8 f 9 fe ff ff 8 b 5 d fc c 9 31 c 0 c 3 call mov leave xor ret 80484 f 0 <echo> 0 xfffffffc(%ebp), %ebx Buffer Overflow %eax, %eax

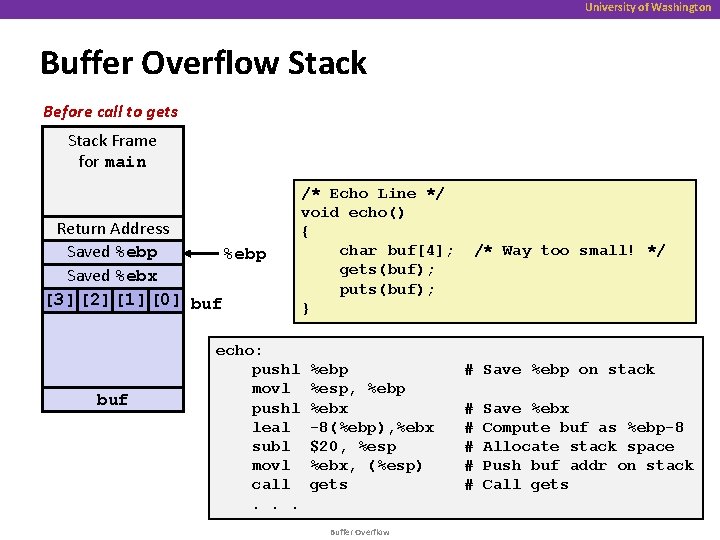

University of Washington Buffer Overflow Stack Before call to gets Stack Frame for main Return Address Saved %ebp Saved %ebx [3] [2] [1] [0] buf echo: pushl movl pushl leal subl movl call. . . /* Echo Line */ void echo() { char buf[4]; gets(buf); puts(buf); } %ebp %esp, %ebp %ebx -8(%ebp), %ebx $20, %esp %ebx, (%esp) gets Buffer Overflow /* Way too small! */ # Save %ebp on stack # # # Save %ebx Compute buf as %ebp-8 Allocate stack space Push buf addr on stack Call gets

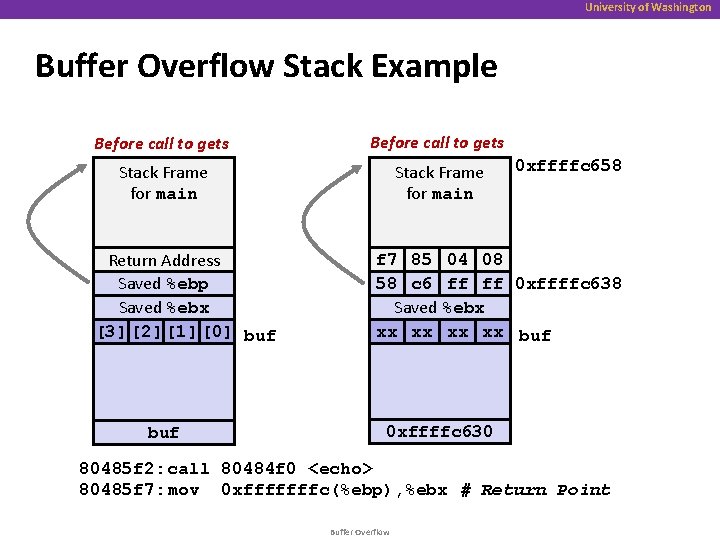

University of Washington Buffer Overflow Stack Example Before call to gets Stack Frame for main Return Address Saved %ebp Saved %ebx [3] [2] [1] [0] buf 0 xffffc 658 f 7 85 04 08 58 c 6 ff ff 0 xffffc 638 Saved %ebx xx xx buf 0 xffffc 630 80485 f 2: call 80484 f 0 <echo> 80485 f 7: mov 0 xfffffffc(%ebp), %ebx # Return Point Buffer Overflow

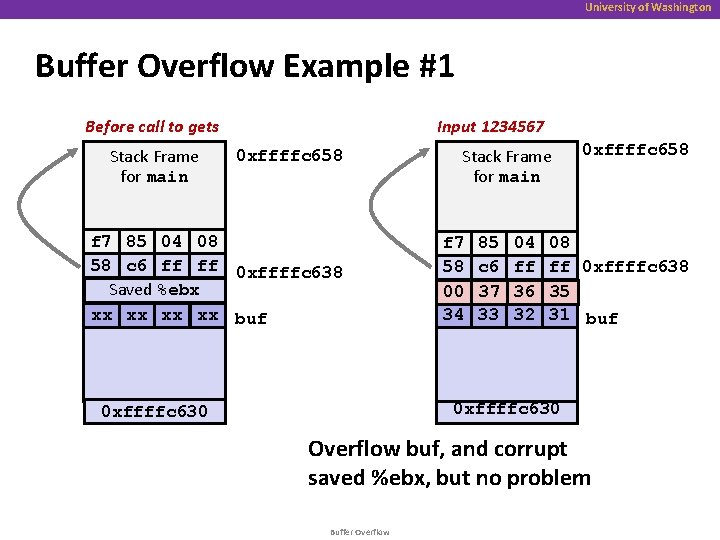

University of Washington Buffer Overflow Example #1 Input 1234567 Before call to gets Stack Frame for main 0 xffffc 658 f 7 85 04 08 58 c 6 ff ff 0 xffffc 638 Saved %ebx xx xx buf Stack Frame for main f 7 58 00 34 85 c 6 37 33 04 ff 36 32 0 xffffc 658 08 ff 0 xffffc 638 35 31 buf 0 xffffc 630 Overflow buf, and corrupt saved %ebx, but no problem Buffer Overflow

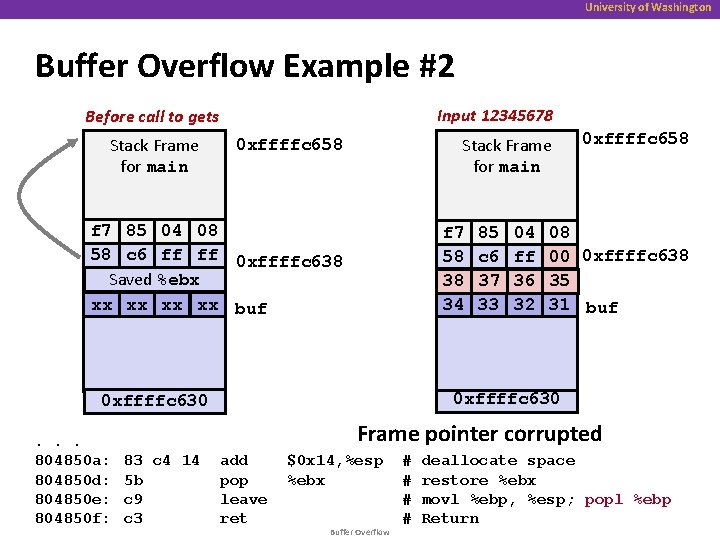

University of Washington Buffer Overflow Example #2 Input 12345678 Before call to gets Stack Frame for main 0 xffffc 658 f 7 85 04 08 58 c 6 ff ff 0 xffffc 638 Saved %ebx xx xx buf f 7 58 38 34 04 ff 36 32 08 00 0 xffffc 638 35 31 buf 0 xffffc 630. . . 804850 a: 804850 d: 804850 e: 804850 f: 85 c 6 37 33 0 xffffc 658 Frame pointer corrupted 83 c 4 14 5 b c 9 c 3 add pop leave ret $0 x 14, %esp %ebx Buffer Overflow # # deallocate space restore %ebx movl %ebp, %esp; popl %ebp Return

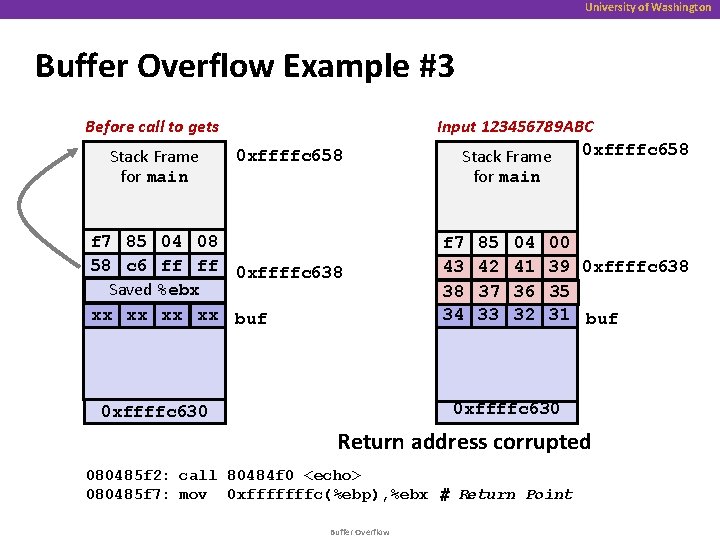

University of Washington Buffer Overflow Example #3 Before call to gets Stack Frame for main 0 xffffc 658 f 7 85 04 08 58 c 6 ff ff 0 xffffc 638 Saved %ebx xx xx buf Input 123456789 ABC 0 xffffc 658 Stack Frame for main f 7 43 38 34 85 42 37 33 04 41 36 32 00 39 0 xffffc 638 35 31 buf 0 xffffc 630 Return address corrupted 080485 f 2: call 80484 f 0 <echo> 080485 f 7: mov 0 xfffffffc(%ebp), %ebx # Return Point Buffer Overflow

University of Washington Malicious Use of Buffer Overflow Stack after call to gets() void foo(){ bar(); . . . } int bar() { char buf[64]; gets(buf); . . . return. . . ; } ¢ ¢ ¢ foo stack frame return address A B (was A) data written by gets() B pad exploit code bar stack frame Input string contains byte representation of executable code Overwrite return address A with address of buffer (need to know B) When bar() executes ret, will jump to exploit code (instead of A) Buffer Overflow

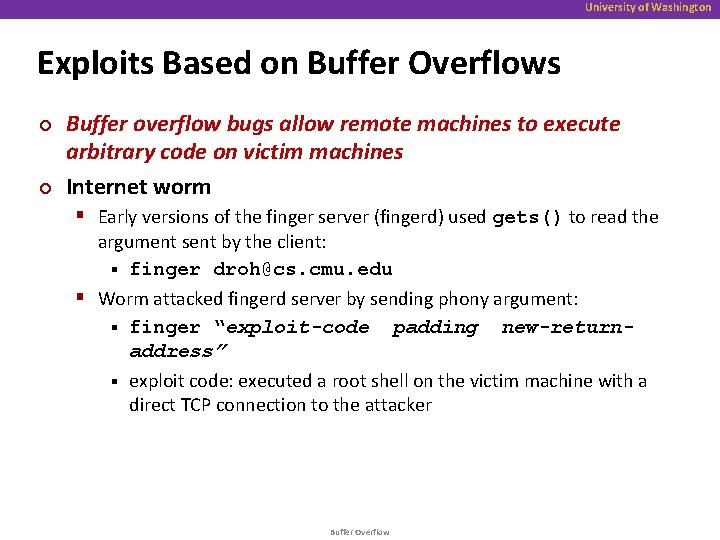

University of Washington Exploits Based on Buffer Overflows ¢ ¢ Buffer overflow bugs allow remote machines to execute arbitrary code on victim machines Internet worm § Early versions of the finger server (fingerd) used gets() to read the argument sent by the client: § finger droh@cs. cmu. edu § Worm attacked fingerd server by sending phony argument: § finger “exploit-code padding new-returnaddress” § exploit code: executed a root shell on the victim machine with a direct TCP connection to the attacker Buffer Overflow

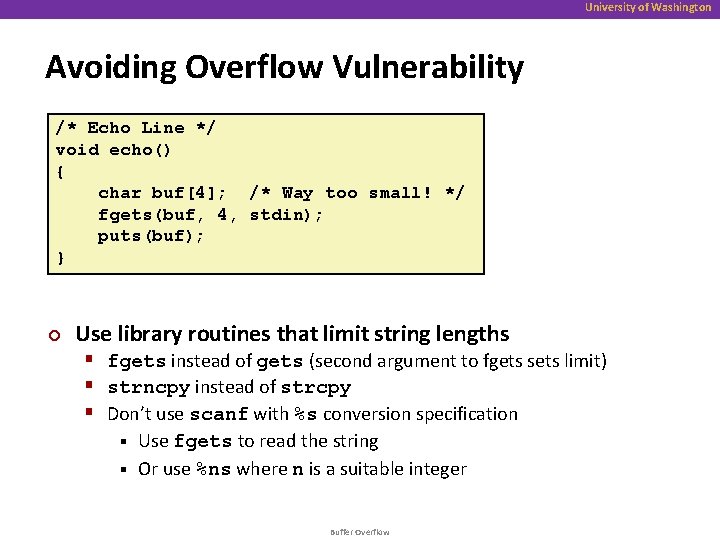

University of Washington Avoiding Overflow Vulnerability /* Echo Line */ void echo() { char buf[4]; /* Way too small! */ fgets(buf, 4, stdin); puts(buf); } ¢ Use library routines that limit string lengths § fgets instead of gets (second argument to fgets sets limit) § strncpy instead of strcpy § Don’t use scanf with %s conversion specification Use fgets to read the string § Or use %ns where n is a suitable integer § Buffer Overflow

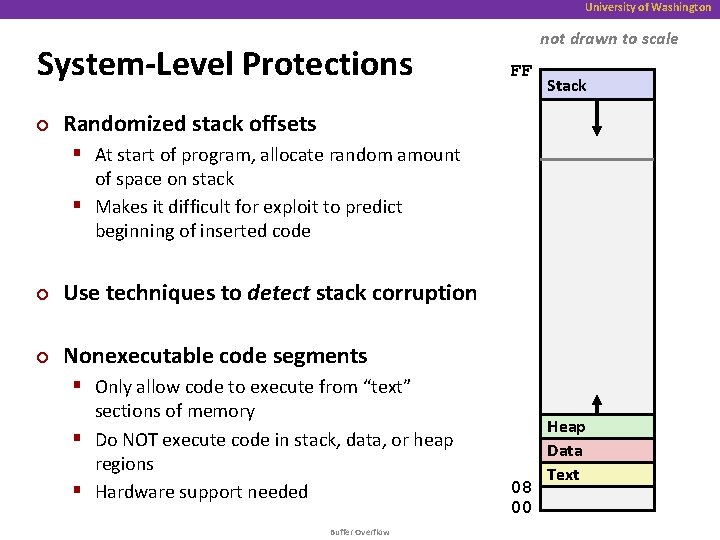

University of Washington System-Level Protections ¢ not drawn to scale FF Stack Randomized stack offsets § At start of program, allocate random amount of space on stack § Makes it difficult for exploit to predict beginning of inserted code ¢ Use techniques to detect stack corruption ¢ Nonexecutable code segments § Only allow code to execute from “text” sections of memory § Do NOT execute code in stack, data, or heap regions § Hardware support needed Buffer Overflow 08 00 Heap Data Text
